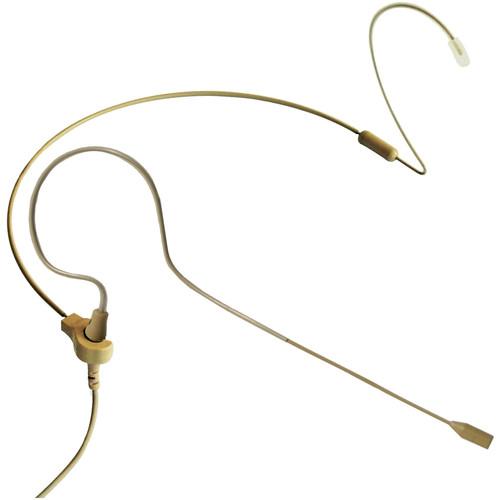

User Manual for Point Source Audio CO-5w-Kit Waterproof Ear-Worn Omnidirectional Microphone Click to enlarge the picture
Contents of the user manual for the Point Source Audio CO-5w-Kit Waterproof Ear-Worn
- Product category: Microphones for Wireless Point Source Audio
- Brand: Point Source Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Point Source Audio Microphones for Wireless
|
User manual for the Point Source Audio CO-5w-Kit Waterproof Ear-Worn contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Point Source Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Point Source Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Point Source Audio product will considerably shorten its lifespan!
|
Product description The Point Source Audio CO-5w-Kit Waterproof Ear-Worn Omnidirectional Microphone offers a cost effective solution for hands-free speech and vocal applications without sacrificing sound quality. Its waterproof design resists moisture from sweat, humidity, rain, and other moisture. The microphone features a low-profile flexible boom for easy microphone positioning, and an ear-loop designed to mount onto the left or right ear.Its omnidirectional microphone capsule provides a generous pickup area and is most effective in minimizing noise caused by breathing, popping, wind and general movement. The CO-5w-Kit features a sensitivity and SPL handling optimized for speech and vocals. The microphone is an ideal solution for houses-of-worship, presentations, aerobics, singing, close talking, lectures and anywhere a hands-free, high quality low-profile microphone is necessary. - Waterproof design defends against sweat and makeup
- Increased gain before feedback
- Flexible left or right ear design
- Converts to dual earset - left or right ear
UPC: 851276002874 In the Box Point Source Audio CO-5w-Kit Waterproof Ear-Worn Omnidirectional Microphone (Beige) 6-Pack of Windscreens Dual Earclip Storage Case Clothing Clip 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Point Source Audio CO-5w-Kit Waterproof Ear-Worn Omnidirectional Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPoint Source Audio CO-5w Specs | Transducer | Back electret condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 40Hz - 17kHz | | Sensitivity | -67dB ± 3 dB (0dB = 1V/microbar at 1kHz) | | Maximum SPL | 125dB | | Output Impedance | 2,000 Ω ± 30% (at 1kHz) | | Operating Voltage | 1.5V - 10VDC | | Boom | Boom flexibility: No single bend to exceed 20° | | Output Connectors | Cable length: 4' 2" (127cm)
1/8" (3.5mm) Mini connector for Sennheiser wireless transmitters | | Weight | 0.6 oz (17g) | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 6.6 x 5.6 x 1.1" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 31 owners. Add your rating and experience with the product.
