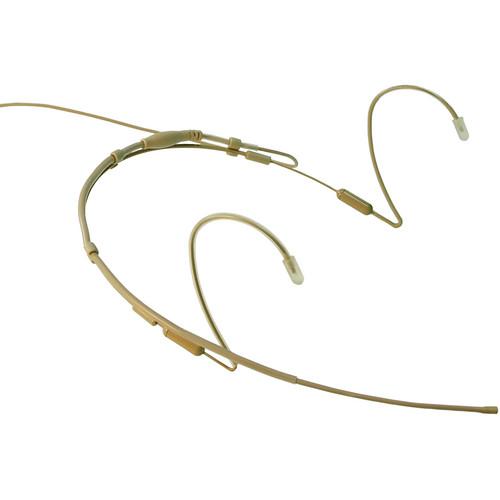

Product description The beige CO-8WD-XAK-BE from Point Source Audio is a dual-ear headset microphone which provides pristine sound quality with a secure and comfortable fit for applications such as vocal performances, recordings, and speeches in worship facilities, on stages, and more. This omnidirectional microphone delivers 148 dB maximum SPL with a 20 Hz to 20 kHz frequency response and high-gain before feedback, making it well suited for use in low- to moderate-noise environments. It is mounted on a flexible boom which bends up to 360° and allows the miniaturized capsule to sit comfortably at the corner of the mouth for an unobtrusive appearance. The CO-8WD boasts an IP57 waterproof rating and is protected against water, sweat, and makeup. Its reversible design lets you choose between left or right ear placement, while the hooks conveniently fold flat for easy storage and safe transportation. This headset comes with an XAK interchangeable TA3F X-Connector for AKG transmitters. A windscreen, clothing clip, and storage box are also included. - Includes XAK interchangeable TA3F X-Connector for AKG transmitters
- Omnidirectional pattern provides a natural vocal sound and is well suited for low- to moderate-noise environments
- IP57 waterproof rating: Microphone is protected against water, sweat, and makeup
- High gain before feedback and 148 db maximum SPL for distortion-free live performance, recordings, and speeches
- Dual-ear headset with reversible left- or right-ear wearing
- Boom bends up to 360° and miniaturized capsule allows microphone to sit comfortably at the corner of the mouth for unobtrusive appearance
- Headset ear hooks fold flat for easy storage and safe transportation
- Includes windscreen, clothing clip, storage box
In the Box Point Source Audio CO-8WD-XAK-BE CO-8WD Omnidirectional Waterproof Headset Microphone for AKG Wireless Transmitters (Beige) XAK TA3F X-Connector Windscreen Clothing Clip Storage Box Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Point Source Audio CO-8WD-XAK-BE CO-8WD Omnidirectional Waterproof Headset Microphone for AKG Wireless Transmitters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPoint Source Audio CO-8WD Specs | Compatibility | AKG transmitters | | Microphone Element | Back electret condenser, 0.07" / 2 mm in diameter | | Pattern | Omnidirectional | | Frequency Response | 20 Hz to 20 kHz | | Sensitivity | -43 dB 1 V/Pa (± 3 dB at 1 kHz) | | Maximum SPL | 148 dB | | Output Impedance | 1.4 kOhms (at 1 kHz) | | Operating Voltage | 1 to 10 V | | Waterproof/Dustproof Rating | IP57 | | Connector Type | TA3F X-Connector | | Cable Length | 48.08" / 122.11 cm | | Weight | 0.6 oz / 17 g | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 9.0 x 6.0 x 1.0" |
