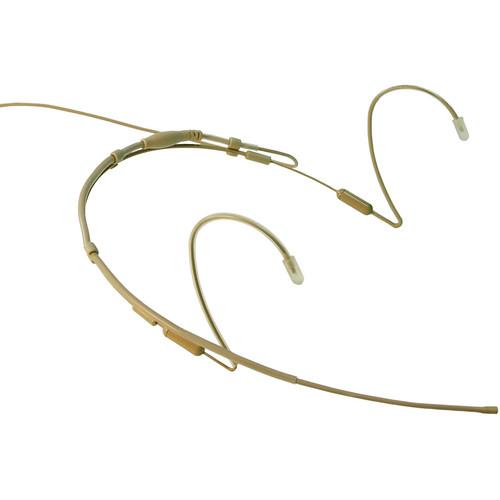

User Manual for Point Source Audio CO-8WD-XSH-BE CO-8WD Omnidirectional Waterproof Headset Microphone for Shure Wireless Transmitters Click to enlarge the picture
Contents of the user manual for the Point Source Audio CO-8WD-XSH-BE CO-8WD Omnidirectional
- Product category: Microphones for Wireless Point Source Audio
- Brand: Point Source Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Point Source Audio Microphones for Wireless
|
User manual for the Point Source Audio CO-8WD-XSH-BE CO-8WD Omnidirectional contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Point Source Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Point Source Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Point Source Audio product will considerably shorten its lifespan!
|
Product description The beige CO-8WD-XSH-BE from Point Source Audio is a dual-ear headset microphone which provides pristine sound quality with a secure and comfortable fit for applications such as vocal performances, recordings, and speeches in worship facilities, on stages, and more. This omnidirectional microphone delivers 148 dB maximum SPL with a 20 Hz to 20 kHz frequency response and high-gain before feedback, making it well suited for use in low- to moderate-noise environments. It is mounted on a flexible boom which bends up to 360° and allows the miniaturized capsule to sit comfortably at the corner of the mouth for an unobtrusive appearance. The CO-8WD boasts an IP57 waterproof rating and is protected against water, sweat, and makeup. Its reversible design lets you choose between left or right ear placement, while the hooks conveniently fold flat for easy storage and safe transportation. This headset comes with an XSH interchangeable TA4F X-Connector for Shure, Line 6, JTS, Trantec and Carvin transmitters. A windscreen, clothing clip, and storage box are also included. - Includes XSH interchangeable TA4F X-Connector for Shure, Line 6, JTS, Trantec and Carvin transmitters
- Omnidirectional pattern provides a natural vocal sound and is well suited for low- to moderate-noise environments
- IP57 waterproof rating: Microphone is protected against water, sweat, and makeup
- High gain before feedback and 148 db maximum SPL for distortion-free live performance, recordings, and speeches
- Dual-ear headset with reversible left- or right-ear wearing
- Boom bends up to 360° and miniaturized capsule allows microphone to sit comfortably at the corner of the mouth for unobtrusive appearance
- Headset ear hooks fold flat for easy storage and safe transportation
- Includes windscreen, clothing clip, storage box
In the Box Point Source Audio CO-8WD-XSH-BE CO-8WD Omnidirectional Waterproof Headset Microphone for Shure Wireless Transmitters (Beige) XSH TA4F X-Connector Windscreen Clothing Clip Storage Box Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Point Source Audio CO-8WD-XSH-BE CO-8WD Omnidirectional Waterproof Headset Microphone for Shure Wireless Transmitters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPoint Source Audio CO-8WD Specs | Compatibility | Shure, Line 6, JTS, Trantec, Carvin transmitters | | Microphone Element | Back electret condenser, 0.07" / 2 mm in diameter | | Pattern | Omnidirectional | | Frequency Response | 20 Hz to 20 kHz | | Sensitivity | -43 dB 1 V/Pa (± 3 dB at 1 kHz) | | Maximum SPL | 148 dB | | Output Impedance | 1.4 kOhms (at 1 kHz) | | Operating Voltage | 1 to 10 V | | Waterproof/Dustproof Rating | IP57 | | Connector Type | TA4F X-Connector | | Cable Length | 48.08" / 122.11 cm | | Weight | 0.6 oz / 17 g | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 6.6 x 5.6 x 1.2" |
