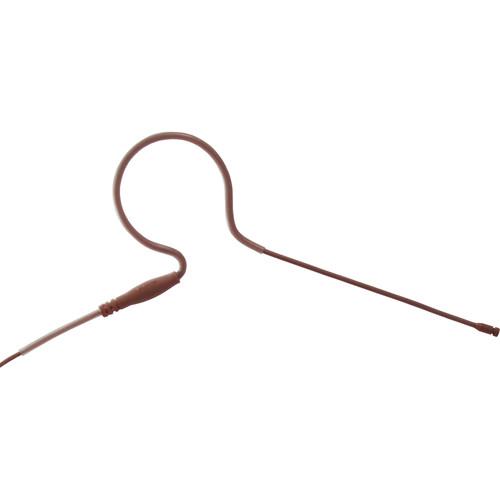

User Manual for Point Source Audio CR-8S Cardioid Earworn Microphone with Interchangeable 3-Pin Mini-Connector for AKG Transmitters Click to enlarge the picture
Contents of the user manual for the Point Source Audio CR-8S Cardioid Earworn
- Product category: Microphones for Wireless Point Source Audio
- Brand: Point Source Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Point Source Audio Microphones for Wireless
|
User manual for the Point Source Audio CR-8S Cardioid Earworn contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Point Source Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Point Source Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Point Source Audio product will considerably shorten its lifespan!
|
Product description The brown CR-8S Cardioid Earworn Microphone from Point Source Audio is designed for high noise applications where more than one microphone is required such as for live performances and recordings. The cardioid pattern of the microphone will pick up sound from one direction, so it can be focused on the sounds of the person wearing the microphone. The unit features a 4mm diameter microphone element that can be positioned at the corner of the mouth to maintain an unobtrusive appearance. The microphone features an unbreakable boom that can bend up to 360° and a flexible earhook that can be worn on either the left or the right ear. Alternatively you can utilize a dual-earset microphone clip to convert the earworn microphone so it can be worn on both ears for more support. The unit offers optimal gain amplification before feedback and can handle sounds with a maximum SPL of 135 dB. The microphone can connect to a wide range of wireless microphone transmitters using its interchangeable X-Connector system. This particular unit comes with an interchangeable 3-pin mini-connector for AKG transmitters. The microphone also comes with a foam windscreen, a body clip, and a storage box. In the Box Point Source Audio CR-8S Cardioid Earworn Microphone with Interchangeable 3-Pin Mini-Connector for AKG Transmitters (Brown) Interchangeable 3-Pin Mini X-Connector for AKG and Audix Microphones wxeeawxewevdrstdwurftvasxtuuzbyeuey Body Clip Wind Screen (Brown) Storage Box Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Point Source Audio CR-8S Cardioid Earworn Microphone with Interchangeable 3-Pin Mini-Connector for AKG Transmitters in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPoint Source Audio CR-8 Specs | Element | Back electret condenser | | Pattern | Cardioid | | Microphone Diameters | 4 mm | | Frequency Response | 160 to 14,000 Hz | | Sensitivity | -70 dB ±3 dB (0 dB = 1 V/microbar at 1,000 Hz) | | Maximum SPL | 135 dB SPL | | Output Impedance | 5,000 Ω (at 1,000 Hz) | | Operating Voltage | 1 to 10 V | | Boom Range | 360° | | Ear Placement | Reversible left or right | | Connector Type | 3-pin mini-connector for AKG transmitters | | Cable Length | 48.077" (122.16 cm) + connector | | Net Weight | 0.6 oz (17 g) |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 77 owners. Add your rating and experience with the product.
