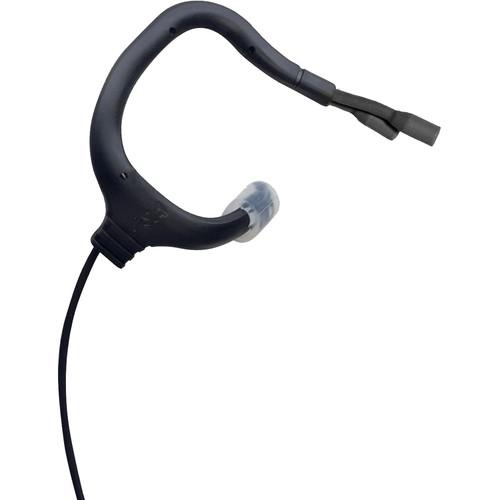

User Manual for Point Source Audio Embrace EO2-8WL Dual-Element Omnidirectional Earmount Microphone Click to enlarge the picture
Contents of the user manual for the Point Source Audio Embrace EO2-8WL Dual-Element
- Product category: Microphones for Wireless Point Source Audio
- Brand: Point Source Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Point Source Audio Microphones for Wireless
|
User manual for the Point Source Audio Embrace EO2-8WL Dual-Element contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Point Source Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Point Source Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Point Source Audio product will considerably shorten its lifespan!
|
Product description The black Embrace EO2-8WL Dual-Element Omnidirectional Earmount Microphone from Point Source Audio pairs two microphone elements into a single housing to create a sleek form factor and ultra-low-profile earmount microphone. It can be used to capture audio and offers built-in microphone redundancy for wireless transmitters in live stage, theater, and broadcast applications. The Embrace EO2-8WL's dual elements are factory matched to a near identical ±0.5 dB difference and both elements are IP57 waterproof rated. The microphone cable splits approximately 9" above the connection to the bodypack to allow for ample room for separation of the transmitters. In addition, the mic is equipped with a 6' cable that terminates with two 4-pin Hirose X-Connectors for Audio-Technica transmitters. - 4-pin Hirose X-Connectors for Audio-Technica transmitters
- Two Mics in one—dual matched waterproof elements for built-in redundancy
- Earmounts are bendable and trimmable for a custom fit
- Optimal gain before feedback
- Accepts theatrical color markers for camouflaging
In the Box Point Source Audio Embrace EO2-8WL Dual-Element Omnidirectional Earmount Microphone (Black) 2 x XAT X-Connectors 2 x Earmounts Slider Clip Cable Clip Foam Windscreen Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Point Source Audio Embrace EO2-8WL Dual-Element Omnidirectional Earmount Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPoint Source Audio EMBRACE Specs | | | Sound Field | Mono | | Transducer | Electret Condenser | | Polar Pattern | Omnidirectional | | Frequency Range | 20 Hz to 20 kHz | | Maximum SPL | 136 dB SPL Peak | | Impedance | 1400 Ohms @ 1 kHz | | Sensitivity | 43 mV/Pa at 1 kHz | | | | Output Connector | 4-Pin Hirose | | Cable Length | 6' / 1.83 m | | Operating Voltage | 1 to 10 V | | Weight | 0.6 oz / 17 g |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 32 owners. Add your rating and experience with the product.
