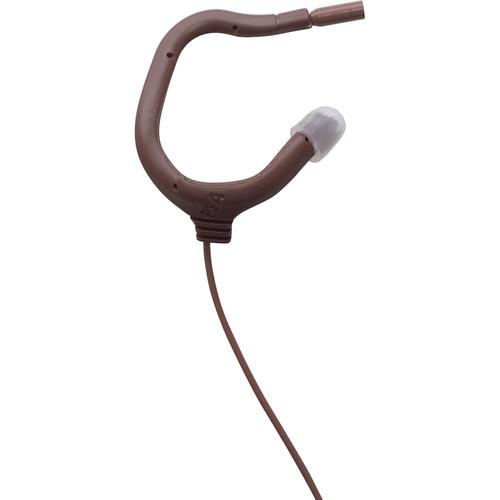

User Manual for Point Source Audio EO-8WL-XSD-BR EMBRACE Omnidirectional Earmount Lavalier Microphone for Sony DWT-B01 Wireless Transmitter Click to enlarge the picture
Contents of the user manual for the Point Source Audio EO-8WL-XSD-BR EMBRACE Omnidirectional
- Product category: Microphones for Wireless Point Source Audio
- Brand: Point Source Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Point Source Audio Microphones for Wireless
|
User manual for the Point Source Audio EO-8WL-XSD-BR EMBRACE Omnidirectional contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Point Source Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Point Source Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Point Source Audio product will considerably shorten its lifespan!
|
Product description The brown Point Source Audio EO-8WL-XSD-BR EMBRACE Omnidirectional Earmount Lavalier Microphone is an ear-mounted microphone that provides pristine sound quality with a secure and comfortable fit. It is ideal for capturing vocal performances in theater, broadcast, film, corporate, and other applications where the performer's microphone needs to be concealed.This omnidirectional microphone delivers 136 dB maximum SPL with a 20 Hz to 20 kHz frequency response and high-gain before feedback, making it well suited for use in low- to moderate-noise environments. It is mounted on a flexible boom which bends up to 360° and allows the miniaturized capsule to maintain consistent placement at the corner of the mouth for an even sound quality, regardless of head movement.The EO-8WL boasts an IP57 waterproof rating and is protected against water, sweat, and makeup. For a precise custom fit, you can bend, shape, and trim the included earmounts, and choose between left- or right-ear placement.This headset comes with an XSD interchangeable 4-pin Hirose twist-lock X-Connector for Sony DWT-B01 wireless transmitters. A windscreen, two clothing clips, and a cable clip are also included. Key Features - Earmount lavalier microphone for performance vocals
- Accept theatrical color markers of almost any color for theater, television, and other applications where the microphone must be completely camouflaged
- Comes with an interchangeable 4-pin Hirose twist-lock X-Connector for Sony DWT-B01 wireless transmitters
- SERIES8 CO-8WL omnidirectional lavalier microphone (brown)—well-suited for low- to moderate-noise environments
- Super Flex bendable boom is unbreakable up to 360°—maintains consistent placement from the mouth, even with head movement
- Includes two EMBRACE earmounts for left and right wearing placement—bend, shape, and trim earmounts for a precise custom fit
- IP57 waterproof rating against water, sweat, and makeup
- X-Connector has a threaded screw connection—simple to remove and remains secure while in use
- Optimal gain before feedback
- Includes two slider clips for traditional mounting on clothing and one alligator cable clip
In the Box Point Source Audio EO-8WL-XSD-BR EMBRACE Omnidirectional Earmount Lavalier Microphone for Sony DWT-B01 Wireless Transmitter (Brown) XSD Interchangeable 4-Pin Hirose Twist-Lock Connector for Sony DWT-B01 Wireless Transmitter 2 x EMBRACE Earmounts (Left/Right, Brown) Cable Clip 2 x Slider Clips Windscreen (Brown) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Point Source Audio EO-8WL-XSD-BR EMBRACE Omnidirectional Earmount Lavalier Microphone for Sony DWT-B01 Wireless Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPoint Source Audio EO-8 Specs | Microphone Element | Waterproof back electret condenser
Diameter: 0.15" / 4.00 mm | | IP Rating | IP57 waterproof | | Polar Pattern | Omnidirectional | | Frequency Response | 20 Hz to 20 kHz | | Sensitivity | -43 dB, 1 V/Pa (±3 dB at 1 kHz) | | Maximum SPL | 136 dB | | Output Impedance | 1.4 KOhms (
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 65 owners. Add your rating and experience with the product.
