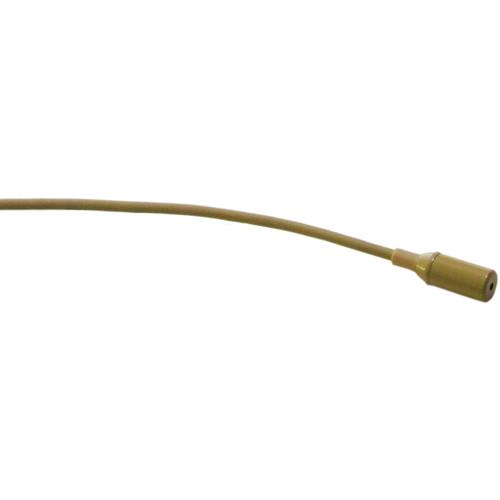

User Manual for Point Source Audio Series8 CO-8WL Omnidirectional Waterproof Lavalier Microphone Click to enlarge the picture
Contents of the user manual for the Point Source Audio Series8 CO-8WL Omnidirectional
- Product category: Microphones for Wireless Point Source Audio
- Brand: Point Source Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Point Source Audio Microphones for Wireless
|
User manual for the Point Source Audio Series8 CO-8WL Omnidirectional contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Point Source Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Point Source Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Point Source Audio product will considerably shorten its lifespan!
|
Product description The beige Point Source Audio Series8 CO-8WL Omnidirectional Waterproof Lavalier Microphone (Lectrosonics-Waterproof) is a miniature mic designed to deliver a natural vocal sound for recording and live sound reinforcement applications such as concerts, musical theater, interviews, public speaking, and more. Featuring an unobtrusive mic element only 4mm in diameter, it can easily fit behind a button of the performer's clothing or be hidden in a hairline.The Series8 CO-8WL's omnidirectional polar pattern allows for a variety of mic placement options as it picks up the voice from all directions equally and doesn't need to be lined up with the mouth. The mic offers an IP57 rating, which protects it against water, sweat, and makeup, commonly harmful to microphones.The unit comes with a windscreen, cable clip, storage box, and an interchangeable 2.5mm locking X-Connector for Lectrosonics wireless systems. - IP57 Waterproof Rating
-
- Microphone can be briefly submersed in water up to 3.3", making it resistant to sweat, water, and makeup
- Easily Concealed
-
- Mic element is only 0.16" / 4mm in diameter and easy to hide in a performer's clothing or hair
- Omnidirectional Pickup Pattern
-
- Omnidirectional polar pattern picks up voice from all directions equally and doesn't need to be lined up with the mouth
- Allows for proximity to the sound source to provide ample gain-before-feedback
- Interchangeable X-Connector
-
- Included interchangeable X-Connector with threaded screw is simple to remove and remains securely in place
In the Box Point Source Audio Series8 CO-8WL Omnidirectional Waterproof Lavalier Microphone (Lectrosonics-Waterproof, Beige) 2.5mm Locking Interchangeable X-Connector for Lectrosonics-Waterproof Wireless Systems Windscreen Cable Clip Storage Box Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Point Source Audio Series8 CO-8WL Omnidirectional Waterproof Lavalier Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPoint Source Audio CO-8WL Specs | | | Sound Field | Mono | | Transducer | Electret Condenser | | Polar Pattern | Omnidirectional | | Frequency Range | 20 Hz to 20 kHz | | Maximum SPL | 136 dB SPL | | Load Impedance | 1.4 kOhms +/- 30% @ 1 kHz | | Sensitivity | -43 dB at 1 kHz | | | | Output Connector | 2.5 mm Locking | | Cable Length | 48.77" / 1.24 m | | Operating Voltage | 1 to 10 V | | Diameter | 0.16" / 4 mm | | Weight | 0.6 oz / 17 g |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 51 owners. Add your rating and experience with the product.
