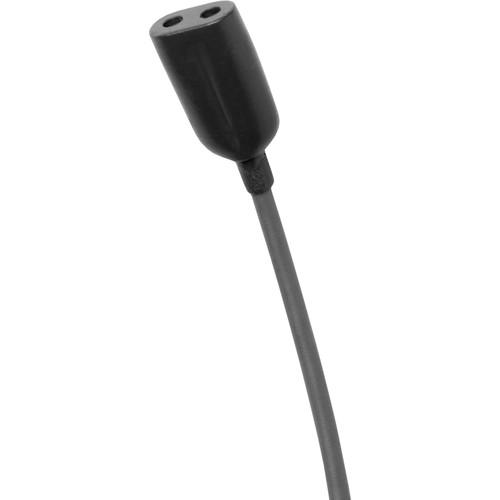

User Manual for Point Source Audio SERIES8 CO2-8WL-LE Dual Omni Lavalier Mic with Hardwired TA5F Connectors Click to enlarge the picture
Contents of the user manual for the Point Source Audio SERIES8 CO2-8WL-LE Dual
- Product category: Microphones for Wireless Point Source Audio
- Brand: Point Source Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Point Source Audio Microphones for Wireless
|
User manual for the Point Source Audio SERIES8 CO2-8WL-LE Dual contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Point Source Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Point Source Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Point Source Audio product will considerably shorten its lifespan!
|
Product description The black SERIES8 CO2-8WL-LE Dual Omnidirectional Lavalier Microphone from Point Source Audio is a fully redundant dual element microphone that is water, sweat, and makeup proof. The SERIES8 lavalier is composed of two sonically matched elements in a single housing that are hardwired with two TA5F connectors for Lectrosonics wireless transmitters (sold separately). The all-in-one solution is suitable for live stage, theater, broadcasting, and production environments. The mic cable splits nine inches above connection to the bodypack and allows ample separation between both wireless transmitters. In addition, the paired microphone is factory matched in frequency and sensitivity so that when vital backup is initiated, any difference in audio performance is nearly undetectable. - Dual matched elements for built-in redundancy
- Hardwired terminations for Lectrosonics wireless transmitters
- Optimal gain before feedback
In the Box Point Source Audio SERIES8 CO2-8WL-LE Dual Omni Lavalier Mic with Hardwired TA5F Connectors (Black) Windscreen SLIDER1 Clip Cable Clip Storage Box Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Point Source Audio SERIES8 CO2-8WL-LE Dual Omni Lavalier Mic with Hardwired TA5F Connectors in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPoint Source Audio CO2-8WD Specs | | | Sound Field | Mono | | Transducer | Electret Condenser | | Polar Pattern | Omnidirectional | | Frequency Range | 20 Hz to 20 kHz | | Maximum SPL | 136 dB SPL RMS | | Impedance | 1400 Ohms ± 30% @ 1 kHz | | Sensitivity | 43 dB at 1 kHz | | | | Output Connector | TA5F/Mini XLR | | Cable Length | 6' / 1.83 m | | Operating Voltage | 1 to 10 V |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 83 owners. Add your rating and experience with the product.
