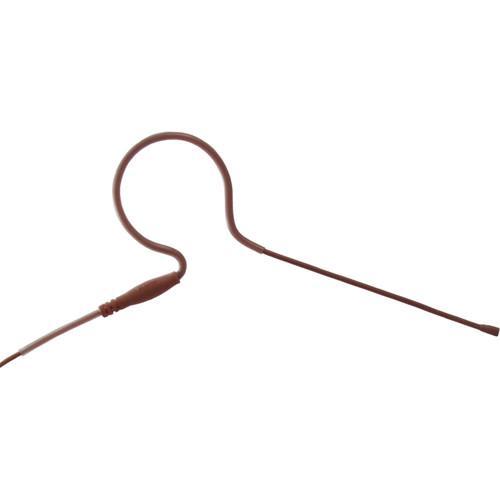

Product description The brown version of the Point-Source Audio Series8 Omnidirectional Earworn Microphone (Lectrosonics) is designed for live sound reinforcement applications where ambient noise is low to moderate such as for concerts, plays, and public speaking. The microphone fits over either the subject's left or right ear and features a 360° bendable and unbreakable boom with an omnidirectional back electret microphone element. The IP57 waterproof rating helps prevent moisture, sweat, or makeup from interfering with the sound.
The microphone can handle a maximum SPL of 148 dB with a sensitivity of -54 dB ±3 dB (0 dB= 1V/microbar at 1 kHz) and a frequency response of 20 to 20,000 Hz. The unit comes with a windscreen, clothing clip, storage box, a 4' cable, and an interchangeable 5-pin mini connector for Lectrosonics. In the Box Point Source Audio Series8 Omnidirectional Earworn Microphone (Lectrosonics, Brown) Limited 1-Year Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Point Source Audio Series8 Omnidirectional Earworn Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPoint Source Audio CO-8WS Specs | Element | Back electret condenser | | Pattern | Omnidirectional | | Frequency Response | 20 to 20,000 Hz | | Sensitivity | -54 dB ±3 dB (0 dB = 1 V/microbar at 1,000 Hz) | | Maximum SPL | 148 dB SPL | | Output Impedance | 1.4 kOhm (at 1,000 Hz) | | Operating Voltage | 1 to 10 V | | Boom | Flexibility: 360° | | Ear Placement | Reversible left or right | | Connector Type | Interchangeable 5-pin mini connector for Lectrosonics | | Cable Length | 48.07" (1.22 m) | | Weight | 0.6 oz (17 g) |
