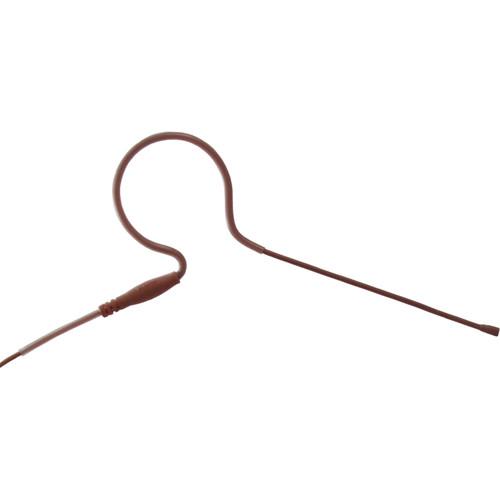

User Manual for Point Source Audio Series8 Omnidirectional Earworn Microphone Click to enlarge the picture
Contents of the user manual for the Point Source Audio Series8 Omnidirectional Earworn
- Product category: Microphones for Wireless Point Source Audio
- Brand: Point Source Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Point Source Audio Microphones for Wireless
|
User manual for the Point Source Audio Series8 Omnidirectional Earworn contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Point Source Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Point Source Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Point Source Audio product will considerably shorten its lifespan!
|
Product description The brown version of the Point-Source Audio Series8 Omnidirectional Earworn Microphone (Beyerdynamic) is designed for live sound reinforcement applications where ambient noise is low to moderate such as for concerts, plays, and public speaking. The microphone fits over either the subject's left or right ear and features a 360° bendable and unbreakable boom with an omnidirectional back electret microphone element. The IP57 waterproof rating helps prevent moisture, sweat, or makeup from interfering with the sound.
The microphone can handle a maximum SPL of 148 dB with a sensitivity of -54 dB ±3 dB (0 dB= 1V/microbar at 1 kHz) and a frequency response of 20 to 20,000 Hz. The unit comes with a windscreen, clothing clip, storage box, a 4' cable, and an interchangeable 4-pin mini connector for Beyerdynamic. In the Box Point Source Audio Series8 Omnidirectional Earworn Microphone (Beyerdynamic, Brown) Limited 1-Year Warranty on Parts and Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Point Source Audio Series8 Omnidirectional Earworn Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPoint Source Audio CO-8WS Specs | Element | Back electret condenser | | Pattern | Omnidirectional | | Frequency Response | 20 to 20,000 Hz | | Sensitivity | -54 dB ±3 dB (0 dB = 1 V/microbar at 1,000 Hz) | | Maximum SPL | 148 dB SPL | | Output Impedance | 1.4 kOhm (at 1,000 Hz) | | Operating Voltage | 1 to 10 V | | Boom | Flexibility: 360° | | Ear Placement | Reversible left or right | | Connector Type | Interchangeable 4-pin mini connector for Beyerdynamic | | Cable Length | 48.07" (1.22 m) | | Weight | 0.6 oz (17 g) |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 67 owners. Add your rating and experience with the product.
