User Manual for Polk Audio Atrium Garden System Click to enlarge the picture
Contents of the user manual for the Polk Audio Atrium Garden System
- Product category: Outdoor Speakers Polk Audio
- Brand: Polk Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Polk Audio Outdoor Speakers
|
User manual for the Polk Audio Atrium Garden System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Polk Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Polk Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Polk Audio product will considerably shorten its lifespan!
|
Product description Create a 2.1-channel outdoor speaker system with your amplifier and the Polk Audio Atrium Garden System. It includes a pair of chestnut brown Atrium Sat300 speakers and a terracotta Atrium Sub100 subwoofer, all of which feature IPX66 weather-resistant ratings for outdoor use. The Sat300 speakers can be installed in the ground, hung from a ceiling or eave, or mounted to a wall with included hardware, and the Sub100 can be secured via an eye-bolt security anchor or screw-down points. - Atrium Sat300 All-Weather Outdoor Speaker (Chestnut Brown, Single) Enjoy music outdoors with the chestnut brown Polk Audio Atrium Sat300 All-Weather Outdoor Speaker. It accepts up to 100W from your amplifier and is IPX66-rated to withstand a variety of weather conditions. It can be installed in-ground with the included spike or hung from your roof or eaves with other included hardware.
- Dynamic Balance Driver Technology
- The midrange driver features a 3.5" long-throw cone with a 1" voice coil, vented pole-piece, butyl rubber surround, and composite cone; the tweeter is a 0.75" composite neodymium dome.
- Accepts up to 100W of Power
- The Atrium Sat300 can handle up to 100W of power for enhanced clarity, detail, and efficiency with less distortion at both moderate and higher volume levels, even in outdoor environments.
- Flying Bridge-Mounted Tweeter
- The tweeter is bridge-mounted so that it doesn't get in the way of the woofer, helping to provide smooth, realistic sound.
- Capacitive Coupling Technology
- This is a signal-blocking technology designed to determine where a small speaker typically loses bass performance, then compensates by boosting the response in that range to help create a wider dynamic range with more musical realism.
- Weather Resistant
- The Atrium Sat300 features a mineral-filled polypropylene housing, 1mm thick aluminum grille, and stainless steel hardware designed to withstand years of weather. It's designed to live outside year-round, with permanent color impregnation and all-weather waterproofing.
- Enhanced Durability and Security
- The shock-absorbing gasket is engineered to withstand blows from weed whackers, mowers, and other lawn equipment, plus the included metal security plate can foil thieves, keeping the Sat300 planted in your garden. A 3.3' CL3-rated direct burial pigtail cable helps eliminate exposed wiring.
- Flexible Design
- Enhanced wiring flexibility is onboard with a built-in crossover. Also featuring a built-in high-pass filter, the Sat300 can be connected directly to its own amplifier channels for independent volume control.
- Versatile Installation
- The Atrium Sat300 can be planted in your landscaping or hung from your ceiling or eaves with the included hardware.

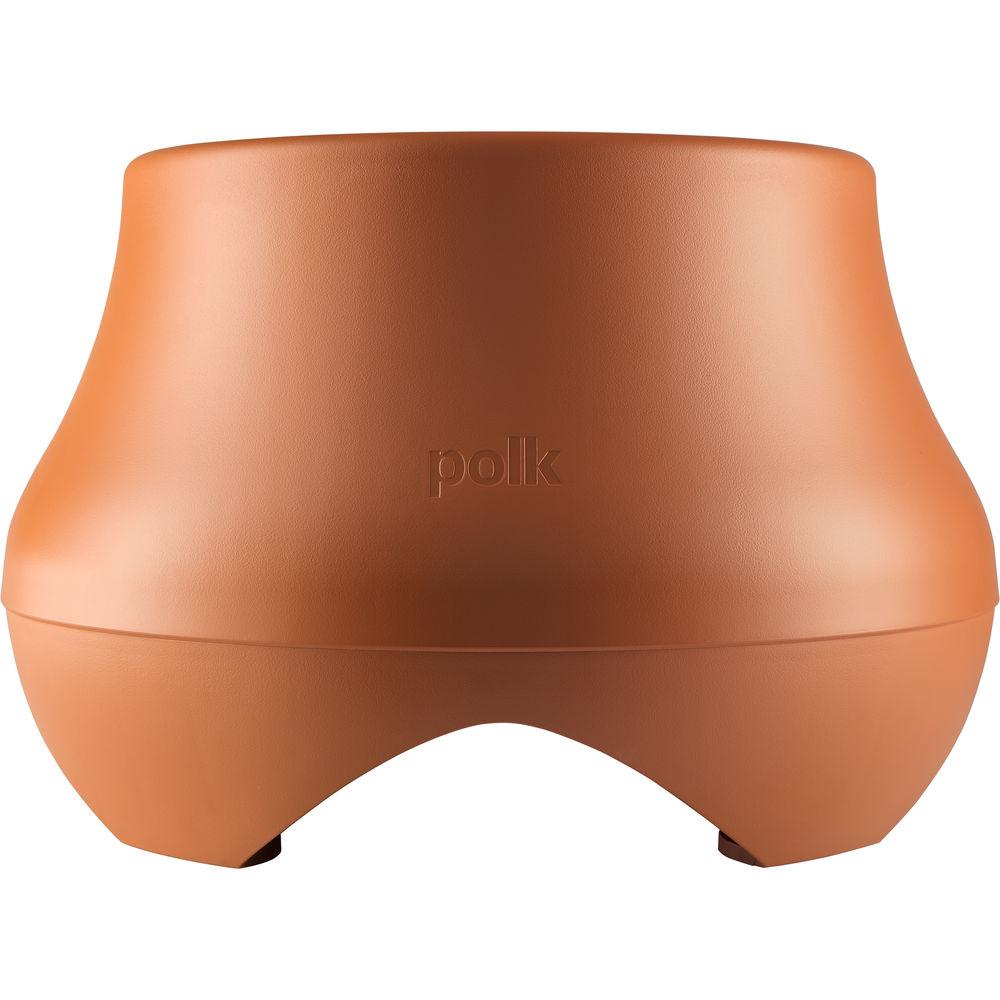

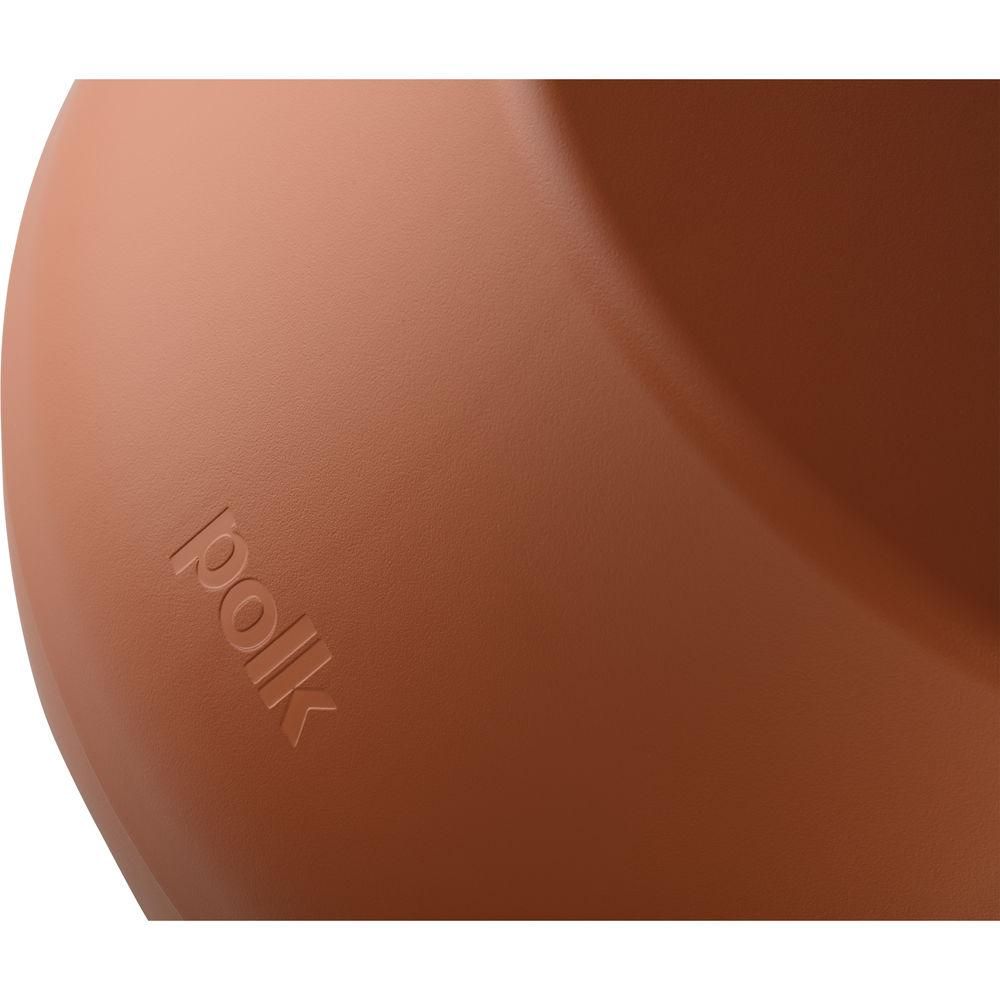

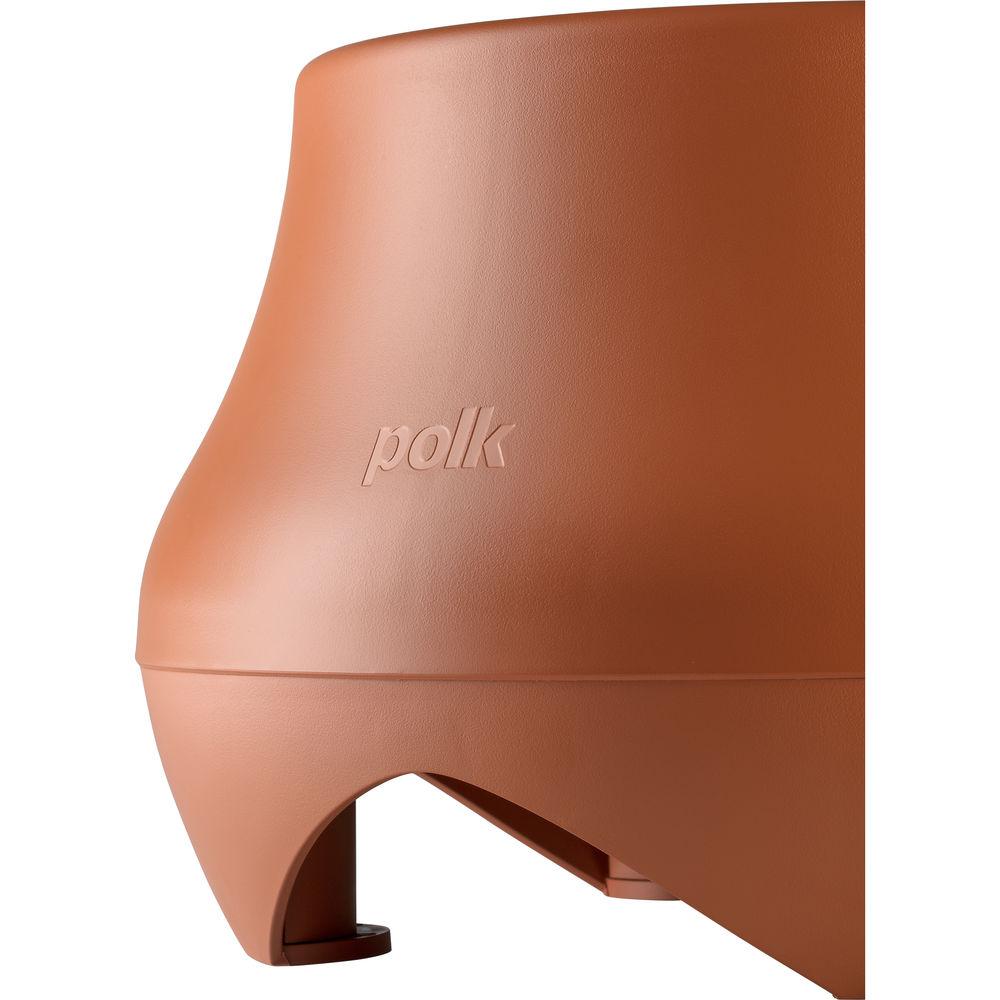

UPC: 747192129309 - Atrium Sub100 10" Passive Outdoor Subwoofer (Terracotta) Add bass to your outdoor sound system with the Polk Audio Atrium Sub100 10" Passive Outdoor Subwoofer. It can handle up to 200W of power from your amplifier and features an IPX66 weather resistance. The cabinet can be painted to match your outdoor décor, and the flat top can be used as a plant stand or a pedestal table.
- Accepts up to 200W of Power
- The Atrium Sub100 can handle up to 200W of power for enhanced bass outdoors.
- Weatherproof Design
- The Atrium Sub100 is housed in a molded and sealed resin enclosure and is marine-certified with an IPX66 rating for weatherproof outdoor performance.
- Dynamic Balance Driver Technology
- The 10" long-throw Dynamic Balance driver is designed to eliminate driver distortion for deep, clean bass, even at high volumes.
- Capacitive Coupling Technology
- The dual 2" voice coil design helps reproduce bass from both stereo channels producing more power in the lower frequencies with the help of Capacitive Coupling Technology.

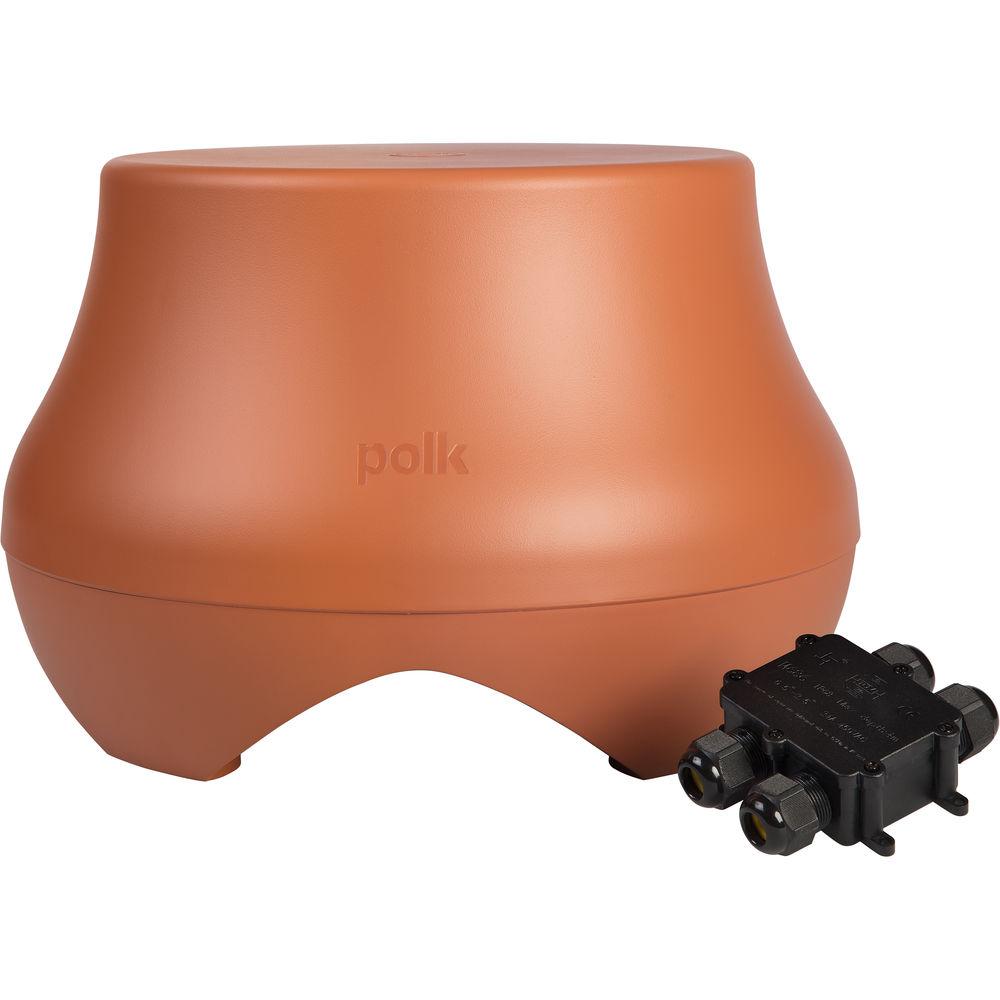

- Waterproof Junction Box
- The included waterproof IP68-rated junction box connects other outdoor speakers and is approved for in-ground use.

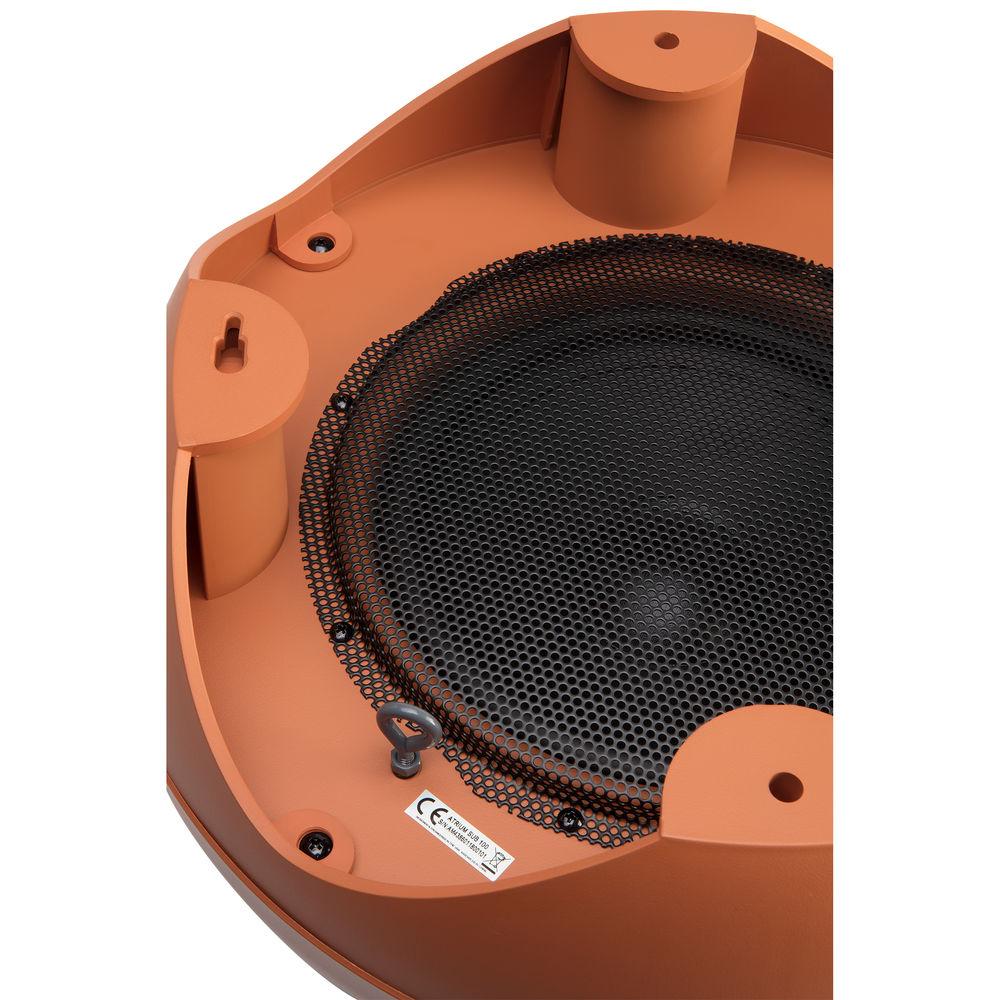

- Aluminum Grille
- The included grille helps protect the woofer and is designed to hold up in the outdoor environment.
- Designed to Blend In
- The enclosure of the Atrium Sub100 can be painted to match your landscape design. The color-impregnated resin is also designed to resist fading and to blend in with your outdoor seating and can even be used as a plant stand or a pedestal table.
- Security Options
- The Atrium Sub100 includes CL3-rated four-conductor direct burial pigtail cable, so no exposed wiring will get in the way of your weed whacker. Additionally, an eye-bolt security anchor and screw-down points add stability and deter theft.
- Flexible Design
- The Atrium Sub100, with built-in low-pass filters, can be connected directly to its own amplifier channels for independent volume control. The built-in crossover adds to its flexibility.
UPC: 747192129293 In the Box Bundle Items 2 x Atrium Sat300 All-Weather Outdoor Speaker (Chestnut Brown, Single) bfvdyxytfuddverftudwazbwce - Ground Installation Hardware
- Hanging Installation Hardware
- Pendant Installation Hardware
Atrium Sub100 10" Passive Outdoor Subwoofer (Terracotta) Table of Contents
|
Upload User Manual
Have you got an user manual for the Polk Audio Atrium Garden System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Atrium Sat300 All-Weather Outdoor Speaker (Chestnut Brown, Single)
Frequency Response | 100 Hz to 22 kHz Lower and Upper -3 dB Limits: 115 Hz to 20 kHz | Recommended Amplifier Power | 10 to 100 W RMS | Nominal Impedance | 8 Ohms | Sensitivity | 83 dB (1 W @ 1 m) | Tweeter | 1 x 0.75" / 1.91 cm Dynamic Balance Polyurethane Tweeter with Neodymium Magnet | Midrange Driver | 1 x 3.5" / 8.89 cm Dynamic Balance Driver with Extended Motor Structure, Composite Cone, and Butyl Rubber Surround | Crossover | Not Specified by Manufacturer | Inputs | Not Specified by Manufacturer | Installation | In-Ground, Wall-Mounted, or Hanging | Construction Material | Cabinet: Mineral-Filled Polypropylene Grille: 1 mm Thick Aluminum Hardware: Stainless Steel | Environmental Standards | IPX66-Rated | Dimensions (W x H x D) | 5.5 x 7 x 8.4" / 13.97 x 17.78 x 21.34 cm | Weight | 3.25 lb / 1.47 kg | | Box Dimensions (LxWxH) | 12.7 x 10.12 x 8.7" | - Atrium Sub100 10" Passive Outdoor Subwoofer (Terracotta)
Crossover Frequency | 150 Hz | Limit Values | Lower and Upper -3 dB: 50 to 110 Hz | Recommended Amplifier Power | 10 to 200 W | Peak Power | 200 W | Nominal Impedance | 8 Ohms | Sensitivity | 88 dB (1 W @ 1 m) | Woofer | 1 x 10" / 25.4 cm Long-Throw Dynamic Balance Composite Cone Driver with Dual Voice Coils and Butyl Rubber Surround | Voice Coil | 2 x 2" / 5.08 cm | Inputs | Not Specified by Manufacturer | Enclosure Type | Acoustic Suspension | Construction Material | Cabinet: Resin Grille: Aluminum | Environmental Standards | IPX66-Rated | Dimensions (W x H x D) | 16.9 x 11 x 16.9" / 42.93 x 27.94 x 42.93 cm | Weight | 16.75 lb / 7.6 kg | | Box Dimensions (LxWxH) | 20.0 x 20.0 x 14.0" |
