User Manual for Polk Audio Atrium Sat300 All-Weather Outdoor Speaker Click to enlarge the picture
Contents of the user manual for the Polk Audio Atrium Sat300 All-Weather Outdoor
- Product category: Outdoor Speakers Polk Audio
- Brand: Polk Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Polk Audio Outdoor Speakers
 |
User manual for the Polk Audio Atrium Sat300 All-Weather Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Polk Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Polk Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Polk Audio product will considerably shorten its lifespan!
|

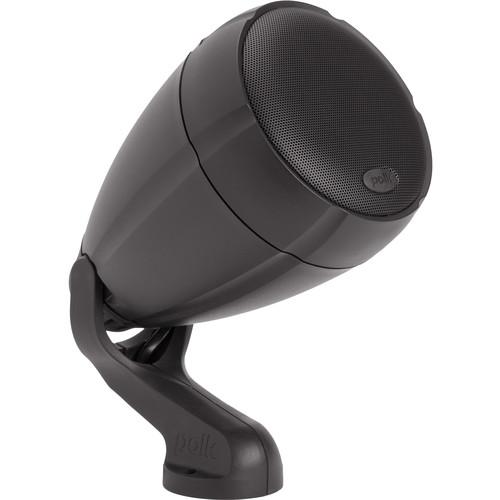

Product description Enjoy music outdoors with the chestnut brown Polk Audio Atrium Sat300 All-Weather Outdoor Speaker. It accepts up to 100W from your amplifier and is IPX66-rated to withstand a variety of weather conditions. It can be installed in-ground with the included spike or hung from your roof or eaves with other included hardware. - Dynamic Balance Driver Technology

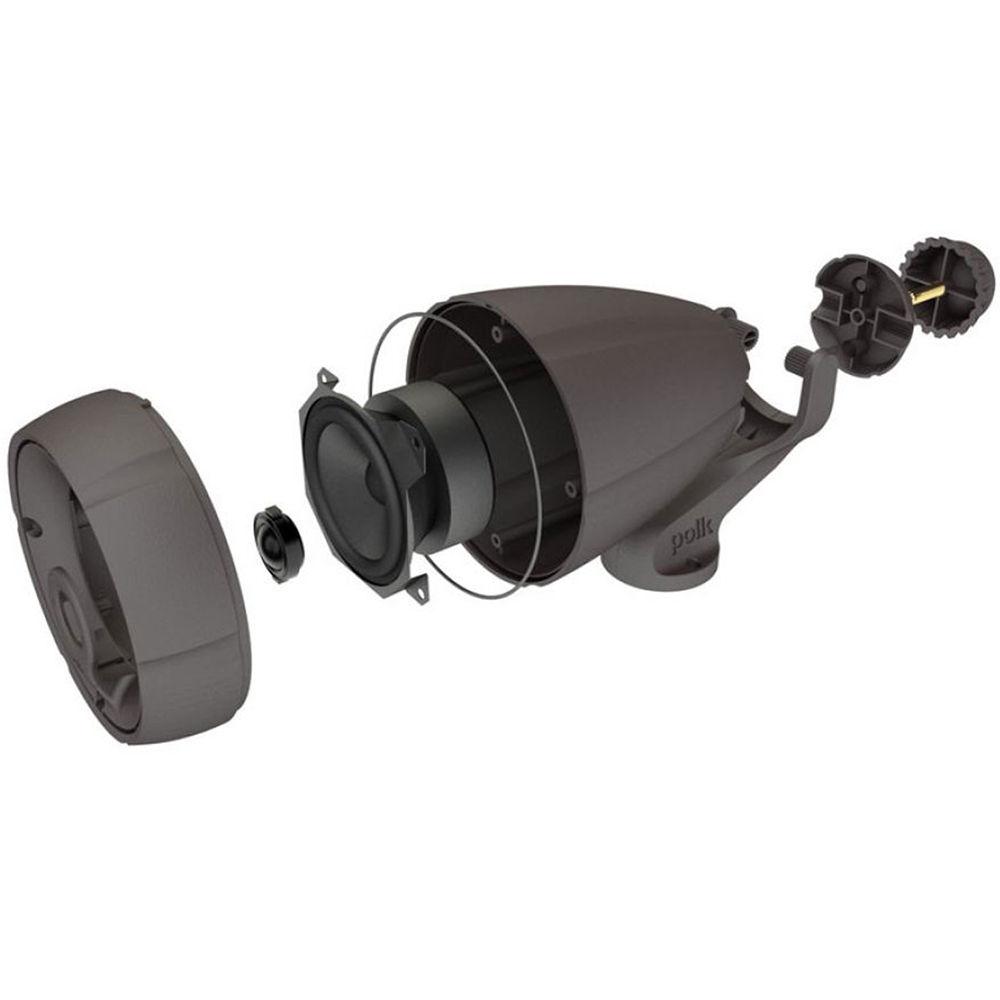

- The midrange driver features a 3.5" long-throw cone with a 1" voice coil, vented pole-piece, butyl rubber surround, and composite cone; the tweeter is a 0.75" composite neodymium dome.
- Accepts up to 100W of Power
- The Atrium Sat300 can handle up to 100W of power for enhanced clarity, detail, and efficiency with less distortion at both moderate and higher volume levels, even in outdoor environments.
- Flying Bridge-Mounted Tweeter
- The tweeter is bridge-mounted so that it doesn't get in the way of the woofer, helping to provide smooth, realistic sound.
- Capacitive Coupling Technology
- This is a signal-blocking technology designed to determine where a small speaker typically loses bass performance, then compensates by boosting the response in that range to help create a wider dynamic range with more musical realism.
- Weather Resistant
- The Atrium Sat300 features a mineral-filled polypropylene housing, 1mm thick aluminum grille, and stainless steel hardware designed to withstand years of weather. It's designed to live outside year-round, with permanent color impregnation and all-weather waterproofing.
- Enhanced Durability and Security
- The shock-absorbing gasket is engineered to withstand blows from weed whackers, mowers, and other lawn equipment, plus the included metal security plate can foil thieves, keeping the Sat300 planted in your garden. A 3.3' CL3-rated direct burial pigtail cable helps eliminate exposed wiring.
- Flexible Design
- Enhanced wiring flexibility is onboard with a built-in crossover. Also featuring a built-in high-pass filter, the Sat300 can be connected directly to its own amplifier channels for independent volume control.
- Versatile Installation

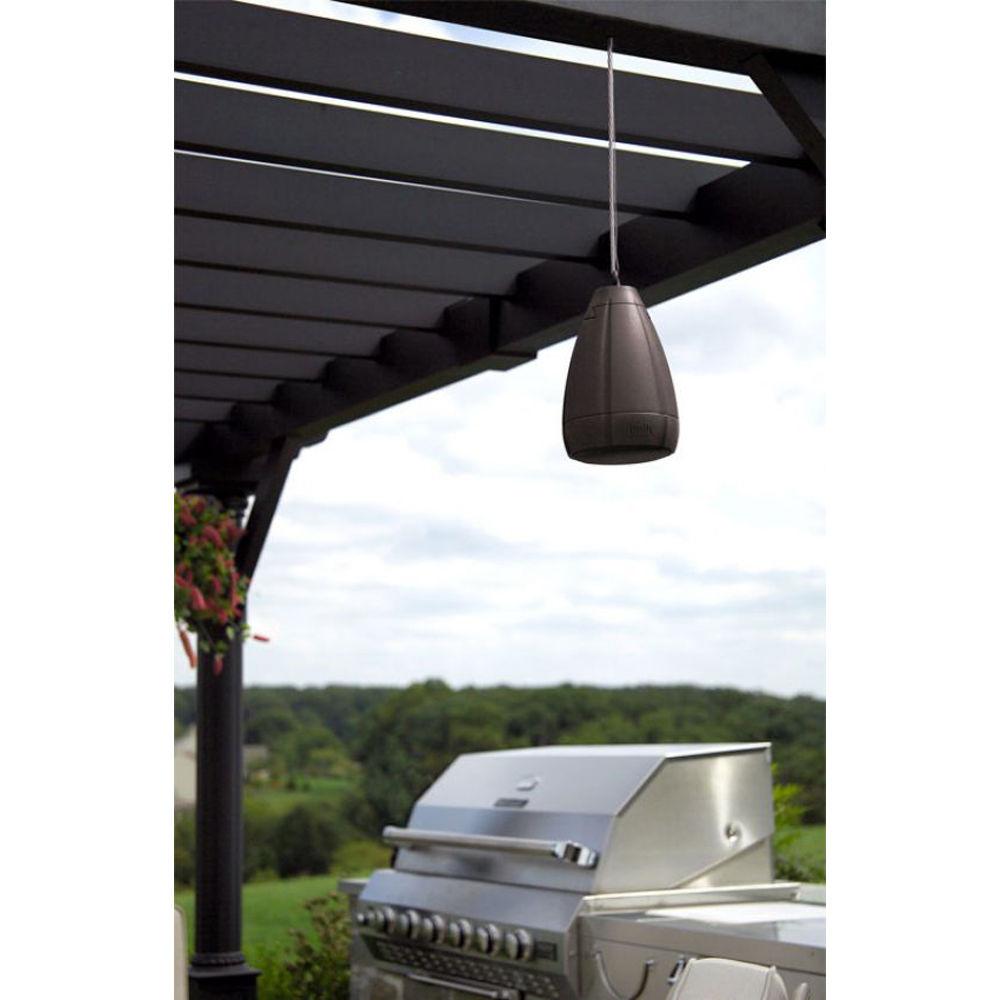

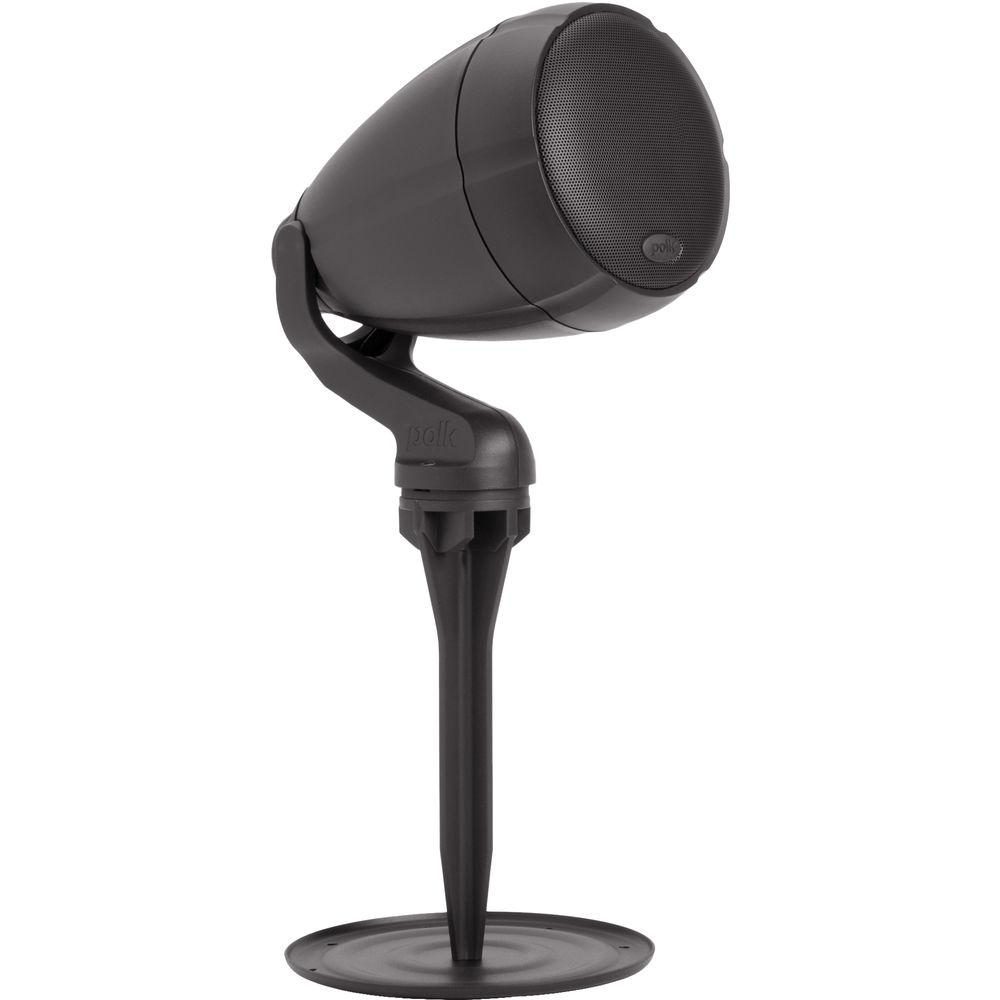

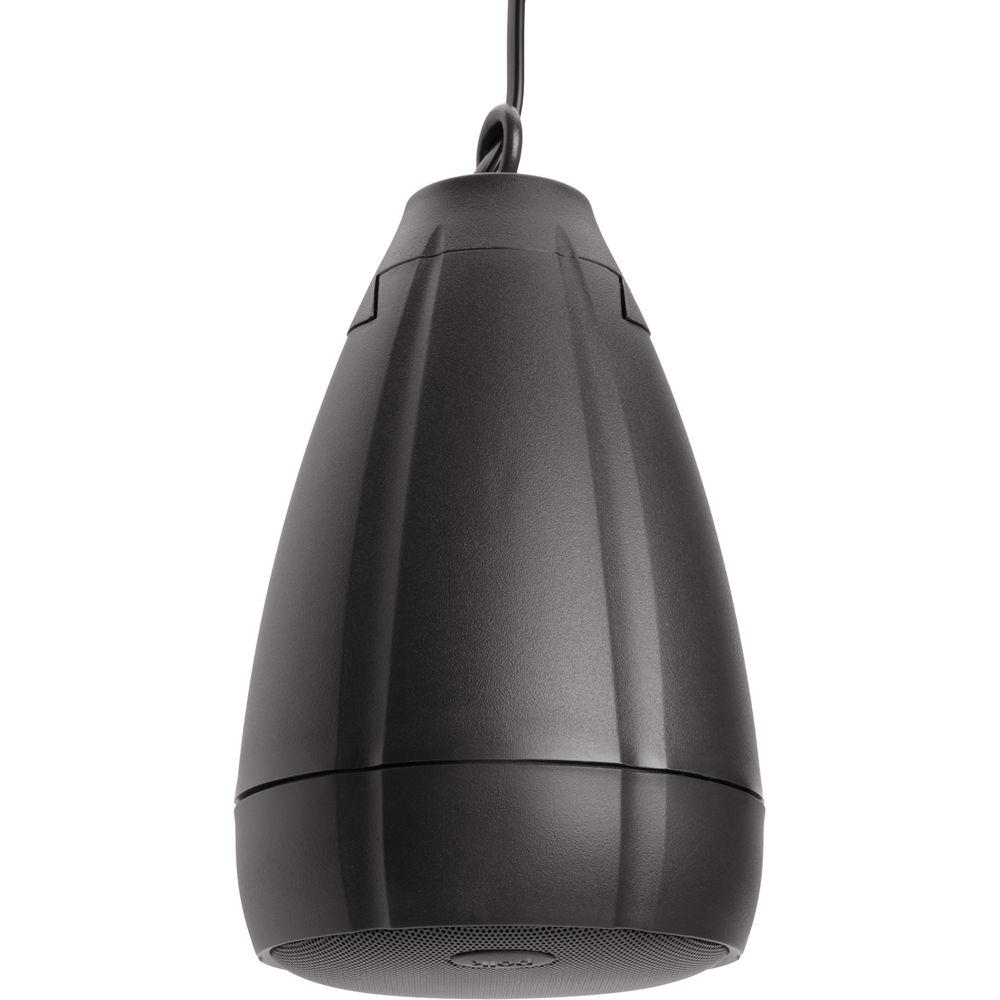

- The Atrium Sat300 can be planted in your landscaping or hung from your ceiling or eaves with the included hardware.
UPC: 747192129309 In the Box Polk Audio Atrium Sat300 All-Weather Outdoor Speaker (Chestnut Brown, Single) Ground Installation Hardware Hanging Installation Hardware Pendant Installation Hardware Mounting Template Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Polk Audio Atrium Sat300 All-Weather Outdoor Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPolk Audio Sat300 Specs | Frequency Response | 100 Hz to 22 kHz
Lower and Upper -3 dB Limits: 115 Hz to 20 kHz | | Recommended Amplifier Power | 10 to 100 W RMS | | Nominal Impedance | 8 Ohms | | Sensitivity | 83 dB (1 W @ 1 m) | | Tweeter | 1 x 0.75" / 1.91 cm Dynamic Balance Polyurethane Tweeter with Neodymium Magnet | | Midrange Driver | 1 x 3.5" / 8.89 cm Dynamic Balance Driver with Extended Motor Structure, Composite Cone, and Butyl Rubber Surround | | Crossover | Not Specified by Manufacturer | | Inputs | Not Specified by Manufacturer | | Installation | In-Ground, Wall-Mounted, or Hanging | | Construction Material | Cabinet: Mineral-Filled Polypropylene
Grille: 1 mm Thick Aluminum
Hardware: Stainless Steel | | Environmental Standards | IPX66-Rated | | Dimensions (W x H x D) | 5.5 x 7 x 8.4" / 13.97 x 17.78 x 21.34 cm | | Weight | 3.25 lb / 1.47 kg | | | | Package Weight | 8.57 lb | | Box Dimensions (LxWxH) | 12.7 x 10.12 x 8.7" |
