User Manual for Polk Audio Atrium Sub100 10" Passive Outdoor Subwoofer Click to enlarge the picture
Contents of the user manual for the Polk Audio Atrium Sub100 10" Passive
- Product category: Subwoofers Polk Audio
- Brand: Polk Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Polk Audio Subwoofers
 |
User manual for the Polk Audio Atrium Sub100 10" Passive contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Polk Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Polk Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Polk Audio product will considerably shorten its lifespan!
|

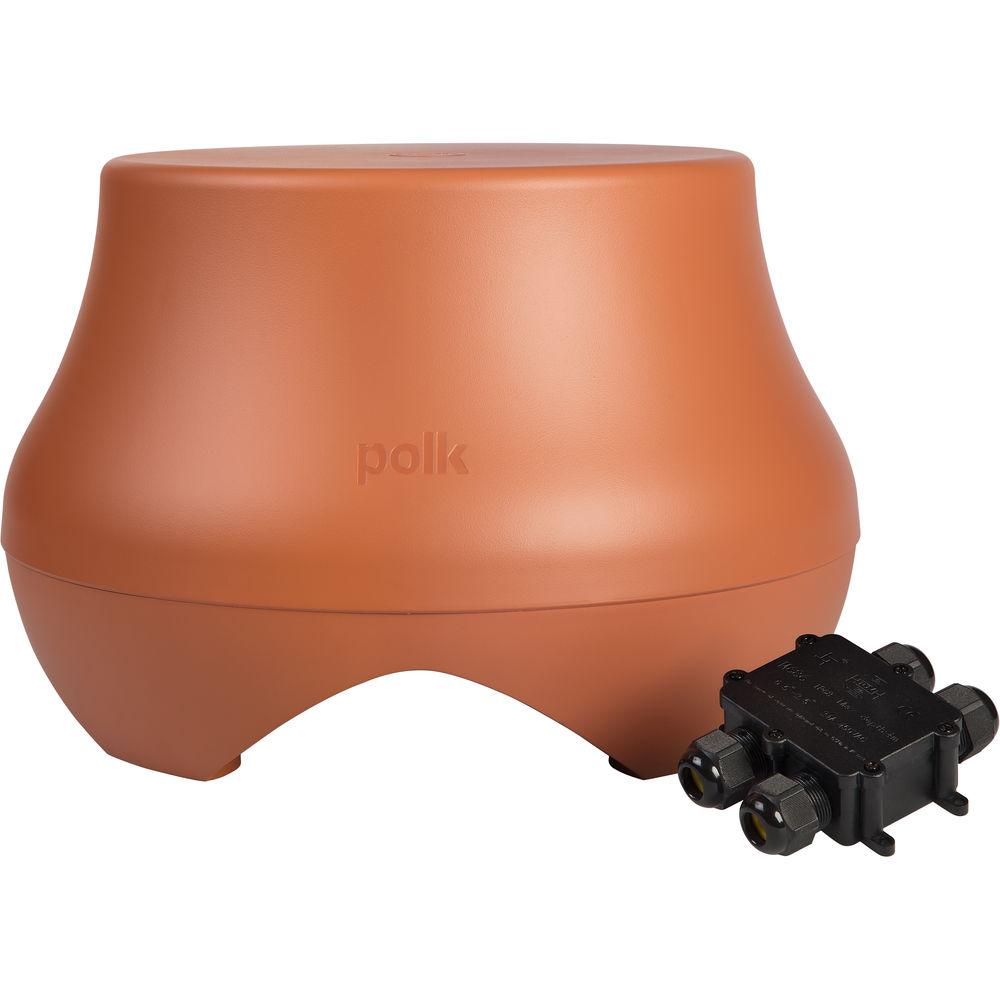

Product description Add bass to your outdoor sound system with the Polk Audio Atrium Sub100 10" Passive Outdoor Subwoofer. It can handle up to 200W of power from your amplifier and features an IPX66 weather resistance. The cabinet can be painted to match your outdoor décor, and the flat top can be used as a plant stand or a pedestal table. - Accepts up to 200W of Power
- The Atrium Sub100 can handle up to 200W of power for enhanced bass outdoors.
- Weatherproof Design
- The Atrium Sub100 is housed in a molded and sealed resin enclosure and is marine-certified with an IPX66 rating for weatherproof outdoor performance.
- Dynamic Balance Driver Technology
- The 10" long-throw Dynamic Balance driver is designed to eliminate driver distortion for deep, clean bass, even at high volumes.
- Capacitive Coupling Technology
- The dual 2" voice coil design helps reproduce bass from both stereo channels producing more power in the lower frequencies with the help of Capacitive Coupling Technology.
- Waterproof Junction Box
- The included waterproof IP68-rated junction box connects other outdoor speakers and is approved for in-ground use.

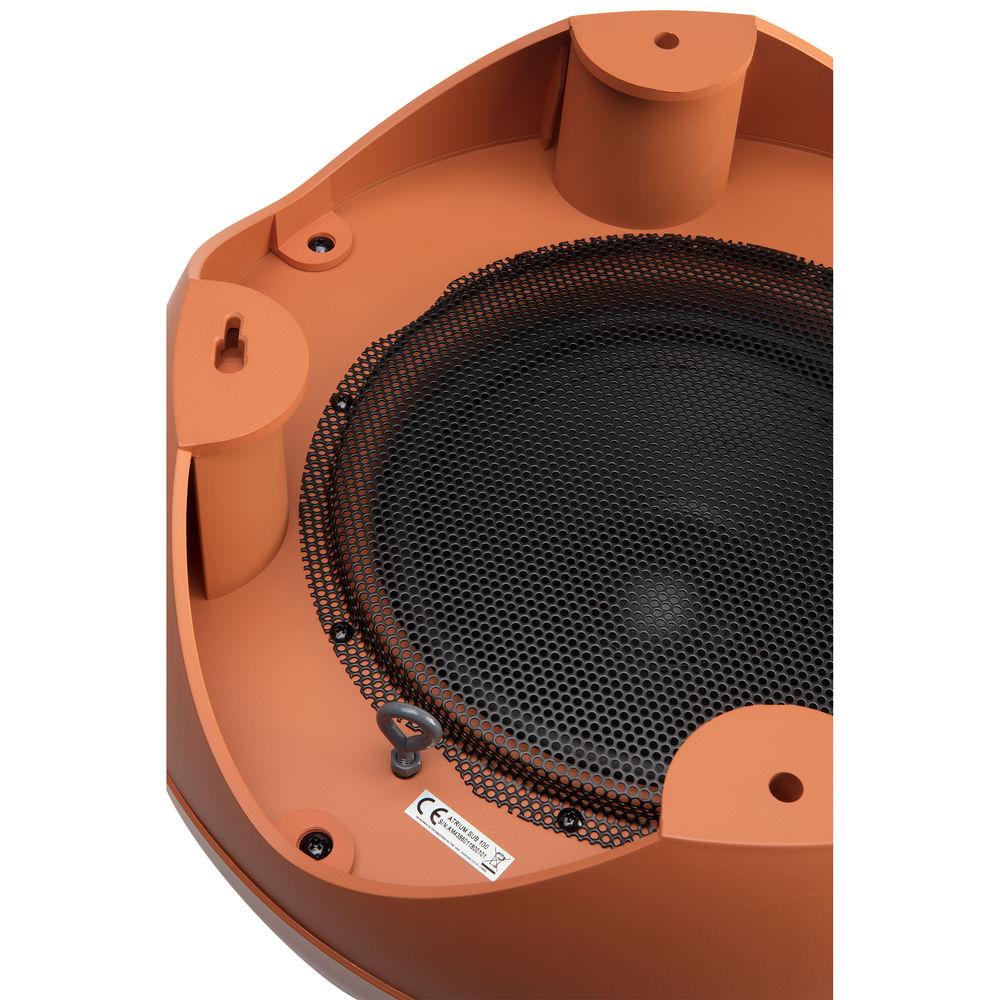

- Aluminum Grille
- The included grille helps protect the woofer and is designed to hold up in the outdoor environment.
- Designed to Blend In
- The enclosure of the Atrium Sub100 can be painted to match your landscape design. The color-impregnated resin is also designed to resist fading and to blend in with your outdoor seating and can even be used as a plant stand or a pedestal table.
- Security Options
- The Atrium Sub100 includes CL3-rated four-conductor direct burial pigtail cable, so no exposed wiring will get in the way of your weed whacker. Additionally, an eye-bolt security anchor and screw-down points add stability and deter theft.
- Flexible Design
- The Atrium Sub100, with built-in low-pass filters, can be connected directly to its own amplifier channels for independent volume control. The built-in crossover adds to its flexibility.
UPC: 747192129293 In the Box Polk Audio Atrium Sub100 10" Passive Outdoor Subwoofer (Terracotta) Grille Junction Box 4 x Wire Nuts Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Polk Audio Atrium Sub100 10" Passive Outdoor Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPolk Audio Sub100 Specs | Crossover Frequency | 150 Hz | | Limit Values | Lower and Upper -3 dB: 50 to 110 Hz | | Recommended Amplifier Power | 10 to 200 W | | Peak Power | 200 W | | Nominal Impedance | 8 Ohms | | Sensitivity | 88 dB (1 W @ 1 m) | | Woofer | 1 x 10" / 25.4 cm Long-Throw Dynamic Balance Composite Cone Driver with Dual Voice Coils and Butyl Rubber Surround | | Voice Coil | 2 x 2" / 5.08 cm | | Inputs | Not Specified by Manufacturer | | Enclosure Type | Acoustic Suspension | | Construction Material | Cabinet: Resin
Grille: Aluminum | | Environmental Standards | IPX66-Rated | | Dimensions (W x H x D) | 16.9 x 11 x 16.9" / 42.93 x 27.94 x 42.93 cm | | Weight | 16.75 lb / 7.6 kg | | | | Package Weight | 22.5 lb | | Box Dimensions (LxWxH) | 20.0 x 20.0 x 14.0" |
