User Manual for Polk Audio HTS 10 10" 200W Subwoofer Click to enlarge the picture
Contents of the user manual for the Polk Audio HTS 10 10" 200W
- Product category: Subwoofers Polk Audio
- Brand: Polk Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Polk Audio Subwoofers
 |
User manual for the Polk Audio HTS 10 10" 200W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Polk Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Polk Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Polk Audio product will considerably shorten its lifespan!
|

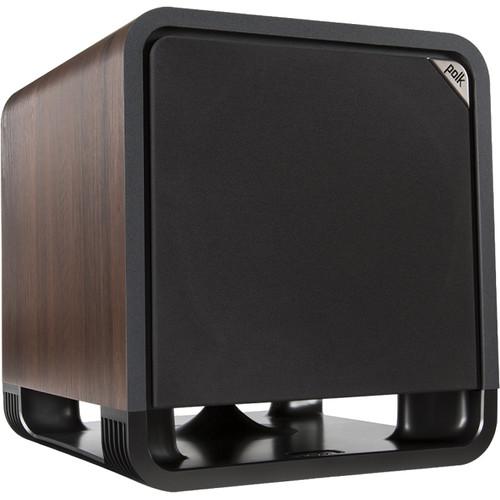

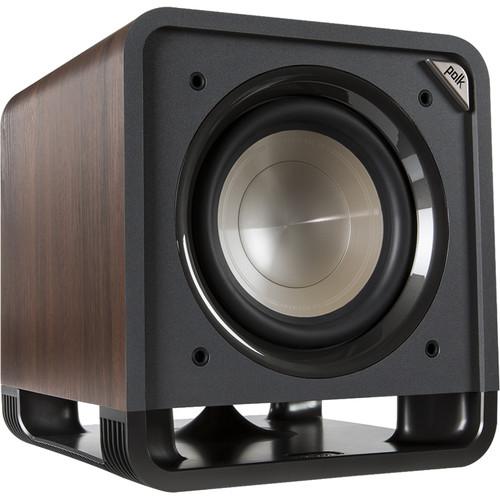

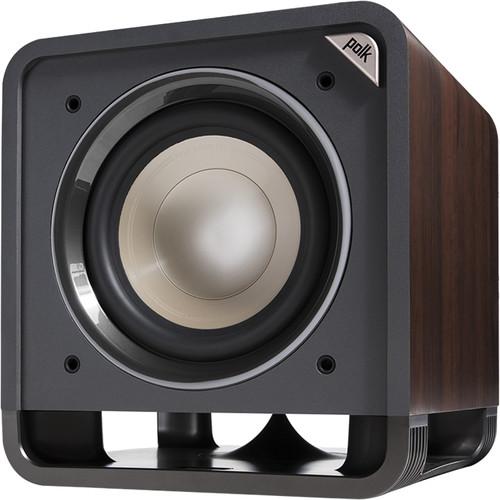

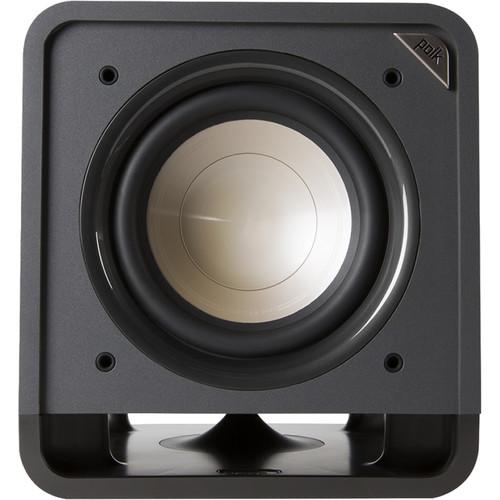

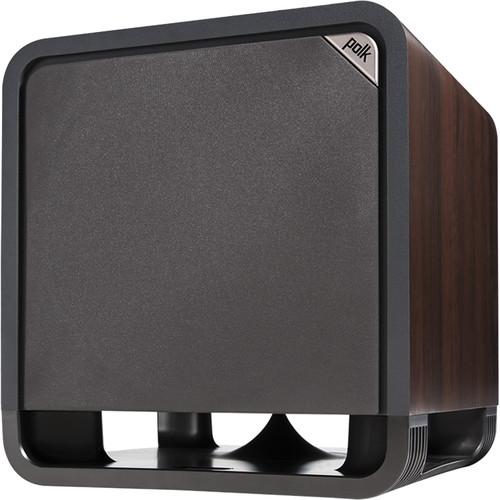

Product description Add enhanced bass to your movies and music with the classic brown walnut Polk Audio HTS 10 10" 200W Subwoofer. This front-firing subwoofer features a 10" long-throw polypropylene woofer and delivers up to 200W of peak power. With a frequency response of 25 to 180 Hz, the HTS 10 is equipped to handle a variety of listening material. Integrated low-pass filter and phase control settings allow you to achieve your preferred acoustic settings. For installation flexibility, LFE and line level inputs are onboard. - Designed to Provide Deep Bass for Home Theater and Music
- The long-throw 10" driver, Power Port technology, and 200W Class D amplifier are engineered for enhanced bass impact.
- Dynamic Balance Driver
- The front-firing polypropylene driver with Dynamic Balance technology is Klippel-optimized to help provide clean, clear bass, enhanced linearity, and lower distortion.

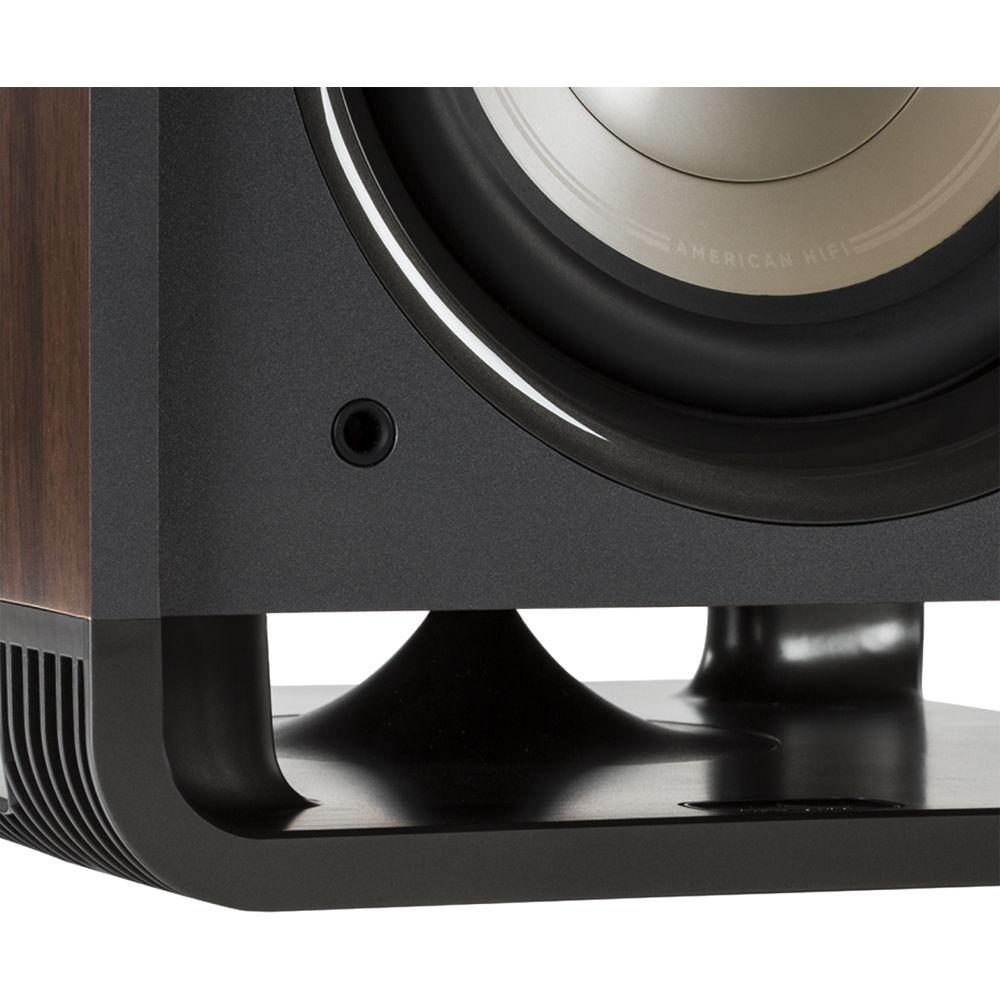

- Power Port Technology
- The floor-firing Power Port is designed to smoothly transition the air flow into your listening area, reducing turbulence and distortion.

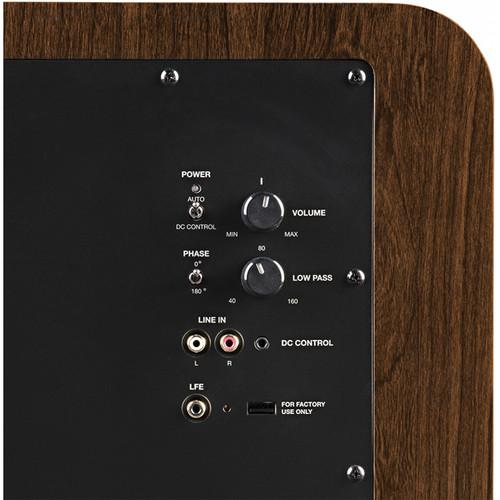

- Enhanced Control
- The subwoofer has built-in controls for variable volume, low pass filter, and phase. Set the toggle to Auto on/off or DC control (12V trigger). All controls are on the rear panel.
- Virtually Universal Compatibility
- Connect via the LFE or stereo line RCA inputs.
- Lower and Upper -3dB Limits
- The HTS 10 features a lower limit of 30 Hz and an upper limit of 120 Hz.
- MDF Cabinets
- The braced MDF cabinet construction and removable grille combine to deliver enhanced sound with a look that can fit nearly any decor.
- Additional Features
-
- Volume +/-
- Low pass filter (30 to 120 Hz)
- Phase (0/180°)
- Power: Auto on/off
- DC control via 12V trigger
- ENERGY STAR compliant with auto standby
UPC: 747192128890 In the Box Polk Audio HTS 10 10" 200W Subwoofer (Classic Brown Walnut) Removable Grille Power Cord Limited 5-Year Warranty on Driver Limited 3-Year Warranty on Electronics Table of Contents
|
Upload User Manual
Have you got an user manual for the Polk Audio HTS 10 10" 200W Subwoofer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPolk Audio HTS 10 Specs | Driver | 10" / 25.4 cm long-throw polypropylene woofer | | Amplifier Power | Up to 200 W | | Amplifier Type | Class D | | Nominal Impedance | 8 Ohms | | Frequency Response | 25 to 180 Hz | | Input | 1 x stereo RCA (line level)
1 x mono RCA LFE (unfiltered)
1 x 1/8" / 3.5 mm 12 VDC trigger | | Enclosure Type | Bass reflex via Power Port | | Enclosure Material | MDF | | Standby Power Consumption | 0.5 W | | Dimensions (W x H x D) | 15.12 x 16.6 x 16.1" / 38.4 x 42.16 x 40.9 cm | | Weight | 37.75 lb / 17.12 kg | | | | Package Weight | 45.0 lb | | Box Dimensions (LxWxH) | 21.0 x 21.0 x 21.0" |
