User Manual for Polk Audio Signature Series S10 2-Way Surround Speakers Click to enlarge the picture
Contents of the user manual for the Polk Audio Signature Series S10 2-Way
- Product category: Bookshelf Speakers Polk Audio
- Brand: Polk Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Polk Audio Bookshelf Speakers
 |
User manual for the Polk Audio Signature Series S10 2-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Polk Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Polk Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Polk Audio product will considerably shorten its lifespan!
|

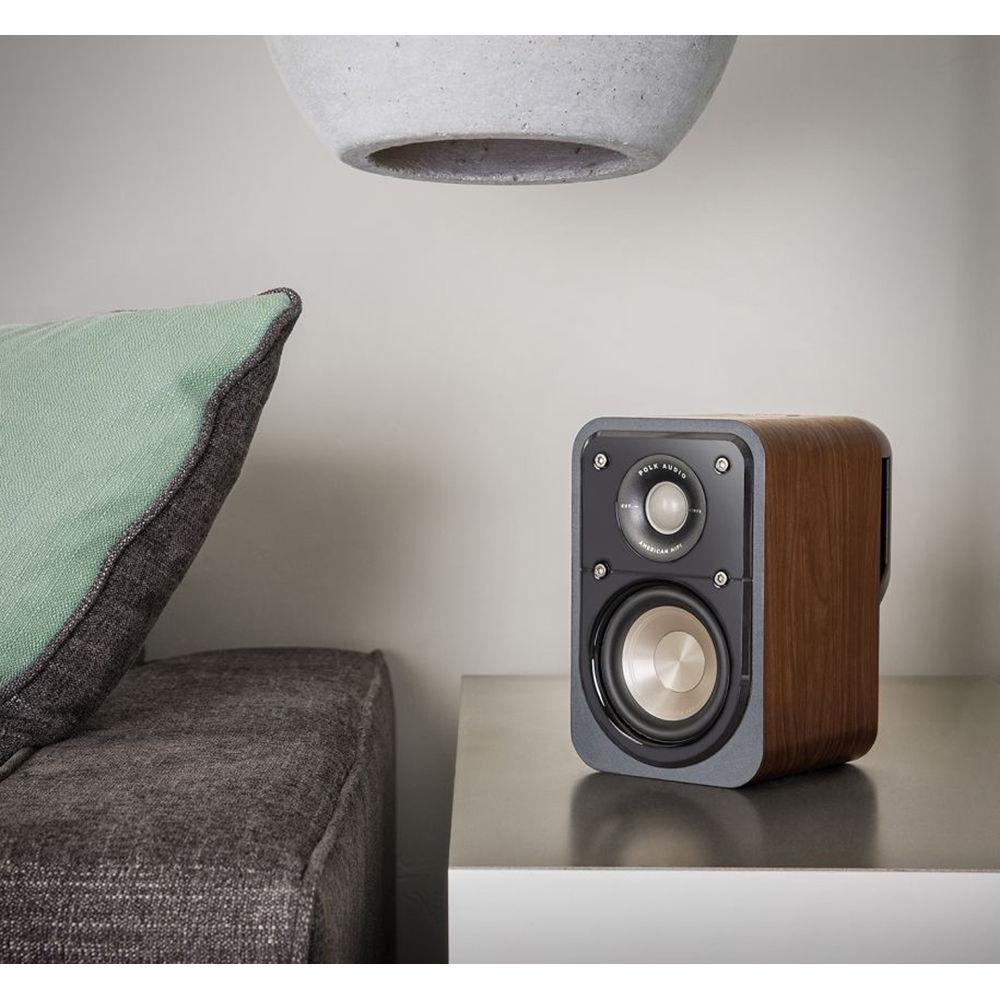

Product description Designed for use as rear or surround speakers, this pair of classic brown walnut Polk Audio Signature Series S10 2-Way Surround Speakers can handle 20 to 100W of continuous power and are equipped with a 4" mid/woofer and a 1" tweeter. They have a frequency response of 67 Hz to 40 kHz for enhanced treble reproduction and are made with a Meddite MDF cabinet. The removable grilles attach magnetically and are designed to be acoustically inert. - Dynamic Balance Acoustic Array
- Dynamic Balance is designed to ensure a rich, clean, full-range sound, no matter what you're listening to. It analyzes the speaker's electro-acoustic and mechanical system for improved material selection and more efficient geometry, then pinpoints and eliminates issues that reduce speaker performance before they become a part of the finished product.
- High-Resolution Audio Performance
- The Terylene dome tweeter features curvilinear formers designed to extend response and lower resonance. Its ceramic motor structure also helps to lower system resonance and extend low frequency response for enhanced dispersion in the midrange, delivering clear and detailed high frequency response for realistic reproduction of vocals and instruments.
- Polypropylene Mid-Range Drivers
- Mica-reinforced polypropylene cones with butyl rubber surrounds, ceramic motor structures, and high-temperature Conex fiber spiders combine to create drivers of enhanced efficiency, for clean, clear bass, augmented linearity, lower distortion, and higher durability.
- Polk Power Port Deep Bass Technology
- The Power Port is designed to smoothly transition the air flow into your listening area. It also extends the overall bass port, providing greater surface area to help eliminate turbulence and distortion, for bigger, more musical, deep bass impact.
- Enhanced Sensitivity and Compatibility
- Whether you're connecting them to a new digital processor or your vintage rig, the S10 is designed to provide sound reproduction that's spacious, clear, enveloping, and realistic. Plus, it's compatible with many Dolby and DTS surround sound technologies.
- Two-Way Crossover Array
- The two-way crossover array is designed to give you a seamless, lifelike soundstage no matter where you're seated in your listening room.
- Anti-Diffraction Magnetic Grilles
- Computer modeled for a precision fit, the grilles are designed to minimize sonic interference.

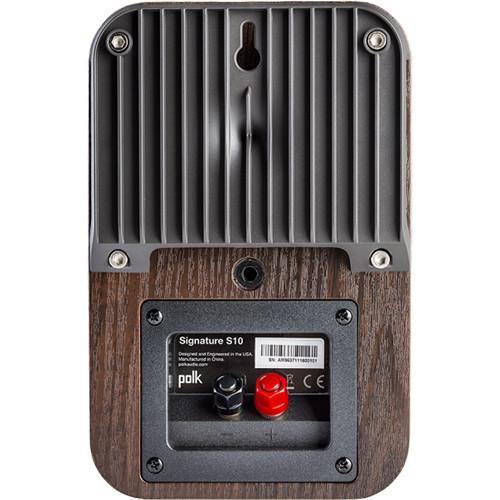

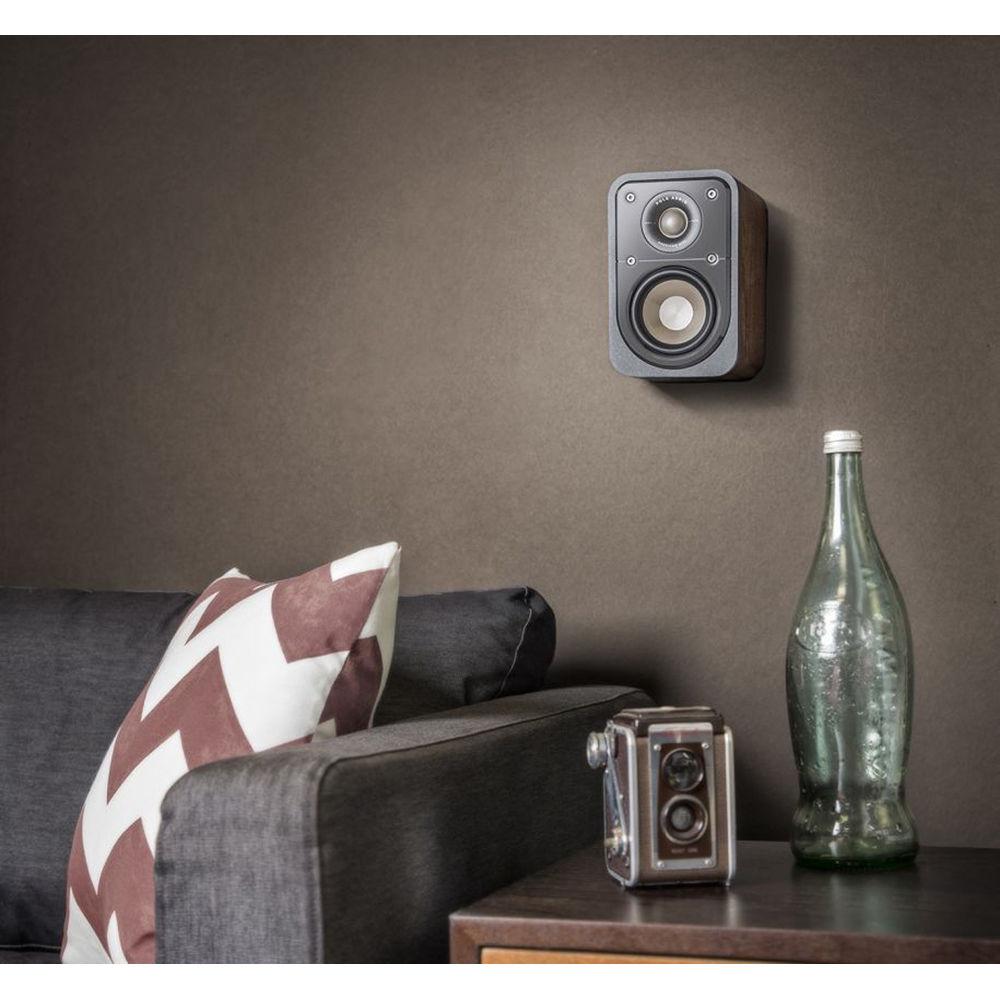

- Enhanced Wall Mounting Capabilities
- Features a built-in threaded screw insert and keyhole slots for easy wall mounting and customized directional firing.
- Gold-Plated 5-Way Binding Posts
- The binding posts provide for easy setup, ensuring a direct, efficient, and lossless connection.

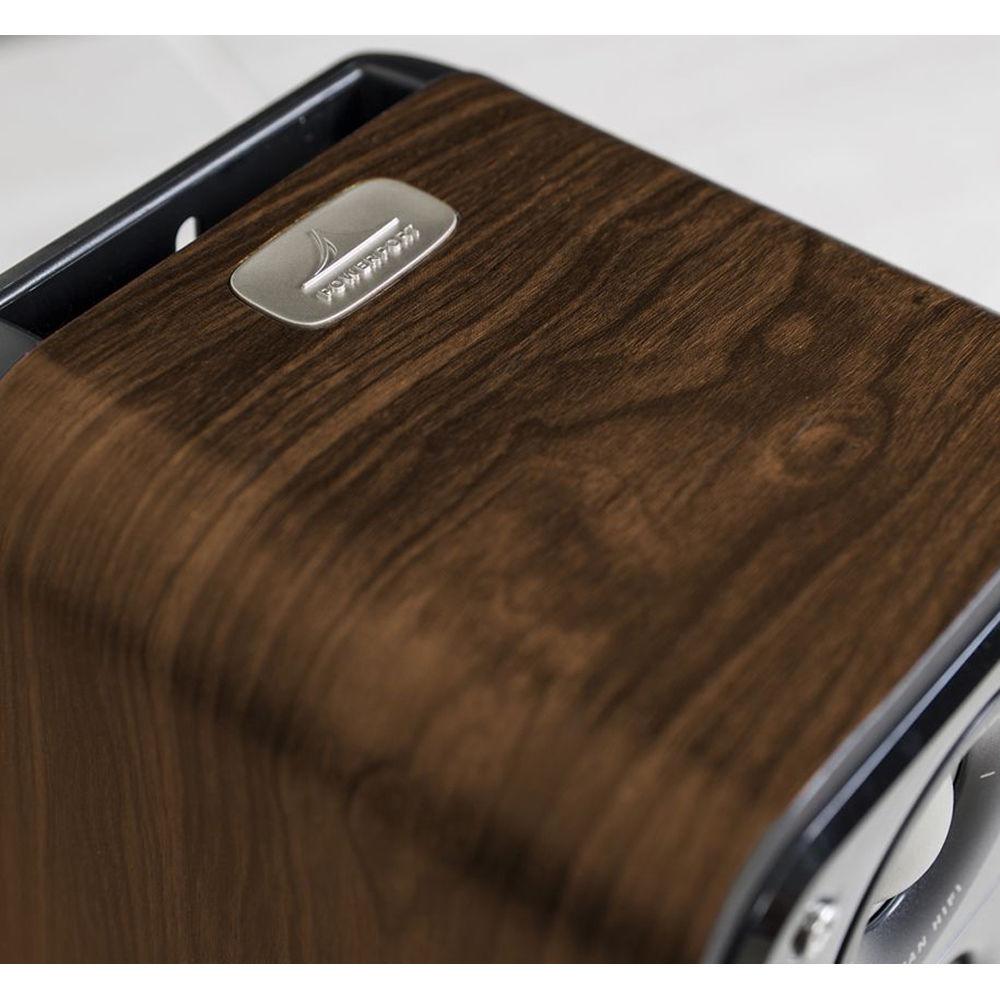

- Non-Resonant Cabinet Design
- The acoustically inert enclosure helps reduce unwanted internal standing waves to help reduce audible coloration. The non-resonant Meddite MDF construction, bracing, and thick baffles further help ensure lifelike sound.
- Timbre-Matched
- The S10 is designed with the same components throughout to achieve seamless speaker-to-speaker blending effects in multi-channel systems.
In the Box Polk Audio Signature Series S10 2-Way Surround Speakers (Classic Brown Walnut, Pair) Adhesive-Backed Rubber Pads Wall Mount Template Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Polk Audio Signature Series S10 2-Way Surround Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPolk Audio Signature S10 Specs | Frequency Response | 67 Hz to 40 kHz | | Sensitivity | Maximum: 87 dB (1 W @ 1 m) | | Recommended Amplifier Power | 20 to 100 W | | Impedance | Compatible with 8 Ohm outputs | | Crossover Frequency | 2.5 kHz | | High Frequency Driver | 1" / 2.54 cm Terylene high-res dome tweeter | | Low Frequency Driver | 4" / 10.16 cm dynamic balance Mica-reinforced polypropylene mid/woofer | | Inputs | Gold-plated 5-way binding post pair | | Construction Material | Cabinet: Meddite MDF | | Mounting Options | 1/4"-20 threaded insert or keyhole hanger | | Dimensions (W x H x D) | 5.4 x 8.4 x 6.25" / 13.72 x 21.34 x 15.88 cm | | Weight | 6 lb / 2.72 kg | | | | Package Weight | 13.5 lb | | Box Dimensions (LxWxH) | 16.0 x 12.0 x 10.0" |
