User Manual for Polk Audio Signature Series S50 Floorstanding Speaker Click to enlarge the picture
Contents of the user manual for the Polk Audio Signature Series S50 Floorstanding
- Product category: Floorstanding Speakers Polk Audio
- Brand: Polk Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Polk Audio Floorstanding Speakers
 |
User manual for the Polk Audio Signature Series S50 Floorstanding contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Polk Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Polk Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Polk Audio product will considerably shorten its lifespan!
|

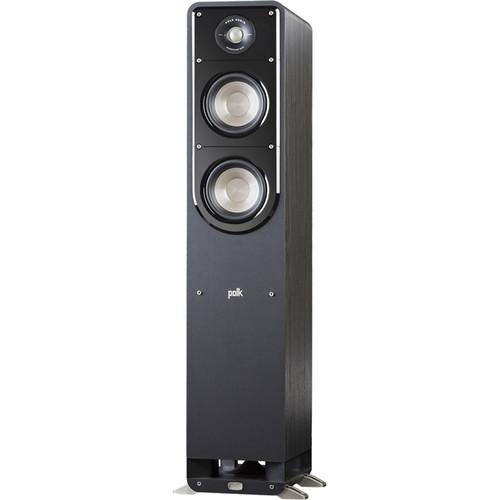

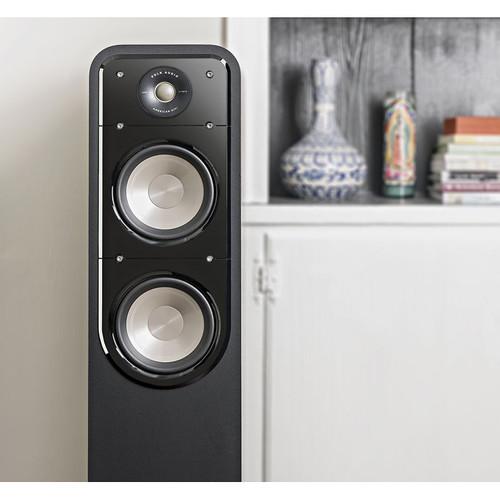

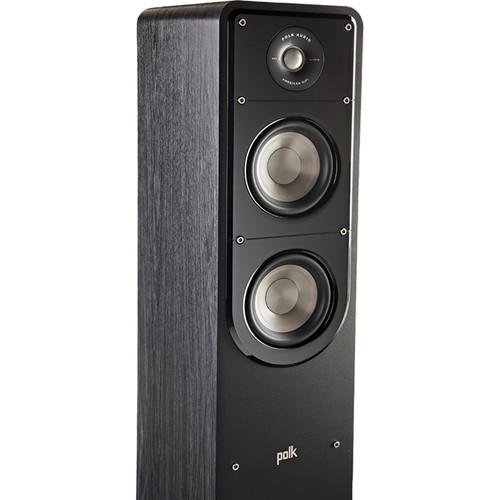

Product description Enjoy an enhanced 33 Hz to 40 kHz frequency response with this washed black walnut Polk Audio Signature Series S50 Floorstanding Speaker. It can handle 20 to 150W of continuous power and is equipped with two 5.25" woofers and a 1" tweeter. The down-firing Power Port is a bass port designed to enhance the speaker's low frequency effects. The speaker is bi-amp and bi-wire capable via its two pairs of 5-way binding posts. - Dynamic Balance Acoustic Array
- Dynamic Balance is designed to ensure a rich, clean, full-range sound, no matter what you're listening to. It analyzes the speaker's electro-acoustic and mechanical system for improved material selection and more efficient geometry, then pinpoints and eliminates issues that reduce speaker performance before they become a part of the finished product.

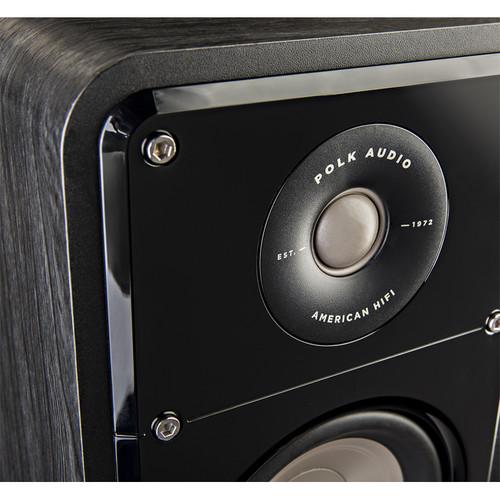

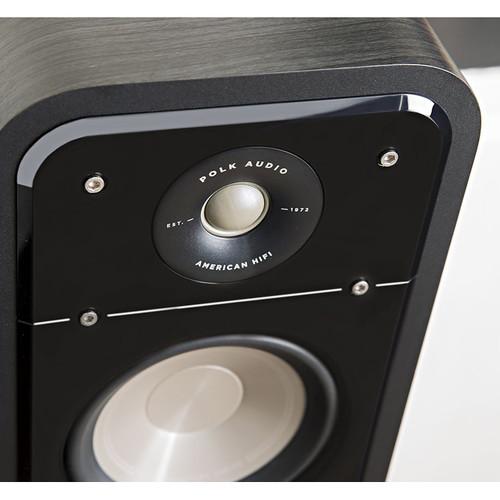

- High-Resolution Audio Performance
- The Terylene dome tweeter is designed to deliver clear and detailed high frequency response at up to 40 kHz for a realistic reproduction of vocals and instruments.

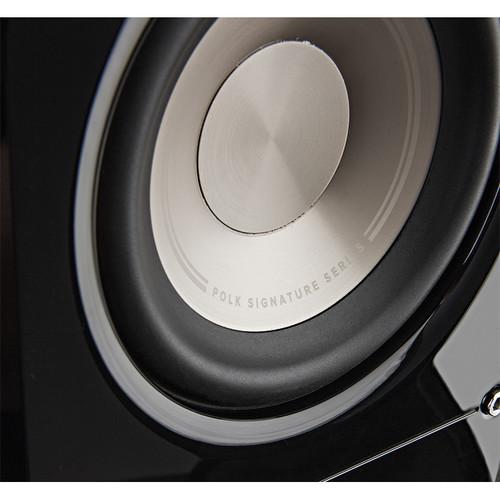

- Polypropylene Mid-Range Drivers
- Mica-reinforced polypropylene cones with butyl rubber surrounds, ceramic motor structures, and high-temperature Conex fiber spiders combine to create drivers of enhanced efficiency, for clean, clear bass, augmented linearity, lower distortion, and higher durability.

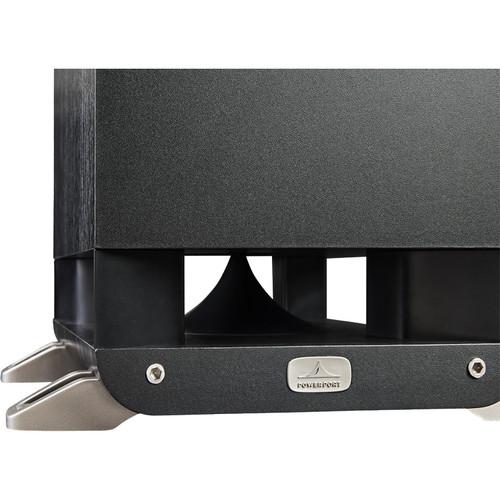

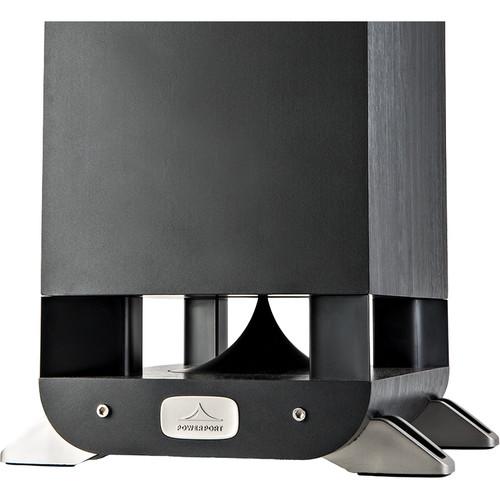

- Polk Power Port Deep Bass Technology
- The Power Port is designed to smoothly transition the air flow into your listening area. It also extends the overall bass port, providing greater surface area to help eliminate turbulence and distortion, for bigger, more musical, deep bass impact.
- Enhanced Sensitivity and Compatibility
- Whether you're connecting it to a new digital processor or your vintage rig, the S50 is designed to provide sound reproduction that's spacious, clear, enveloping, and realistic. Plus, it's compatible with many Dolby and DTS surround sound technologies.
- Three-Driver Cascading Tapered Crossover Array
- The crossover array is designed to provide a lifelike soundstage wherever you are in the listening room, helping to eliminate a solitary sweet spot.

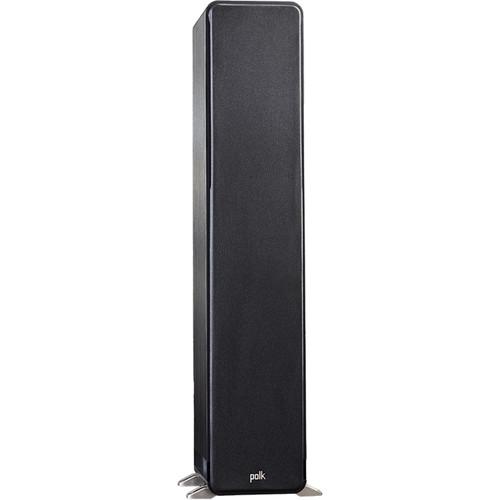

- Anti-Diffraction Magnetic Grille
- The grille is computer modeled for a precision fit and designed to minimize sonic interference.

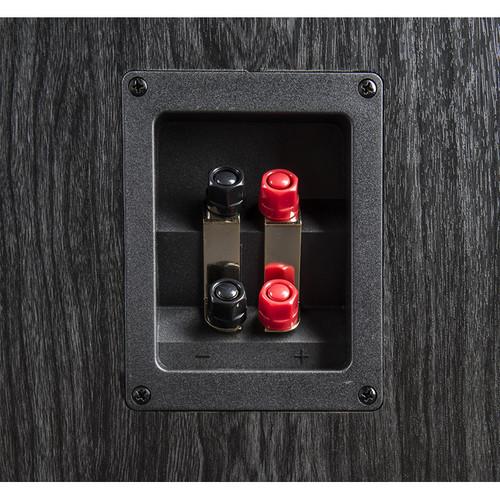

- Gold-Plated 5-Way Binding Posts
- The binding posts are designed to help ensure the most direct, loss-less connection possible.
- Acoustically Inert Enclosure
- The cabinet is designed to be rigid and acoustically inert to help reduce unwanted internal standing waves to provide less audible coloration.
- Dual-Floor-Compatible Feet
- The feet are designed for enhanced stability and bass coupling to both carpeted and hard floors.
- Timbre-Matched
- The S50 is designed with the same components throughout to help achieve seamless speaker-to-speaker blending effects in multi-channel systems.
UPC: 747192127541 In the Box Polk Audio Signature Series S50 Floorstanding Speaker (Washed Black Walnut, Single) 4 x Adhesive Rubber Feet Magnetic Grille Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Polk Audio Signature Series S50 Floorstanding Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPolk Audio Signature S50 Specs | Frequency Response ± 3dB | 33 Hz to 40 kHz | | Sensitivity | Max: 89 dB (1 W @ 1 m) | | Recommended Amplifier Power | 20 to 150 W | | Nominal Impedance | 8 Ohms compatible | | Crossover Frequency | 2.5 kHz | | High Frequency Driver | 1x 1" / 2.54 cm Terylene high-res dome tweeter | | Low Frequency Driver | 2x 5.25" / 13.34 cm dynamic balance Mica-reinforced polypropylene drivers | | Enclosure Material | Non-resonant Meddite MDF | | Inputs | 2 x binding post pairs | | Bi-Amping | Yes, with bi-wiring | | Dimensions (W x H x D) | Without Feet: 7.5 x 37.4 x 10.9" / 19.05 x 95 x 27.69 cm
With Feet: 10.3 x 37.4 x 10.9" / 26.16 x 95 x 27.69 cm | | Weight | 32 lb / 14.51 kg | | | | Package Weight | 37.0 lb | | Box Dimensions (LxWxH) | 41.0 x 15.0 x 14.0" |
