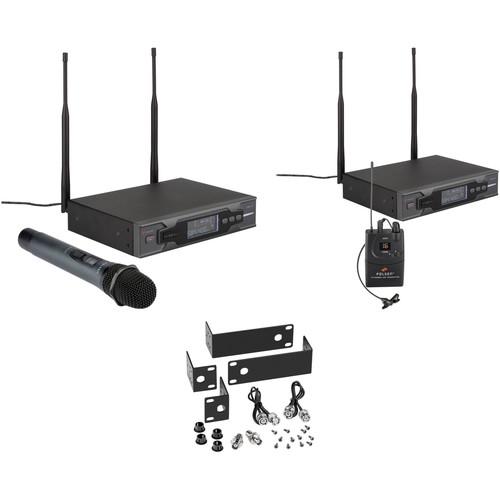

Polsen Dual-Channel UHF Wireless Combo Microphone

User Manual for Polsen Dual-Channel UHF Wireless Combo Microphone System

• Product category: Wireless Systems Polsen
• Brand: Polsen
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Polsen Wireless Systems

Product description

• Polsen ULWS-16-H 16-Channel UHF Wireless Handheld Microphone System (584.400 to 602.450 MHz) The Polsen ULWS-16-H is a 16-channel UHF wireless handheld microphone system designed to transmit ready-for-broadcast audio up to 140' in clubs, conferences, houses of worship, lectures, and more. This frequency-agile system features a true diversity receiver and a wireless handheld microphone transmitter along with all the accessories you'll need to get started. With 16 channels across 25 MHz of bandwidth in the future-proof 500 MHz frequency band and 10mW of RF output power, it delivers strong, versatile, and reliable signal with minimal interference for a wide variety of applications.The receiver boasts balanced XLR and unbalanced 1/4" outputs to accommodate connection to the low-impedance mic input on a mixing console or the line input of a portable PA system. Its dual antennas are detachable and adjustable. The front panel's controls and display allow easy configuration and clear viewing of system parameters.The microphone utilizes a dynamic capsule for high SPL handling and a cardioid polar pattern for off-axis noise rejection. Up to eight hours of operating time is granted by the included AA batteries. The system is comprised of the receiver, microphone, batteries, antennas, and DC power supply.
  Versatile Broadcast-Quality Sound
  • The UHF wireless microphone system is designed to provide broadcast-quality audio for announcements, interviews, lectures, concerts, conferences, live shows, and presentations.
  Simple Frequency-Agile System
  • Offering 16 channels to circumvent interference from other components and devices in the vicinity, the frequency-agile system is simple to configure. Select matching channels on the receiver and transmitter, then you're good to go.
  True Diversity Receiver
  • Two independent receiver circuits, each with an adjustable antenna, are monitored by a comparison circuit that selects the strongest incoming signal. This reduces dropouts and RF interference for a reliable and steady signal.
  Balanced and Unbalanced Outputs
  • A balanced XLR 3-pin output delivers a mic-level signal and minimizes RFI/EMI through common-mode rejection. An unbalanced 1/4" TS output allows easy connection to unbalanced inputs on mixers or portable PA systems.
  Handheld Cardioid Dynamic Transmitter
  • The included Polsen ULW-16-HHT handheld microphone transmitter utilizes a dynamic capsule and cardioid polar pattern to provide quality sound ready for broadcast. The cardioid polar pattern offers on-axis directivity while rejecting off-axis sounds such as background noise and stage bleed. A windscreen is supplied for attenuating vocal plosives and taming wind noise.
  Ready for the Future
  • FCC regulations have reallocated wireless frequencies and deemed the 600 MHz frequency band largely prohibited. Since the ULWS-16 system functions in the 500 MHz band, it's compliant with current and future FCC laws.
  Long-Distance Operating Range
  • The system's operating range of up to 140' allows you to maintain a strong signal while your subjects move or your camera position is changed. Under optimum conditions such as line-of-sight placement and tightly controlled RF interference, the range can extend to 300'.
  Convenient Powering Options
  • The handheld transmitter can be powered via rechargeable NiMH batteries (available separately) or the included AA batteries, which grant approximately eight hours of operating time.
  UPC: 847628002265
• Polsen ULWS-16 16-Channel UHF Wireless Lavalier Microphone System (584.400 to 602.450 MHz) The Polsen ULWS-16 is a 16-channel UHF wireless lavalier microphone system designed to transmit ready-for-broadcast audio up to 140' in conferences, houses of worship, interviews, theater production, and more. This frequency-agile system features a true diversity receiver, a beltpack transmitter, and a lavalier microphone along with all the accessories you'll need to get started. With 16 channels across 25 MHz of bandwidth in the future-proof 500 MHz frequency band and 10mW of RF output power, it delivers strong, versatile, and reliable signal with minimal interference for a wide variety of applications. The receiver boasts balanced XLR and unbalanced 1/4" outputs to accommodate connection to the low-impedance mic input on a mixing console or the line input of a portable PA system. Its dual antennas are detachable and adjustable. The front panel's controls and display allow easy configuration and clear viewing of system parameters. The microphone utilizes a condenser capsule for sensitive audio capture and a cardioid polar pattern for off-axis noise rejection. Up to eight hours of operating time are granted by the included AA batteries. Connect the mic to the supplied beltpack transmitter, which offers selection of mic or line input mode.The system is comprised of the receiver, transmitter, microphone, batteries, windscreen, antennas, tie and belt clips, and DC power supply.
  Versatile Broadcast-Quality Sound
  • The UHF wireless microphone system is designed to provide broadcast-quality audio for announcements, interviews, conferences, live shows, and presentations.
  Simple Frequency-Agile System
  • Offering 16 channels to circumvent interference from other components and devices in the vicinity, the frequency-agile system is simple to configure. Select matching channels on the receiver and transmitter, then you're good to go.
  True Diversity Receiver
  • Two independent receiver circuits, each with an adjustable antenna, are monitored by a comparison circuit that selects the strongest incoming signal. This reduces dropouts and RF interference for a reliable and steady signal.
  Selectable Mic/Line Input
  • To ensure compatibility with a multitude of applications, the transmitter can accept either a line-level signal from a mixer or a mic-level signal from a 3.5mm jack–equipped microphone.
  Balanced and Unbalanced Outputs
  • The balanced XLR 3-pin output delivers a mic-level signal and minimizes RFI/EMI through common-mode rejection. An unbalanced 1/4" TS output allows easy connection to unbalanced inputs on mixers or portable PA systems.
  Transmitter Volume Control
  • The transmitter offers an adjustable output volume for easy optimization of your gain stage; achieve a high output without clipping.
  Cardioid Lavalier Microphone
  • The condenser lavalier microphone incorporates a cardioid polar pattern, which offers on-axis directivity while rejecting off-axis sounds such as background noise and stage bleed. A windscreen is supplied for attenuating vocal plosives and taming wind noise.
  Ready for the Future
  • FCC regulations have reallocated wireless frequencies and deemed the 600 MHz frequency band largely prohibited. Since the ULWS-16 system functions in the 500 MHz band, it's compliant with current and future FCC laws.
  Long-Distance Operating Range
  • The system's operating range of up to 140' allows you to maintain a strong signal while your subjects move or your camera position is changed. Under optimum conditions such as line-of-sight placement and tightly controlled RF interference, the range can extend to 300'.
  Convenient Powering Options
  • The beltpack transmitter can be powered via rechargeable NiMH batteries (available separately) or the included AA batteries, which grant approximately eight hours of operating time.
  UPC: 847628002241
• Polsen RM-ULWS Antenna Rackmount Kit for ULWS-16 and ULWS-216 Wireless Receivers The RM-ULWS Antenna Rackmount Kit for ULWS-16 and ULWS-216 Wireless Receivers from Polsen includes two extension rack ear brackets, two rack ear brackets, two antenna adapter plugs, twelve rack ear mounting screws, two antenna extension cables, and four plugs. This kit can be used to rackmount a single or dual ULWS wireless receiver in a 19" equipment rack. It includes everything you need to mount the receivers and relocate the antennas to the front of the equipment rack. UPC: 847628002289

• ULWS-16-H 16-Channel UHF Wireless Handheld Microphone System (584.400 to 602.450 MHz) swfvatbutartsd
• ULW-16-HHT Handheld Transmitter for ULW-16 Wireless System
• DC Power Supply
• 2 x Antennas
• 2 x AA Batteries
• Limited 1-Year Warranty

• ULWS-16 16-Channel UHF Wireless Lavalier Microphone System (584.400 to 602.450 MHz)

• RM-ULWS Antenna Rackmount Kit for ULWS-16 and ULWS-216 Wireless Receivers

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Polsen ULWS-16-H 16-Channel UHF Wireless Handheld Microphone System (584.400 to 602.450 MHz)

  Wireless Frequency Range	584.400 to 602.450 MHz
  Number of Channels	16
  Switching Bandwidth	25 MHz
  Peak Deviation	Rating 60% users recommend this product to others. And what about you? This product has already been rated by 69 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
