User Manual for Polsen GPMK-22 GoPro Production Microphone Kit Click to enlarge the picture
Contents of the user manual for the Polsen GPMK-22 GoPro Production Microphone Kit
- Product category: Audio Accessories Polsen
- Brand: Polsen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Polsen Audio Accessories
|
User manual for the Polsen GPMK-22 GoPro Production Microphone Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Polsen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Polsen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Polsen product will considerably shorten its lifespan!
|

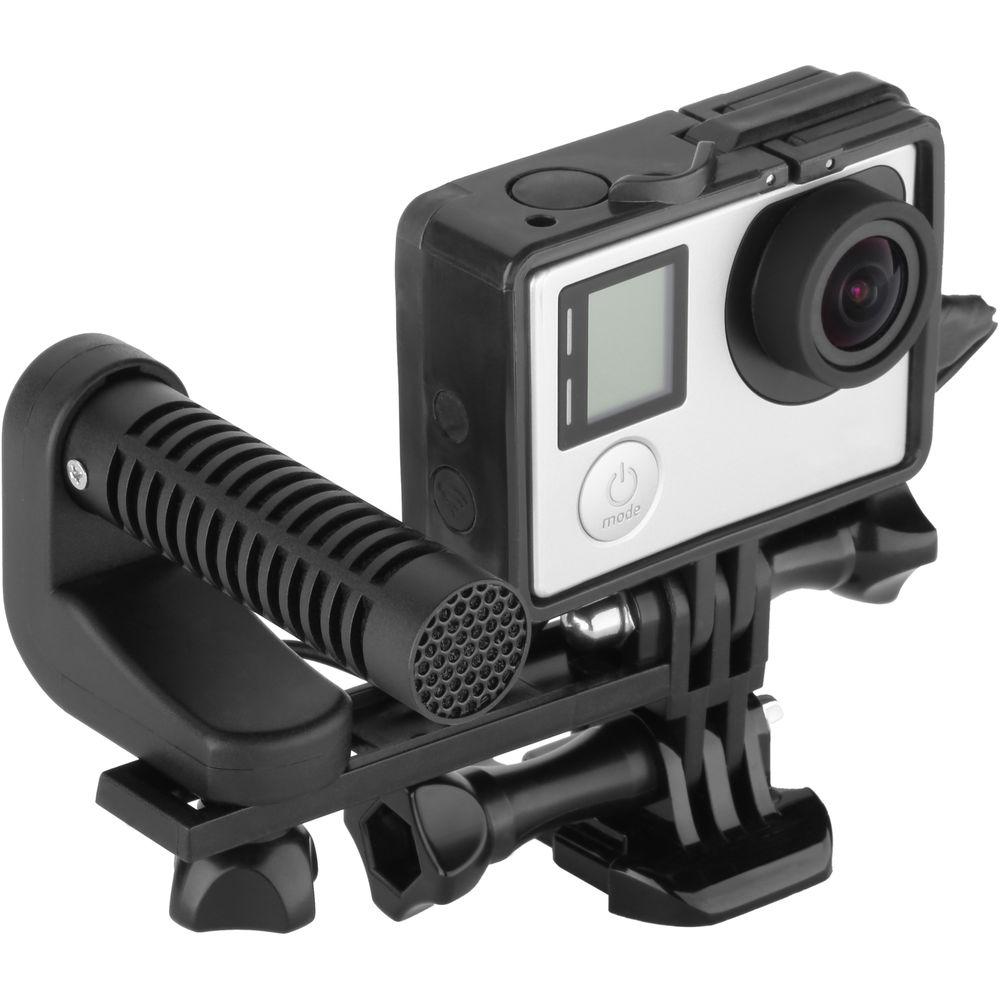

Product description The Polsen GPMK-22 is an audio production kit that is made specifically for the GoPro HERO4, HERO3+, and HERO3 cameras. The kit includes a stereo microphone and a shotgun microphone, which attach to the GoPro when used with the Revo Quick-Release Frame (sold separately). These two microphones provide superior sound capturing capabilities compared to the omnidirectional microphones built into GoPros. They offer numerous creative options for delivering superb audio to any production.The supercardioid shotgun microphone is optimized to focus on the sound directly in front of it while rejecting off-axis sound. This provides great clarity and focus when recording dialog or voices. The stereo microphone features two condenser capsules arranged in an X/Y pattern. Ideal for recording live action, dialog, or soundscapes, it delivers wide sonic imaging and a natural stereo sound. For extra control when capturing a quiet or distant subject, or when recording in a high-noise environment, this microphone includes a high/low gain sensitivity selector to further ensure proper recording levels for professional-quality sound.No external power or batteries are necessary for operation. Both microphones are powered by the GoPro camera via the Mini-USB cable. The production kit includes an adjustable bracket that easily attaches directly to the three-prong GoPro mount. These lightweight and compact microphones will not weigh down your setup or extend out into the picture frame. - Includes Stereo Mic

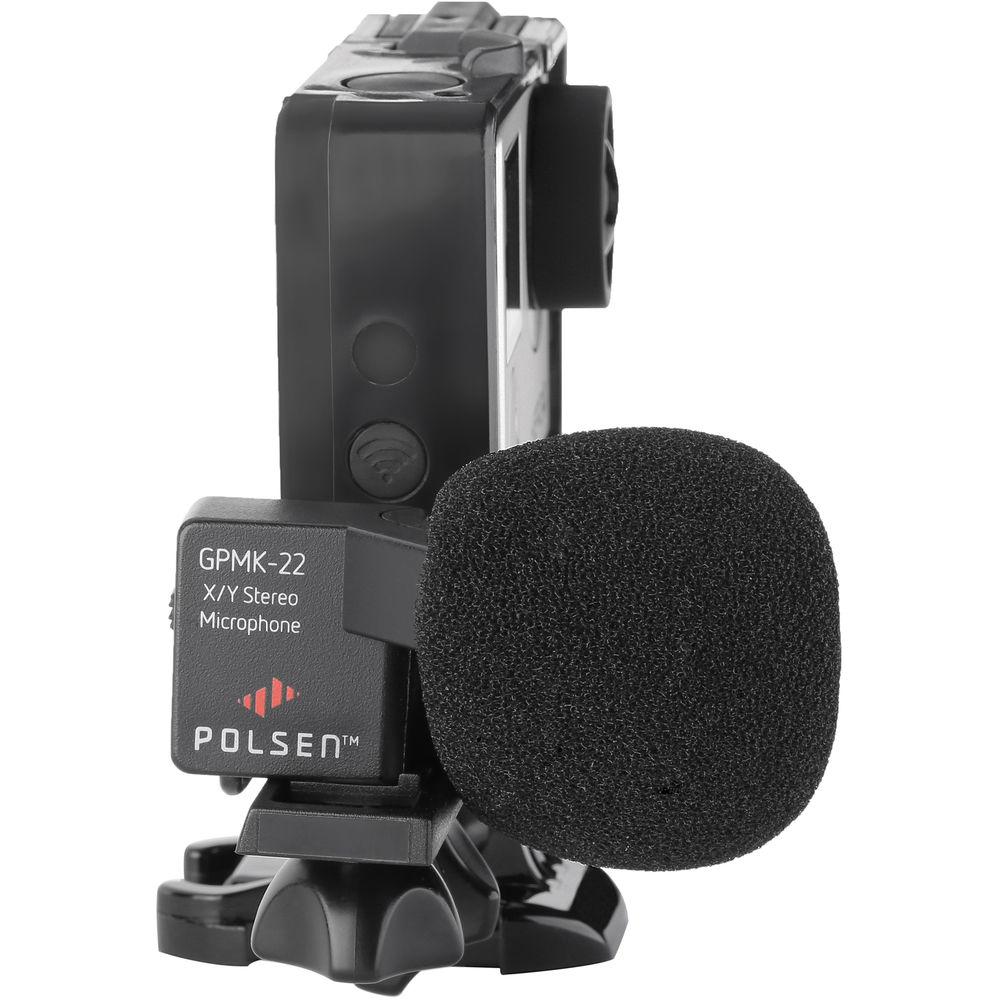

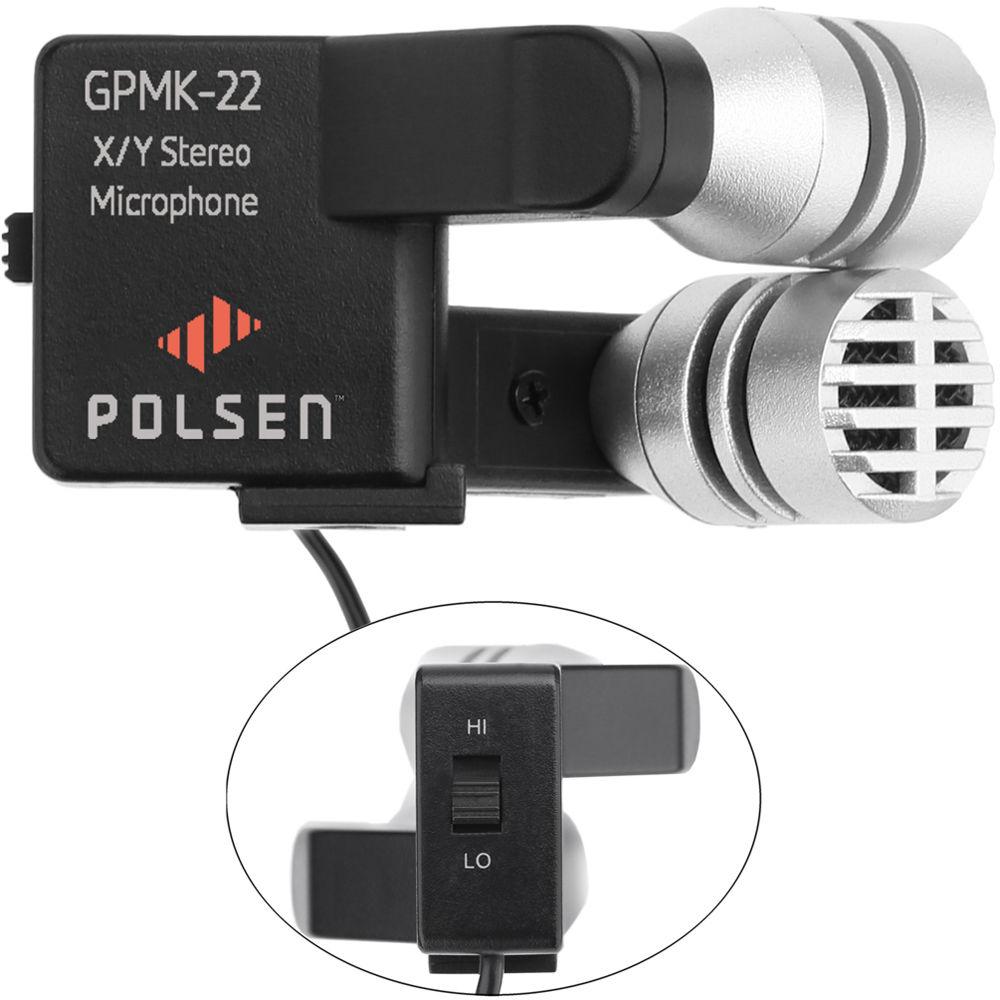

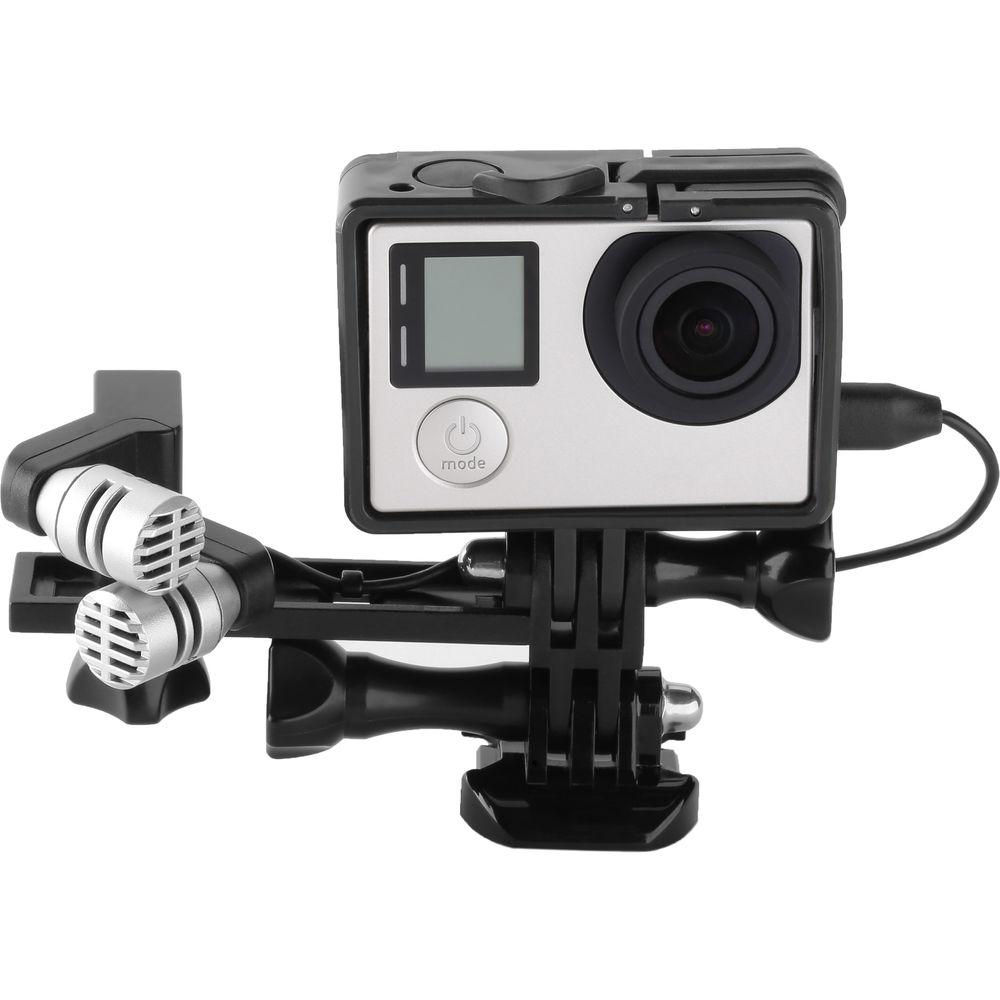

- X/Y stereo microphone provides wide sonic imaging, natural stereo sound, and features a switchable gain selector for varying sound pressures levels
- Includes Shotgun Mic

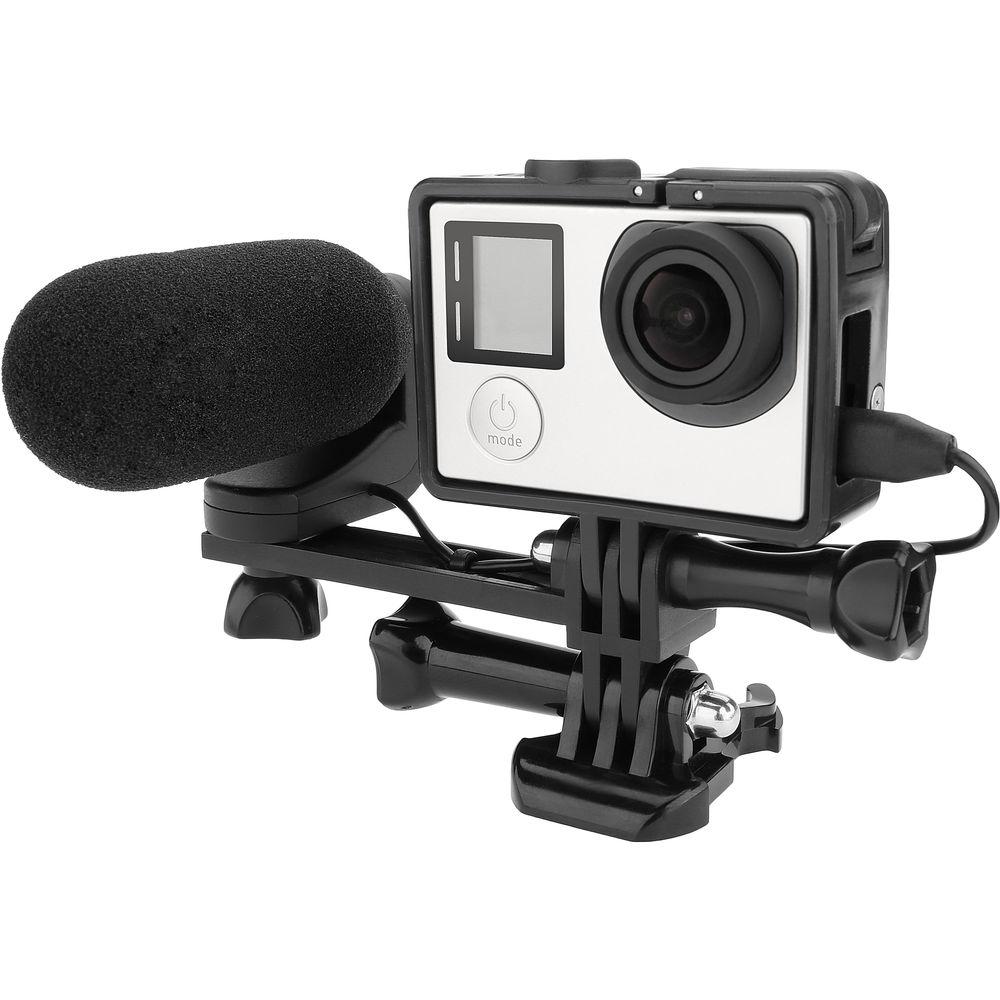

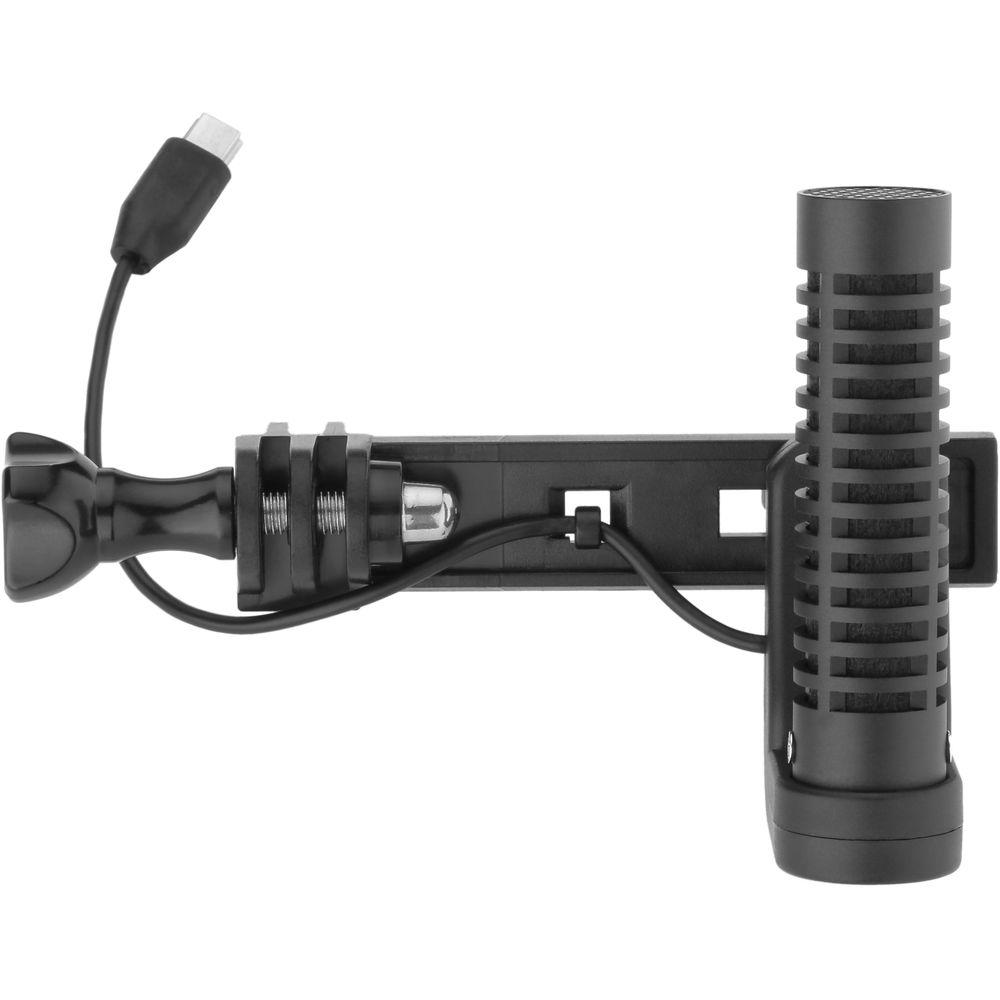

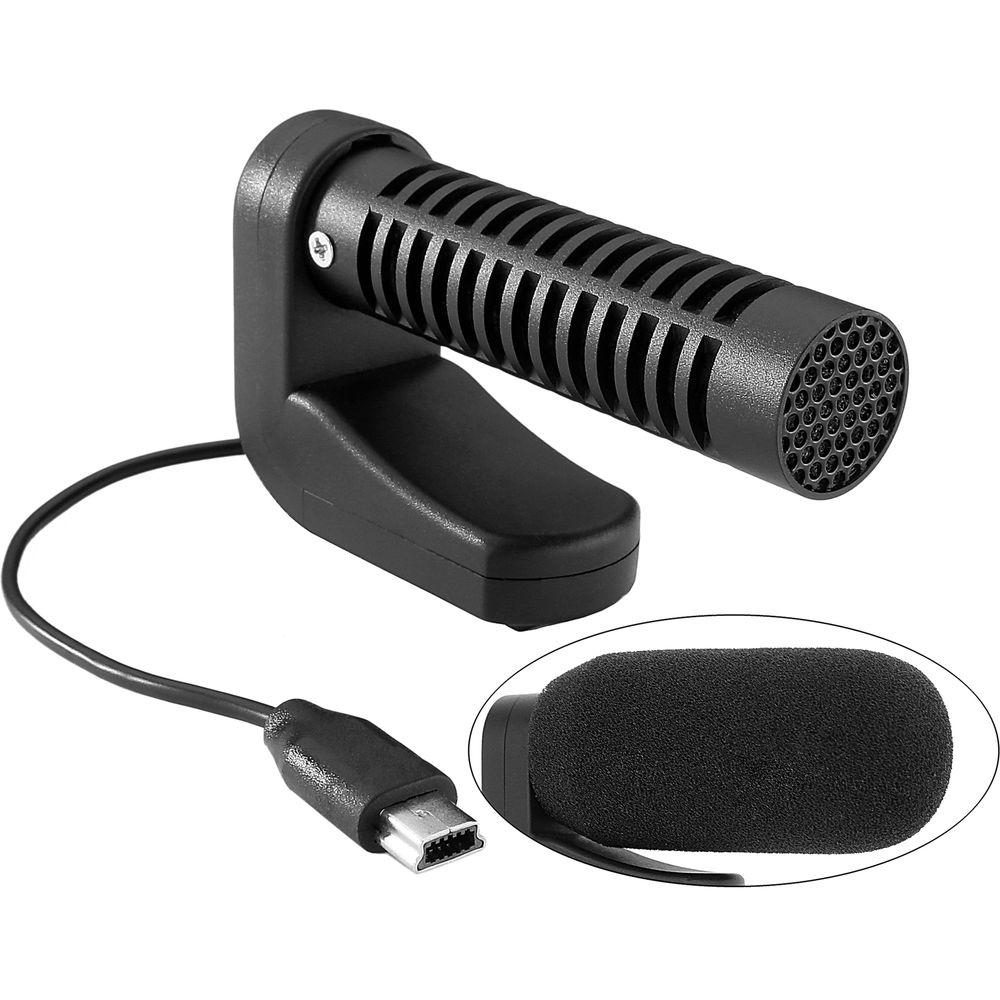

- Supercardioid shotgun microphone provides focus and clarity while rejecting off-axis sound
- Requires Revo Quick-Release Frame for GoPro
- Attach to the GoPro camera using the Revo Quick-Release Frame (sold separately)
- No External Power Needed

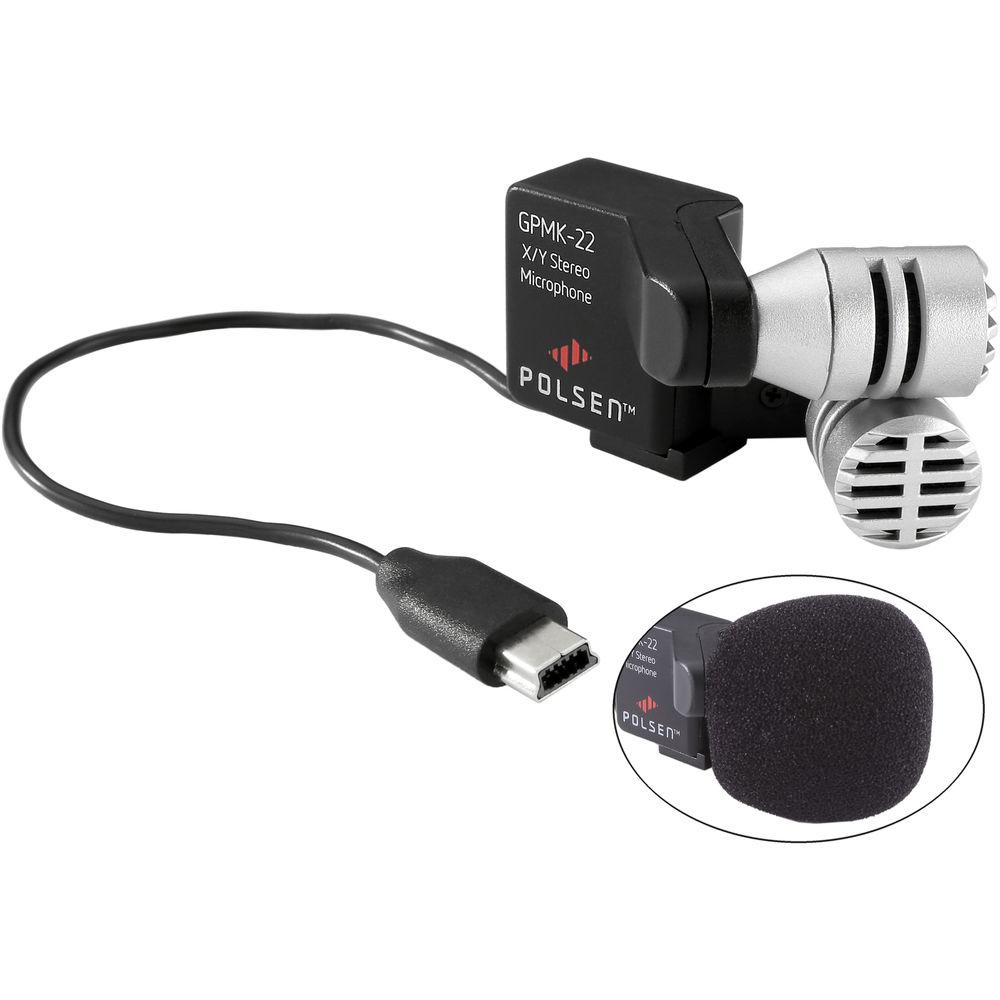

- Receives power directly from your GoPro camera via the Mini-USB cable

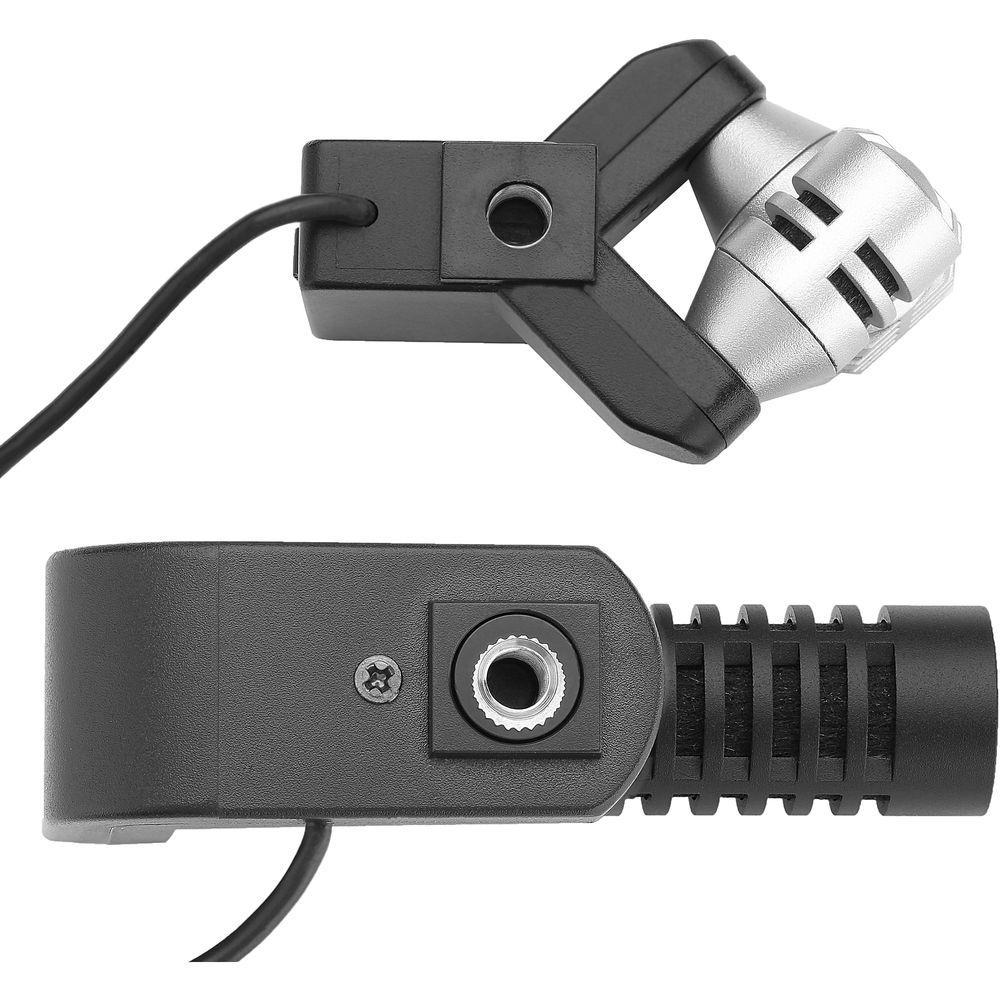

- Adjustable Bracket
- Allows for precise positioning of the microphone
- Compact and Lightweight
- The microphones won't weight down your rig or extend into the picture frame
- Easy to Attach
- The microphone holder attaches directly to a GoPro camera mount with the included hardware
- Foam Windscreens
- Included foam windscreens for both mics to minimize noise from wind or moving air

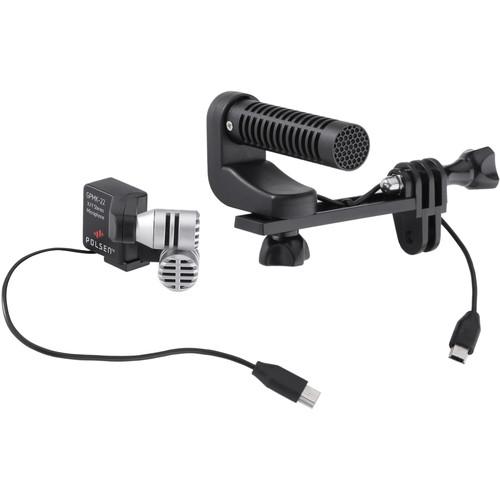

UPC: 847628589551 In the Box Polsen GPMK-22 GoPro Production Microphone Kit Shotgun Microphone Stereo Microphone 2 x Windscreens Adjustable Mounting Bracket Long Thumbscrew Short Thumbscrew Limited 1-Year Warranty User Manual PDF 1.6mbvvuyybeytefsa Table of Contents
|
Upload User Manual
Have you got an user manual for the Polsen GPMK-22 GoPro Production Microphone Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPolsen GPMK-22 Specs | Pattern | Cardioid | Frequency Response | 20 Hz to 20 kHz | Sensitivity | Hi: -34 ± 3 dB (0 dB = 1V / Pa @ 1 kHz) Lo: -39 ± 3 dB (0 dB = 1V / Pa @ 1 kHz) | Output Impedance | 1200 Ohms ± 30% | Power Requirement | 4 VDC | Output Connector | Mini-B USB | Cable Length | 5.9" (15 cm) | | Pattern | Supercardioid | Frequency Response | 20 Hz to 20 kHz | Sensitivity | -39 dB ± 3 dB (0 dB = 1V / Pa @ 1 kHz) | Output Impedance | 1000 Ohms ± 30% | Power Requirement | 4 VDC | Output Connector | Mini-B USB | Cable Length | 5.1" (13 cm) | | Package Weight | 0.35 lb | Box Dimensions (LxWxH) | 8.8 x 5.0 x 2.7" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 88 owners. Add your rating and experience with the product.
