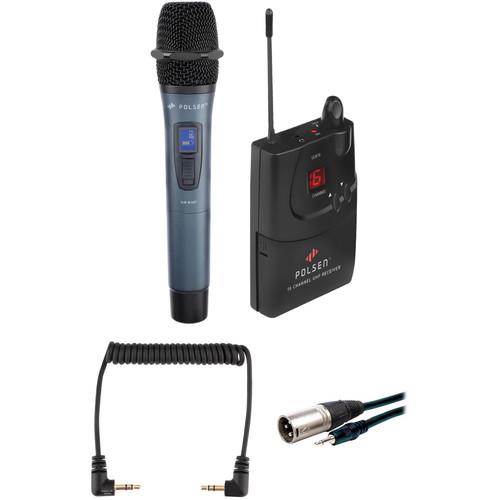

Polsen Handheld Wireless Microphone with Camera-Mount

User Manual for Polsen Handheld Wireless Microphone with Camera-Mount Receiver Kit

• Product category: Wireless Systems Polsen
• Brand: Polsen
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Polsen Wireless Systems

Product description

• Polsen ULW-16-HHT Handheld Transmitter for ULW-16 Wireless System The ULW-16-HHT from Polsen is an all-metal, 16-channel UHF wireless dynamic handheld transmitter for capturing audio. It can be used in various environments when paired with the Polsen ULW-16 receiver for applications such as broadcast TV, live stage, public speaking, and more. The transmitter capsule is offered in a cardioid polar pattern, which is ideal when background noise needs to be minimized. The ULW-16-HHT transmitter has several features such as 102 dB signal-to-noise ratio and a wide frequency response of 60 Hz to 18 kHz. It is built with a channel selector button and allows you to switch between the units 16 UHF channels. The dual-purpose integrated foam windscreen is designed to minimize vocal pops and wind noise but also to protect the mic capsule from moisture. Heavy-duty metal construction assures the ULW-16-HHT can withstand the rigors of transportation and field recording. The handheld transmitter is powered by two AA alkaline or rechargeable batteries and can operate approximately 8 hours. The ULW-16-HHT operates between frequencies 584.400 to 602.450 MHz and has a transmitting distance of over 100'.
  Broadcast Quality
  • With an impressive 102 dB signal-to-noise ratio and a wide frequency response, this transmitter offers quiet, accurate and detailed sound
  Cardioid Polar Pattern
  • The ULW-16-HHT dynamic cardioid microphone capsule minimizes background noise and is ideal for ENG, EFP or DSLR video applications
  Reliable Operation
  • Operation within the 500 MHz bandwidth assures less susceptibility to interference and dropouts
  Durable
  • Heavy-duty metal construction assures the transmitter will withstand the rigors of transportation and field recordings
  UPC: 847628581883
• Polsen ULW-16-BR Beltpack/Camera-Mountable Receiver for the ULW-16 Wireless System The ULW-16-BR Beltpack/Camera-Mountable Receiver for the ULW-16 Wireless System from Polsen is a replacement receiver for Polsen's ULW-16 16-channel camera-mountable UHF wireless system. It's designed to receive an audio signal from the ULW-16-BT transmitter more than 100 feet away. Engineered to be exceptionally quiet, and with many professional features like line output and frequency agility, the ULW-16-BR is ideal for EFP (electronic field production) and video applications for professionals and enthusiasts alike. With its impressive 105 dB signal-to-noise ratio, the ULW-16-BR delivers pristine audio transmission for broadcast-quality recordings. It has 16 channels to choose from to help avoid interference. Up to five systems (or more in optimum conditions) can be used simultaneously in the same location. With features like easy-to-read LED indicators, the receiver also has a line output for professional cameras, and with a line to camera level attenuator cable, you can plug into 1/8" mic input for consumer cameras. A headphone jack and volume control allows you to monitor the transmission signal in real time at a comfortable volume. The system operates in the UHF 500 MHz bandwidth assuring that it is "future proof" and meets current and known future FCC regulations. It will not be affected by the planned FCC auction of the 600 MHz band.
  Engineered for Versatility
  • The many professional features of the ULW-16-BR make it an ideal wireless system for a variety of production applications, including electronic field production (EFP), DSLR video, event coverage, training videos, and classroom or corporate presentations
  Best-In-Class Sound Quality
  • Greater than 105 dB signal-to-noise ratio, and better than 95 dB of dynamic range for pristine audio transmission and output
  Frequency-Agile System
  • The 16-channel ULW-16-BR wireless system allows operators to quickly and effortlessly switch channels in order to locate a clear channel
  Headphone Monitoring with Level Control
  • Transmissions can be monitored at a comfortable level from the receiver's headphone output in real time, without the latency that often occurs when monitoring via a camera's headphone output
  Standard Shoe Mount
  • The standard shoe mount with locking wheel easily and securely attaches to most cameras
  Line-Level Output
  • The receiver features a line-level output for the best possible signal-to-noise ratio. Using a 1/8" (3.5mm) male to XLR male cable, the ULW-16 receiver can be connected to a professional video camera, recorder, or other line-level device
  Line-to-Mic Attenuator Cable
  • Using a line-to-mic level-attenuator cable, you can attach the output of the receiver to camcorders, DSLRs or other devices with a mic-level input
  Portable Receiver
  • The receiver can be mounted onto a standard shoe mount of a DSLR or video camera
  Front-Panel Access to Batteries
  • Both the receiver and transmitter feature front-panel access to the battery compartment so you can change the batteries even when the system is mounted and wired up
  LED Indicators
  • The RF LED on the receiver illuminates indicating there is a signal on the selected channel. LED channel indicators make the channel number easy to see even in dim lighting conditions
  1/4"-20 Threaded Socket
  • The standard 1/4"-20 threaded socket provides a variety of mounting options
  One-Way Communication Application
  • The ULW-16-BR can be used as a one-way voice-communication system for stage directions and talent cueing
  Future Proof
  • The ULW-16-BR system operates in the UHF 500 MHz bandwidth assuring that it is "future proof" and meets current and known future FCC regulations
  UPC: 847628598249
• Kopul CMX-RC30 Right-Angle Coiled Stereo Mini Cable (Black, 8 to 30") The black Kopul CMX-RC30 is a coiled, right-angle stereo mini cable designed for connecting mixers and recorders to DSLR cameras or camcorders, as well as home audio devices where 3.5mm stereo mini plugs are needed at both ends of the cable. Intended as a replacement cable for Kopul CMX-1 & CMX-1-V2 two-channel mini mixers and CMX-2 & CMX-2-V2 two-channel camcorder XLR adapters, this durable cable can also be used to connect smartphones, tablets, media players, and computers to speakers or car stereos.The cable features an 8 to 30", stretchable, coiled design, which doesn't interfere with your camera's operation and prevents clutter. The low-profile, right-angled connectors easily fit into tight spaces or hard-to-reach places and are gold-plated to provide a reliable connection between your devices. The cable's OFC spiral shielding helps minimize unwanted RF and EM interference for a clear audio signal.
  Key Features
  • • Replacement cable for Kopul CMX-1 & CMX-1-V2 two-channel mini mixers and CMX-2 & CMX-2-V2 two-channel camcorder XLR adapters
    • 8 to 30" coiled cable design
    • Gold-plated 3.5mm mini-connectors resist corrosion for reliable connectivity between your devices
    • Low-profile, right-angled connectors fit into tight spaces or hard-to-reach places where a normal straight connector cannot fit
    • Coiled design reduces clutter and prevents excess cable from interfering with the operation of a DSLR camera or camcorder
    • OFC spiral shielding minimizes RF or EM interference while maintaining cable flexibility
    • Certifications: CE, RoHS, WEEE
  UPC: 847628013728
• Comprehensive Mini Male to 3-Pin XLR Male Cable - 3' This Comprehensive EXF Mini Male to 3-Pin XLR Male Cable is a high resolution, low loss cable for professional audio applications. As part of the EXF series, this cable employs 100% microweave bare copper shielding and CFP low loss dielectric for fast, accurate wide bandwidth signal transfer. EXF Cables are finished in Comprehensive's famous X-traflex black matte, non glare jacket.
  • High resolution, low loss construction
  • 95-100% tinned copper braided shield
  • Molded strain relief
  • Premium heavy duty nickel over brass connectors
  • X-traflex jacket
  UPC: 808447003055

• ULW-16-HHT Handheld Transmitter for ULW-16 Wireless System tcarbayazfsvyzccrbaq
• Limited 1-Year Warranty

• ULW-16-BR Beltpack/Camera-Mountable Receiver for the ULW-16 Wireless System tcarbayazfsvyzccrbaq

• Kopul - CMX-RC30 Right-Angle Coiled Stereo Mini Cable (Black, 8 to 30")

• Comprehensive - EXF Series Mini Male to 3-Pin XLR Male Cable - 3'

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Polsen ULW-16-HHT Handheld Transmitter for ULW-16 Wireless System

  Frequency Range	584.400 to 602.450 MHz
  Number of Channels	16
  Frequency Allocation	CH. 1 584.400 MHz CH. 2 587.500 MHz CH. 3 589.575 MHz CH. 4 591.050 MHz CH. 5 593.425 MHz CH. 6 595.200 MHz CH. 7 598.450 MHz CH. 8 599.650 MHz CH. 9 601.275 MHz CH. 10 603.775 MHz CH. 11 605.500 MHz CH. 12 606.750 MHz CH. 13 586.025 MHz CH. 14 590.525 MHz CH. 15 594.150 MHz CH. 16 602.450 MHz
  Switching Bandwidth	25 MHz
  Peak Deviation	±55 kHz
  Total Harmonic Distortion (THD)	<0.8%
  Operation Distance	>100' (30.5 m) 300' (91.4 m) in optimum conditions

  Transducer	Dynamic
  Polar Pattern	Cardioid (Unidirectional)
  Frequency Response	60 Hz to 18 kHz
  RF Output Power	10 mW
  Spurious Rejection	>55 dBc
  Signal to Noise Ratio	102 dB
  THD	<1%
  Maximum Input Voltage	1000 mW
  Power Supply	2x AA batteries
  Operating Time	Approximately 8 hours
  Dimensions (H x W x L)	2.1 x 2 x 10" (5.3 x 5.1 x 25.4 cm)
  Weight	15.2 oz (431 g) with batteries 13.6 oz (385 g) without batteries

  Box Dimensions (LxWxH)	10.394 x 2.441 x 2.362"

• Polsen ULW-16-BR Beltpack/Camera-Mountable Receiver for the ULW-16 Wireless System

  Number of Channels	16
  Frequency Range	584.400 to 602.450 MHz
  Sensitivity	-102 dBm
  Dynamic Range	>95 dB
  Signal-to-Noise Ratio	>105 dB (A)
  Image Rejection	56 dB
  Output	1/8" (3.5 mm) 1 kOhms
  Power Supply	2 x AA batteries
  Operating Time	Approximately: 8 hours
  Dimensions	4.4 x 2.6 x 1.4" (11.3 x 6.5 x 3.5 cm)
  Weight	3.5 oz (100 g)

  Box Dimensions (LxWxH)	8.4 x 3.2 x 1.8"

• Kopul CMX-RC30 Right-Angle Coiled Stereo Mini Cable (Black, 8 to 30")

  Cable Length	30" / 76.20 cm
  Connector Types	TRS R/A Mini (3.5 mm) M - TRS R/A Mini (3.5 mm) M
  Jacket Color	Black
  Connector Plating	Gold
  Shielding Material	Oxygen-Free Copper (OFC)
  Certifications	CE, RoHS, WEEE, as per Manufacturer
  Weight	0.4 oz / 11 g

  Box Dimensions (LxWxH)	3.6 x 2.65 x 0.55"

• Comprehensive Mini Male to 3-Pin XLR Male Cable - 3'

  Cable Type	Mini male to 3-pin XLR male cable
  Length	3' (0.9 m)
  Shielding	95%-100% tinned copper braided shield
  Connector 1	3.5mm mini male
  Connector 2	XLR male

  Box Dimensions (LxWxH)	4.9 x 3.6 x 0.6"
