User Manual for Polsen HPA-4X2 4-Channel Stereo Reference Headphone Amplifier Click to enlarge the picture
Contents of the user manual for the Polsen HPA-4X2 4-Channel Stereo Reference Headphone
- Product category: Headphone Amplifiers Polsen
- Brand: Polsen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Polsen Headphone Amplifiers
 |
User manual for the Polsen HPA-4X2 4-Channel Stereo Reference Headphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Polsen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Polsen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Polsen product will considerably shorten its lifespan!
|

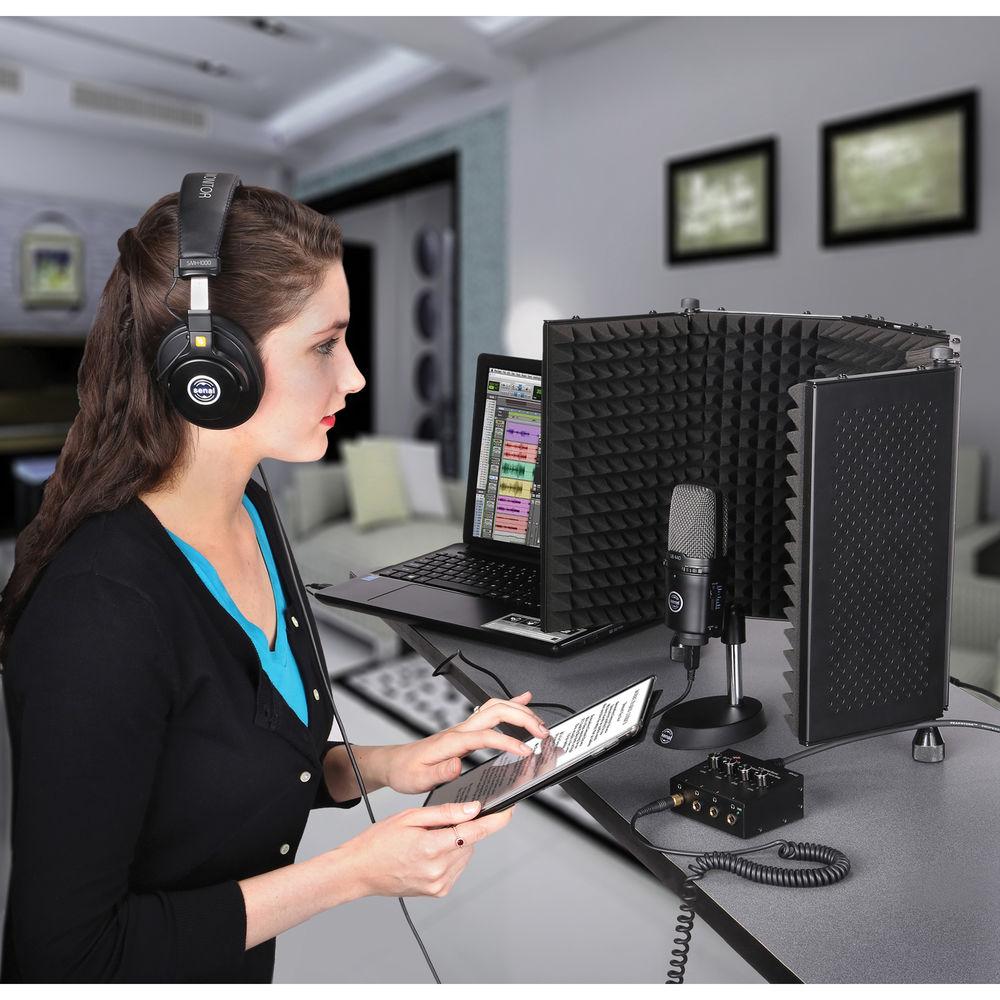

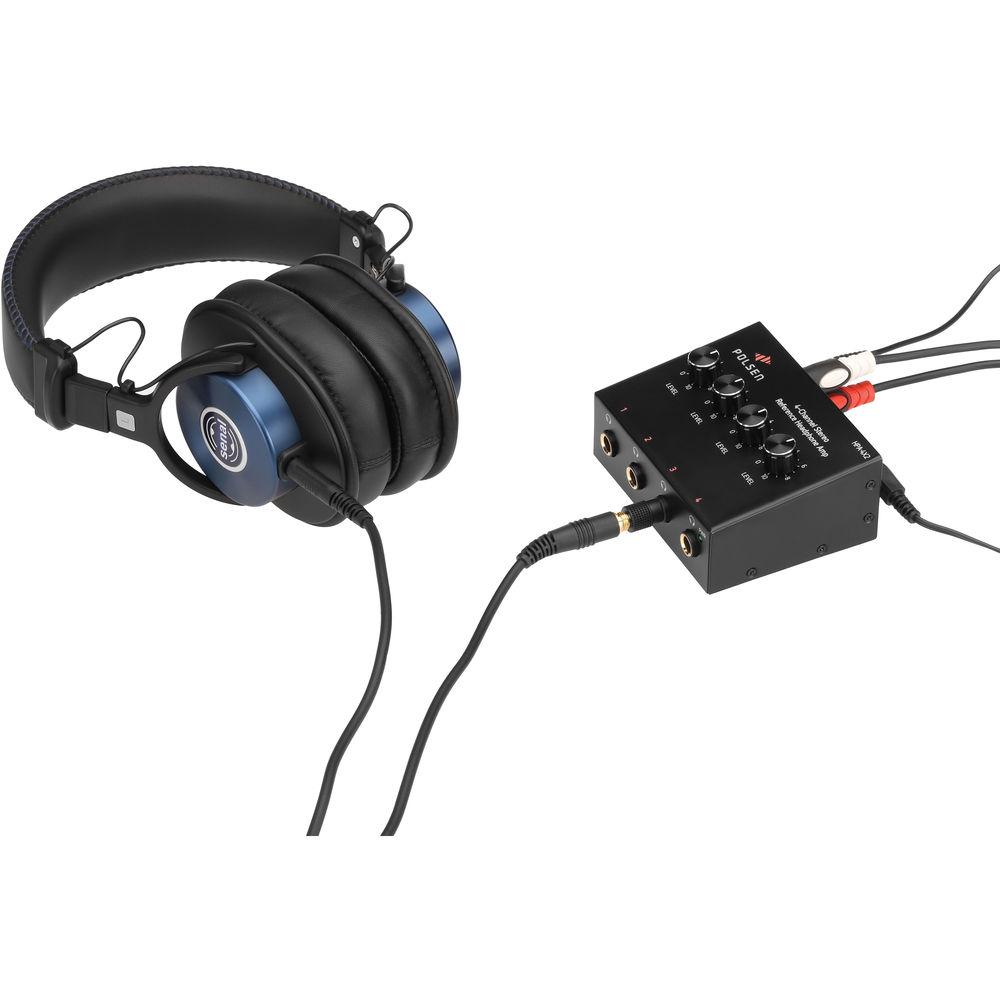

Product description The HPA-4X2 4-Channel Stereo Reference Headphone Amplifier from Polsen features a durable and compact design and can be used for a variety of professional and project applications including studio recording and stage monitoring, or any application that requires multiple headphone connections. Features include a wide frequency response of 20 Hz to 20 kHz with low distortion at high volumes, and no signal loss when all 4 headphone outputs are used simultaneously. Each of its four channels allows for independent volume control. Thanks to its Link feature, you can daisy chain multiple HPA-4X2s together to cater to your needed headphone count.

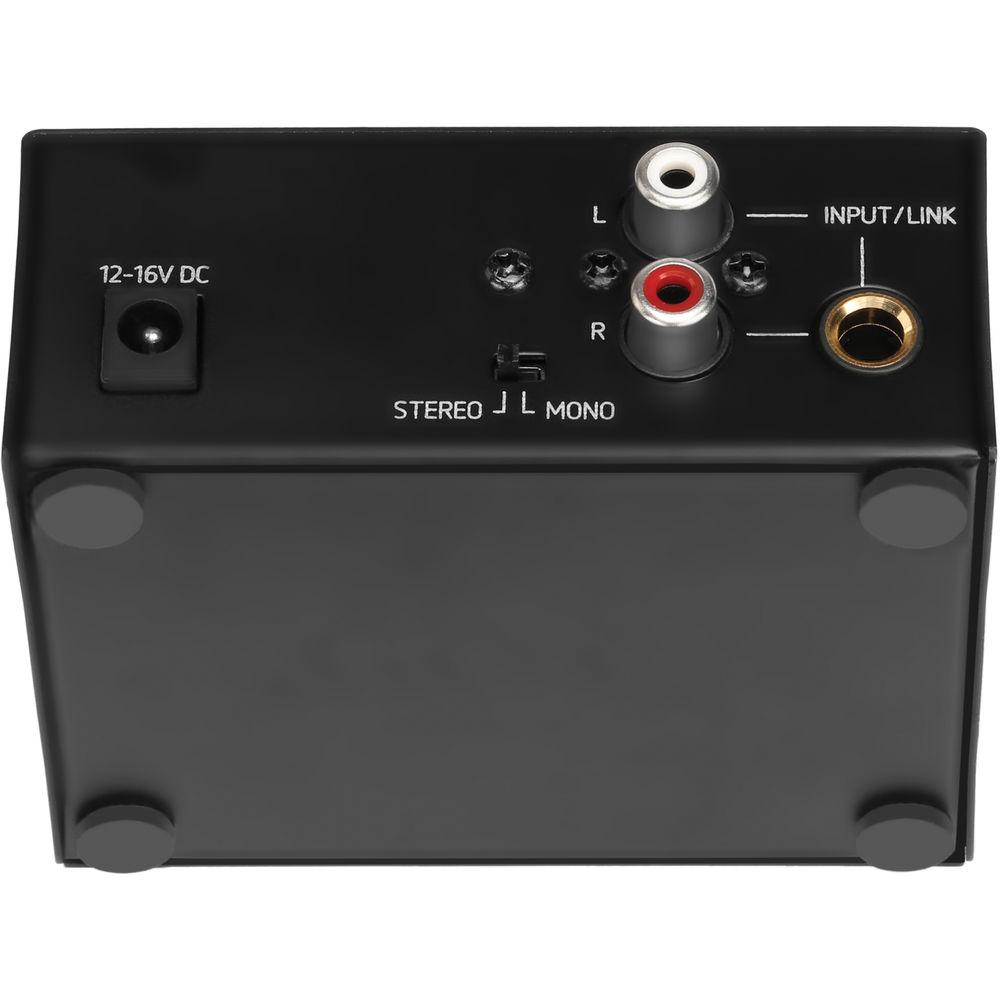

The unit features a 1/4" stereo TRS input, and stereo RCA inputs. It mono button allows for mono signal compatibility. For its headphone outputs, it features four 1/4" TRS connectors. To assure compatibility with a variety of headphones, Polsen includes four 1/8" to 1/4" adapters as well as a stereo mini cable that, when used with one of the included adapters, allows you to connect a device with a 1/8" output. - Durable, compact, and easy to use
- High output level for precise monitoring at high volume

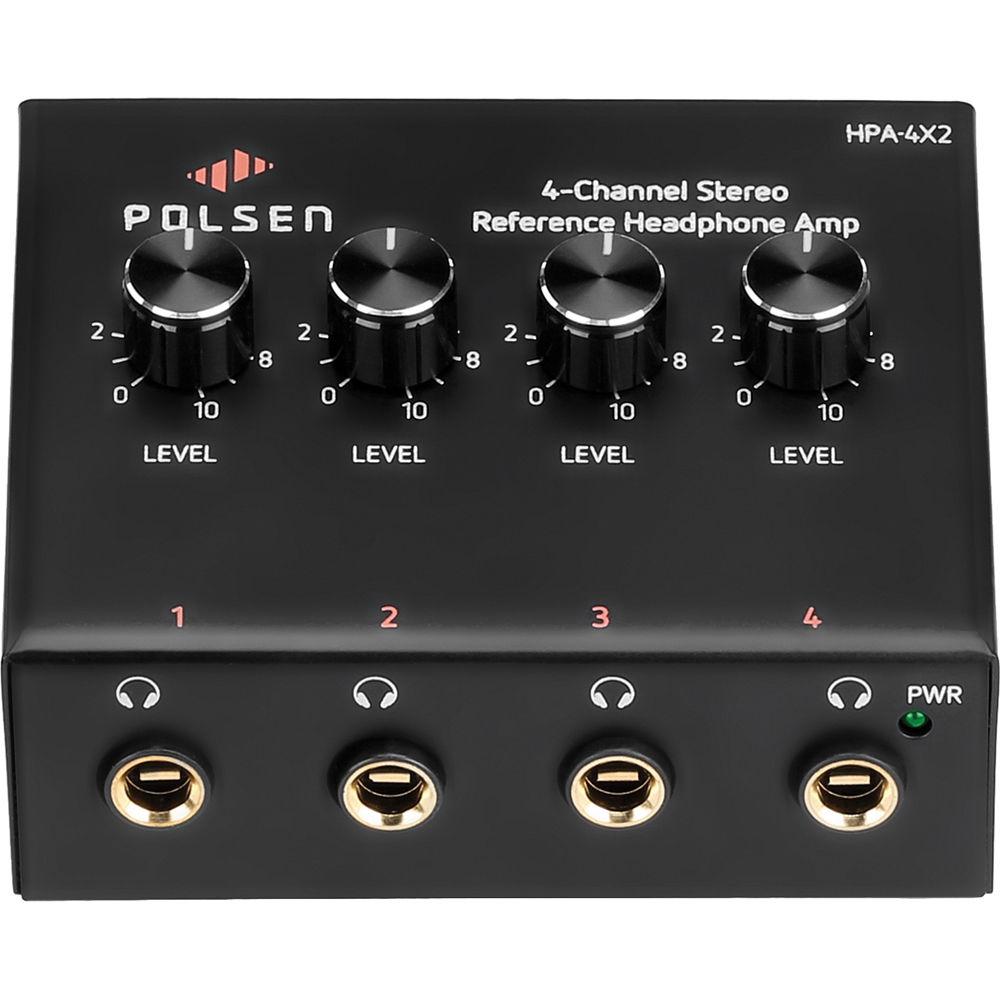

- Four headphone jacks each with independent volume control
- Wide frequency response (20 Hz to 20 kHz) for full-range stereo sound
- Stereo/mono switch provides options for monitoring playback
- Link feature to daisy chain additional headphone amplifiers
- No loss of signal when all four headphones are connected

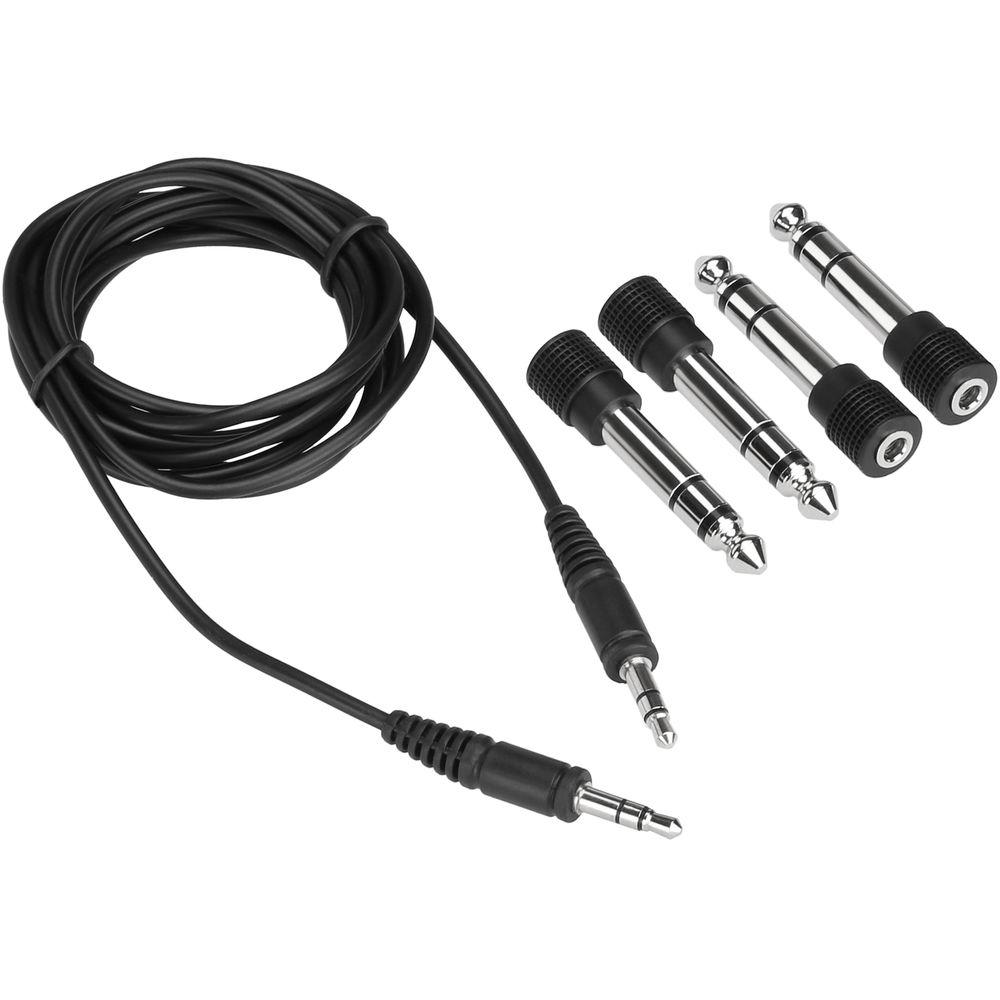

- Included stereo mini cable for connecting devices with 1/8" output (use included 1/4" adapter)

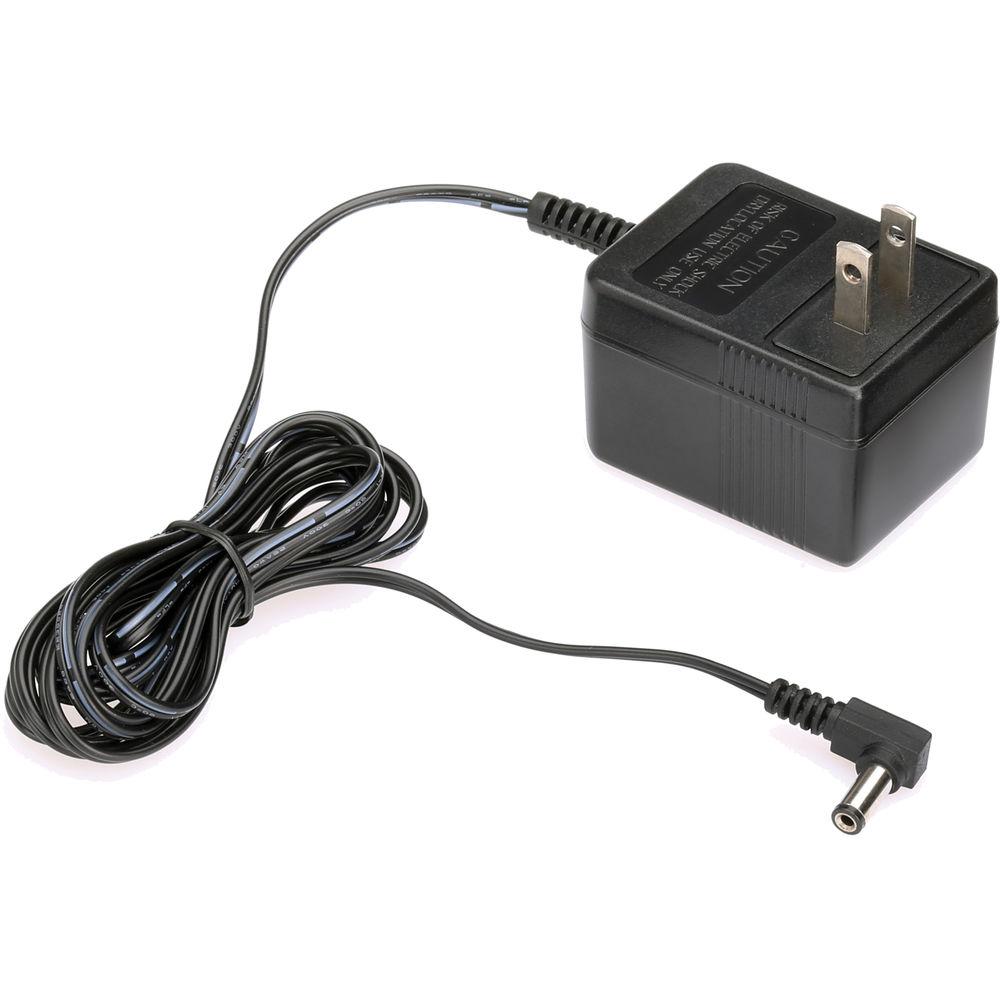

UPC: 847628577695 In the Box Polsen HPA-4X2 4-Channel Stereo Reference Headphone Amplifier Stereo Mini Male to Stereo Mini Male Cable 4 x 1/8" (3.5 mm) Stereo Mini to 1/4" (6.3 mm) TRS Stereo Adapter DC 12 V/150 mA Power Supply Limited 1-Year Warranty User Manual PDF 963.3kbvvaezquzeyxfvurzcavfbqrtfvxwaba Table of Contents
|
Upload User Manual
Have you got an user manual for the Polsen HPA-4X2 4-Channel Stereo Reference Headphone Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPolsen HPA-4X2 Specs | Channels | 4 | | Input Connections | 1x 1/4" (6.3 mm) TRS master input
1x L,R RCA | | Output Connectors | 4x 1/4" (6.3 mm) TRS headphone outputs | | Maximum Input Level | +14 dBV | | Maximum Output Level | 22 dB, per channel | | Input Impedance | 1 kΩ | | Output Impedance | Minimum 10 Ω, per channel | | Signal to Noise Ratio | >98 dB | | THD | <0.007% | | Power | 12 V DC, 150 mA | | Dimensions (L x W x D) | 3.00 x 3.75 x 1.20" (76 x 95 x 30 mm) | | Weight | 10.4 oz (295 g) | | | | Package Weight | 1.195 lb | | Box Dimensions (LxWxH) | 8.25 x 4.85 x 2.8" |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 64 owners. Add your rating and experience with the product.
