User Manual for Polsen MO-PL1 Lavalier Microphone for Mobile Devices with Lightning to 3.5mm Adapter Kit Click to enlarge the picture
Contents of the user manual for the Polsen MO-PL1 Lavalier Microphone for Mobile
- Product category: Mobile Microphones Polsen
- Brand: Polsen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Polsen Mobile Microphones
|
User manual for the Polsen MO-PL1 Lavalier Microphone for Mobile contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Polsen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Polsen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Polsen product will considerably shorten its lifespan!
|

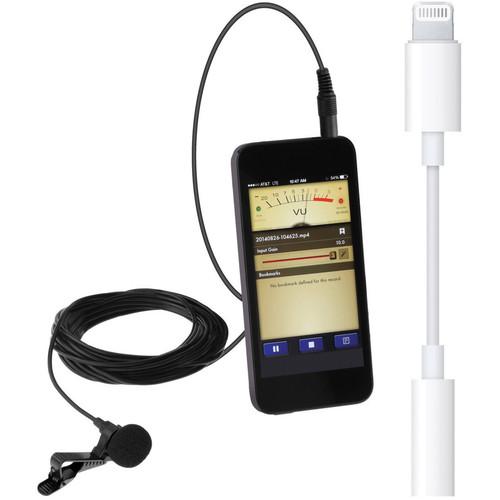

Product description The Polsen MO-PL1 Lavalier Microphone for Mobile Devices with Lightning to 3.5mm Adapter Kit from includes a Polsen MO-PL1 lavalier mic and an Apple Lightning-to-3.5mm headphone-jack adapter. It is designed to let you connect the 3.5mm-outfitted Polsen mic to an iPhone 7 or iOS device that only accepts an 8-pin lightning connection. Compatible with many audio and video recording apps, the MO-PL1 is optimized for iOS devices and delivers high-quality audio with good off-axis response, to capture a clear and natural sound for lectures, dictations, interviews, and online videos. - Polsen MO-PL1 Lavalier Microphone for Mobile Devices The Polsen MO-PL1 is an omnidirectional lavalier microphone that delivers high-quality audio for mobile devices. The microphone's sensitivity has been optimized for iPhone, iPad, and iPod touch devices, thus providing proper signal levels, resulting in a significant improvement in the audio quality of your recordings. The MO-PL1 is also impedance matched to ensure compatibility with your mobile device. The mic enables the voice to be "up front" even when recording video from a distance. The included tie clip discreetly hides the microphone and provides hands-free simplicity during presentations or interviews.
Easy to use with no batteries or power supply needed, the MO-PL1 works with many audio and video recording apps to capture clear and natural sound for lectures, dictations, and online videos. The omnidirectional polar pattern provides excellent off-axis response even if the subject's head turns while speaking. The 12-foot cable provides the flexibility of getting longer-distance camera shots with up-close audio. The MO-PL1 is an excellent tool for recording professional-quality sound on mobile devices. - Compatible with iPhone 5, iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G, iPad (3rd and 4th generation), iPad 2, iPad, iPad mini, iPod touch (1st generation through 5th generation)
- Compatible with most Android devices (CTIA/AHJ compatible) and other mobile devices
- Works with any audio app that records from the headset input
- Foam pop shield softens vocal plosives and wind noise
- Clip included for securing microphone to clothing
UPC: 847628572485 - Apple Lightning to 3.5mm Headphone Jack Adapter The Lightning to 3.5mm Headphone Jack Adapter from Apple is the cable you would use to attach your analog, 3.5mm-outfitted headphones to an iOS device that only accepts an 8-pin lightning connection—a device like an iPhone 7, for example. Indeed, if you wanted a cable from Apple itself to connect your favorite pair of headphones sporting a stereo, 3.5mm mini plug to your iPhone 7 (or later), this would be the cable for you. UPC: 190198001757
In the Box - MO-PL1 Lavalier Microphone for Mobile Devices caxyyzczfbrqet
- Tie Clip
- Foam Windscreen
- Pouch
- Limited 1-Year Warranty
- Apple - Lightning to 3.5mm Headphone Jack Adapter
Table of Contents
|
Upload User Manual
Have you got an user manual for the Polsen MO-PL1 Lavalier Microphone for Mobile Devices with Lightning to 3.5mm Adapter Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Polsen MO-PL1 Lavalier Microphone for Mobile Devices
| Transducer | Back electret condenser | | Polar Pattern | Omnidirectional | | Frequency Range | 50 Hz ~ 18 kHz | | Sensitivity | -54 dB ± 3 dB (RL: 2.2K DC: 1.5V) (0 dB=1V/microbar, 1 kHz indicated by open circuit) | | Impedance | 1600 ohms ± 30% @ 1 kHz | | Connector | 3.5 mm TRRS gold-plated plug | | Capsule Diameter | 0.3" (7.9 mm) | | Cable Length | 12' (3.6 m) | | | | Box Dimensions (LxWxH) | 5.512 x 2.598 x 1.339" | - Apple Lightning to 3.5mm Headphone Jack Adapter
| | | Connector 1 | 1 x Lightning Male | | Connector 2 | 1 x 1/8" / 3.5 mm TRS Female | | | | Box Dimensions (LxWxH) | 2.7 x 2.65 x 0.85" |
