User Manual for Polsen OLM-10 Omnidirectional Lavalier Microphone Click to enlarge the picture
Contents of the user manual for the Polsen OLM-10 Omnidirectional Lavalier Microphone
- Product category: Lavalier Microphones Polsen
- Brand: Polsen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Polsen Lavalier Microphones
 |
User manual for the Polsen OLM-10 Omnidirectional Lavalier Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Polsen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Polsen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Polsen product will considerably shorten its lifespan!
|

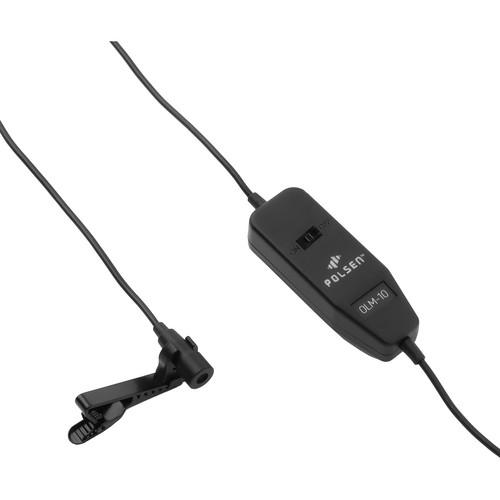

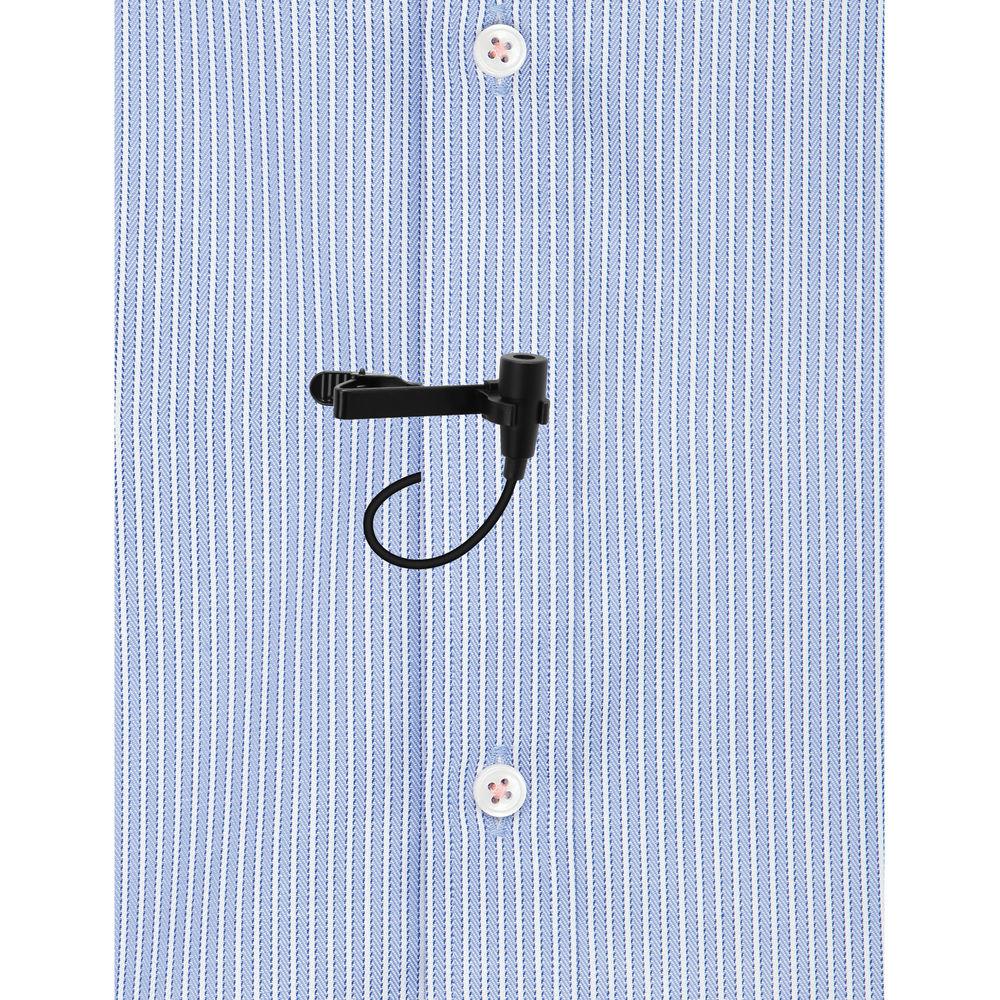

Product description Essential Guide on How to Mic Talent for Video Read More The Polsen OLM-10 Omnidirectional Lavalier Microphone is an all-in-one solution for recording hands-free audio to both channels of your camcorder or DSLR, as well as recording devices with a 3.5mm mic-level input that cannot supply phantom power. It is a self-powered clip-on electret condenser mic designed for accurate voice reproduction in home and video webcasting applications such as presentations, interviews, dictation, and corporate video. The microphone's small, 21-mm long lightweight body allows for discrete placement with the included tie-clip while its 20-foot long cable gives you ample distance from your recording device.

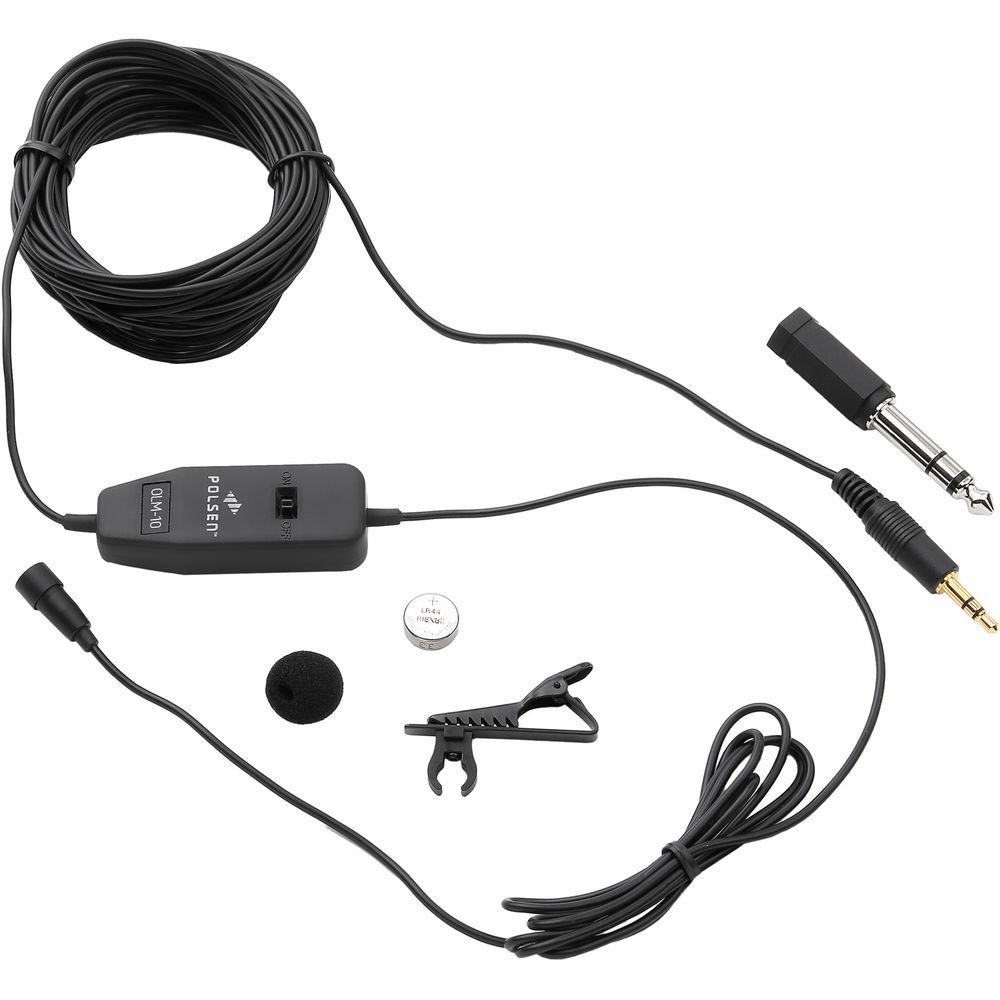

Featuring a 3.5mm dual-mono TRS output connector, the mic sends audio to both the left and right channels of your recorder. Thanks to its omnidirectional polar pattern, the OLM-10 provides a uniform response that will not cause the bass-boosting proximity effect common with cardioid patterns, while allowing you to move freely without off-axis rejection causing a drop in volume. The in-line power switch allows you to quickly mute the microphone as well as preserve battery life when not in use. A windscreen for reduced noise and plosives, 1/4" adapter, and LR44 battery are included. Note: Not intended for use with smartphone or tablet devices. UPC: 847628569676 In the Box Polsen OLM-10 Omnidirectional Lavalier Microphone 3.5mm to 1/4" Adapter Tie Clip Foam Windscreen LR44 Battery Limited 1-Year Warranty User Manual PDF 4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Polsen OLM-10 Omnidirectional Lavalier Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPolsen OLM-10 Specs | Transducer | Electret condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 50 Hz to 18 kHz | | Sensitivity | -65 dB +/- 3 dB (0 dB = 1 V/µbar @ 1 kHz) | | Impedance | 1 kOhms +/-30% @ 1 kHz | | Operating Voltage | 1 to 10 VDC | | Material | Gold stereo plug | | Cable Length | 20' (6 m) | | Capsule Diameter | 0.3" (7.5 mm) | | Length | Microphone: 0.8" (21 mm) | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 7.2 x 4.6 x 1.0" |
Rating84% users recommend this product to others. And what about you?
This product has already been rated by 40 owners. Add your rating and experience with the product.
