User Manual for Polsen OLM-20 Dual Omnidirectional Lavalier Microphone Click to enlarge the picture
Contents of the user manual for the Polsen OLM-20 Dual Omnidirectional Lavalier Microphone
- Product category: Lavalier Microphones Polsen
- Brand: Polsen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Polsen Lavalier Microphones
 |
User manual for the Polsen OLM-20 Dual Omnidirectional Lavalier Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Polsen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Polsen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Polsen product will considerably shorten its lifespan!
|

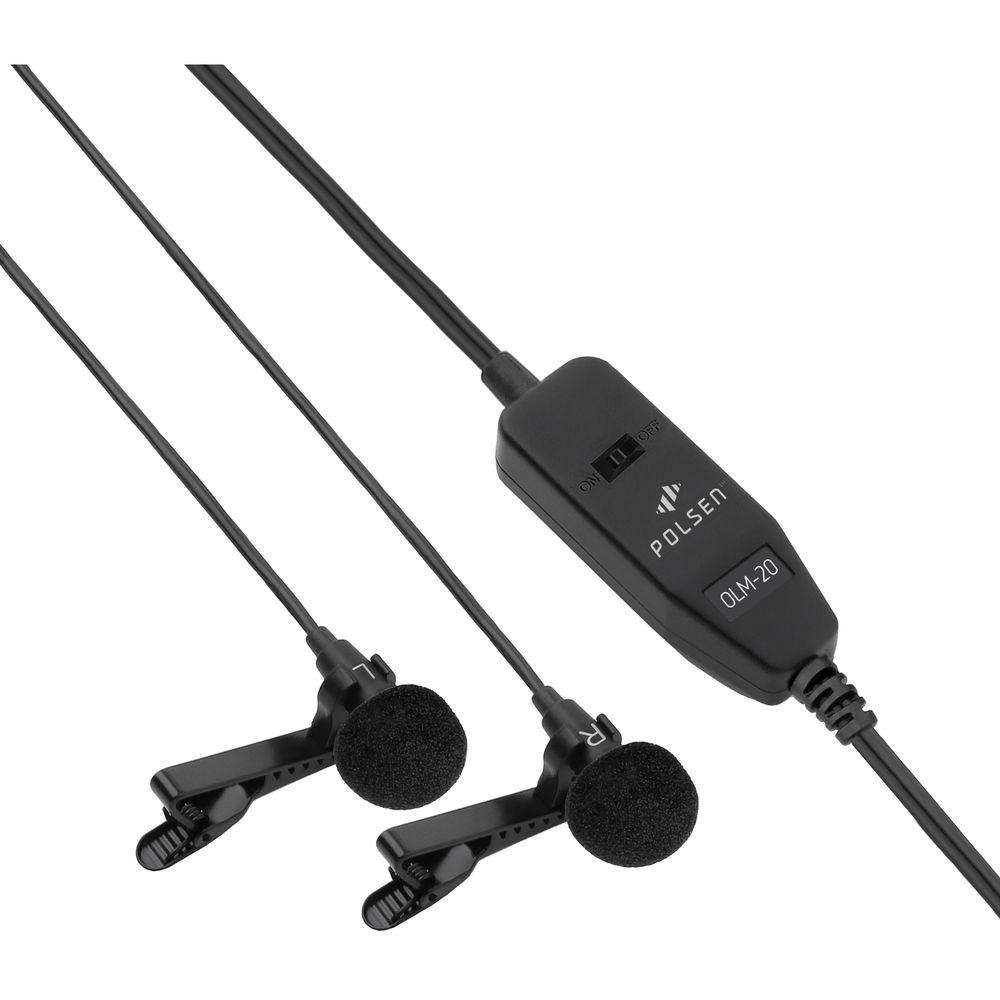

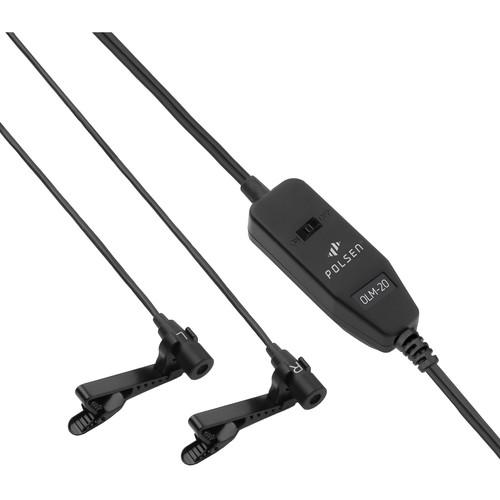

Product description Essential Guide on How to Mic Talent for Video Read More Designed for recording interviews, the OLM-20 Dual Omnidirectional Lavalier Microphone from Polsen is comprised of two of the well-received OLM-10 omnidirectional lavalier microphones. It terminates in a single 1/8" stereo connector, with each microphone recording to a discrete channel on your DSLR, camcorder, or audio recorder with a microphone input. Not limited to just interview applications, the OLM-20 can be used for presentations, podcasts, webcasts, or any situation where more than one subject needs to be recorded.
The OLM-20's dual electret condenser capsules are designed to deliver clear and natural sound, with their omnidirectional polar pattern providing off-axis response, even if the subject turns their head while talking. Both mics offer low sensitivity to wind and handling noise, as well as vocal plosives.
Thanks to its battery-operated design, the OLM-20 can be used with any camera or recorder that supports a 1/8" stereo mic level input, without the need for additional equipment or adapters. Each microphone records to a discrete channel, and the microphones themselves are labeled left and right. Its 13.5' cable provides 10' of distance between each microphone for comfortable placement, while the included tie clips allow for hands-free use. - Omnidirectional Polar Pattern
- The omnidirectional polar pattern provides excellent off-axis response, even if a subject turns their head while speaking
- Wide Range of Compatibility
- Compatible with DSLR cameras, camcorders, and most devices with a 1/8" (3.5mm) mic-level input
- No Extra Accessories Needed
- The OLM-20's design sends each microphone to a discreet channel without need for extra adapter or mixer
- Low Sensitivity to Wind Noise and Vocal Plosives
- Each microphone offers low sensitivity to wind, handling noise, and vocal plosives
- 13.5' (4.1 m) Cable
- The 13.5' cable provides 10' of distance between each mic, 1' of distance between its battery box and stopper, and 2.5' of distance from the battery box to its 1/8" (3.5mm) connector
- In-Line Battery Pack and Power Switch
- The OLM-20 is powered by a 1.5 V button cell battery (included) and does not require external power for operation. The power switch conserves battery life

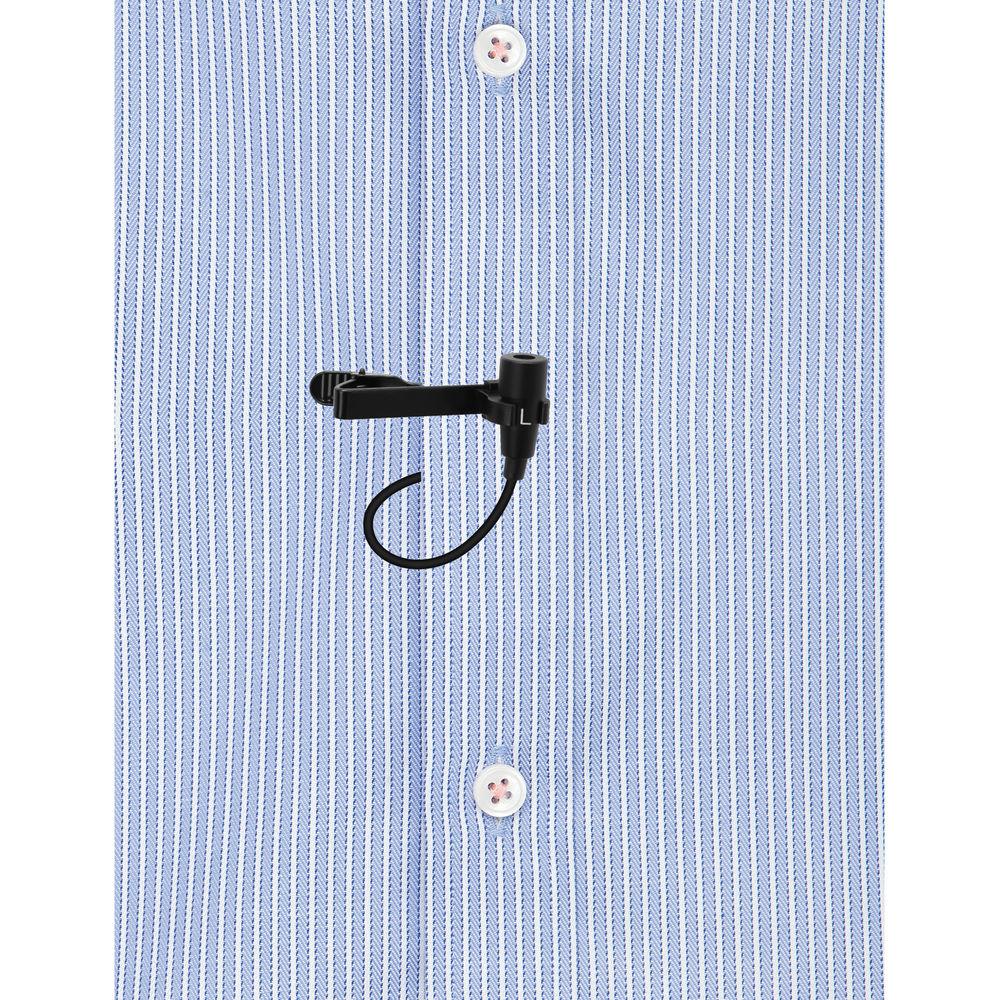

- Tie Clip and Foam Windscreen
- The included tie clips allow for hands-free operation while the windscreens help ensure quiet, professional-quality recordings

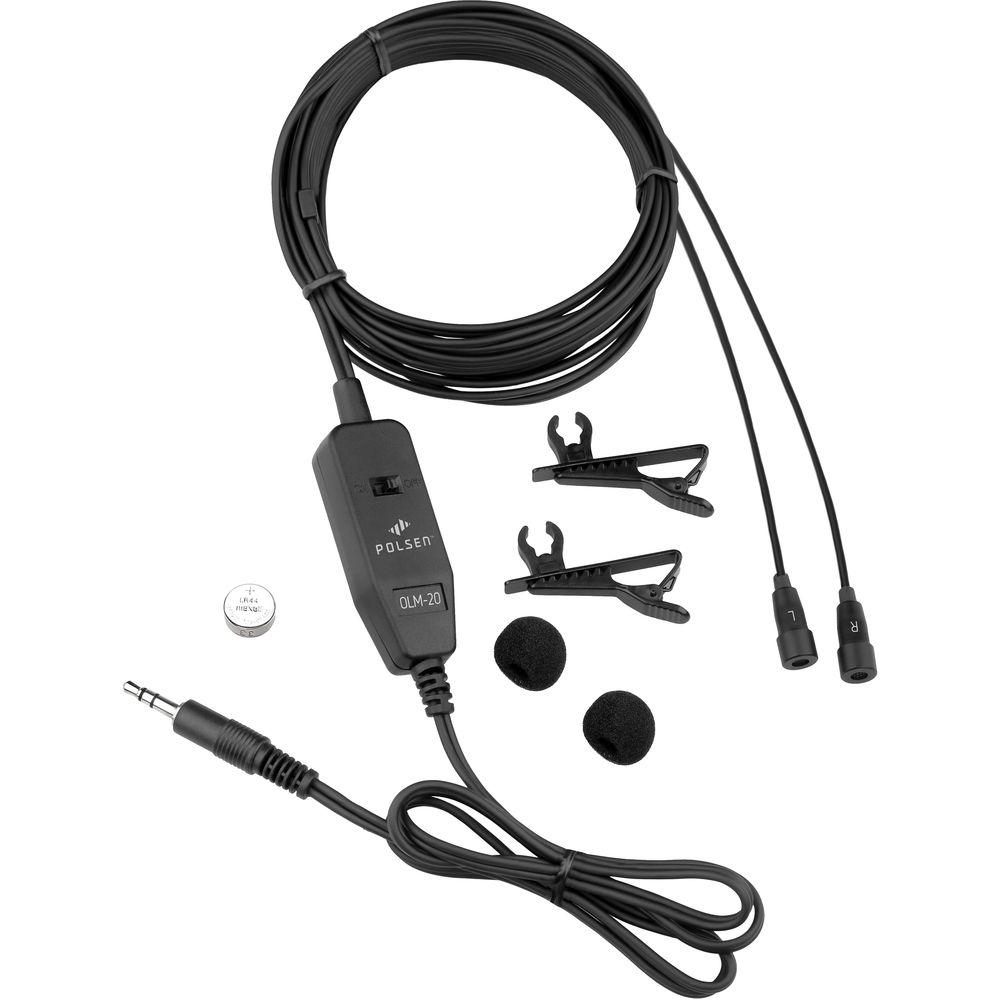

UPC: 847628578777 In the Box Polsen OLM-20 Dual Omnidirectional Lavalier Microphone 2 x Tie Clips 2 x Foam Windscreens LR44 Battery Limited 1-Year Warranty User Manual PDF 3.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Polsen OLM-20 Dual Omnidirectional Lavalier Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPolsen OLM-20 Specs | Transducer | Electret Condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 30 Hz to 18 kHz | | Sensitivity | -65 dB ± 3 dB (0 dB=1 v/ubar @ 1 kHz) | | Impedance | 1000 Ω ± 30% @ 1 kHz | | Operating Voltage | 1.5 V DC | | Connector | 1/8" (3.5 mm) gold-plated stereo plug | | Power | 1.5 V button cell battery | | Length | Microphone: 0.79" (20 mm), each | | Capsule Diameter | 0.3" (7.5 mm), per capsule | | Cable | Total Length: 13.5' (4.1 m)
Length Between Microphones: 10' (3 m)
Length Between Battery Box and Stopper: 1' (0.3 m)
Length From Battery Box to Connector: 2.5' (0.8 m) | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 8.3 x 4.6 x 1.2" |
