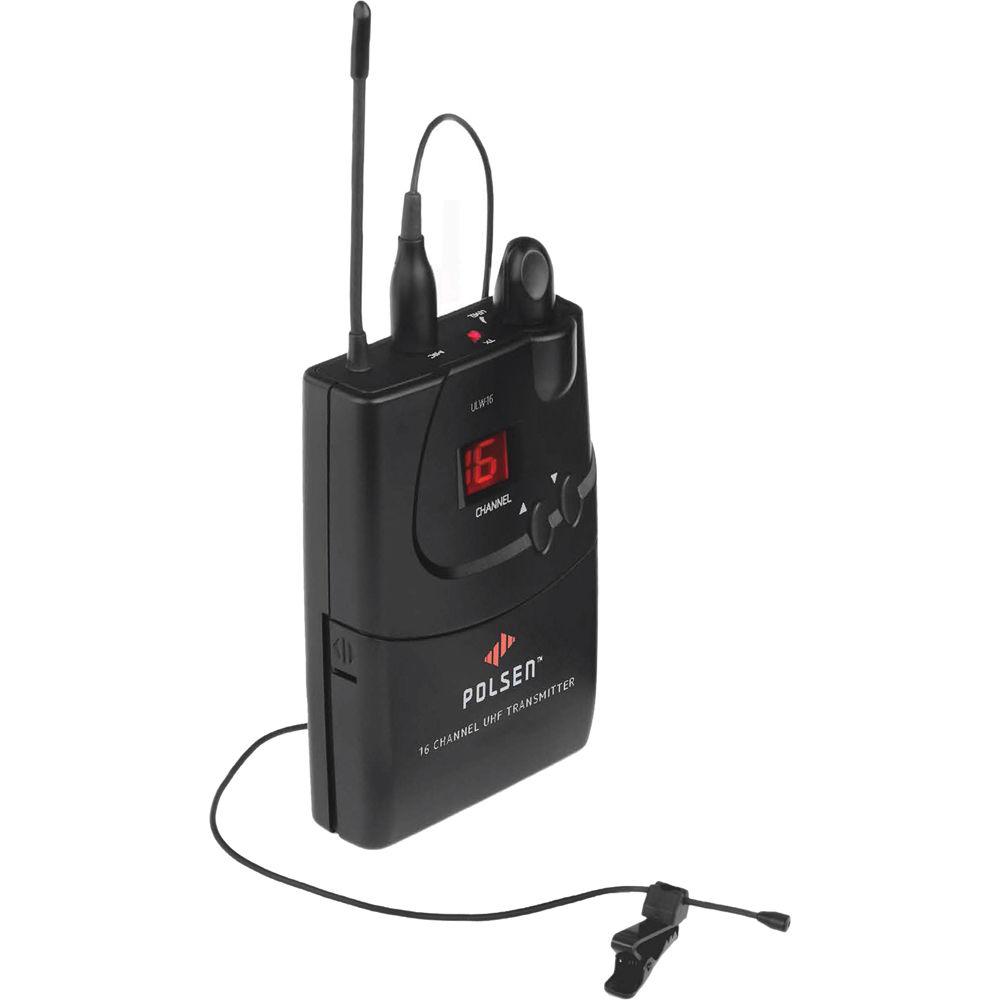

Product description Essential Guide on How to Mic Talent for Video Read More The Polsen PL-5 is a replacement microphone for Polsen's ULW-16 wireless system. It is also compatible with other wireless transmitters with a standard 1/8" microphone input, or devices that have a 1/8" (3.5 mm) input with plug-in power.
Featuring an omnidirectional polar pattern, the PL-5 is optimized to accurately capture speech. It provides clear and natural sound ideal for ENG, EFP, and DSLR video applications. Because omnidirectional microphones are less susceptible to wind noise and vocal plosives (pops) than cardioid microphones, the PL-5 is suitable for indoor or outdoor use.

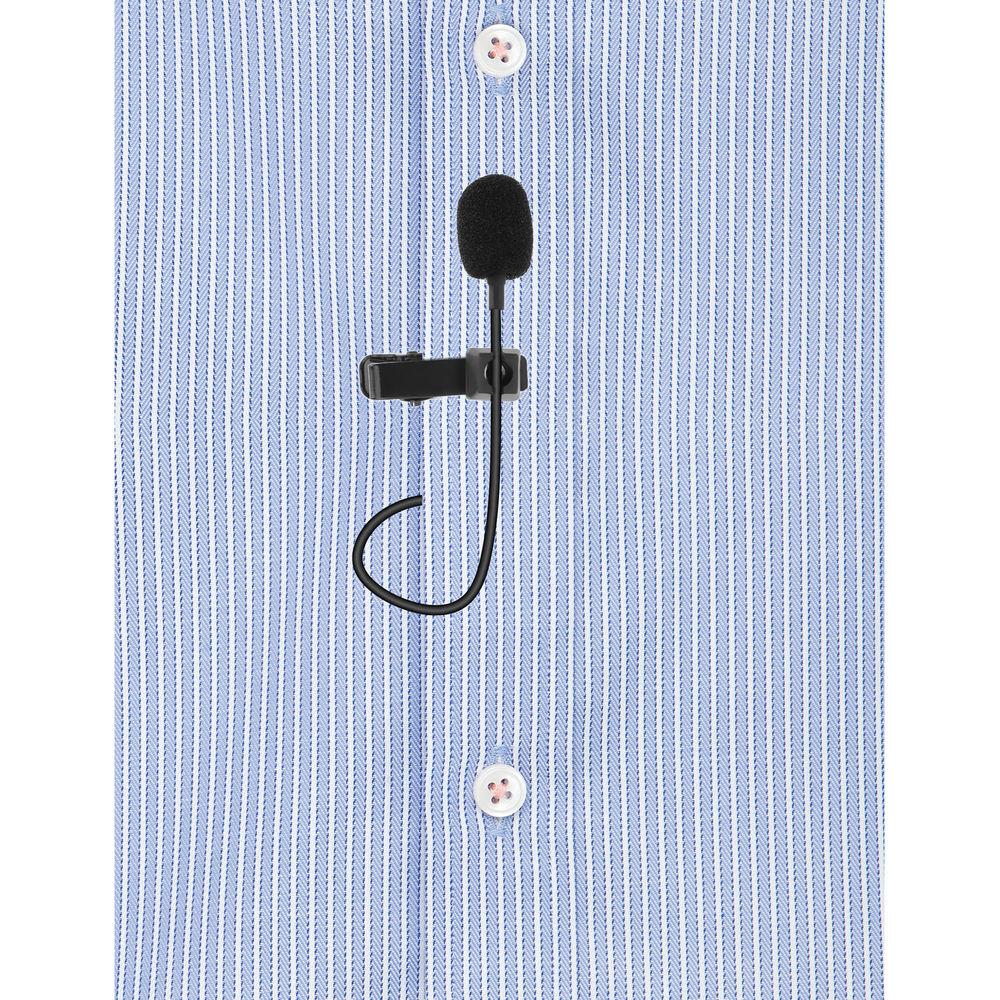

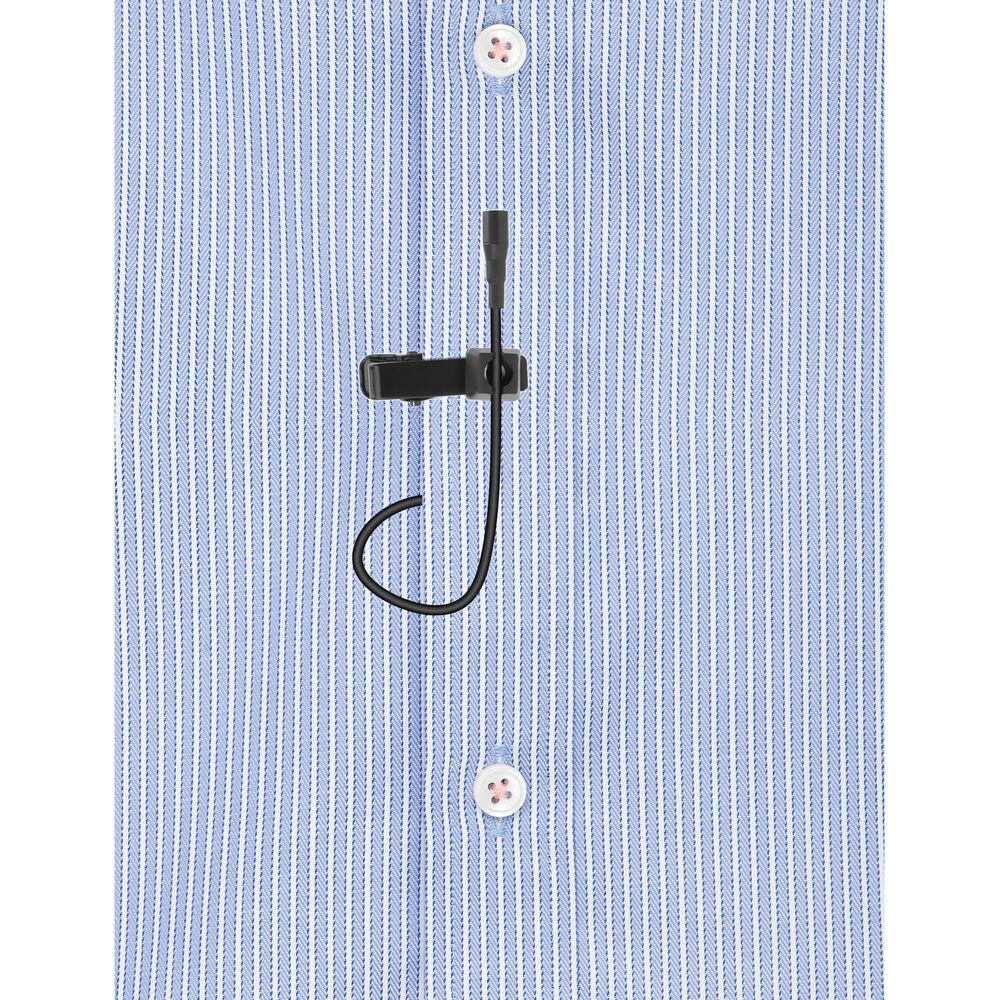

The miniature 0.14" head diameter offers a variety of options for discreet microphone placement, allowing the PL-5 to be easily concealed on wardrobe or costumes without sacrificing sound quality. The PL-5 comes packaged with a tie clip for securing the mic to the talent's clothing, as well as a windscreen for further reducing wind noise and vocal plosives. - Omnidirectional Polar Pattern
- The omnidirectional polar pattern is ideal for video applications and allows for head movement without affecting the sound. It also makes the microphone less susceptible to picking up wind noise and vocal plosives (pops)
- Compact Size
- The PL-5's miniature 0.14" head diameter provides a variety of options for discreet microphone placement. Ideal for film production as it can be easily concealed on clothing, props, in hair or a wig, or inside a collar

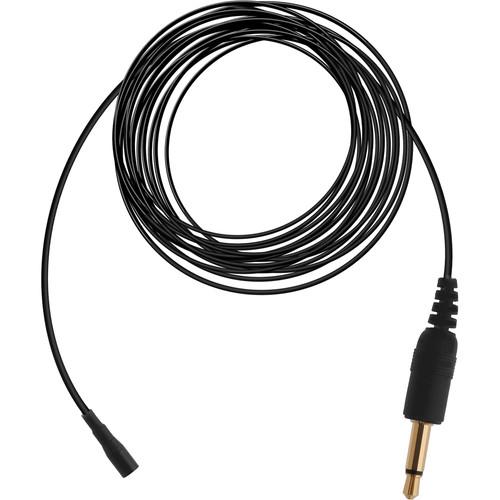

- 1/8" (3.5 mm) Input
- The PL-5 with a 1/8" (3.5 mm) mini plug connector is a replacement microphone for the ULW-16 wireless system. It is also compatible with devices with 1/8" (3.5 mm) input with plug-in power
- Designed for Speech
- Optimized to capture speech, the PL-5 provides a clear and natural sound

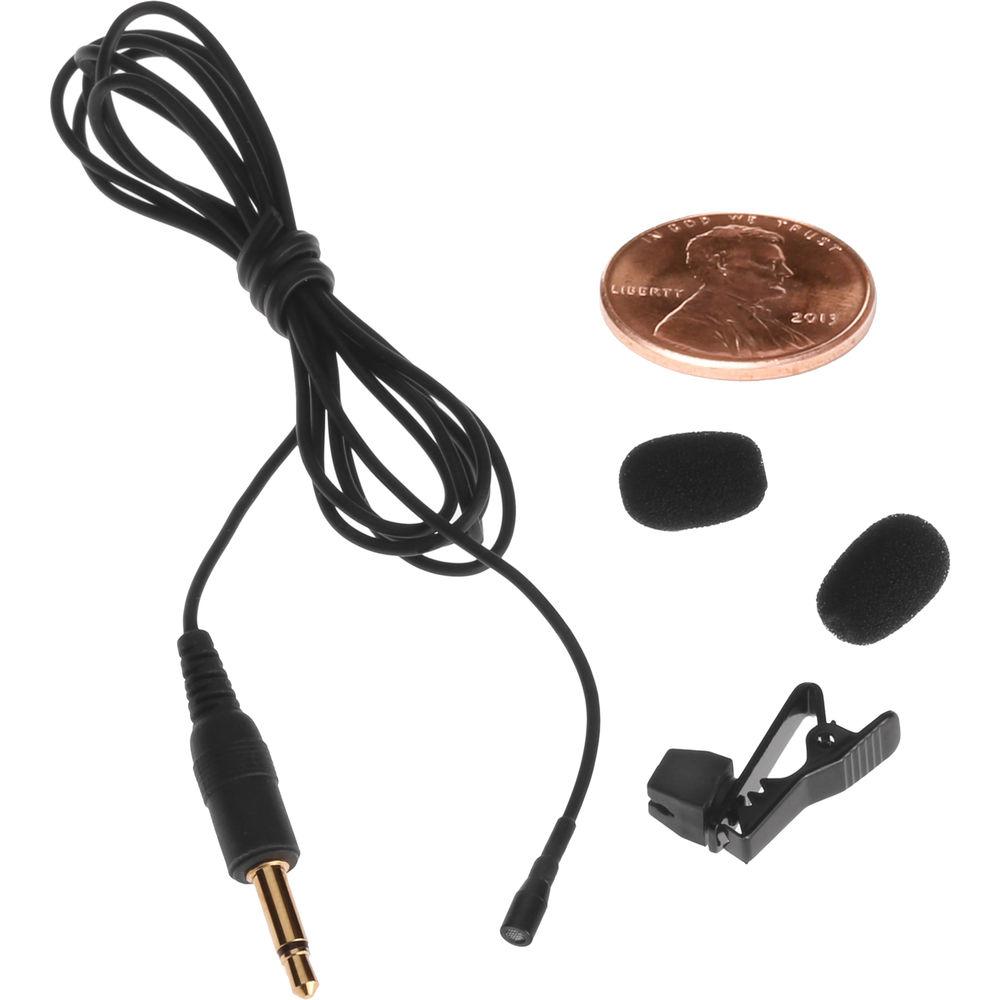

UPC: 847628578579 In the Box Polsen PL-5 Mini Omnidirectional Lavalier Microphone with 1/8" (3.5 mm) Connector Tie Clip Windscreen Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Polsen PL-5 Mini Omnidirectional Lavalier Microphone with 1 8" Connector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPolsen PL-5 Specs | Transducer | Back electret condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 20 Hz to 20 kHz | | Sensitivity | -45 dB ±3 dB | | Impedance | 1000 Ω | | Maximum SPL | 135 dB | | Dynamic Range | 105 dB | | Operating Voltage | 1.5V - 12V DC | | Connector | 1/8" (3.5 mm) | | Head Diameter | 0.14" (3.5 mm) | | | | Package Weight | 0.08 lb | | Box Dimensions (LxWxH) | 5.0 x 2.5 x 1.0" |
