User manual

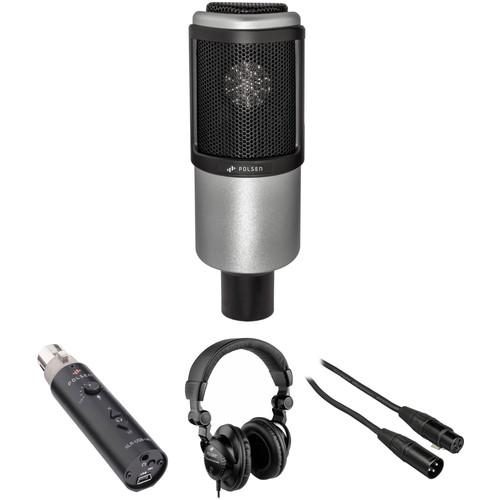

Polsen Portable Podcast Recording Kit

User Manual for Polsen Portable Podcast Recording Kit

• Product category: Large Diaphragm Condenser Polsen
• Brand: Polsen
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Polsen Large Diaphragm Condenser

Product description

• Polsen PCR-65 Cardioid Condenser Microphone The PCR-65 from Polsen is a cardioid condenser microphone designed for full-range reproduction of vocals and instruments in podcasts, recording studios, and broadcast environments. Its side-address, pressure-gradient design utilizes a large 1" diaphragm with a cardioid polar pattern, which minimizes the pickup of off-axis sounds and impedes feedback. The microphone boasts a 20 Hz to 20 kHz frequency response, allowing it to accurately transduce the frequencies of a variety of sounds. Its high sensitivity and 125 dB maximum SPL ensure that you can use it on quiet or loud sources, from whispered vocals to pounding drums.The PCR-65 has a sturdy, metal housing with an alloy finish. The supplied custom shockmount decouples the mic from vibrations and rumble that would otherwise transfer from the floor to the mic. Use the desktop tripod stand for convenient tabletop placement during interviews and podcasts. Phantom power (12 to 52 VDC) is required.
  Cardioid Capsule
  • The 1" capsule's cardioid polar pattern is least sensitive to sound behind the microphone, allowing better rejection of room reflections, which is ideal for capturing vocals and close-miked instruments with greater clarity
  Full-Range Frequency Response
  • The 20 Hz to 20 kHz frequency response is sufficiently wide to deliver a warm, natural sound for a variety of sources, from the low drone of a double bass to the high shimmer of cymbals to the powerful presence of a vocal
  High Sensitivity and Maximum SPL
  • The microphone's high sensitivity allows it to be used on quiet sources such as a soft voice, without extreme gain, and its high maximum SPL of 125 dB ensures that it can handle loud sounds such as a drum, without distortion
  Sturdy and Durable
  • Metal construction with an alloy finish enables the mic to hold up to the demands of studio and stage environments
  Versatile
  • The supplied shockmount, which decreases pickup of rumble and vibrations, can be mounted on a standard mic stand or the included desktop tripod
  UPC: 847628598775
• Polsen XLR-USB-48 - XLR to USB Audio Interface The Polsen XLR-USB-48 is a compact and easy-to-use XLR to USB interface that allows users to connect an XLR microphone directly to a computer via the USB port. It’s an ideal tool for singer/songwriters, podcasters, or musicians who need a simple yet high-quality solution for recording with an XLR microphone directly to a laptop or desktop computer.Connecting the adapter to an XLR microphone and to your computer’s USB port is all that’s needed to start recording. Due to the plug-and-play capability, no drivers are needed, and the computer will instantly recognize the adapter allowing for quick and easy setup. The adapter features selectable phantom power for condenser microphones, and the 1/8” headphone output allows for input monitoring and playback.Polsen’s XLR-USB-48 is an all-in-one adapter that allows the musician or podcaster to set up quickly and record high-quality audio easily and affordably.
  XLR to USB
  • Connect an XLR microphone to your computer's USB port for high-quality recording directly to your laptop or desktop computer
  Phantom Power
  • Selectable 48V phantom power provides compatibility with condenser microphones
  Plug-and-Play
  • No drivers are needed. Your computer will instantly recognize the XLR-USB-48. Select it in your audio setup preferences, and you're ready to record
  Adjustable Gain Control
  • Using the mic gain knob allows users to set optimal recording levels
  Headphone Monitoring
  • Monitor playback of the recording through the 1/8" headphone output. Volume control allows for setting optimal monitoring levels
  UPC: 847628588509
• Polsen HPC-A30 Closed-Back Studio Monitor Headphones The HPC-A30 Closed-Back Studio Monitor Headphones from Polsen are designed for monitoring audio in studio, field, mobile, and DJ applications. They feature 50mm drivers that provide a frequency response of 18Hz to 22kHz for accurate reproduction of your audio.

  The ear cups on the HPC-A30 have an around-ear (circumaural), closed-back design, allowing for the increased isolation often desired while tracking or monitoring playback. Additionally, the ear cups can be pivoted for single-ear monitoring. The headphones have a collapsible folding mechanism for compact storage and transport. A padded and adjustable headband provides comfort during extended use. The 32 ohm impedance allows for ample volume when used with mobile devices. The headphones have a single-sided, 9.8-foot cable that terminates in a 3.5mm stereo connector. A 1/4" adapter is included for additional compatibility. UPC: 847628568488
• Pearstone PM Series XLR M to XLR F Professional Microphone Cable - 10' (3.0 m) The Pearstone PM Series XLR M to XLR F Professional Microphone Cable (10') features 24-gauge oxygen-free copper conductors, spiral shielding to protect against EMI and RFI noise, and professional grade cast-zinc Rean connectors with silver-plated contacts. The twin conductive PVC shield reduces electrostatic noise, and distinguishes the PM series from the rest of its class.
  • Professional quality, field-serviceable, cast-zinc Rean connectors with silver-plated contacts
  • Twin conductive PVC shield reduces electrostatic noise
  • 24-gauge oxygen-free copper conductors
  • Spiral shielding to protect against EMI and RFI noise
  UPC: 847628557710

• PCR-65 Cardioid Condenser Microphone xxsbzbut
• Shockmount
• Desktop Tripod Stand
• Limited 1-Year Warranty

• XLR-USB-48 - XLR to USB Audio Interface

• HPC-A30 Closed-Back Studio Monitor Headphones

• Pearstone - PM Series XLR M to XLR F Professional Microphone Cable - 10' (3.0 m)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Polsen PCR-65 Cardioid Condenser Microphone

  Sound Field	Mono
  Operating Principle	Pressure Gradient
  Transducer	Electret Condenser
  Diaphragm	1" / 25.40 mm
  Tube	No
  Polar Pattern	Cardioid
  Frequency Range	20 Hz to 20 kHz
  Equivalent Noise Level	Cardioid: 20 dB A-Weighted
  Maximum SPL	Cardioid: 125 dB SPL
  Pad	None
  Impedance	Cardioid: 200 Ohms
  Sensitivity	Cardioid: -32 dB at 1 kHz ±3 dB
  Low-Cut Filter	None

  Output Connectors	1 x 3-Pin XLR
  Headphone Connector	None
  Operating Voltage	12 to 52 V
  Length	5.7" / 144.78 mm
  Diameter	2" / 50.80 mm
  Weight	12.5 oz / 354 g

  Box Dimensions (LxWxH)	10.8 x 7.3 x 3.4"

• Polsen XLR-USB-48 - XLR to USB Audio Interface

  Max Sample Rate/Resolution	48 kHz / 16-Bit

  Host Connection	Mini-USB (USB 2.0)
  Analog I/O	1 x XLR 3-Pin Input 1 x 1/8" (3.5 mm) TRS Headphone Output
  Phantom Power	+48 V
  Digital I/O	None
  MIDI I/O	None

  Frequency Response	20 Hz to 20 kHz
  Impedance	Inputs: ≥32 Ohms

  Sample Rates	44.1 and 48 kHz
  Bit Depth	16-Bit

  Dimensions	4 x 0.85" / 10.2 x 2.2 cm
  Weight	1.6 oz / 45.4 g

  Box Dimensions (LxWxH)	6.5 x 3.6 x 0.7"

• Polsen HPC-A30 Closed-Back Studio Monitor Headphones

  Driver Size	2" / 50 mm
  Design	Over-Ear (Circumaural)
  Earcup Style	Closed-Back

  Frequency Response	18 Hz to 22 kHz
  Sensitivity	93 dB at 1 kHz / 1 mW
  Impedance	32 Ohms
  Maximum Power Handling	600 mW
  Total Harmonic Distortion (THD)	5%

  Audio Connector	1/8" (3.5 mm) TRS
  Adapter (Included)	1/4" (6.3 mm)

  Design	Single-Sided
  Color	Black
  Detachable	No
  In-Line Remote/Microphone	No
  Cable Length	9.84' / 3 m

  Certifications	CE, RoHS, as per Manufacturer
  Weight	6.5 oz / 184 g

  Box Dimensions (LxWxH)	8.7 x 7.4 x 3.8"

• Pearstone PM Series XLR M to XLR F Professional Microphone Cable - 10' (3.0 m)

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	10' / 3 m
  Shielding	Copper Spiral
  Conductor Material	Oxygen-Free Copper (OFC)
  Wire Gauge	24 AWG
  Contact Plating	Silver
  Jacket Type	Polyvinyl Chloride (PVC)

  Box Dimensions (LxWxH)	6.5 x 5.7 x 0.6"
