User Manual for Polsen RC-77-U USB Retro Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Polsen RC-77-U USB Retro Condenser Microphone
- Product category: USB Microphones Polsen
- Brand: Polsen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Polsen USB Microphones
 |
User manual for the Polsen RC-77-U USB Retro Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Polsen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Polsen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Polsen product will considerably shorten its lifespan!
|
Product description Polsen RC-77-U USB Retro Condenser Microphone: Vintage Looks, Modern Features Read More - Polsen RC-77-U USB Condenser Microphone: Vintage looks, modern features
- Polsen RC-77-U Product Demo

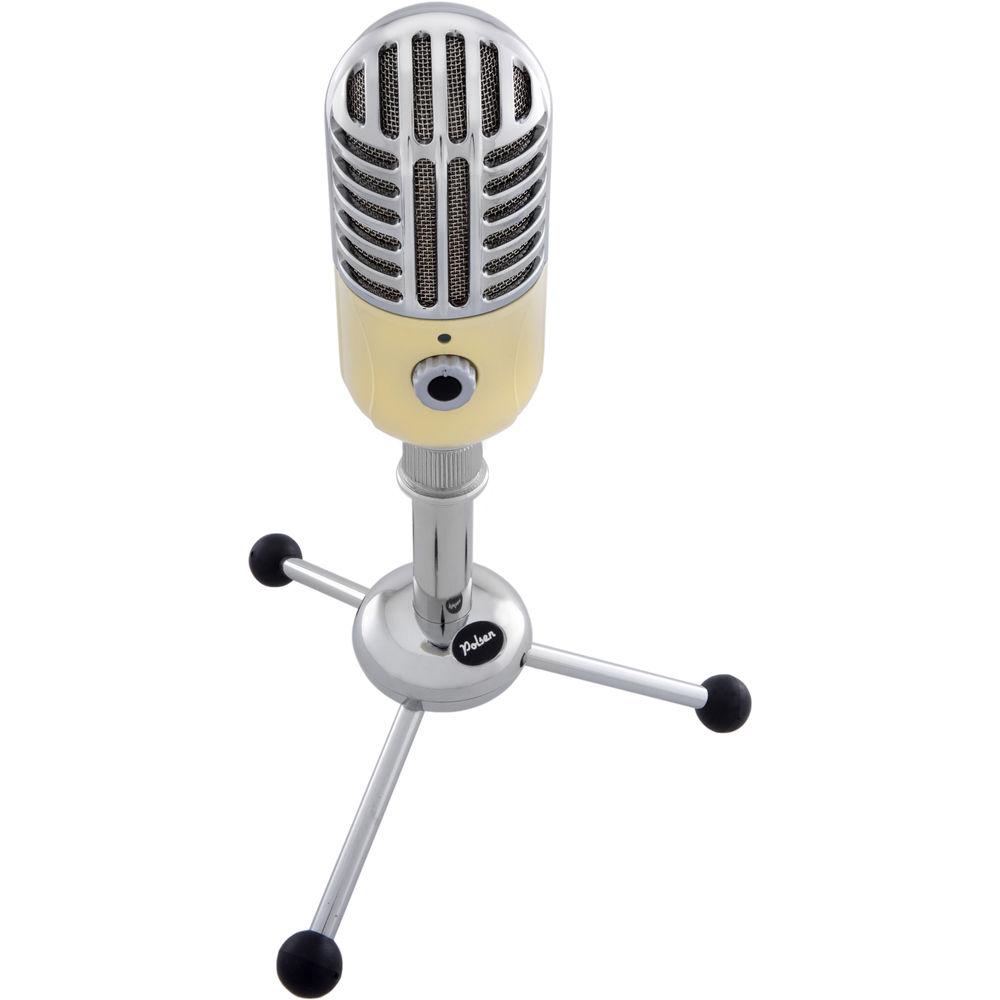

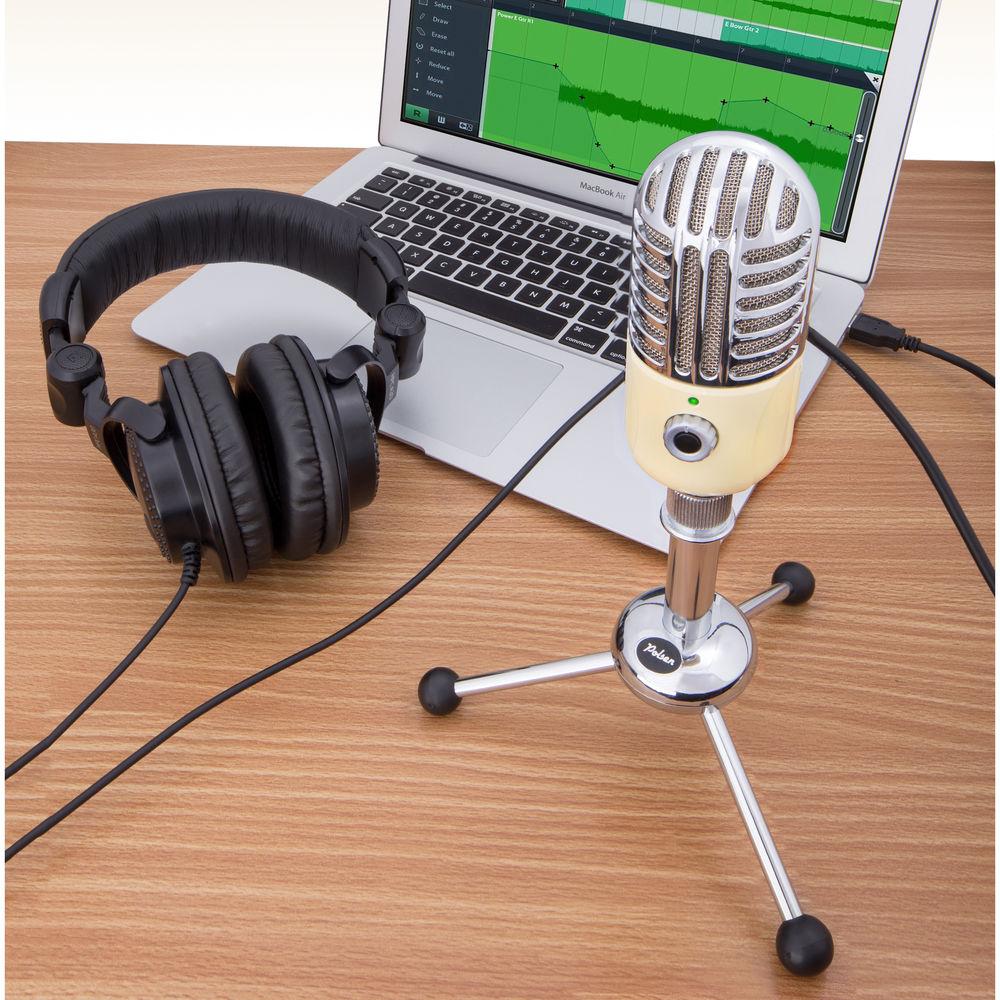

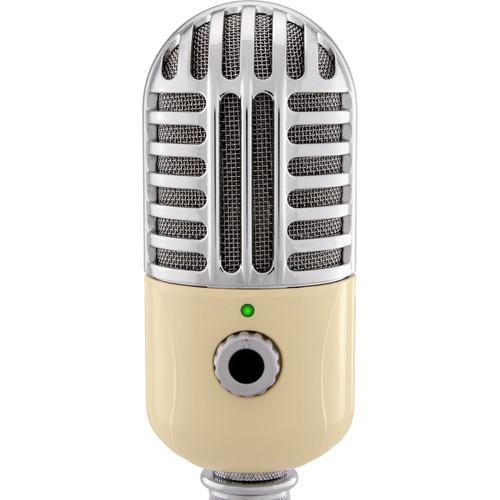

The RC-77-U USB Retro Condenser Microphone from Polsen is a large-diaphragm, cardioid USB microphone with a stylish eye-catching retro look that features a headphone output, a mute button, and has LED indicators to monitor the microphone's status. It can be used by singers, songwriters, and podcasters to capture high-quality audio directly to a Mac or Windows computer. With a built-in USB port, the microphone needs no drivers, power supply, or audio interface to begin recording. Launch your DAW software, plug in the microphone, and you're ready to record. An integrated dual-stage grille minimizes pops and vocal plosives while protecting the capsule from corrosive moisture, and the cardioid polar pattern focuses the source in front of the mic to minimize off-axis sound, which is excellent for recording vocals. - Studio Condenser Microphone
- The mic is designed with a large 1.25" diaphragm and has a dual-stage grille that minimizes vocal "pops" and delivers a clean and natural sound. It is ideal for recording vocals
- Plug and Play

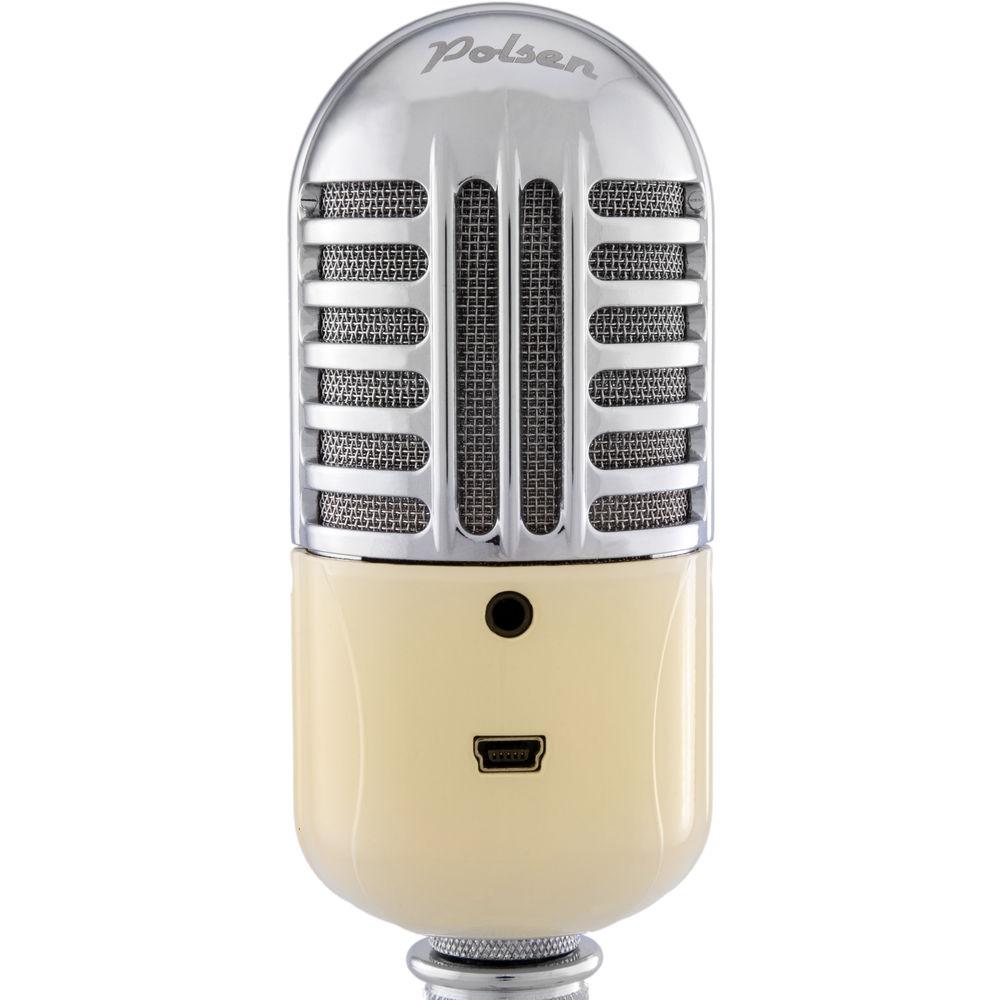

- The RC-77-U is USB class compliant. No drivers, power supply or audio interface are needed to operate this microphone on either a Mac or Windows computer. Simply launch your software, plug in the microphone to a powered USB port, and you're ready to record
- Headphone Output

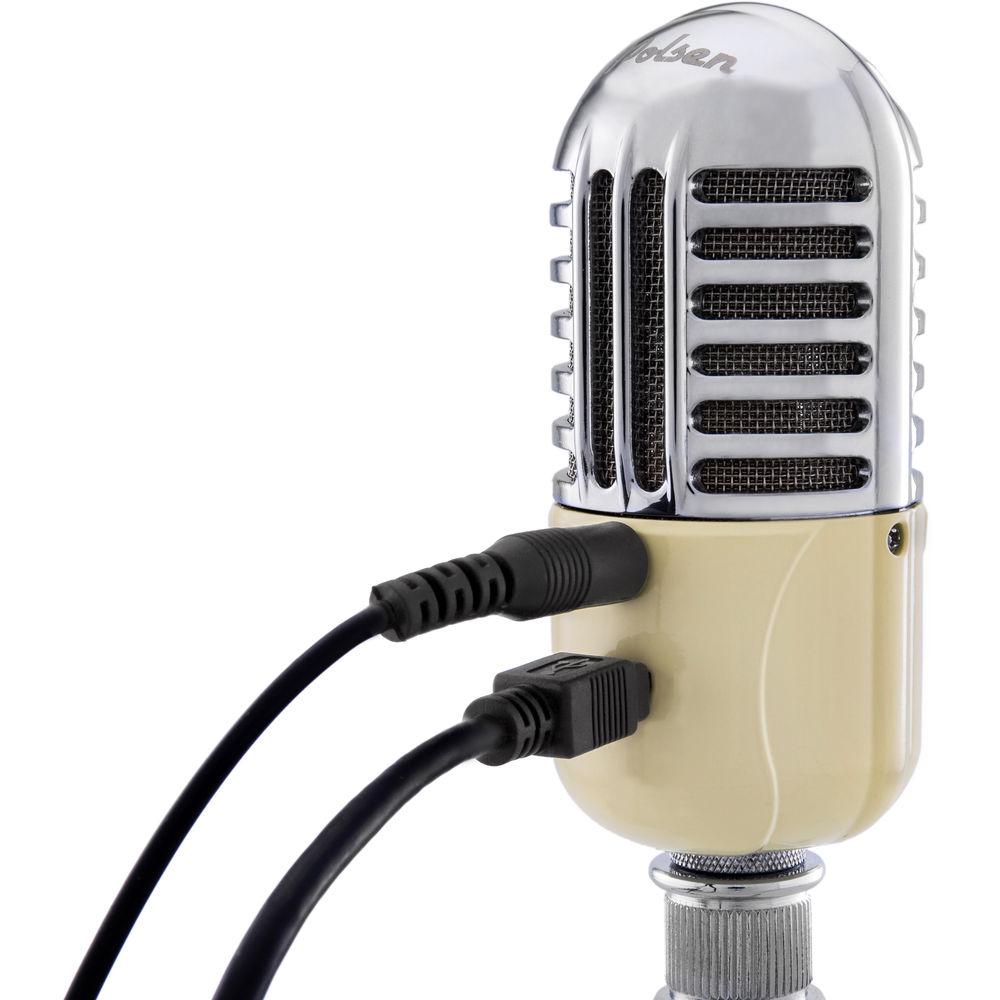

- The 1/8" headphone output provides low-latency monitoring of recording and playback. The volume knob provides easy adjustment of the sound level without having to access the volume controls on your computer
- Mute Button
- For additional control, the mute button quickly mutes the microphone and silences the headphone output
- Power, Peak, and Mute LED Indicator
- The LED indicator is integrated into the button on the front of the microphone, allowing you to monitor the microphone's status at all times
- Stylish Retro Look

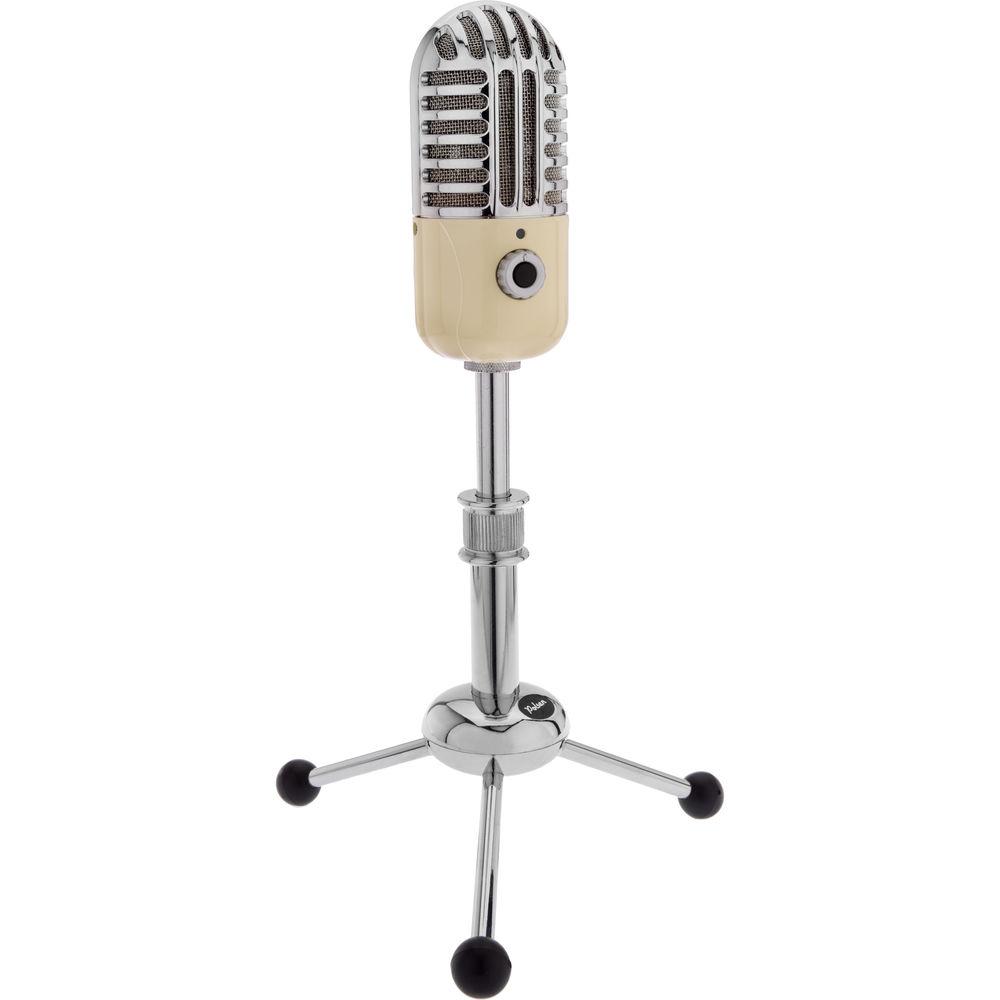

- The chrome-plated grille and mic stand give the microphone a stylish retro look that is an eye-catching addition to any studio

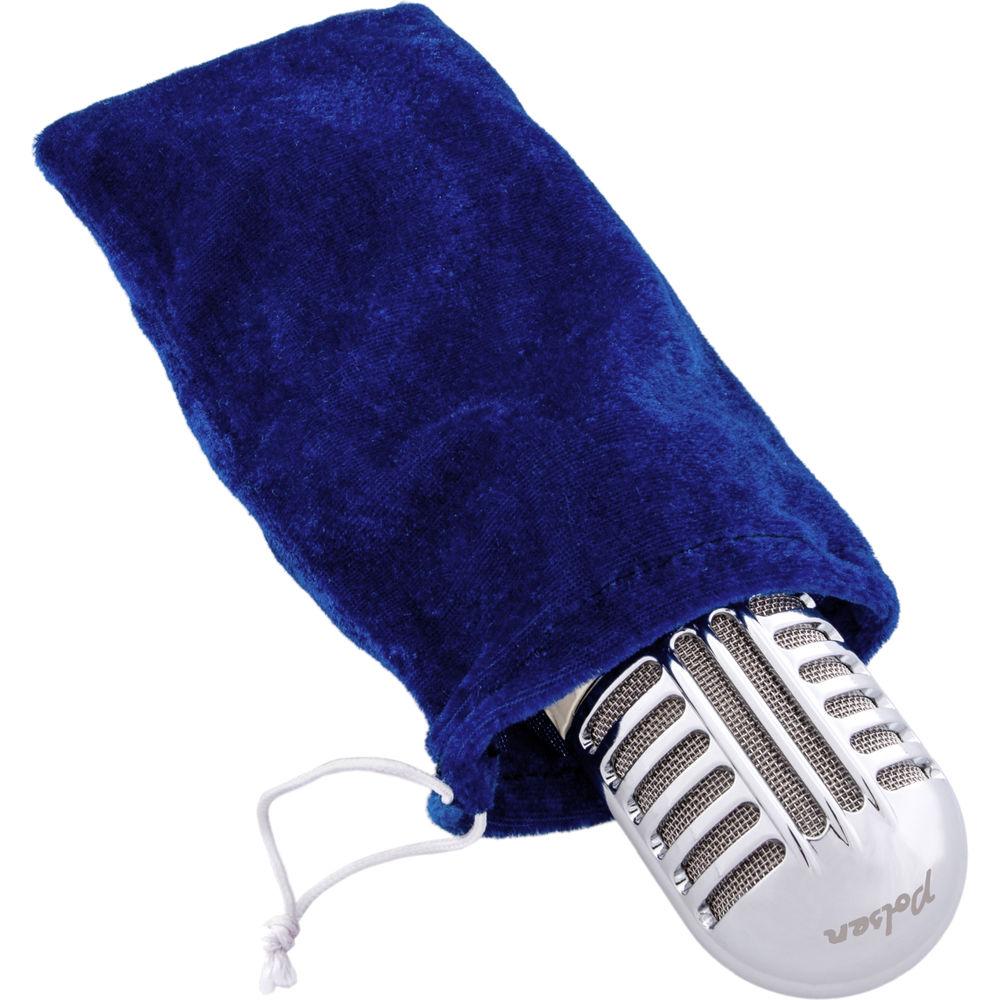

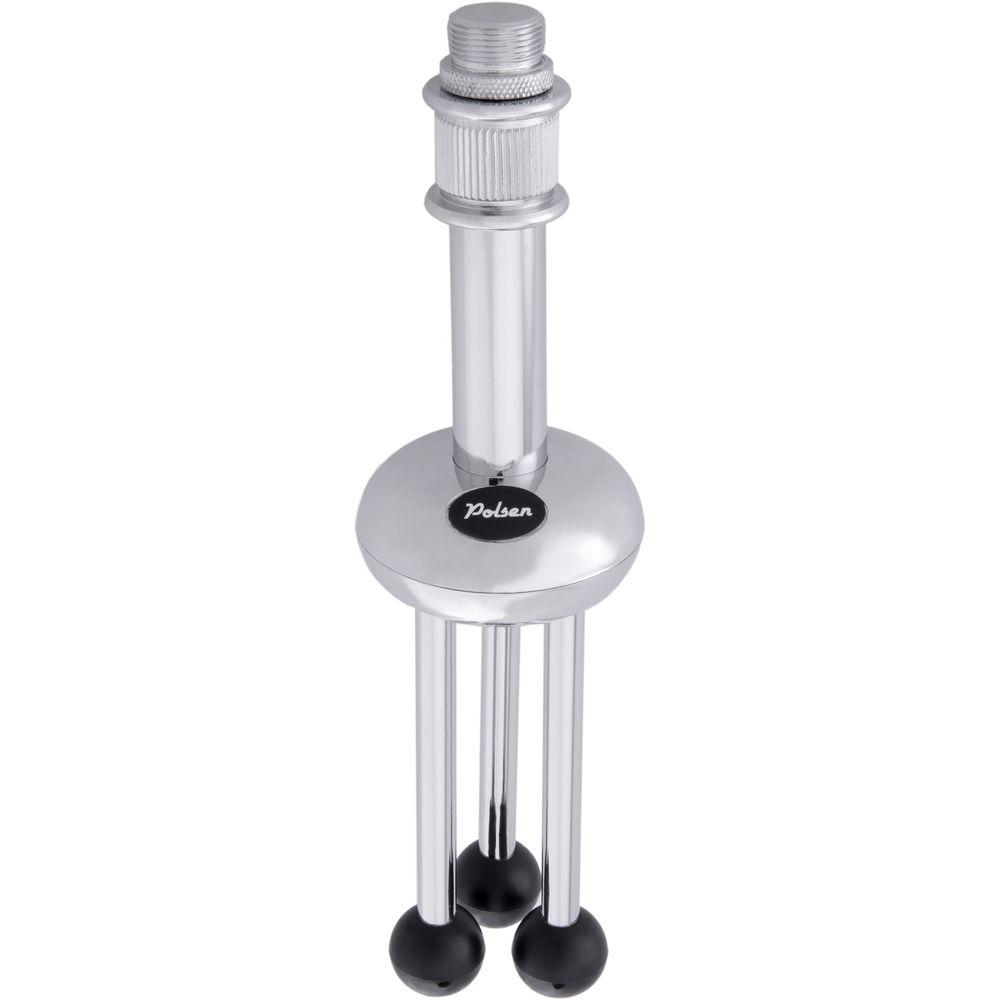

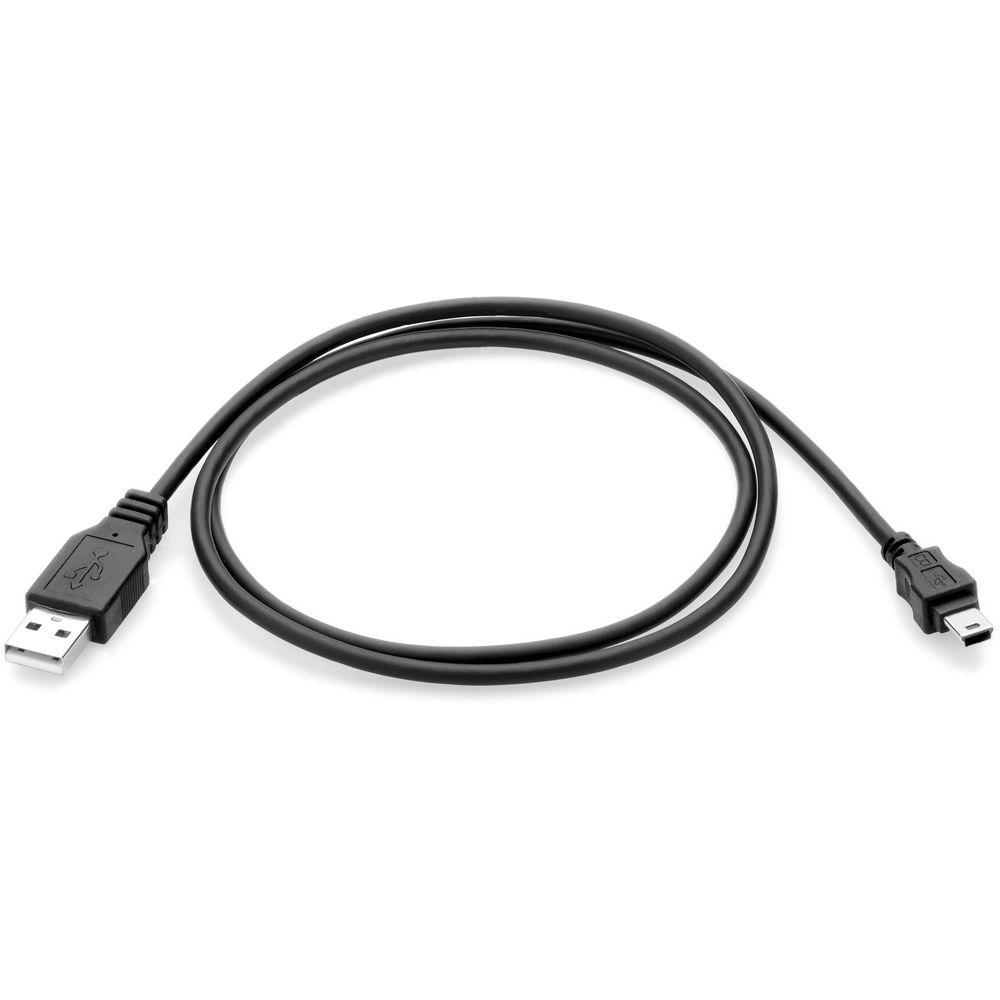

UPC: 847628592964 In the Box Polsen RC-77-U USB Retro Condenser Microphone USB Cable Desktop Mic Stand Carry Pouch Limited 1-Year Warranty User Manual PDF 6.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Polsen RC-77-U USB Retro Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPolsen RC-77-U Specs | | | Sound Field | Mono | | Transducer | Condenser | | Diaphragm | 1.25" / 31.75 mm | | Polar Pattern | Cardioid | | Frequency Range | 20 Hz to 20 kHz | | Signal to Noise Ratio | 96 dB A-Weighted | | Maximum SPL | 120 dB SPL | | THD | 0.001% | | | | Bit Depth | 16-Bit | | Sample Rate | 44.1 kHz
48 kHz | | Operating System Support | Windows, macOS/OS X | | Available Port | USB (Interface Unspecified) | | | | Output Connectors | 1 x 1/8" (3.5 mm) TRS | | Headphone Connector | 1 x 1/8" (3.5 mm) | | Cable Length | 9.8' / 2.99 m | | Operating Voltage | 5 V | | Length | 4.5" / 114.30 mm | | Diameter | 1.9" / 48.26 mm | | Weight | 1.2 lb / 544 g | | | | Package Weight | 1.675 lb | | Box Dimensions (LxWxH) | 8.8 x 5.95 x 2.7" |
