User Manual for Polsen SDC-2150-MP Small-Diaphragm Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Polsen SDC-2150-MP Small-Diaphragm Condenser Microphone
- Product category: Small Diaphragm Condenser Polsen
- Brand: Polsen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Polsen Small Diaphragm Condenser
 |
User manual for the Polsen SDC-2150-MP Small-Diaphragm Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Polsen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Polsen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Polsen product will considerably shorten its lifespan!
|

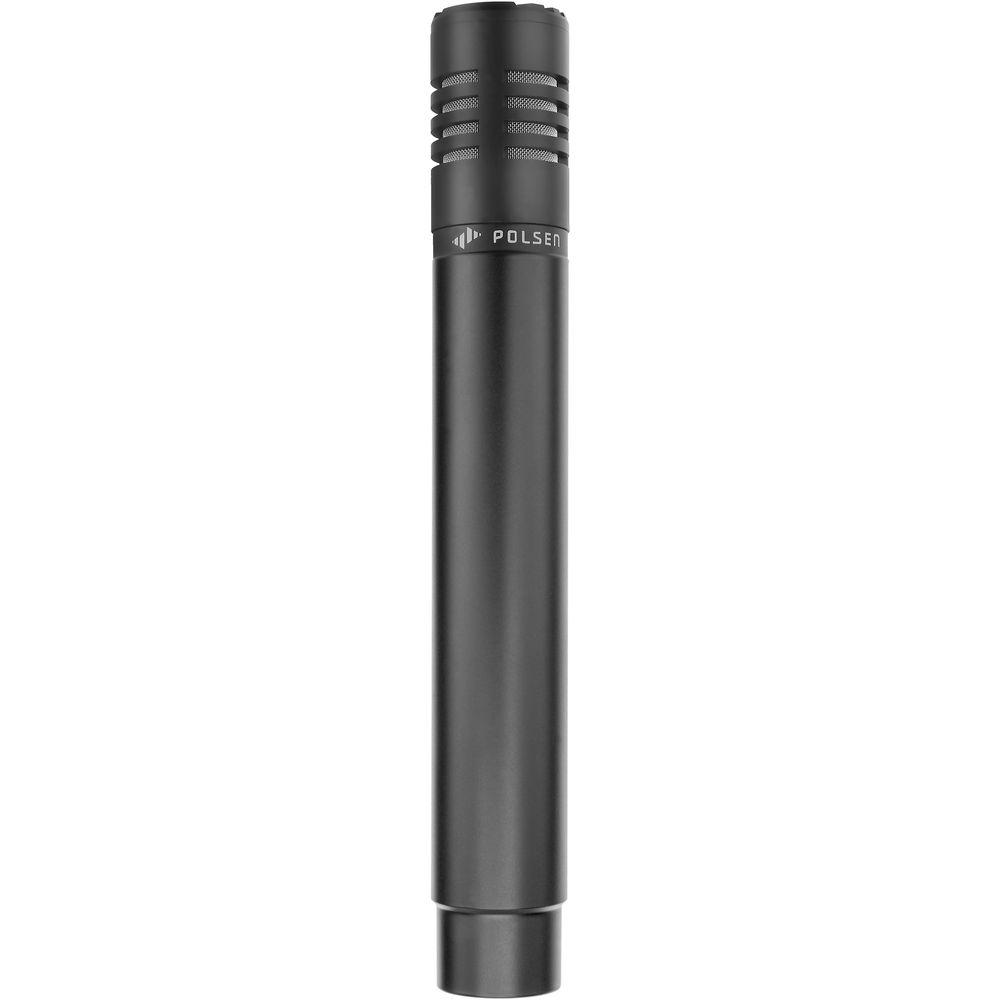

Product description The matched pair of SDC-2150-MP from Polsen includes two small-diaphragm cardioid condenser microphones for capturing high-quality audio. They feature an accurate and fast response to transient levels and can be used in several applications for recording acoustic instruments such as close-miking pianos, kick drums, cymbals, snares, and more. In addition, as a matched pair the mics are excellent choices for use as stereo room mics or to capture stereo recordings of live performances.Featuring a tailored frequency response with slightly accentuated mid-highs, the microphones capture sound naturally and can handle high sound-pressure level (SPL) with no distortion. The solid-metal construction provides durability and will withstand use in the most demanding environments.The pair of SDC-2150-MP Small-Diaphragm Condenser Microphones are versatile and include mic clips with a 5/8" threaded socket and a 3/8" adapter, which makes them suitable for mounting on a mic stand or a boompole. A hard carry case is also included. - Cardioid Polar Pattern
- The cardioid polar pattern is ideal for recording acoustic instruments and is less susceptible to picking up reflections, which makes it suitable for recording speeches or dialog in the studio or on the set
- Tailored Frequency Response for Instruments
- With slightly accentuated mid-high frequencies, the microphone will capture acoustic instruments with better accuracy and detail
- High SPL Levels
- The microphone can handle extremely high SPL levels without distortion and can be placed as close to a snare, kick, or cymbal as you want
- Sturdy and Durable
- Built with solid-metal construction, the mic can withstand use in the most demanding environments

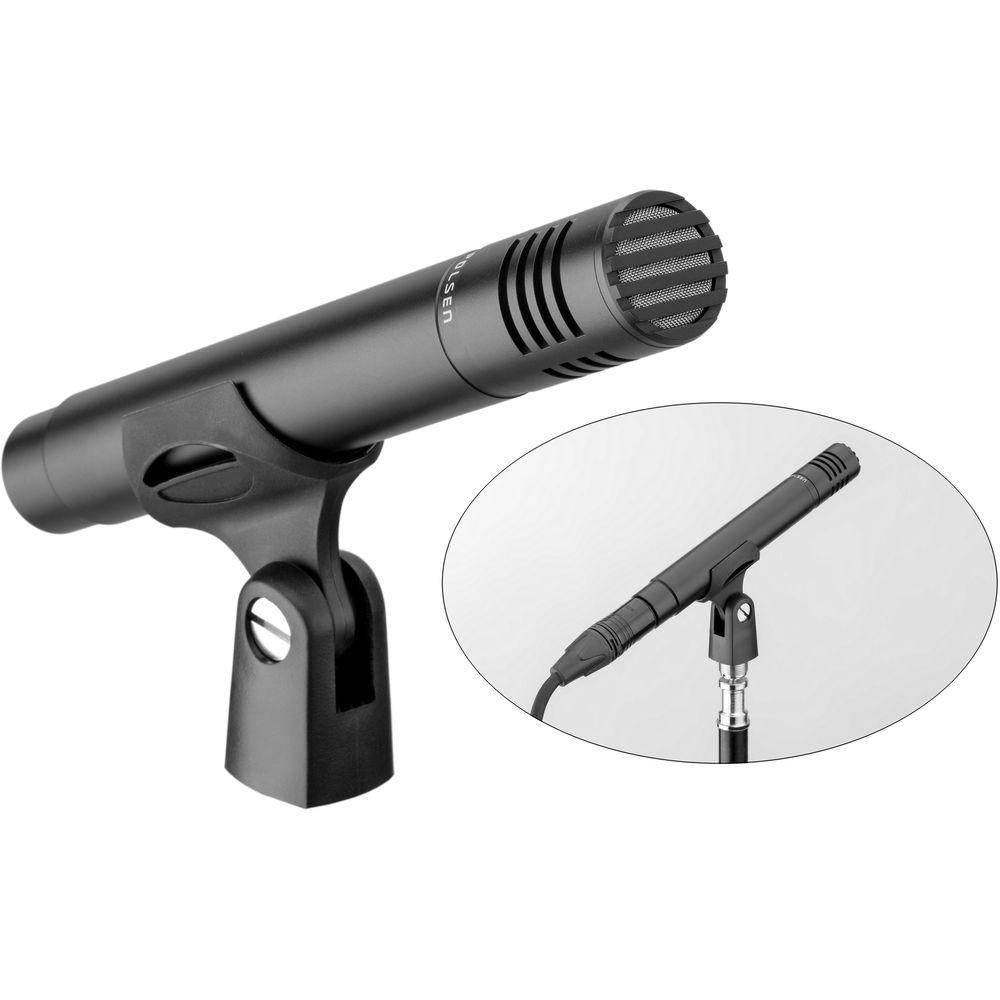

- Versatile
- Two mic clips with a 5/8" threaded socket and a 3/8" adapter are included for both mic-stand and boompole mounting

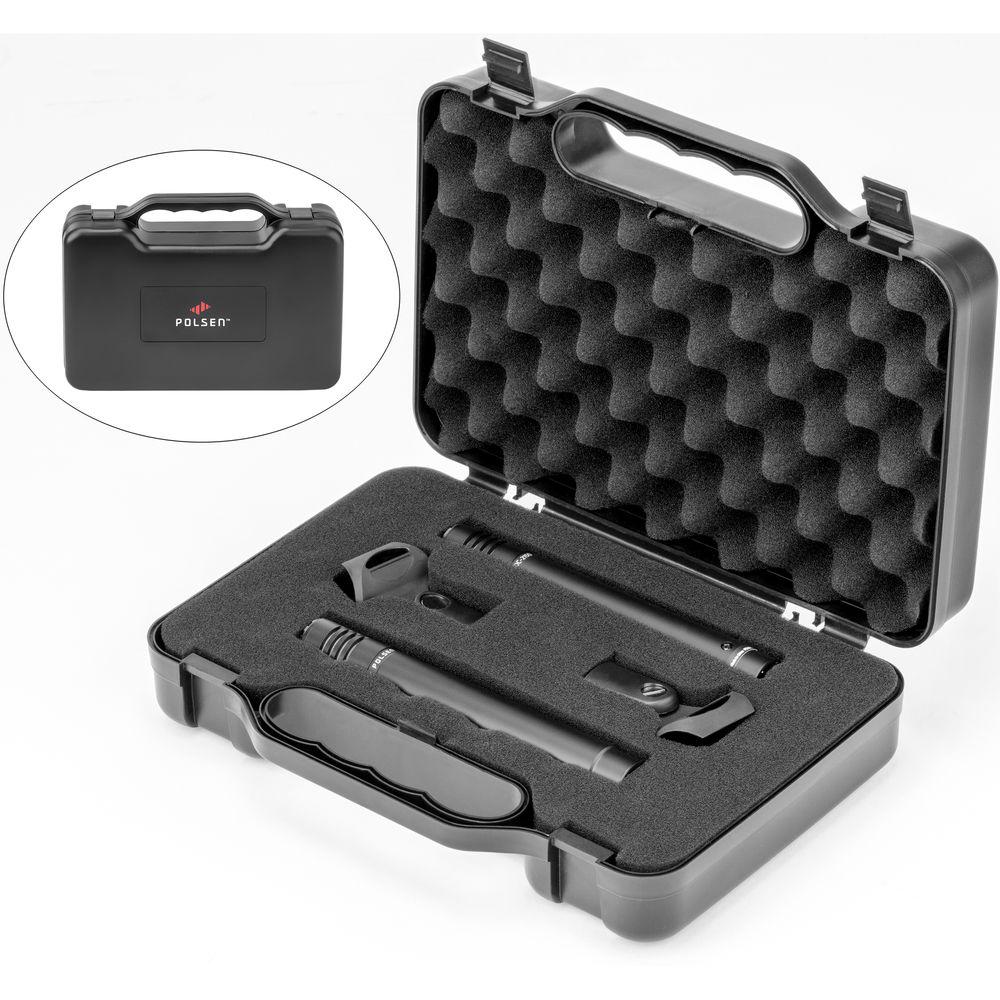

- Portable
- The hard-plastic carrying case protects the mics from shock and impacts as well as moisture and dust
UPC: 847628588134 In the Box Polsen SDC-2150-MP Small-Diaphragm Condenser Microphone (Matched Pair) 2 x Microphone Clips Carrying Case Limited 1-Year Warranty User Manual PDF 2.6mbatuduwqutfvuxsuscvzrtvwq Table of Contents
|
Upload User Manual
Have you got an user manual for the Polsen SDC-2150-MP Small-Diaphragm Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

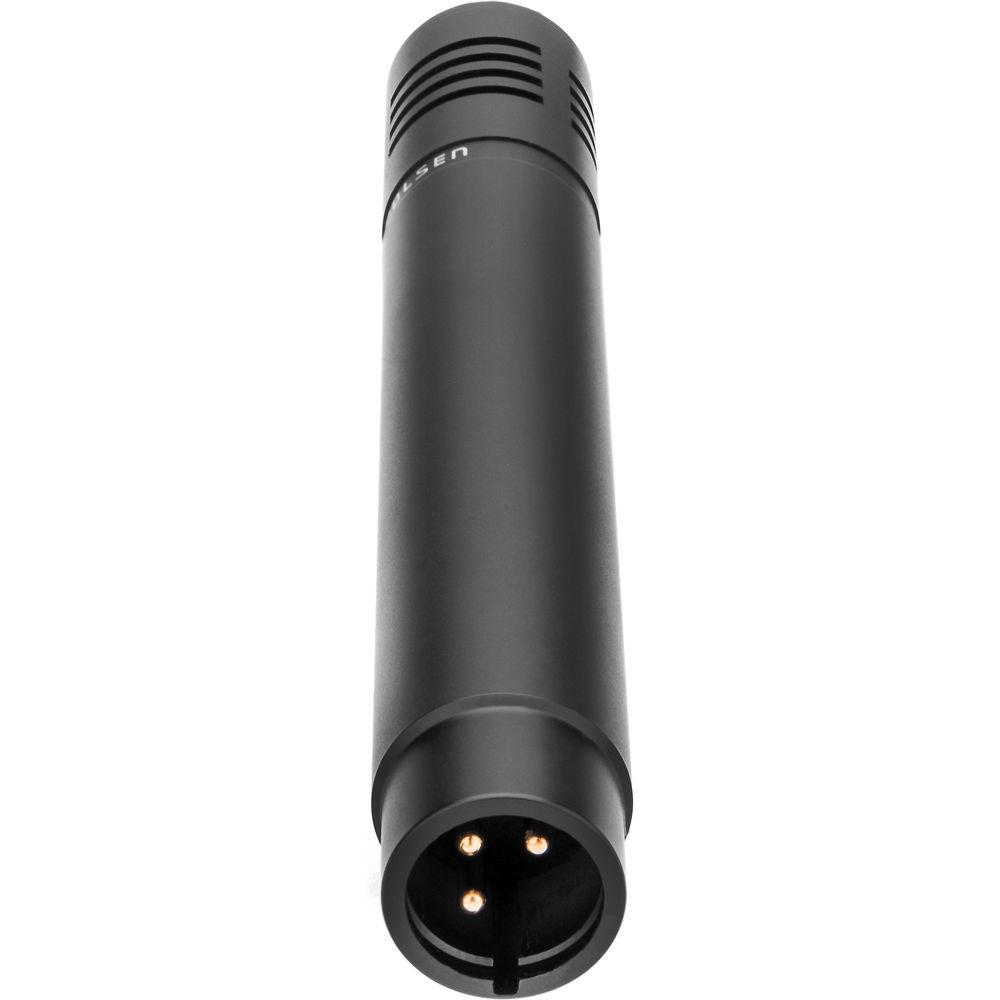

Technical parametersPolsen SDC-2150-MP Specs | | | Sound Field | Mono | | Transducer | Electret Condenser | | Polar Pattern | Cardioid | | Frequency Range | 50 Hz to 18 kHz | | Maximum SPL | 125 dB SPL | | Impedance | 200 Ohms ± 30% @ 1 kHz | | Load Impedance | 1000 Ohms | | Sensitivity | 42 dB at 1 Hz | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 9 to 52 V | | Length | 6" / 152.40 mm | | Diameter | 0.75" / 19.05 mm | | Weight | 0.35 lb / 159 g | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 10.4 x 7.6 x 3.2" |
