User Manual for Polsen SDC-2150 Small-Diaphragm Condenser Microphone Click to enlarge the picture
Contents of the user manual for the Polsen SDC-2150 Small-Diaphragm Condenser Microphone
- Product category: Small Diaphragm Condenser Polsen
- Brand: Polsen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Polsen Small Diaphragm Condenser
 |
User manual for the Polsen SDC-2150 Small-Diaphragm Condenser Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Polsen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Polsen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Polsen product will considerably shorten its lifespan!
|

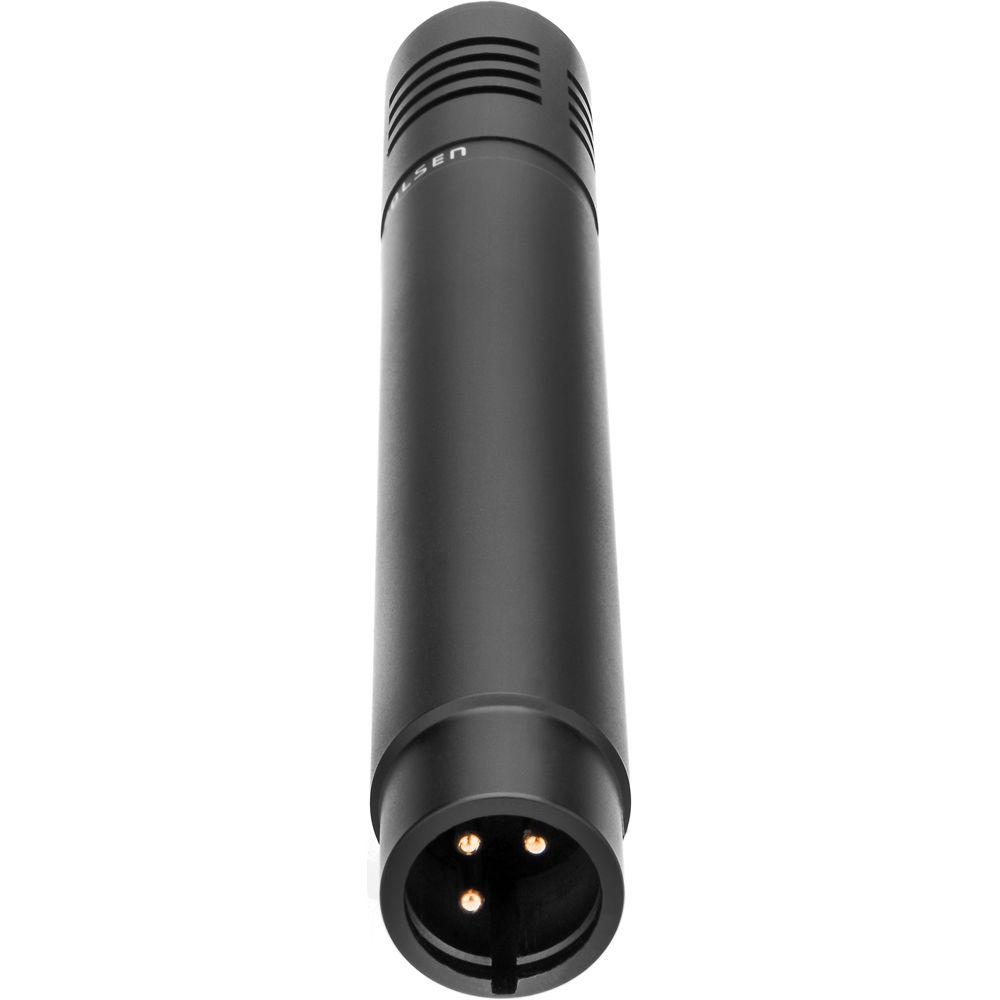

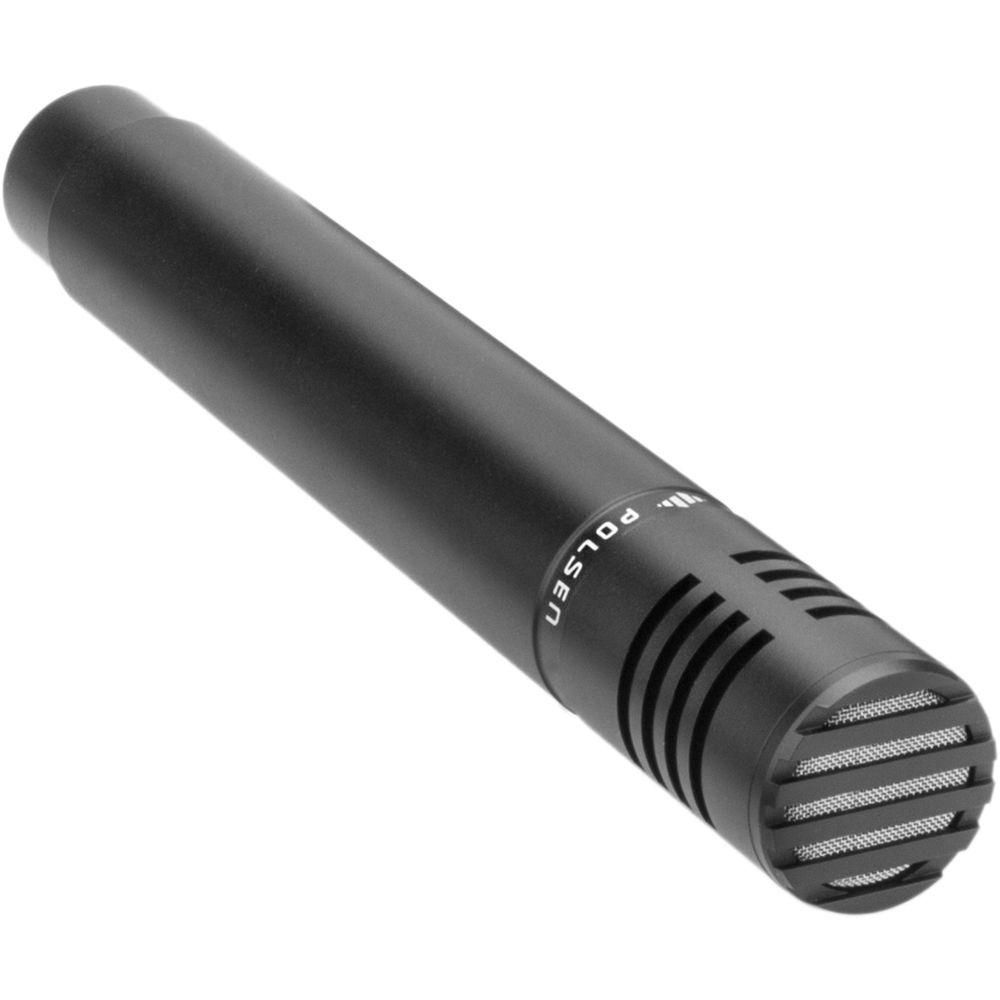

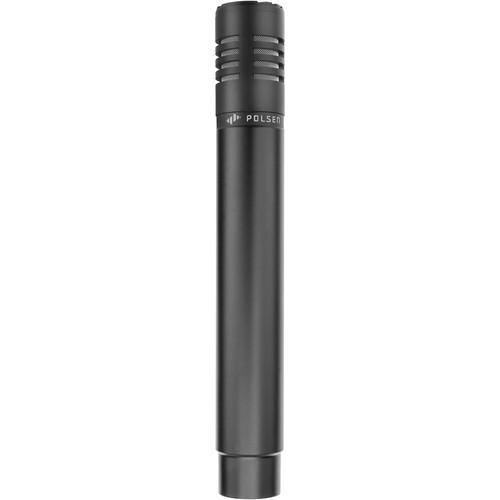

Product description The SDC-2150 from Polsen is a small-diaphragm cardioid condenser microphone for capturing high-quality audio. It features an accurate and fast response to transient levels and can be used in several applications for recording acoustic instruments such as close-miking pianos, kick drums, cymbals, snares, and more. In addition, it can be used as a drum-overhead mic.Featuring a tailored frequency response, with slightly accentuated mid-highs, this microphone captures sound naturally and can handle high sound-pressure level (SPL) with no distortion. The solid-metal construction provides durability and will withstand use in the most demanding environments.The SDC-2150 Small-Diaphragm Condenser Microphone is versatile and includes a mic clip with a 5/8" threaded socket and a 3/8" adapter, which makes it suitable for mounting on a mic stand or a boompole. - Cardioid Polar Pattern
- The cardioid polar pattern is ideal for recording acoustic instruments and is less susceptible to pick up reflections, which make it suitable for recording speeches or dialog in the studio or on the set
- Tailored Frequency Response for Instruments
- With slightly accentuated mid-high frequencies, the microphone will capture acoustic instruments with better accuracy and detail
- High SPL Levels
- The microphone can handle extremely high SPL levels without distortion and can be placed as close to a snare, kick, or cymbal as you want
- Sturdy and Durable
- Built with solid-metal construction, the mic can withstand use in the most demanding environments
- Versatile

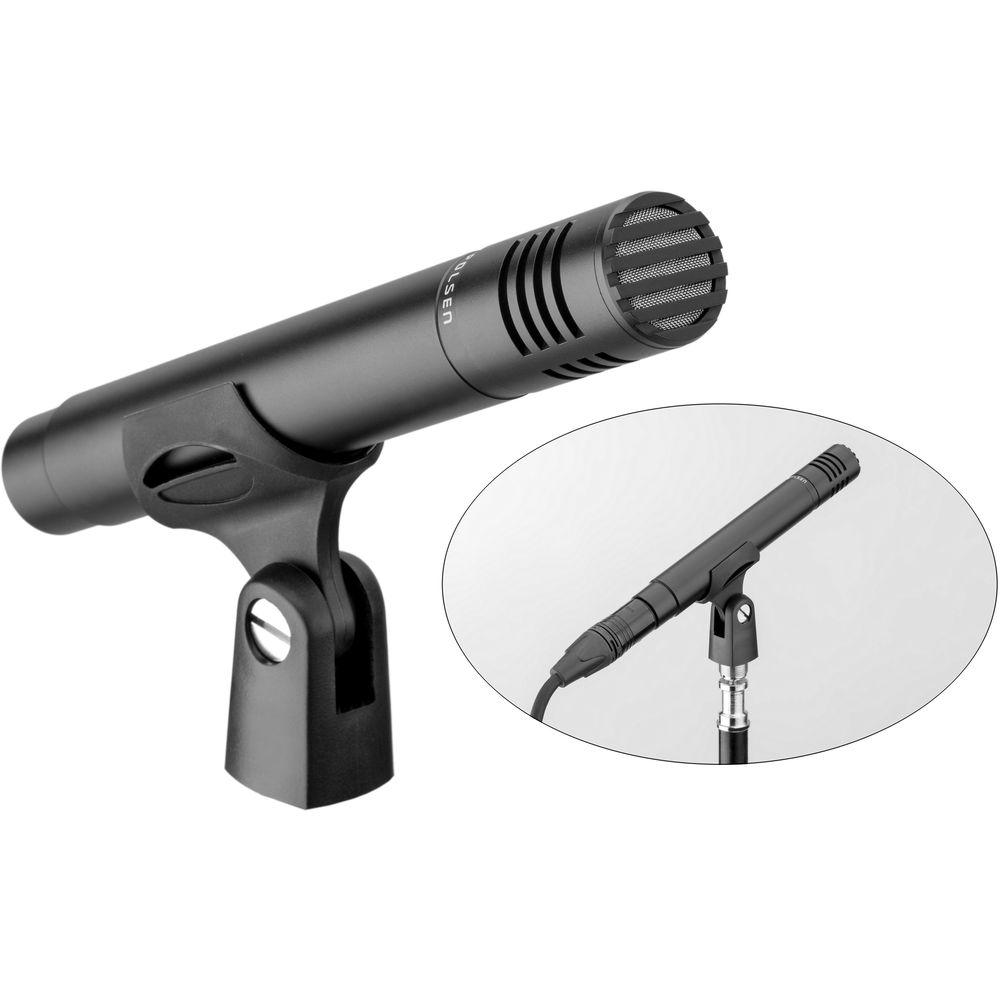

- A mic clip with a 5/8" threaded socket and a 3/8" adapter are included for both mic stand and boompole mounting
UPC: 847628588127 In the Box Polsen SDC-2150 Small-Diaphragm Condenser Microphone Microphone Clip Limited 1-Year Warranty User Manual PDF 2.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Polsen SDC-2150 Small-Diaphragm Condenser Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPolsen SDC-2150 Specs | | | Sound Field | Mono | | Transducer | Electret Condenser | | Polar Pattern | Cardioid | | Frequency Range | 50 Hz to 18 kHz | | Maximum SPL | 125 dB SPL RMS | | Impedance | 200 Ohms ± 30% @ 1 kHz | | Load Impedance | 1000 Ohms | | Sensitivity | 42 dB at 1 Hz | | | | Output Connectors | 1 x 3-Pin XLR | | Operating Voltage | 9 to 52 V | | Length | 6" / 152.40 mm | | Diameter | 0.75" / 19.05 mm | | Weight | 0.35 lb / 159 g | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 9.8 x 6.5 x 2.6" |
