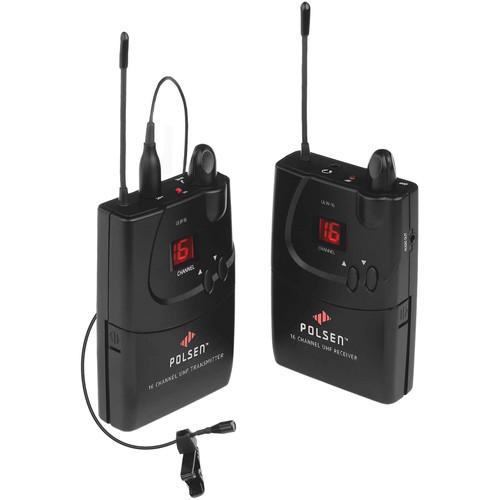

Product description The Polsen ULW-16 is a 16-channel camera-mountable UHF wireless system designed to transmit audio up to 300'. It is engineered to be exceptionally quiet, and with many professional features like headphone monitoring, line input, and frequency agility, the ULW-16 is ideal for EFP (electronic field production), DSLR, and many other video applications. With its impressive 105 dB signal-to-noise ratio, the ULW-16 delivers pristine audio transmission for broadcast-quality recordings. It has 16 channels to choose from to help avoid interference. Up to five systems (or more in optimum conditions) can be used simultaneously in the same location.The transmitter features a variable-level control that adjusts the level of transmission. It’s also equipped with a line input that enables the transmission of devices such as an audio mixer. The receiver features an 1/8" line output and included XLR cable for professional cameras. It also includes a cable for DSLR and consumer camcorders that have a 1/8” mic input. A headphone jack and volume control allows you to monitor the transmission signal in real time at a comfortable volume. This ULW-16 system includes a PL-4 omnidirectional 0.20" lavalier microphone for flexible positioning options and excellent wind-noise rejection. The included windscreen can be used to reduce vocal plosives (pops) and wind noise.The system operates in the UHF 500 MHz bandwidth, assuring that it is “future proof” and meets current and known future FCC regulations.With features like easy-to-read LED indicators, front-panel access to batteries, and included accessories to support operation, Polsen’s ULW-16 is designed with the user in mind. Professionals and enthusiasts alike will benefit from its ease of operation, sensible ergonomics, and portability. - Engineered for Versatility
- The many professional features of the ULW-16 make it an ideal wireless system for a variety of production applications, including electronic field production (EFP), DSLR video, event coverage, training videos, and classroom or corporate presentations
- Best-In-Class Sound Quality
- The ULW-16 easily outperforms its competitors with a greater than 105 dB signal-to-noise ratio, and better than 95 dB of dynamic range for pristine audio transmission and output
- Frequency-Agile System
- The 16-channel ULW-16 wireless system allows operators to quickly and effortlessly switch channels in order to locate a clear channel
- Headphone Monitoring with Level Control
- Transmissions can be monitored at a comfortable level from the receiver's headphone output in real time, without the latency that often occurs when monitoring via a camera's headphone output
- Omnidirectional Lavalier Microphone
- The omnidirectional polar pattern is ideal for video applications because it offers flexible placement options, and allows for head movement without affecting the sound
- Line-Level Output

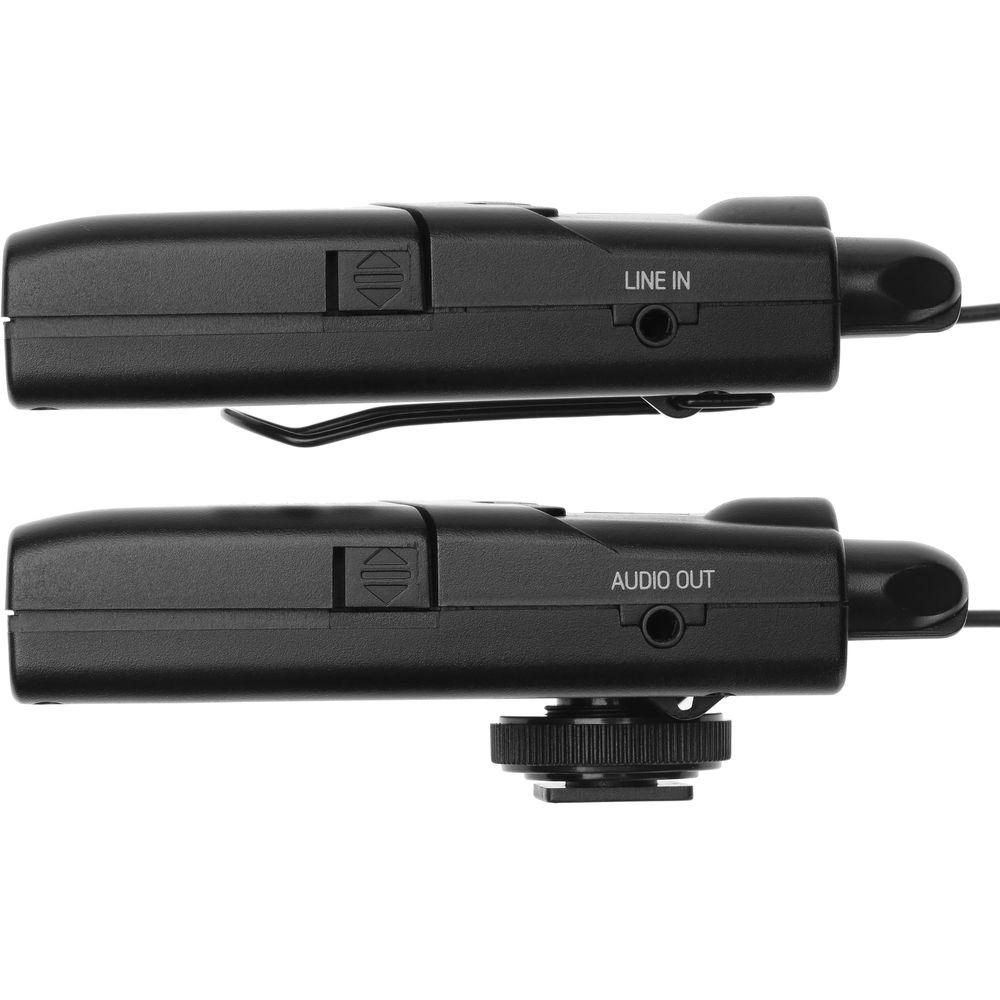

- The receiver features a line-level output for the best possible signal-to-noise ratio. Using the included 1/8" (3.5mm) male to XLR male cable, the ULW-16 receiver can be connected to a professional video camera, recorder, or other line-level device
- Line-to-Mic Attenuator Cable
- The included line-to-mic level-attenuator cable is designed to attach the output of the receiver to camcorders, DSLRs or other devices with a mic-level input
- Variable Level Control

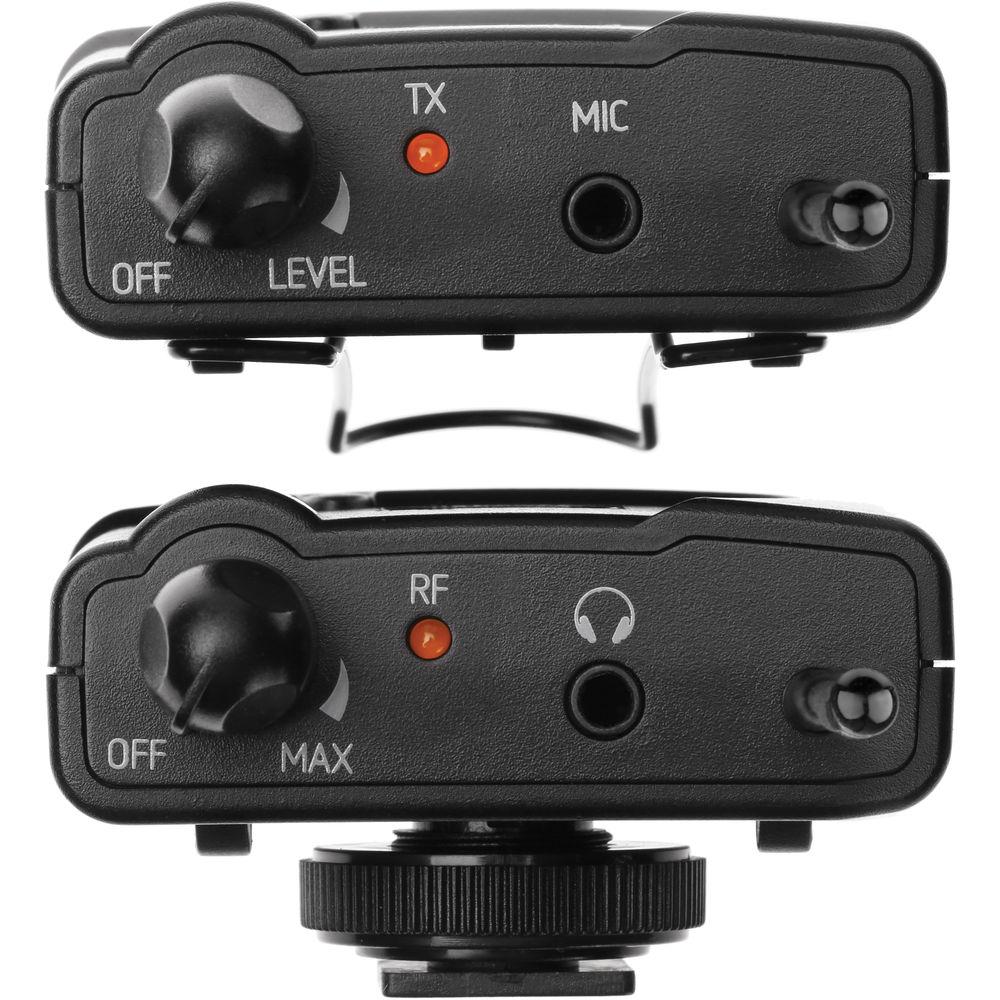

- The variable level control on the transmitter assures that sufficient level is being transmitted to the receiver to achieve the best signal-to-noise ratio throughout the signal path
- Portable Receiver

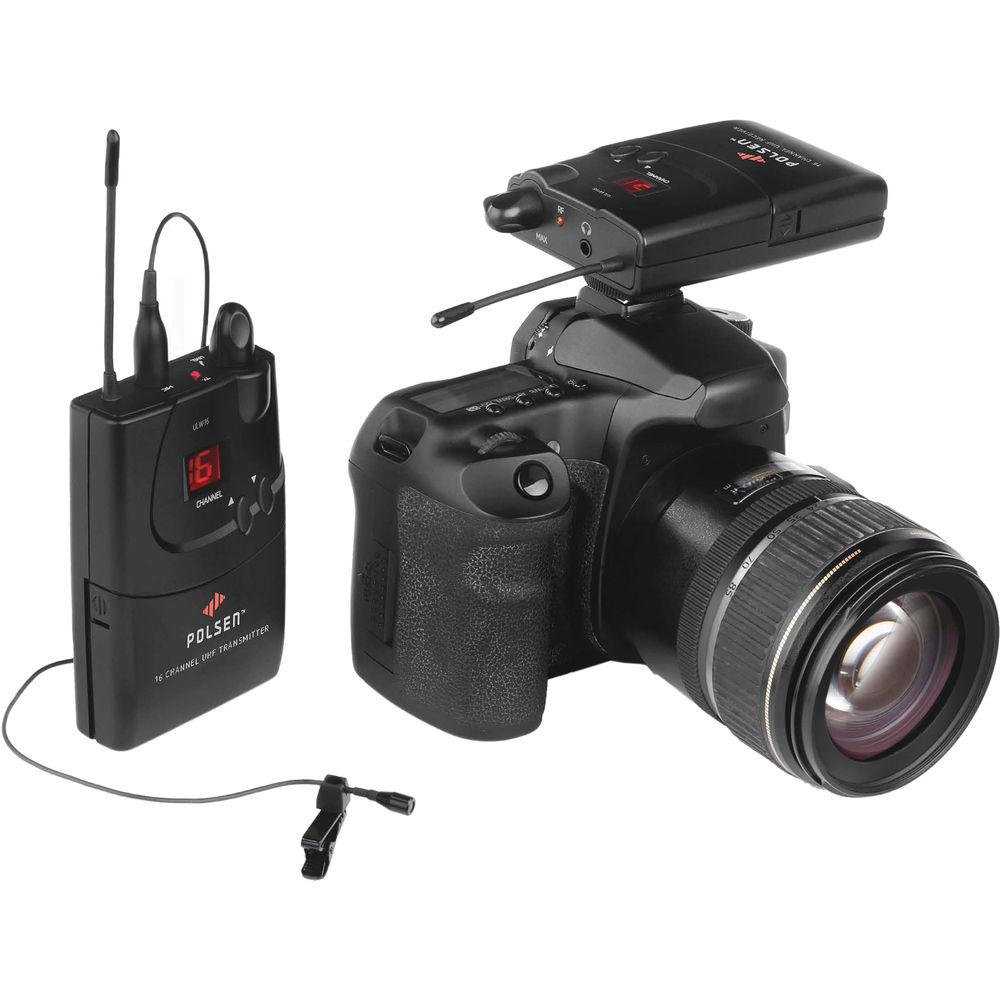

- The receiver can be mounted onto a standard shoe mount of a DSLR or video camera
- Compact and Lightweight
- Weighing approximately 3 ounces, the transmitter can be easily concealed on a subject by attaching it with the included belt clip, or placing it in a pocket
- Front-Panel Access to Batteries
- Both the receiver and transmitter feature front-panel access to the battery compartment so you can change the batteries even when the system is counted and wired up
- LED Indicators
- The RF LED on the receiver illuminates indicating there is a signal on the selected channel. LED channel indicators make the channel number easy to see even in dim lighting conditions. The transmitter's TX LED glows red to indicate that the unit is transmitting
- 1/4"-20 Threaded Socket

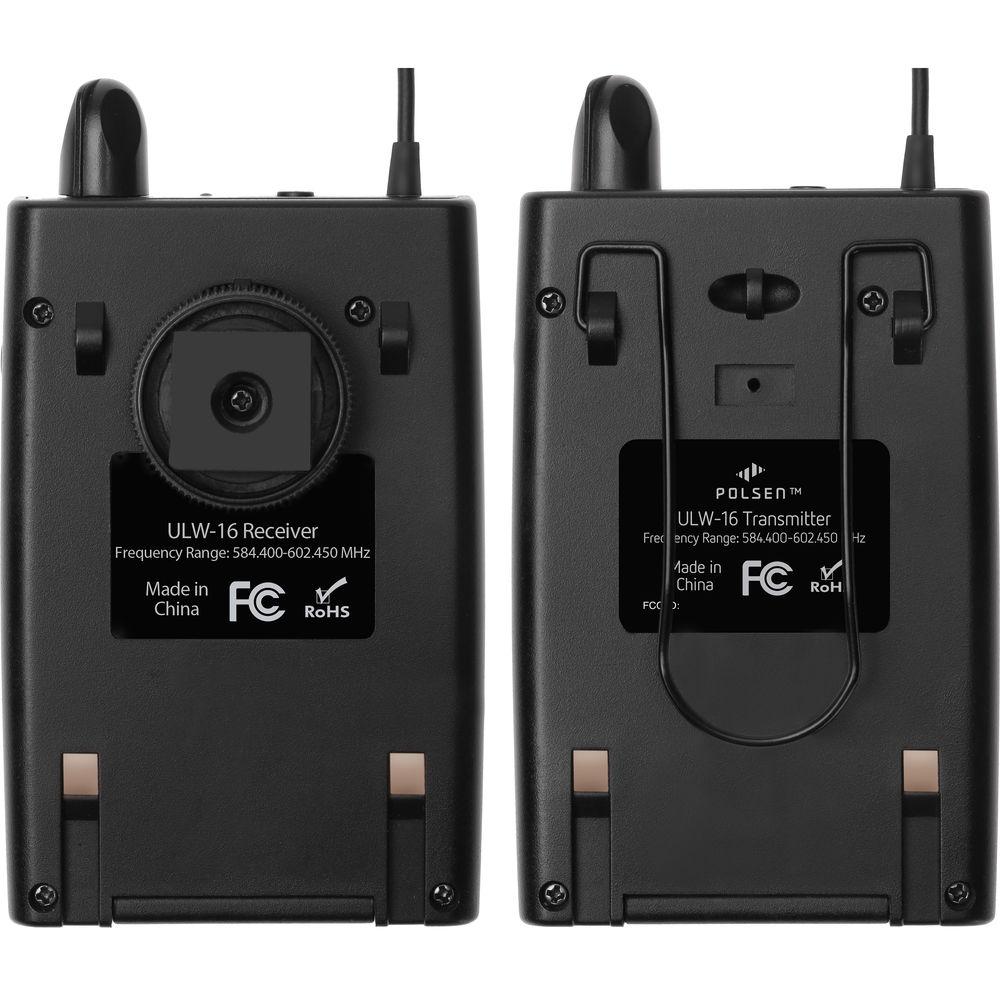

- The standard 1/4"-20 threaded socket provides a variety of mounting options
- Included Accessories

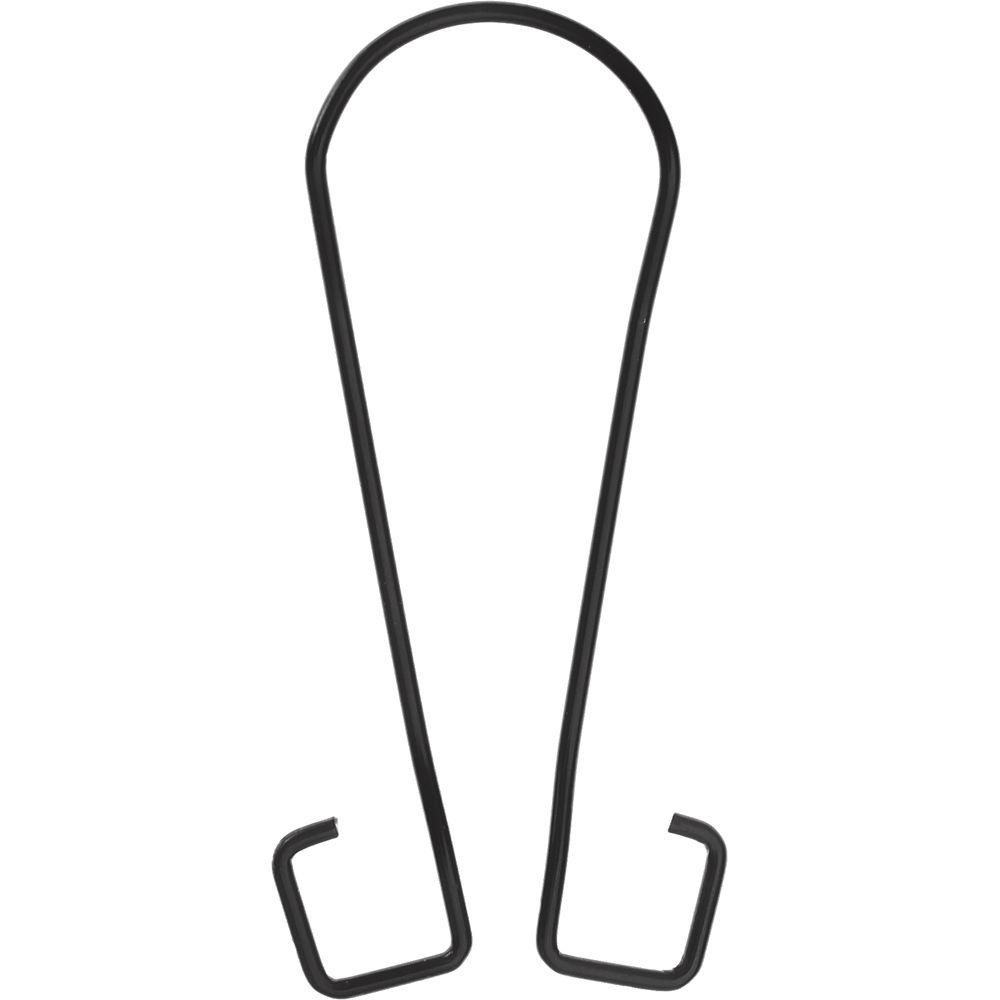

- The included tie clip provides a variety of discreet microphone-placement options and can be used to attach the microphone to a collar, necktie, or costume, while the included windscreen reduces wind noise and vocal plosives (pops). The integrated belt clip secures the transmitter to the talent and allows it to be discreetly hidden under a garment or costume, and the standard shoe mount with locking wheel easily and securely attaches to most cameras.
- One-Way Communication Application
- The ULW-16 can be used as a one-way voice-communication system for stage directions and talent cueing
- Future Proof
- The ULW-16 system operates in the UHF 500 MHz bandwidth assuring that it is "future proof" and meets current and known future FCC regulations.
- Protective Carrying Case
- The ULW-16 wireless system includes a sturdy protective carrying case making transport effortless. Inside, custom foam enclosures secure the components and protect them from impact, and solid external construction will withstand the rigors of road use
UPC: 847628596580 In the Box Polsen ULW-16 16-Channel Camera-Mountable UHF Wireless System with PL-4 Lavalier Microphone - (584.400 to 602.450 MHz) PL-4 Omnidirectional Lavalier Microphone with 1/8" (3.5 mm) Connector Transmitter Receiver Line to Mic Attenuator Cable Line-Level Output Cable for Receiver Tie Clip and Windscreen Carrying Case 4 x AA Alkaline Batteries Limited 1-Year Warranty User Manual PDF 3.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Polsen ULW-16 16-Channel Camera-Mountable UHF Wireless System with PL-4 Lavalier Microphone - in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPolsen ULW-16-PL4V2 Specs | | | Frequency Range | 584.400 to 602.450 MHz | | Number of Channels | 16 | | Frequency Bands | Ch. 1: 584.400 MHzCh. 2: 587.500 MHzCh. 3: 589.575 MHzCh. 4: 591.050 MHzCh. 5: 593.425 MHzCh. 6: 595.200 MHzCh. 7: 598.450 MHzCh. 8: 599.650 MHzCh. 9: 601.275 MHzCh. 10: 603.775 MHzCh. 11: 605.500 MHzCh. 12: 606.750 MHzCh. 13: 586.025 MHzCh. 14: 590.525 MHzCh. 15: 594.150 MHzCh. 16: 602.450 MHz | | Switching Bandwidth | 25 MHz | | Peak Deviation | ±55 kHz | | Total Harmonic Distortion | <0.8% | | Operating Distance | >100' (30.5 m); 300' (91.4 m) in optimum conditions | | | | Frequency Response | 60 Hz to 80 kHz | | RF Output Power | 10 mW | | Spurious Rejection | >55 dBc | | Maximum Input Voltage | 1,000 mV | | Input | 1/8" (3.5 mm) | | Power Supply | Two (2) AA batteries | | Operating Time | Approximately 8 hours | | Dimensions | 4.4 × 2.6 × 1.1" (11.3 × 6.5 × 2.9 cm) | | Weight | 3.3 oz (94 g) | | | | Sensitivity | -102 dBm | | Dynamic Range | >95 dB | | Signal-to-Noise Ratio | >105 dB (A) | | Image Rejection | 56 dB | | Output | 1/8" (3.5 mm) 1 kΩ | | Power Supply | Two (2) AA batteries | | Operating Time | Approximately 8 hours | | Dimensions | 4.4 × 2.6 × 1.4" (11.3 × 6.5 × 3.5 cm) | | Weight | 3.5 oz (100 g) | | | | Transducer | Back electret condenser | | Polar Pattern | Omnidirectional | | Frequency Response | 20 Hz to 20 kHz | | Sensitivity | -45 dB ±3 dB | | Impedance | 2000 Ohms | | Maximum SPL | 135 dB | | Dynamic Range | 104 dB | | Operating Voltage | 1.5 - 12 VDC | | Connector | 1/8" (3.5 mm) | | Head Diameter | 0.20" (5.0 mm) | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 11.7 x 8.9 x 3.0" |
