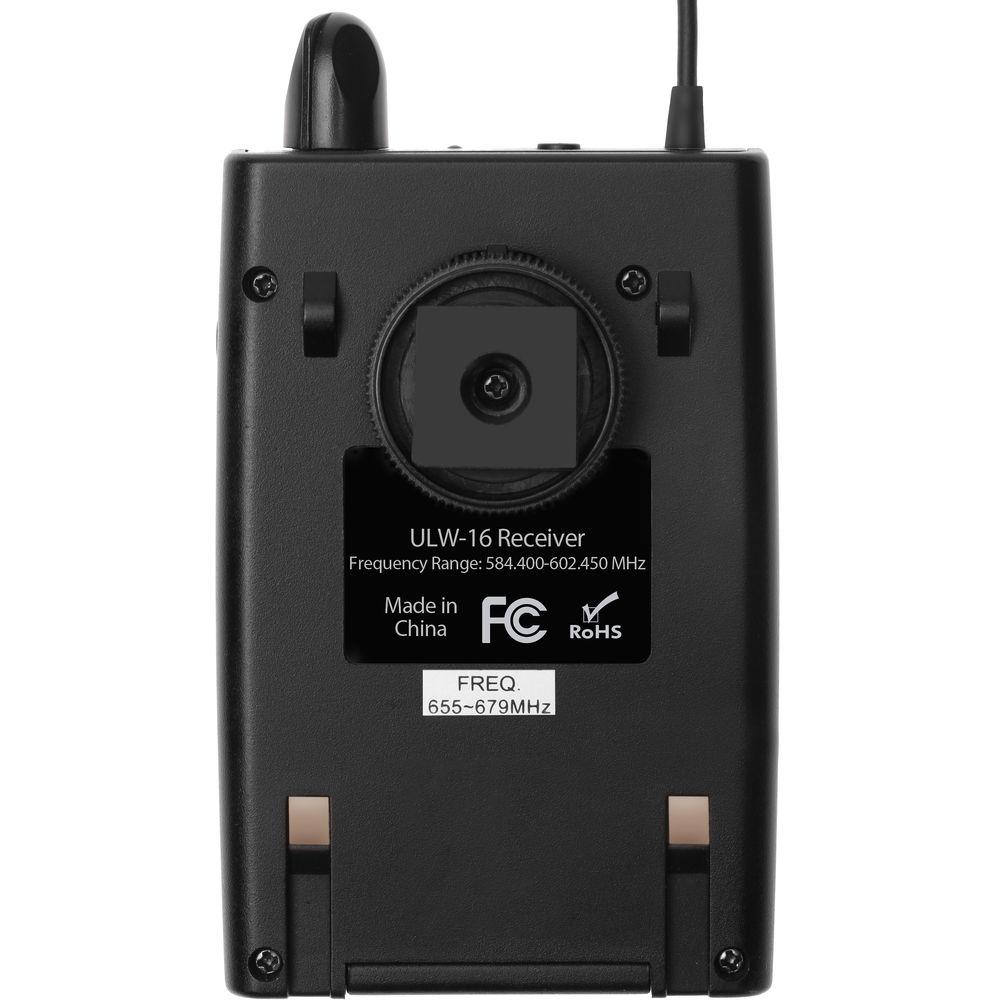

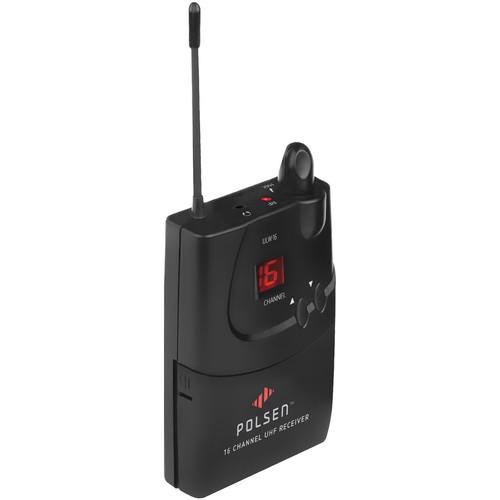

Product description The ULW-16-BR Beltpack/Camera-Mountable Receiver for the ULW-16 Wireless System from Polsen is a replacement receiver for Polsen's ULW-16 16-channel camera-mountable UHF wireless system. It's designed to receive an audio signal from the ULW-16-BT transmitter more than 100 feet away. Engineered to be exceptionally quiet, and with many professional features like line output and frequency agility, the ULW-16-BR is ideal for EFP (electronic field production) and video applications for professionals and enthusiasts alike. With its impressive 105 dB signal-to-noise ratio, the ULW-16-BR delivers pristine audio transmission for broadcast-quality recordings. It has 16 channels to choose from to help avoid interference. Up to five systems (or more in optimum conditions) can be used simultaneously in the same location. With features like easy-to-read LED indicators, the receiver also has a line output for professional cameras, and with a line to camera level attenuator cable, you can plug into 1/8" mic input for consumer cameras. A headphone jack and volume control allows you to monitor the transmission signal in real time at a comfortable volume. The system operates in the UHF 500 MHz bandwidth assuring that it is "future proof" and meets current and known future FCC regulations. It will not be affected by the planned FCC auction of the 600 MHz band. - Engineered for Versatility
- The many professional features of the ULW-16-BR make it an ideal wireless system for a variety of production applications, including electronic field production (EFP), DSLR video, event coverage, training videos, and classroom or corporate presentations
- Best-In-Class Sound Quality
- Greater than 105 dB signal-to-noise ratio, and better than 95 dB of dynamic range for pristine audio transmission and output
- Frequency-Agile System
- The 16-channel ULW-16-BR wireless system allows operators to quickly and effortlessly switch channels in order to locate a clear channel

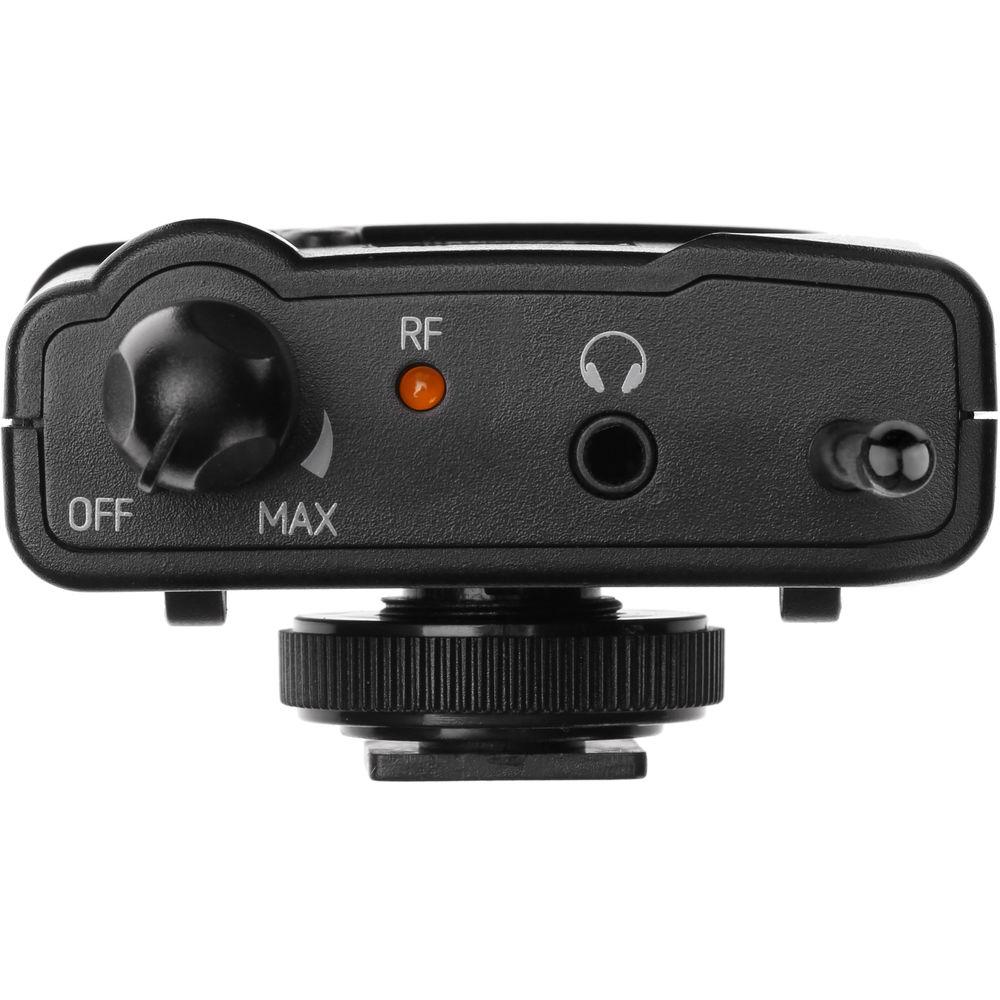

- Headphone Monitoring with Level Control
- Transmissions can be monitored at a comfortable level from the receiver's headphone output in real time, without the latency that often occurs when monitoring via a camera's headphone output
- Standard Shoe Mount
- The standard shoe mount with locking wheel easily and securely attaches to most cameras

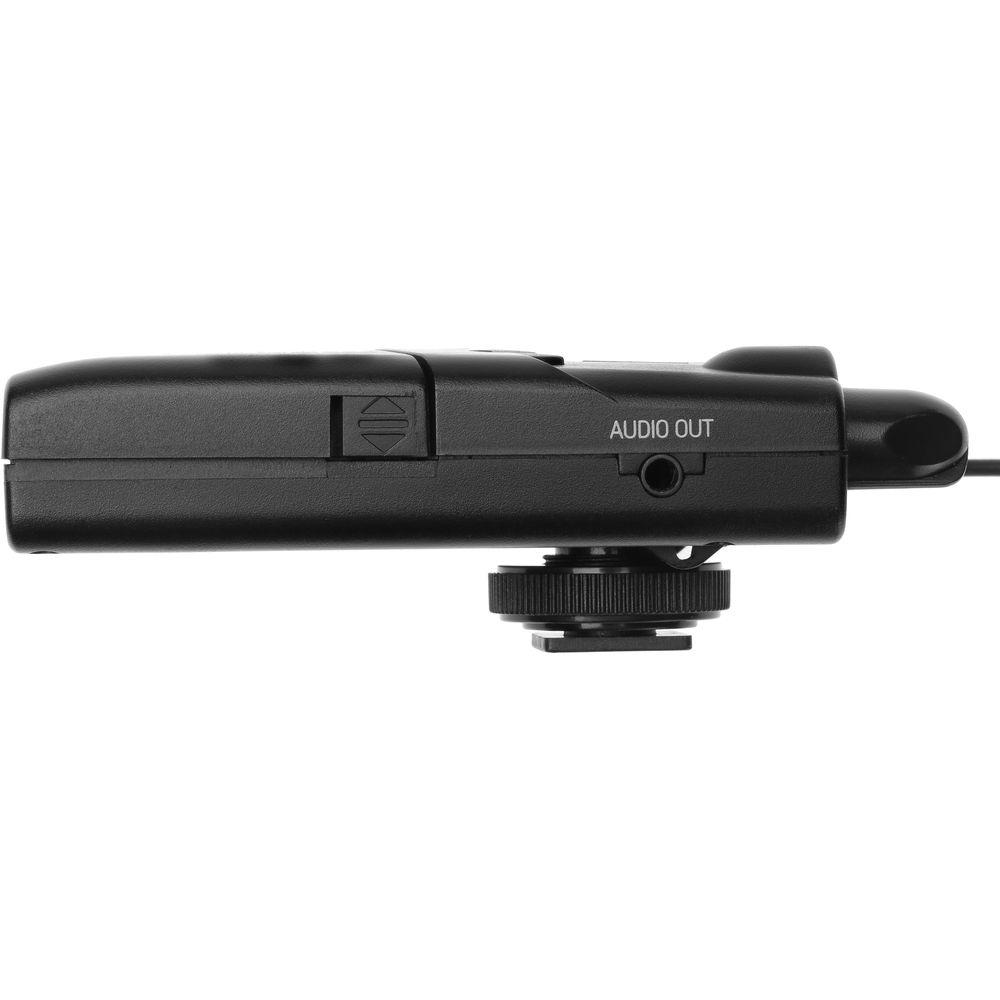

- Line-Level Output
- The receiver features a line-level output for the best possible signal-to-noise ratio. Using a 1/8" (3.5mm) male to XLR male cable, the ULW-16 receiver can be connected to a professional video camera, recorder, or other line-level device
- Line-to-Mic Attenuator Cable
- Using a line-to-mic level-attenuator cable, you can attach the output of the receiver to camcorders, DSLRs or other devices with a mic-level input

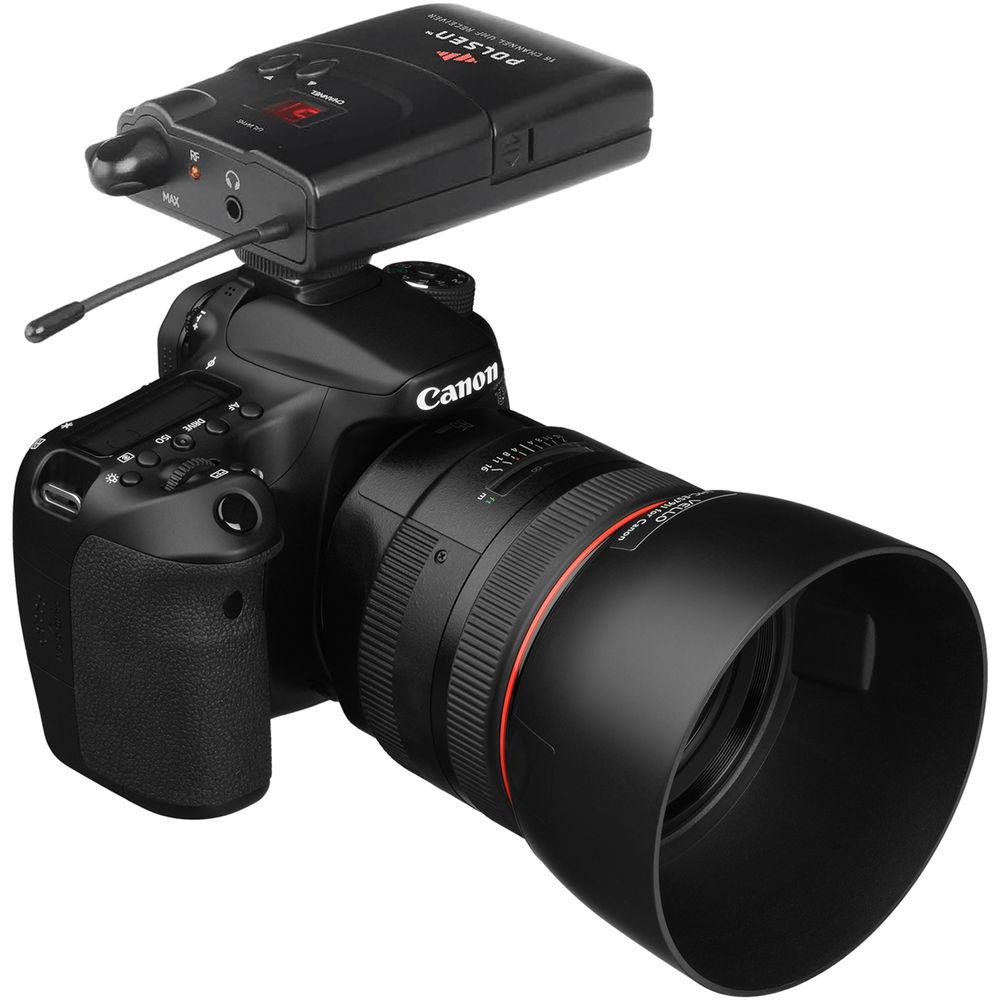

- Portable Receiver
- The receiver can be mounted onto a standard shoe mount of a DSLR or video camera
- Front-Panel Access to Batteries
- Both the receiver and transmitter feature front-panel access to the battery compartment so you can change the batteries even when the system is mounted and wired up
- LED Indicators
- The RF LED on the receiver illuminates indicating there is a signal on the selected channel. LED channel indicators make the channel number easy to see even in dim lighting conditions
- 1/4"-20 Threaded Socket
- The standard 1/4"-20 threaded socket provides a variety of mounting options
- One-Way Communication Application
- The ULW-16-BR can be used as a one-way voice-communication system for stage directions and talent cueing
- Future Proof
- The ULW-16-BR system operates in the UHF 500 MHz bandwidth assuring that it is "future proof" and meets current and known future FCC regulations
UPC: 847628598249 In the Box Polsen ULW-16-BR Beltpack/Camera-Mountable Receiver for the ULW-16 Wireless System Camera Mount Limited 1-Year Warranty User Manual PDF 3.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Polsen ULW-16-BR Beltpack Camera-Mountable Receiver for the ULW-16 Wireless System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPolsen ULW-16-BR Specs | | | Number of Channels | 16 | | Frequency Range | 584.400 to 602.450 MHz | | Sensitivity | -102 dBm | | Dynamic Range | >95 dB | | Signal-to-Noise Ratio | >105 dB (A) | | Image Rejection | 56 dB | | Output | 1/8" (3.5 mm) 1 kOhms | | Power Supply | 2 x AA batteries | | Operating Time | Approximately: 8 hours | | Dimensions | 4.4 x 2.6 x 1.4" (11.3 x 6.5 x 3.5 cm) | | Weight | 3.5 oz (100 g) | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 8.4 x 3.2 x 1.8" |
