User Manual for Polsen ULW-16-BT Beltpack Transmitter for the ULW-16 Wireless System Click to enlarge the picture
Contents of the user manual for the Polsen ULW-16-BT Beltpack Transmitter for the
- Product category: Wireless Transmitters Polsen
- Brand: Polsen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Polsen Wireless Transmitters
 |
User manual for the Polsen ULW-16-BT Beltpack Transmitter for the contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Polsen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Polsen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Polsen product will considerably shorten its lifespan!
|
Product description The ULW-16-BT Beltpack Transmitter for the ULW-16 Wireless System from Polsen is a replacement transmitter for Polsen's ULW-16 16-channel camera-mountable UHF wireless system. It's designed to transmit an audio signal to the ULW-16-BR transmitter more than 100 feet away. Engineered to be exceptionally quiet, and with many professional features like line input and frequency agility, the ULW-16-BT is ideal for EFP (electronic field production) and video applications for professionals and enthusiasts alike. With its impressive 105 dB signal-to-noise ratio, the ULW-16-BT delivers pristine audio transmission for broadcast-quality recordings. It has 16 channels to choose from to help avoid interference. Up to five systems (or more in optimum conditions) can be used simultaneously in the same location. The wireless transmitter features a volume control that adjusts the level of transmission. It is also equipped with a line input that enables instrument level devices to be plugged in without overload of the circuit. The system operates in the UHF 500 MHz bandwidth assuring that it is "future proof" and meets current and known future FCC regulations. It will not be affected by the planned FCC auction of the 600 MHz band. - Engineered for Versatility

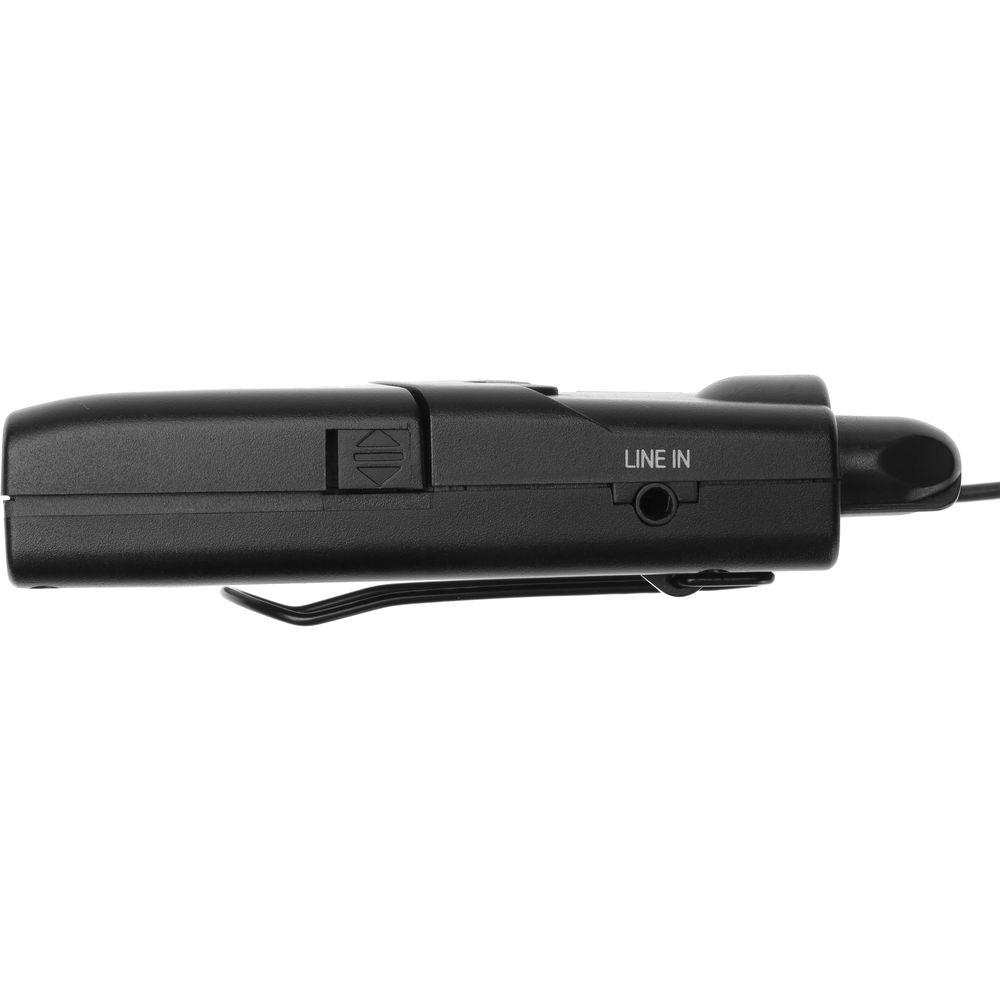

- The many professional features of the ULW-16-BT make it an ideal wireless transmitter for a variety of production applications, including electronic field production (EFP), DSLR video, event coverage, training videos, and classroom or corporate presentations
- Best-In-Class Sound Quality
- With a greater than 105 dB signal-to-noise ratio, and better than 95 dB of dynamic range, the ULW-16-BT has pristine audio transmission
- Frequency-Agile System
- The 16-channel ULW-16-BT wireless system allows operators to quickly and effortlessly switch channels in order to locate a clear channel
- Variable Level Control
- The volume control on the transmitter assures that sufficient level is being transmitted to the receiver to achieve the best signal-to-noise ratio throughout the signal path
- Compact and Lightweight
- Weighing approximately 3 ounces, the transmitter can be easily concealed on a subject by attaching it with the included belt clip, or placing it in a pocket. It features an integrated flexible, custom-tuned antenna
- Front-Panel Access to Batteries
- The transmitter features front-panel access to the battery compartment so you can change the batteries even when the system is mounted and wired up
- LED Indicators

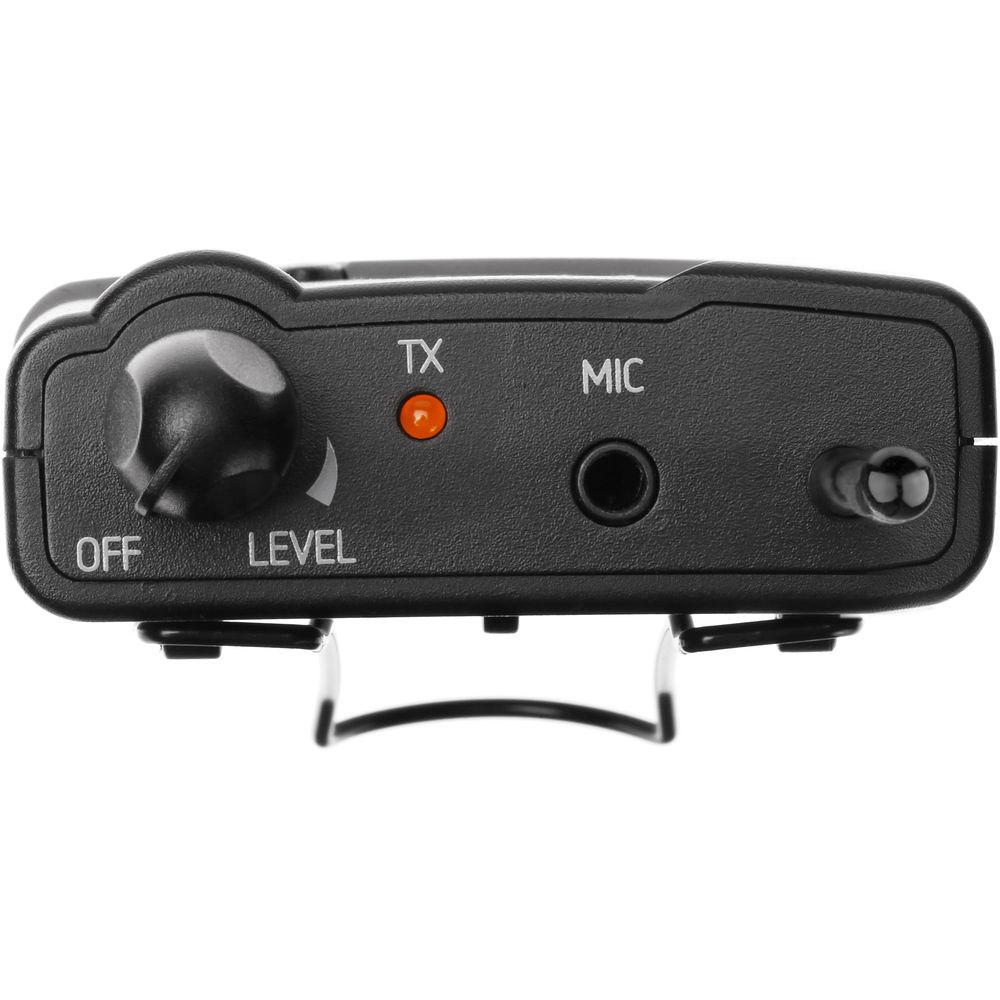

- The RF LED on the receiver illuminates indicating there is a signal on the selected channel. LED channel indicators make the channel number easy to see even in dim lighting conditions. The transmitter's TX LED glows red to indicate that the unit is transmitting

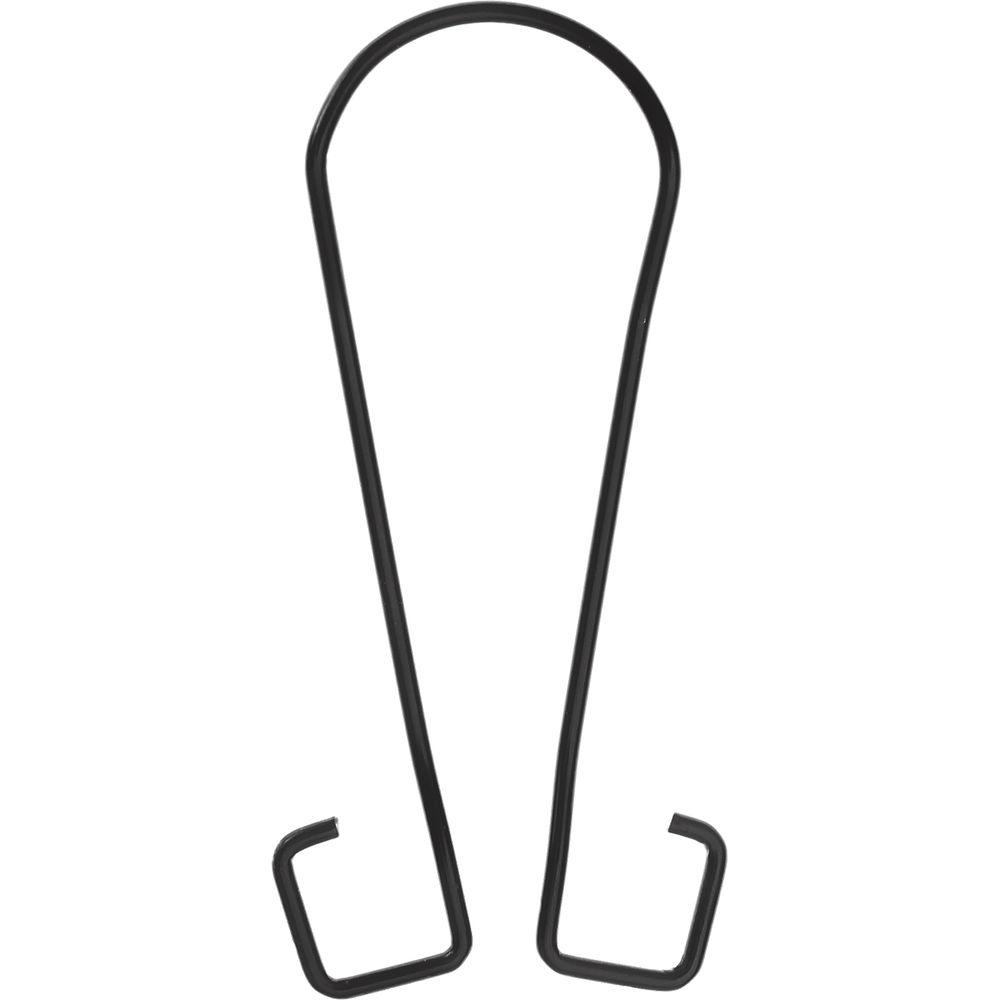

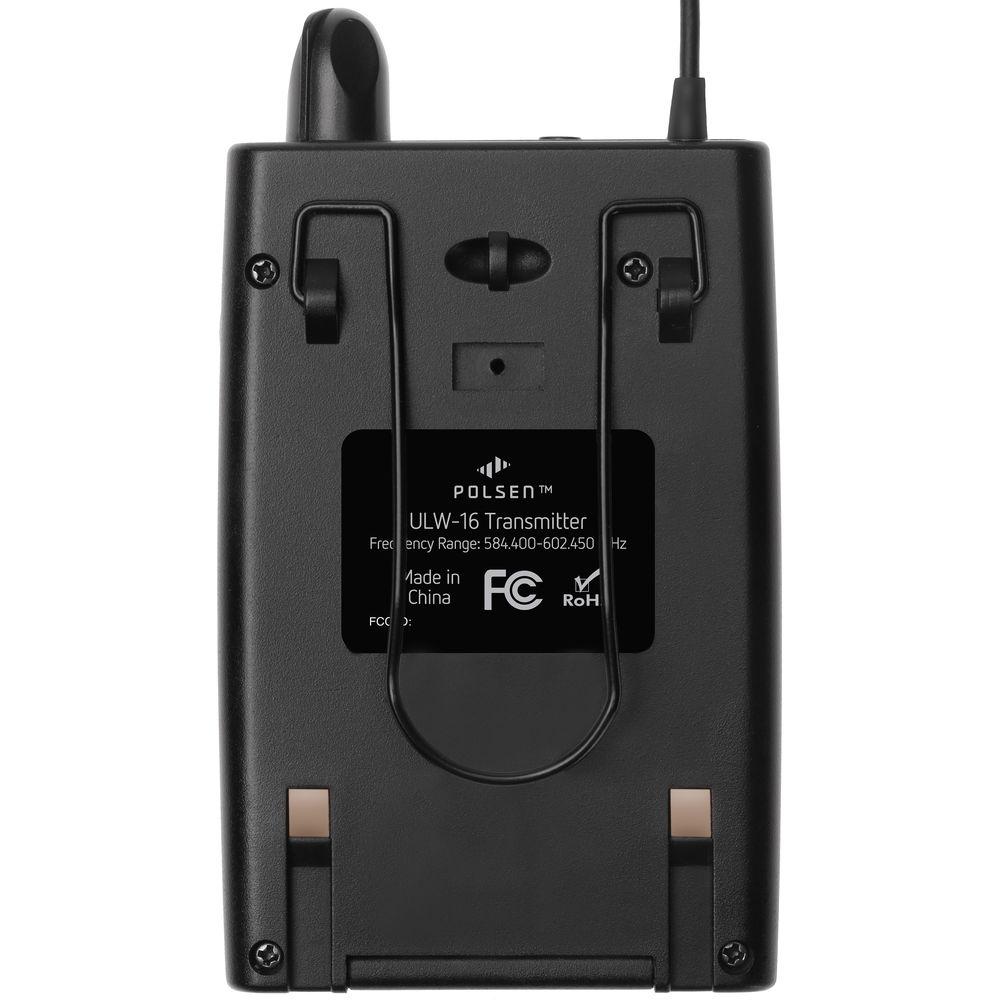

- Integrated Belt Clip
- The integrated belt clip secures the transmitter to the talent and allows it to be discreetly hidden under a garment or costume
- One-Way Communication Application
- The ULW-16-BT can be used as a one-way voice communication system for stage directions and talent cueing
- Future Proof
- The ULW-16-BT system operates in the UHF 500 MHz bandwidth assuring that it is "future proof" and meets current and known future FCC regulations
UPC: 847628598232 In the Box Polsen ULW-16-BT Beltpack Transmitter for the ULW-16 Wireless System Belt Clip Limited 1-Year Warranty User Manual PDF 3.2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Polsen ULW-16-BT Beltpack Transmitter for the ULW-16 Wireless System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPolsen ULW-16-BT Specs | | | Number of Channels | 16 | | Frequency Range | 584.400 to 602.450 MHz | | Frequency Response | 60 Hz to 80 kHz | | RF Output Power | 10 mW | | Spurious Rejection | >55 dBc | | Maximum Input Voltage | 1,000 mV | | Input | 1/8" (3.5 mm) | | Power Supply | 2 x AA batteries | | Operating Time | 8 hours approximately | | Dimensions | 4.4 x 2.6 x 1.1" (11.3 x 6.5 x 2.9 cm) | | Weight | 3.3 oz (94 g) | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 8.4 x 3.2 x 1.9" |
