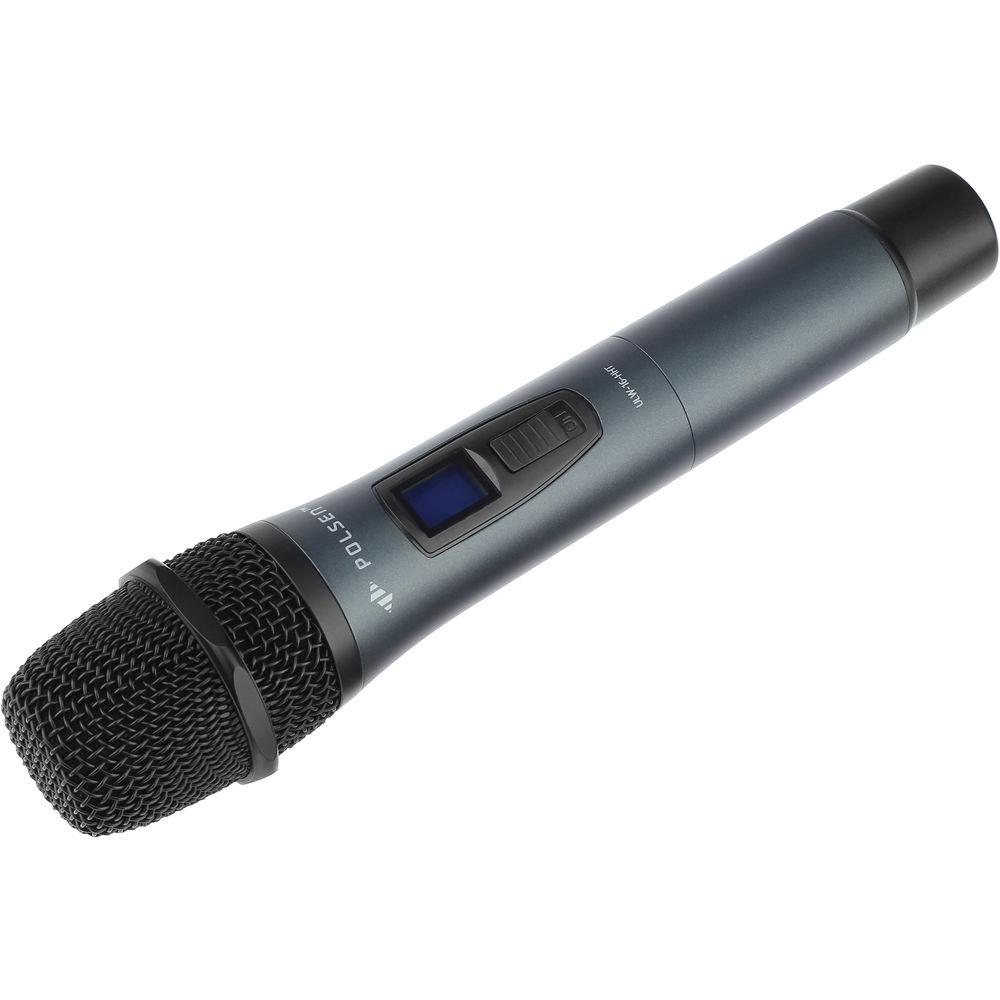

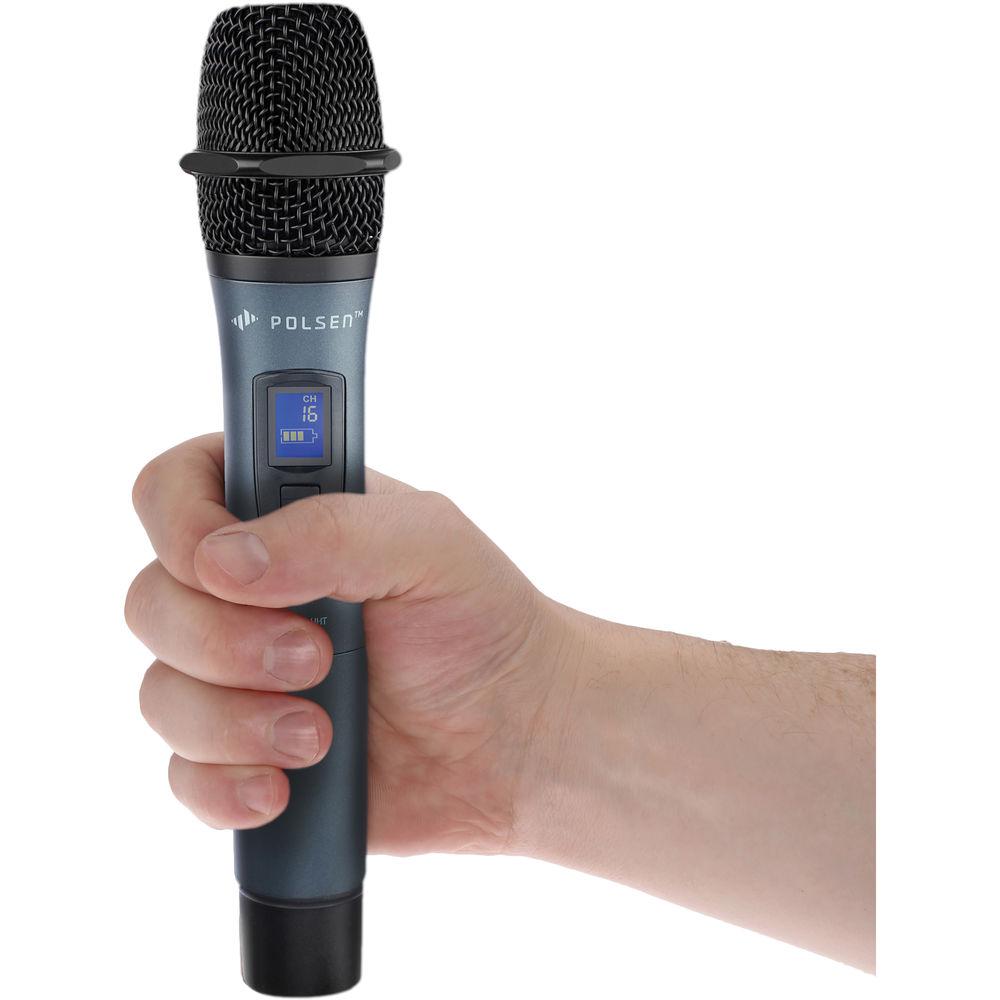

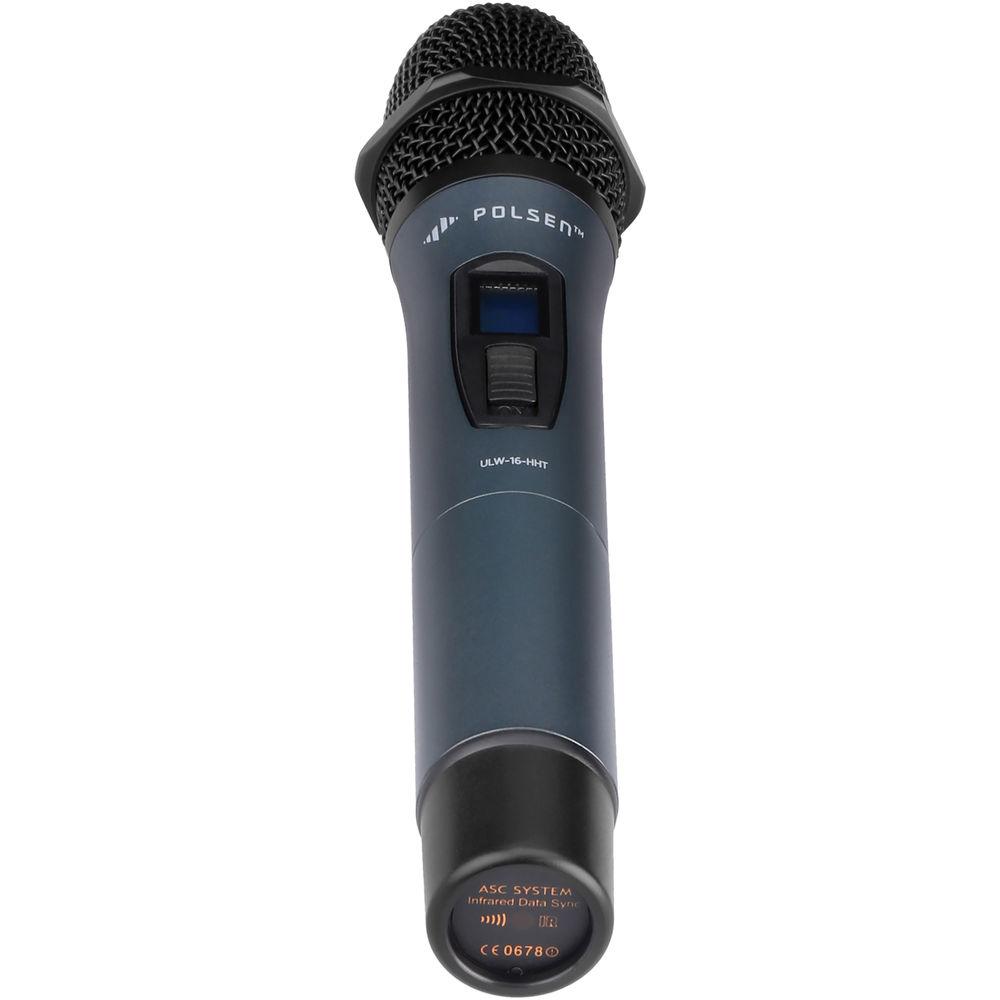

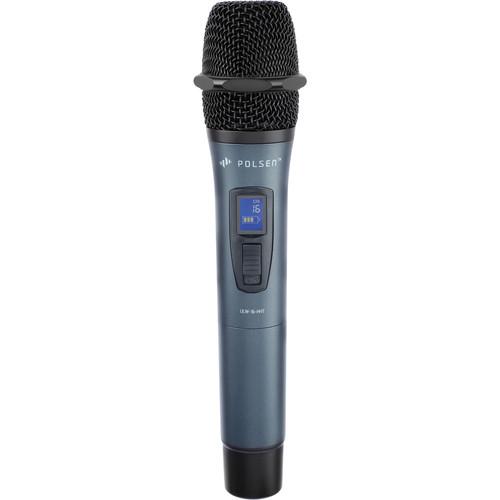

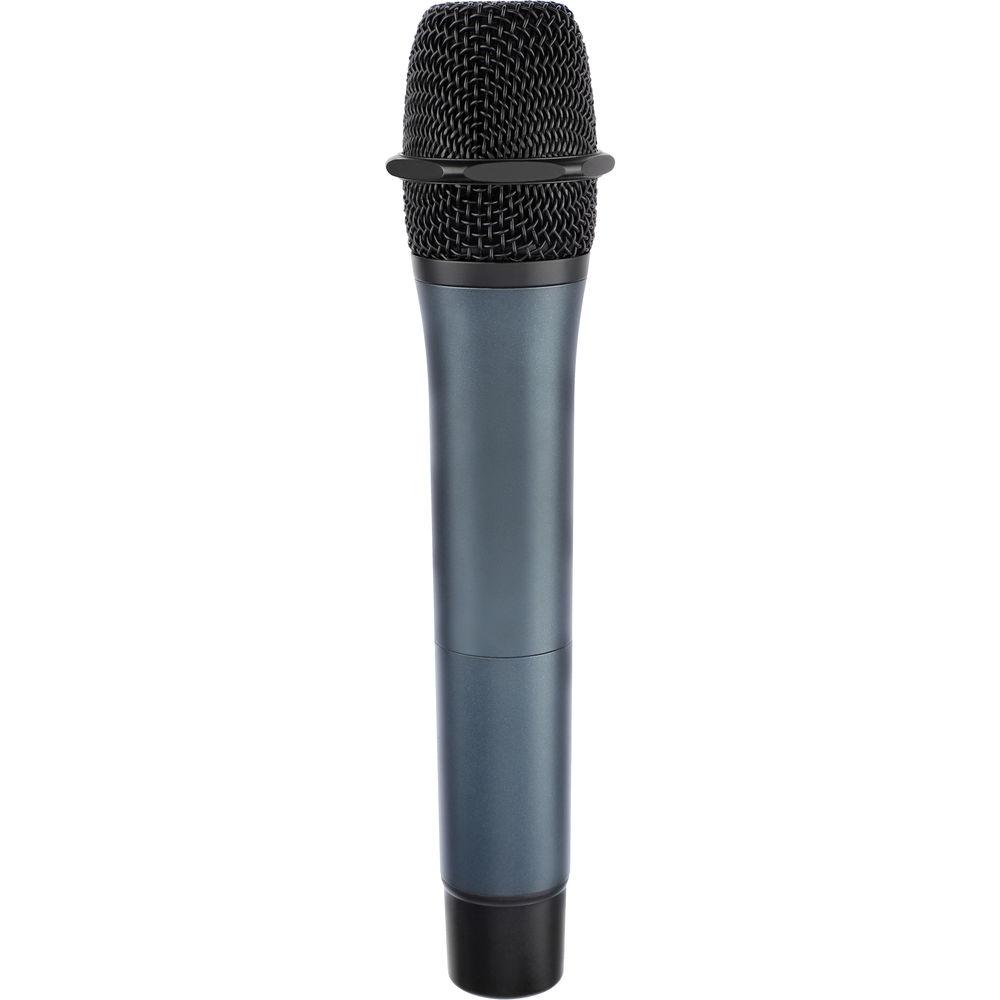

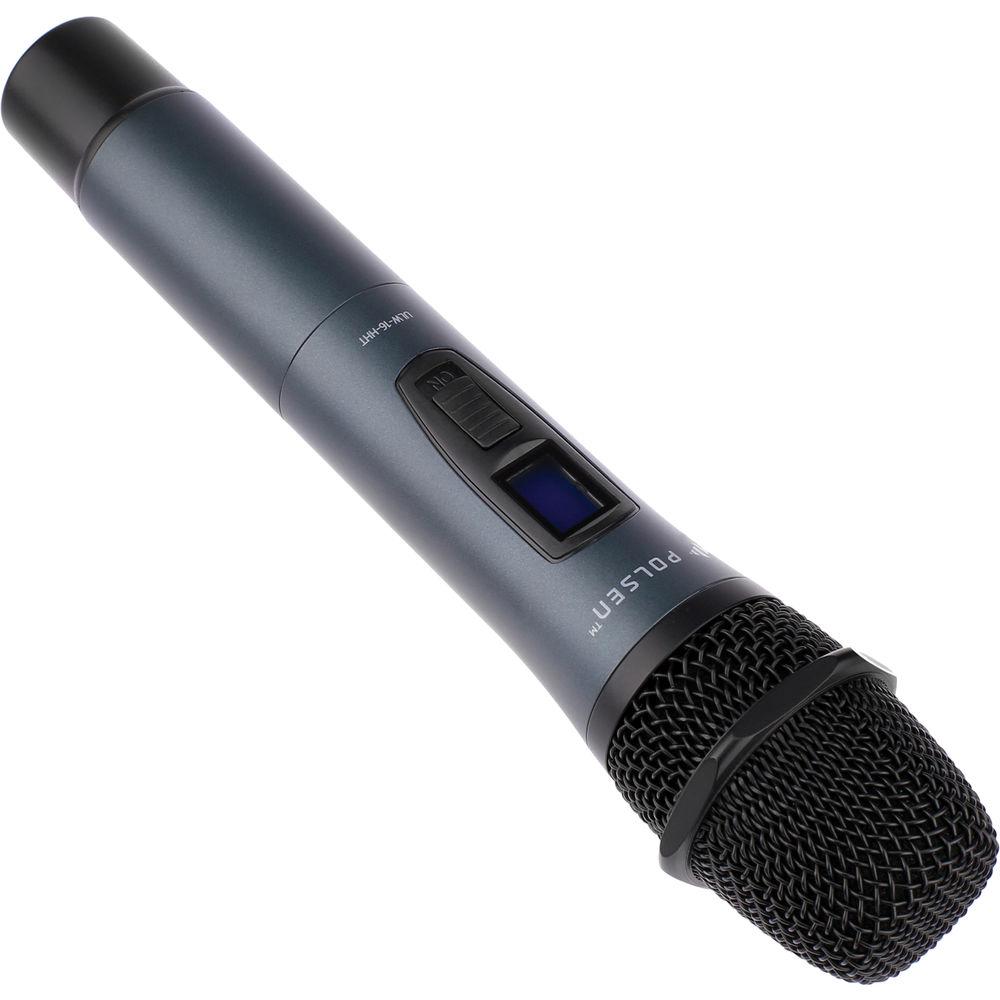

User Manual for Polsen ULW-16-HHT Handheld Transmitter for ULW-16 Wireless System Click to enlarge the picture
Contents of the user manual for the Polsen ULW-16-HHT Handheld Transmitter for ULW-16
- Product category: Wireless Transmitters Polsen
- Brand: Polsen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Polsen Wireless Transmitters
 |
User manual for the Polsen ULW-16-HHT Handheld Transmitter for ULW-16 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Polsen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Polsen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Polsen product will considerably shorten its lifespan!
|

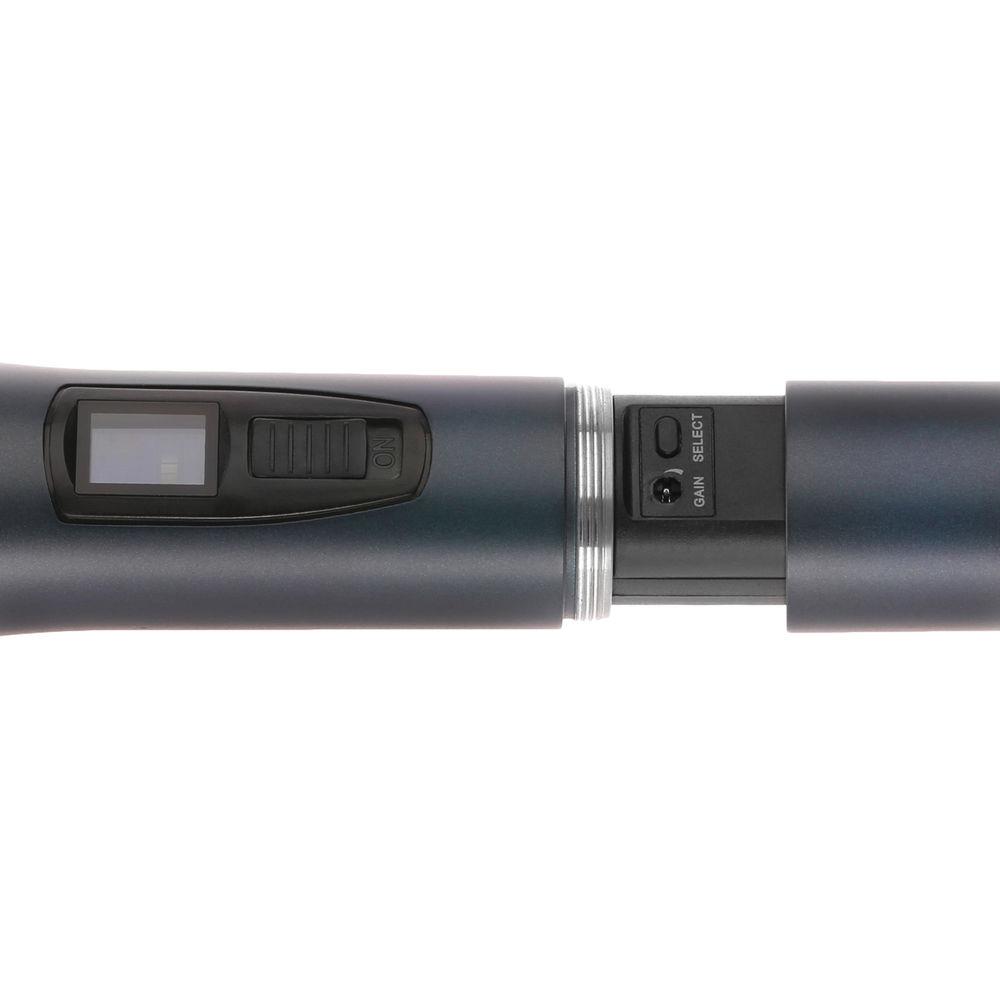

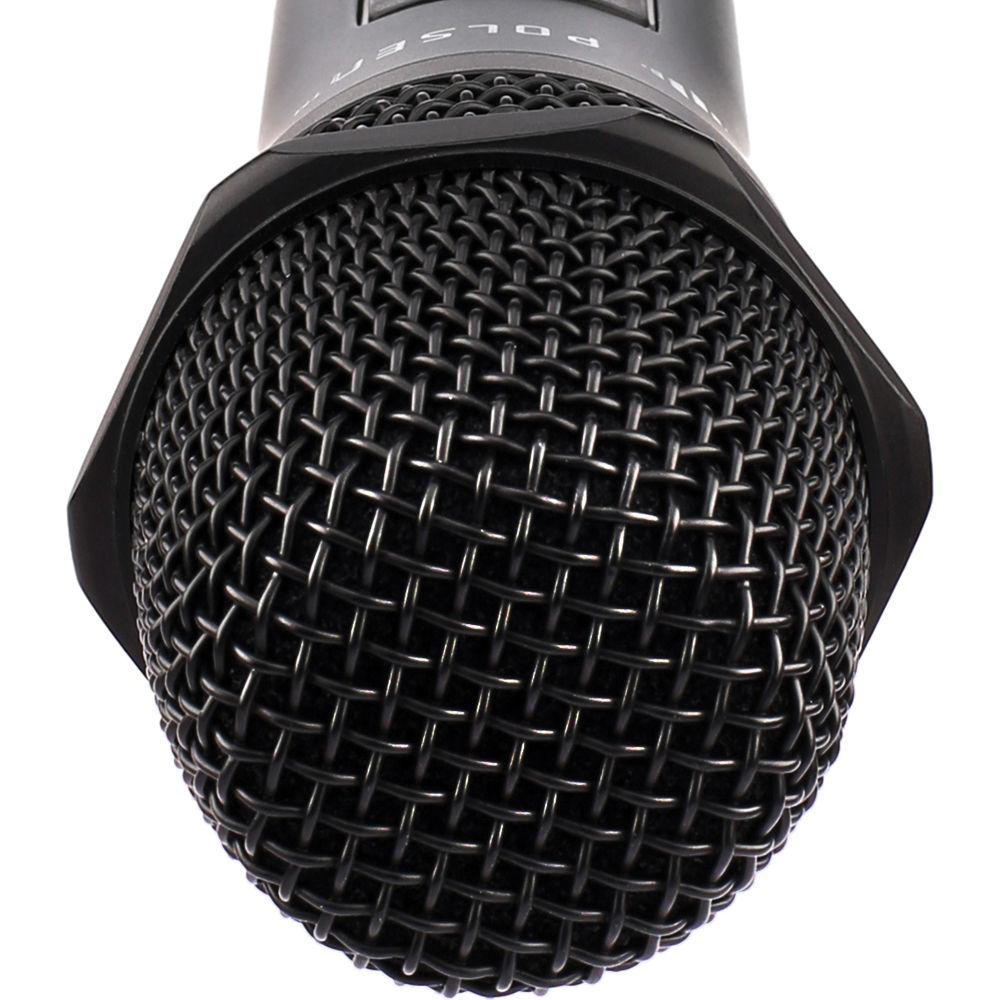

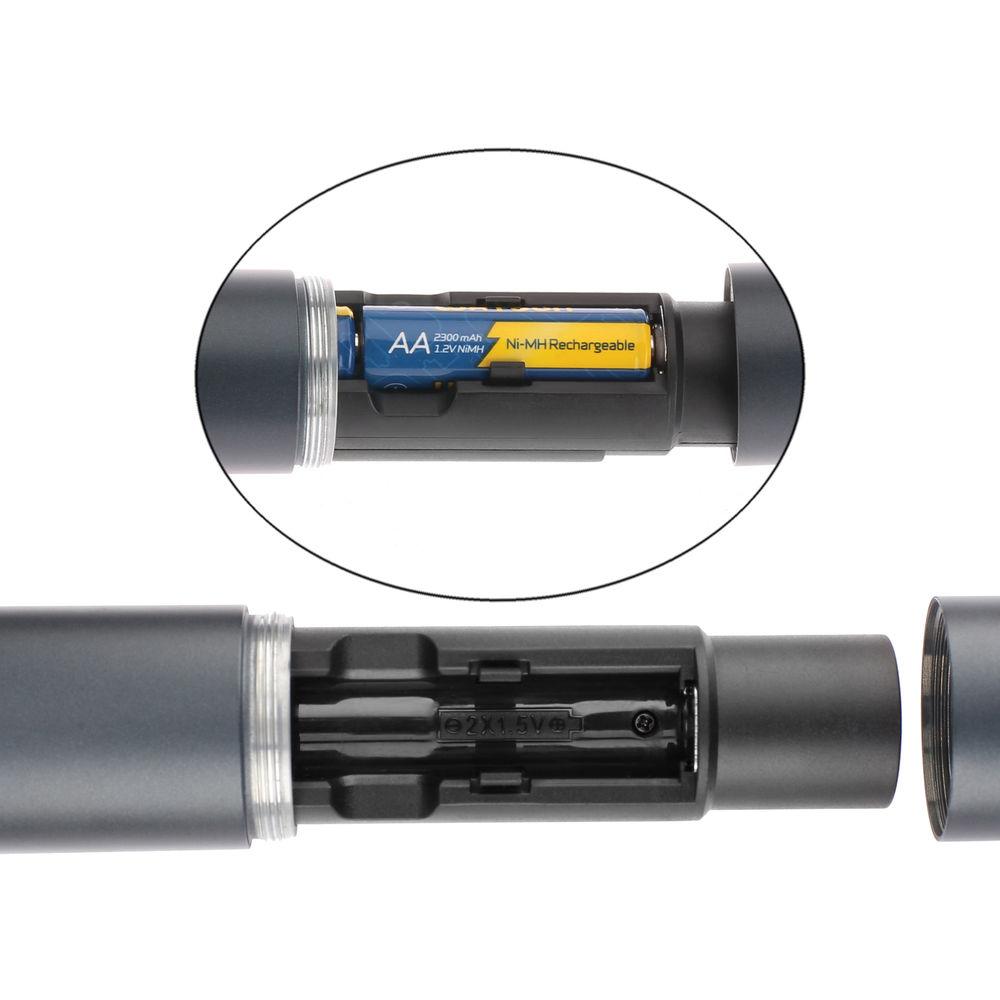

Product description The ULW-16-HHT from Polsen is an all-metal, 16-channel UHF wireless dynamic handheld transmitter for capturing audio. It can be used in various environments when paired with the Polsen ULW-16 receiver for applications such as broadcast TV, live stage, public speaking, and more. The transmitter capsule is offered in a cardioid polar pattern, which is ideal when background noise needs to be minimized. The ULW-16-HHT transmitter has several features such as 102 dB signal-to-noise ratio and a wide frequency response of 60 Hz to 18 kHz. It is built with a channel selector button and allows you to switch between the units 16 UHF channels. The dual-purpose integrated foam windscreen is designed to minimize vocal pops and wind noise but also to protect the mic capsule from moisture. Heavy-duty metal construction assures the ULW-16-HHT can withstand the rigors of transportation and field recording. The handheld transmitter is powered by two AA alkaline or rechargeable batteries and can operate approximately 8 hours. The ULW-16-HHT operates between frequencies 584.400 to 602.450 MHz and has a transmitting distance of over 100'. - Broadcast Quality
- With an impressive 102 dB signal-to-noise ratio and a wide frequency response, this transmitter offers quiet, accurate and detailed sound
- Cardioid Polar Pattern
- The ULW-16-HHT dynamic cardioid microphone capsule minimizes background noise and is ideal for ENG, EFP or DSLR video applications
- Reliable Operation
- Operation within the 500 MHz bandwidth assures less susceptibility to interference and dropouts
- Durable
- Heavy-duty metal construction assures the transmitter will withstand the rigors of transportation and field recordings
UPC: 847628581883 In the Box Polsen ULW-16-HHT Handheld Transmitter for ULW-16 Wireless System Limited 1-Year Warranty Guides & Manuals zfzavxqxvvusfucdzuzfvcswze Table of Contents
|
Upload User Manual
Have you got an user manual for the Polsen ULW-16-HHT Handheld Transmitter for ULW-16 Wireless System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Polsen ULW-16-HHT Handheld Transmitter for ULW-16 Wireless System can be downloaded in PDF format at the link stated below.
Technical parametersPolsen ULW-16-HHT Specs | | | Frequency Range | 584.400 to 602.450 MHz | | Number of Channels | 16 | | Frequency Allocation | CH. 1 584.400 MHz
CH. 2 587.500 MHz
CH. 3 589.575 MHz
CH. 4 591.050 MHz
CH. 5 593.425 MHz
CH. 6 595.200 MHz
CH. 7 598.450 MHz
CH. 8 599.650 MHz
CH. 9 601.275 MHz
CH. 10 603.775 MHz
CH. 11 605.500 MHz
CH. 12 606.750 MHz
CH. 13 586.025 MHz
CH. 14 590.525 MHz
CH. 15 594.150 MHz
CH. 16 602.450 MHz | | Switching Bandwidth | 25 MHz | | Peak Deviation | ±55 kHz | | Total Harmonic Distortion (THD) | <0.8% | | Operation Distance | >100' (30.5 m)
300' (91.4 m) in optimum conditions | | | | Transducer | Dynamic | | Polar Pattern | Cardioid (Unidirectional) | | Frequency Response | 60 Hz to 18 kHz | | RF Output Power | 10 mW | | Spurious Rejection | >55 dBc | | Signal to Noise Ratio | 102 dB | | THD | <1% | | Maximum Input Voltage | 1000 mW | | Power Supply | 2x AA batteries | | Operating Time | Approximately 8 hours | | Dimensions (H x W x L) | 2.1 x 2 x 10" (5.3 x 5.1 x 25.4 cm) | | Weight | 15.2 oz (431 g) with batteries
13.6 oz (385 g) without batteries | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 10.394 x 2.441 x 2.362" |
