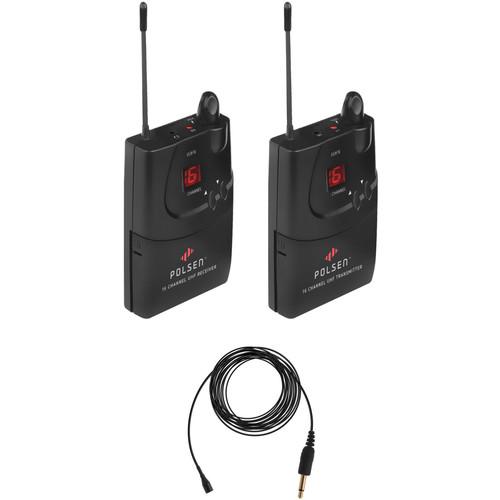

User Manual for Polsen ULW-16 UHF Wireless System and PL-4 Lavalier Microphone Kit

• Product category: Wireless Systems Polsen
• Brand: Polsen
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Polsen Wireless Systems

Product description

• Polsen ULW-16-BR Beltpack/Camera-Mountable Receiver for the ULW-16 Wireless System The ULW-16-BR Beltpack/Camera-Mountable Receiver for the ULW-16 Wireless System from Polsen is a replacement receiver for Polsen's ULW-16 16-channel camera-mountable UHF wireless system. It's designed to receive an audio signal from the ULW-16-BT transmitter more than 100 feet away. Engineered to be exceptionally quiet, and with many professional features like line output and frequency agility, the ULW-16-BR is ideal for EFP (electronic field production) and video applications for professionals and enthusiasts alike. With its impressive 105 dB signal-to-noise ratio, the ULW-16-BR delivers pristine audio transmission for broadcast-quality recordings. It has 16 channels to choose from to help avoid interference. Up to five systems (or more in optimum conditions) can be used simultaneously in the same location. With features like easy-to-read LED indicators, the receiver also has a line output for professional cameras, and with a line to camera level attenuator cable, you can plug into 1/8" mic input for consumer cameras. A headphone jack and volume control allows you to monitor the transmission signal in real time at a comfortable volume. The system operates in the UHF 500 MHz bandwidth assuring that it is "future proof" and meets current and known future FCC regulations. It will not be affected by the planned FCC auction of the 600 MHz band.
  Engineered for Versatility
  • The many professional features of the ULW-16-BR make it an ideal wireless system for a variety of production applications, including electronic field production (EFP), DSLR video, event coverage, training videos, and classroom or corporate presentations
  Best-In-Class Sound Quality
  • Greater than 105 dB signal-to-noise ratio, and better than 95 dB of dynamic range for pristine audio transmission and output
  Frequency-Agile System
  • The 16-channel ULW-16-BR wireless system allows operators to quickly and effortlessly switch channels in order to locate a clear channel
  Headphone Monitoring with Level Control
  • Transmissions can be monitored at a comfortable level from the receiver's headphone output in real time, without the latency that often occurs when monitoring via a camera's headphone output
  Standard Shoe Mount
  • The standard shoe mount with locking wheel easily and securely attaches to most cameras
  Line-Level Output
  • The receiver features a line-level output for the best possible signal-to-noise ratio. Using a 1/8" (3.5mm) male to XLR male cable, the ULW-16 receiver can be connected to a professional video camera, recorder, or other line-level device
  Line-to-Mic Attenuator Cable
  • Using a line-to-mic level-attenuator cable, you can attach the output of the receiver to camcorders, DSLRs or other devices with a mic-level input
  Portable Receiver
  • The receiver can be mounted onto a standard shoe mount of a DSLR or video camera
  Front-Panel Access to Batteries
  • Both the receiver and transmitter feature front-panel access to the battery compartment so you can change the batteries even when the system is mounted and wired up
  LED Indicators
  • The RF LED on the receiver illuminates indicating there is a signal on the selected channel. LED channel indicators make the channel number easy to see even in dim lighting conditions
  1/4"-20 Threaded Socket
  • The standard 1/4"-20 threaded socket provides a variety of mounting options
  One-Way Communication Application
  • The ULW-16-BR can be used as a one-way voice-communication system for stage directions and talent cueing
  Future Proof
  • The ULW-16-BR system operates in the UHF 500 MHz bandwidth assuring that it is "future proof" and meets current and known future FCC regulations
  UPC: 847628598249
• Polsen ULW-16-BT Beltpack Transmitter for the ULW-16 Wireless System The ULW-16-BT Beltpack Transmitter for the ULW-16 Wireless System from Polsen is a replacement transmitter for Polsen's ULW-16 16-channel camera-mountable UHF wireless system. It's designed to transmit an audio signal to the ULW-16-BR transmitter more than 100 feet away. Engineered to be exceptionally quiet, and with many professional features like line input and frequency agility, the ULW-16-BT is ideal for EFP (electronic field production) and video applications for professionals and enthusiasts alike. With its impressive 105 dB signal-to-noise ratio, the ULW-16-BT delivers pristine audio transmission for broadcast-quality recordings. It has 16 channels to choose from to help avoid interference. Up to five systems (or more in optimum conditions) can be used simultaneously in the same location. The wireless transmitter features a volume control that adjusts the level of transmission. It is also equipped with a line input that enables instrument level devices to be plugged in without overload of the circuit. The system operates in the UHF 500 MHz bandwidth assuring that it is "future proof" and meets current and known future FCC regulations. It will not be affected by the planned FCC auction of the 600 MHz band.
  Engineered for Versatility
  • The many professional features of the ULW-16-BT make it an ideal wireless transmitter for a variety of production applications, including electronic field production (EFP), DSLR video, event coverage, training videos, and classroom or corporate presentations
  Best-In-Class Sound Quality
  • With a greater than 105 dB signal-to-noise ratio, and better than 95 dB of dynamic range, the ULW-16-BT has pristine audio transmission
  Frequency-Agile System
  • The 16-channel ULW-16-BT wireless system allows operators to quickly and effortlessly switch channels in order to locate a clear channel
  Variable Level Control
  • The volume control on the transmitter assures that sufficient level is being transmitted to the receiver to achieve the best signal-to-noise ratio throughout the signal path
  Compact and Lightweight
  • Weighing approximately 3 ounces, the transmitter can be easily concealed on a subject by attaching it with the included belt clip, or placing it in a pocket. It features an integrated flexible, custom-tuned antenna
  Front-Panel Access to Batteries
  • The transmitter features front-panel access to the battery compartment so you can change the batteries even when the system is mounted and wired up
  LED Indicators
  • The RF LED on the receiver illuminates indicating there is a signal on the selected channel. LED channel indicators make the channel number easy to see even in dim lighting conditions. The transmitter's TX LED glows red to indicate that the unit is transmitting
  Integrated Belt Clip
  • The integrated belt clip secures the transmitter to the talent and allows it to be discreetly hidden under a garment or costume
  One-Way Communication Application
  • The ULW-16-BT can be used as a one-way voice communication system for stage directions and talent cueing
  Future Proof
  • The ULW-16-BT system operates in the UHF 500 MHz bandwidth assuring that it is "future proof" and meets current and known future FCC regulations
  UPC: 847628598232
• Polsen PL-4 Omnidirectional Lavalier Microphone with 1/8" (3.5 mm) Connector The Polsen PL-4 is a replacement microphone for Polsen's ULW-16 wireless system. It is also compatible with other wireless transmitters with a standard 1/8" microphone input, or devices that have a 1/8" (3.5 mm) input with plug-in power.

  Featuring an omnidirectional polar pattern, the PL-4 is optimized to accurately capture speech. It provides clear and natural sound ideal for ENG, EFP, and DSLR video applications. Because omnidirectional microphones are less susceptible to wind noise and vocal plosives (pops) than cardioid microphones, the PL-4 is suitable for indoor or outdoor use. The mic provides flexible placement options and allows for head movement without affecting the sound.

  The PL-4 comes packaged with a tie clip for securing the mic to the talent's clothing, as well as a windscreen for further reducing wind noise and vocal plosives.
  Omnidirectional Polar Pattern
  • The omnidirectional polar pattern is ideal for video applications and allows for head movement without affecting the sound. It also makes the microphone less susceptible to picking up wind noise and vocal plosives (pops)
  1/8" (3.5 mm) Input
  • The PL-4 is a replacement microphone for the ULW-16 wireless system. It is also compatible with devices with 1/8" (3.5 mm) input with plug-in power
  Designed for Speech
  • Optimized to capture speech, the PL-4 provides a clear and natural sound in a variety of recording situations
  UPC: 847628578586

• ULW-16-BR Beltpack/Camera-Mountable Receiver for the ULW-16 Wireless System eryytuwbxevfyzbddaswdbzswssdxteqtdrs
• Camera Mount
• Limited 1-Year Warranty

• ULW-16-BT Beltpack Transmitter for the ULW-16 Wireless System

• PL-4 Omnidirectional Lavalier Microphone with 1/8" (3.5 mm) Connector

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Polsen ULW-16-BR Beltpack/Camera-Mountable Receiver for the ULW-16 Wireless System

  Number of Channels	16
  Frequency Range	584.400 to 602.450 MHz
  Sensitivity	-102 dBm
  Dynamic Range	>95 dB
  Signal-to-Noise Ratio	>105 dB (A)
  Image Rejection	56 dB
  Output	1/8" (3.5 mm) 1 kOhms
  Power Supply	2 x AA batteries
  Operating Time	Approximately: 8 hours
  Dimensions	4.4 x 2.6 x 1.4" (11.3 x 6.5 x 3.5 cm)
  Weight	3.5 oz (100 g)

  Box Dimensions (LxWxH)	8.4 x 3.2 x 1.8"

• Polsen ULW-16-BT Beltpack Transmitter for the ULW-16 Wireless System

  Number of Channels	16
  Frequency Range	584.400 to 602.450 MHz
  Frequency Response	60 Hz to 80 kHz
  RF Output Power	10 mW
  Spurious Rejection	>55 dBc
  Maximum Input Voltage	1,000 mV
  Input	1/8" (3.5 mm)
  Power Supply	2 x AA batteries
  Operating Time	8 hours approximately
  Dimensions	4.4 x 2.6 x 1.1" (11.3 x 6.5 x 2.9 cm)
  Weight	3.3 oz (94 g)

  Box Dimensions (LxWxH)	8.4 x 3.2 x 1.9"

• Polsen PL-4 Omnidirectional Lavalier Microphone with 1/8" (3.5 mm) Connector

  Transducer	Back electret condenser
  Polar Pattern	Omnidirectional
  Frequency Response	20 Hz to 20 kHz
  Sensitivity	-45 dB ±3 dB
  Impedance	2000 Ω
  Maximum SPL	135 dB
  Dynamic Range	104 dB
  Operating Voltage	1.5V - 12V DC
  Connector	1/8" (3.5 mm)
  Head Diameter	0.20" (5.0 mm)

  Box Dimensions (LxWxH)	4.7 x 2.6 x 0.8"
