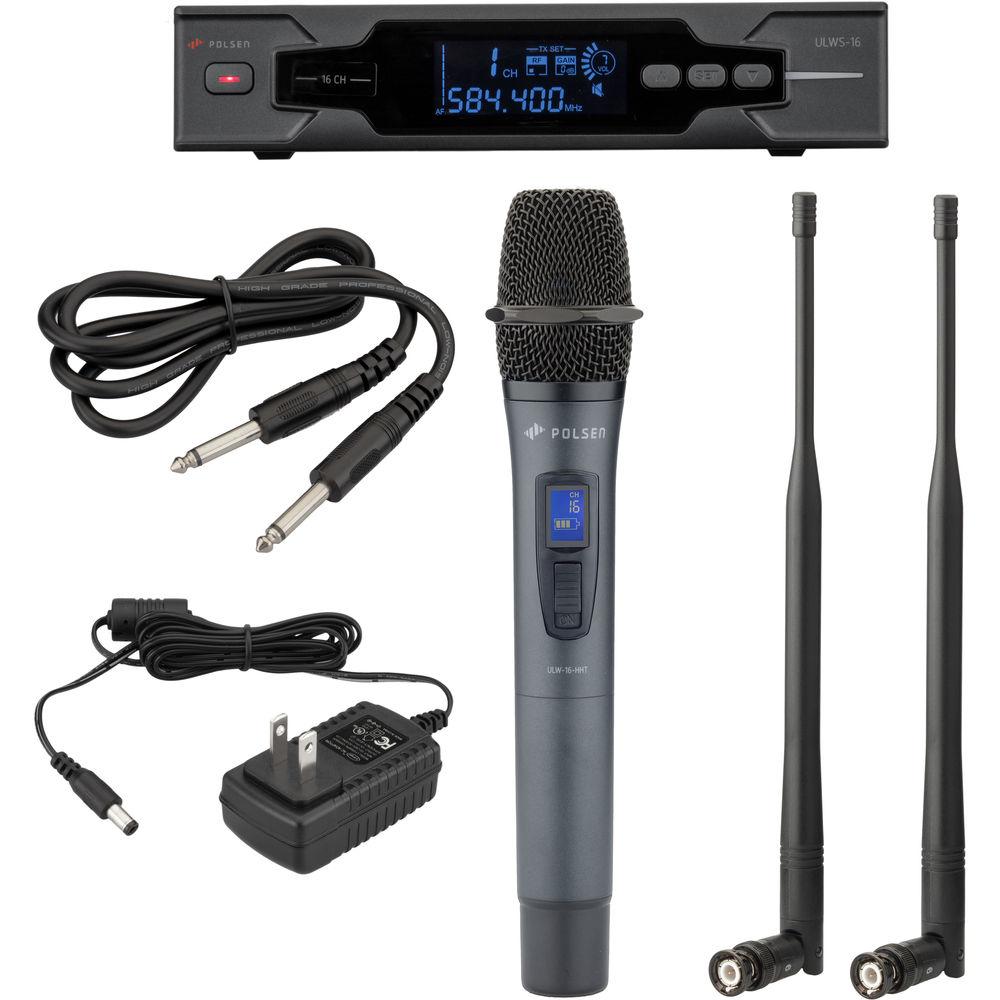

• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Polsen Wireless Systems

Product description

Versatile Broadcast-Quality Sound
• The UHF wireless microphone system is designed to provide broadcast-quality audio for announcements, interviews, lectures, concerts, conferences, live shows, and presentations.

Simple Frequency-Agile System
• Offering 16 channels to circumvent interference from other components and devices in the vicinity, the frequency-agile system is simple to configure. Select matching channels on the receiver and transmitter, then you're good to go.

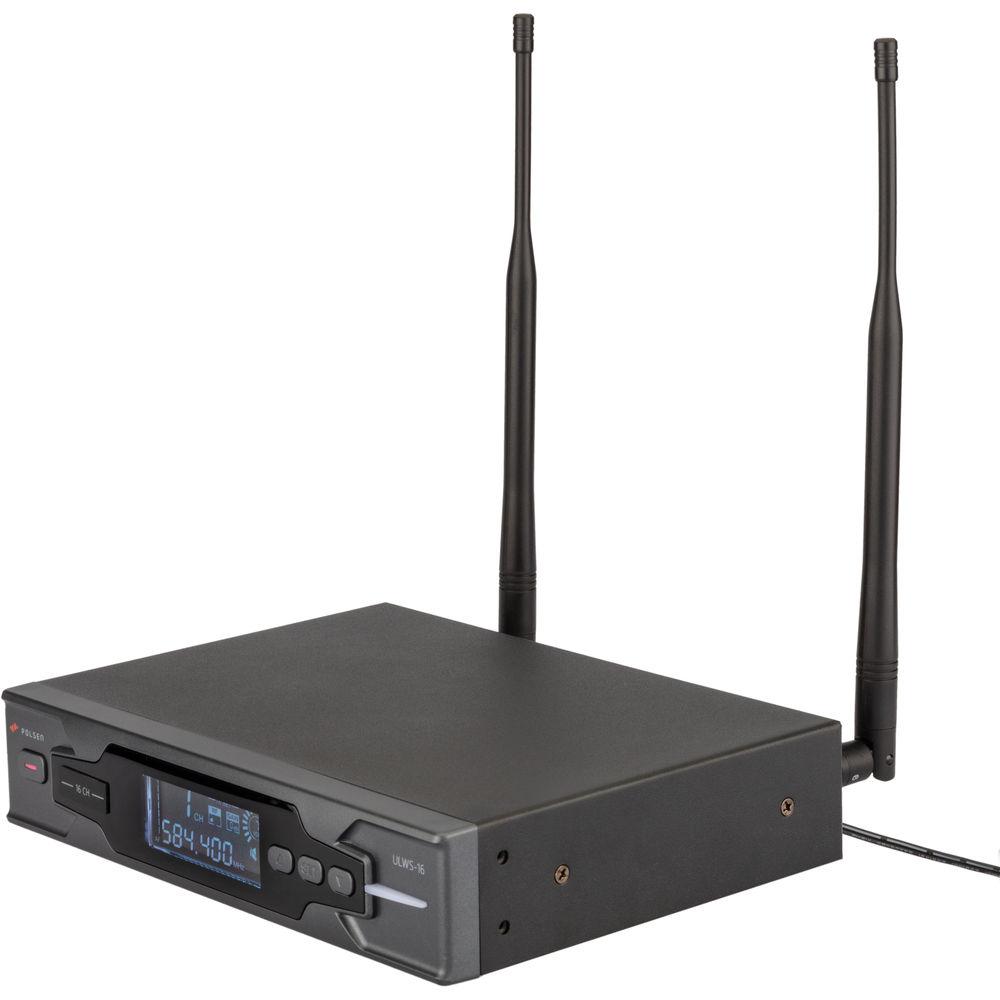

True Diversity Receiver
• Two independent receiver circuits, each with an adjustable antenna, are monitored by a comparison circuit that selects the strongest incoming signal. This reduces dropouts and RF interference for a reliable and steady signal.

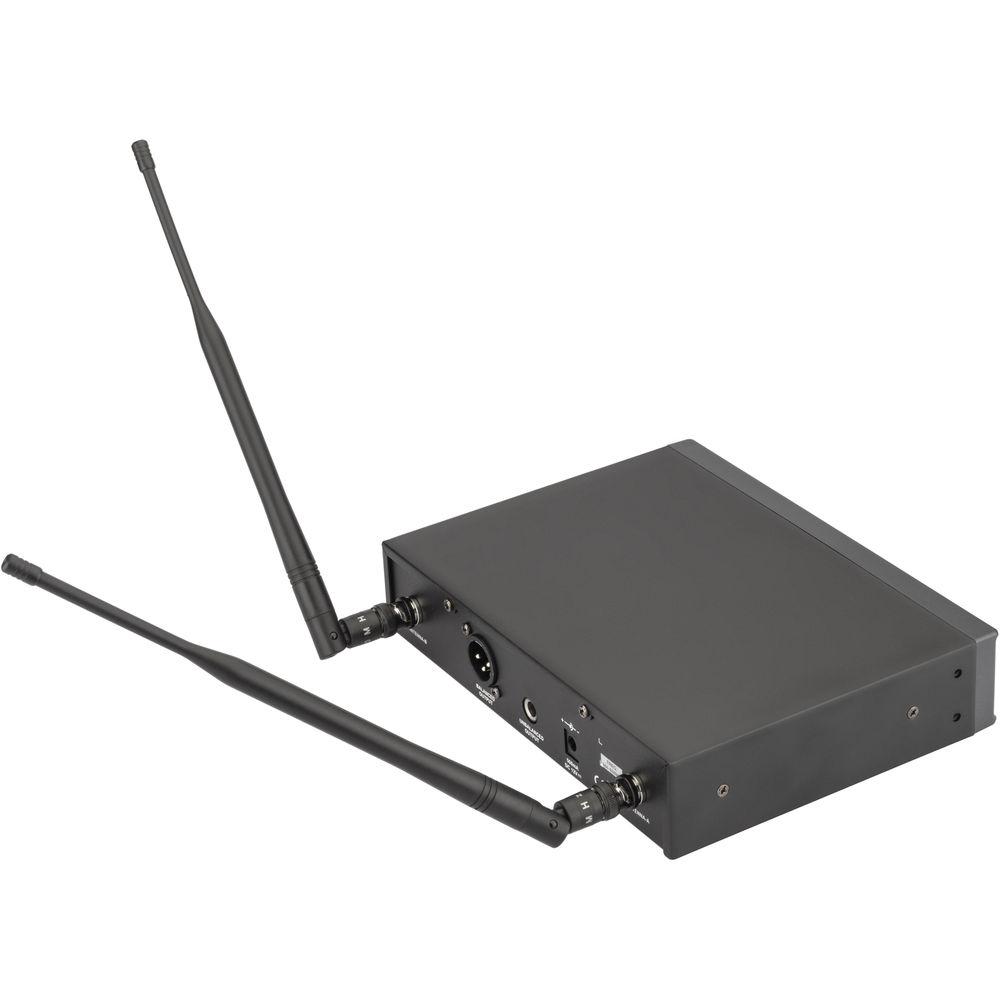

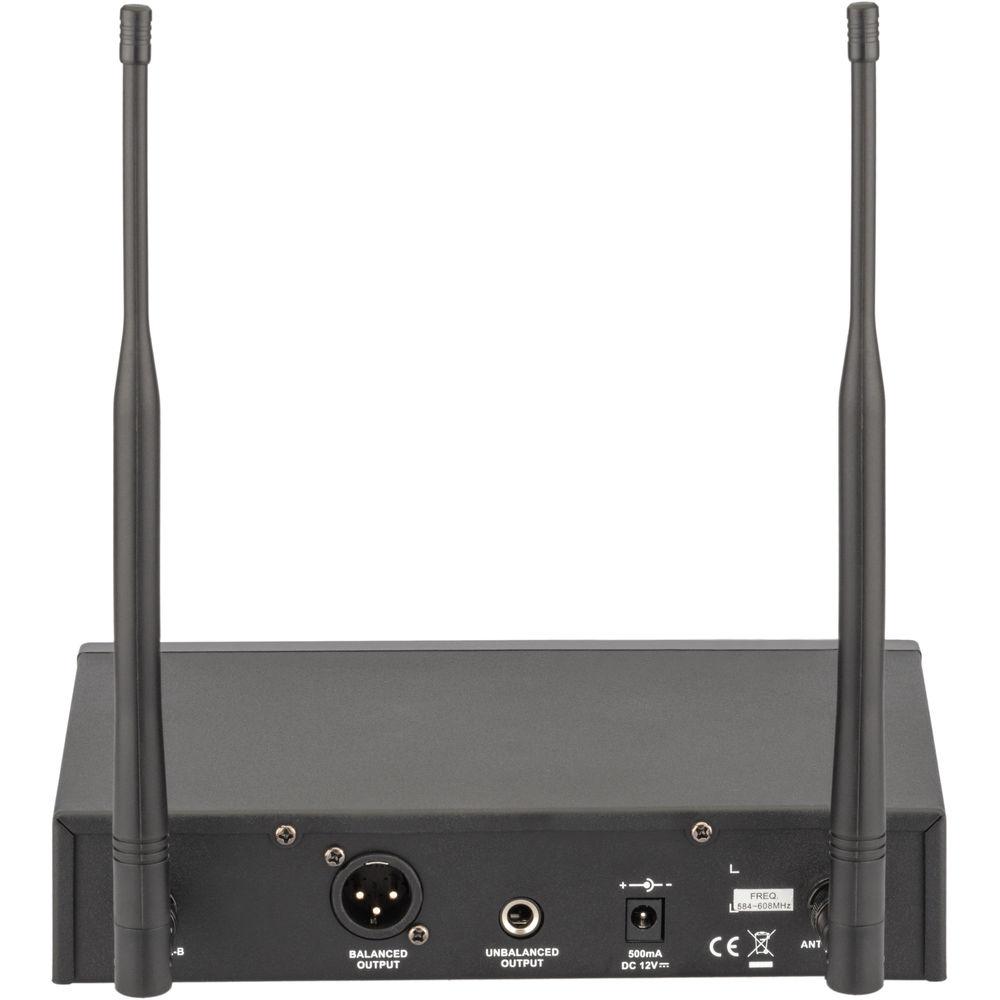

Balanced and Unbalanced Outputs
• A balanced XLR 3-pin output delivers a mic-level signal and minimizes RFI/EMI through common-mode rejection. An unbalanced 1/4" TS output allows easy connection to unbalanced inputs on mixers or portable PA systems.

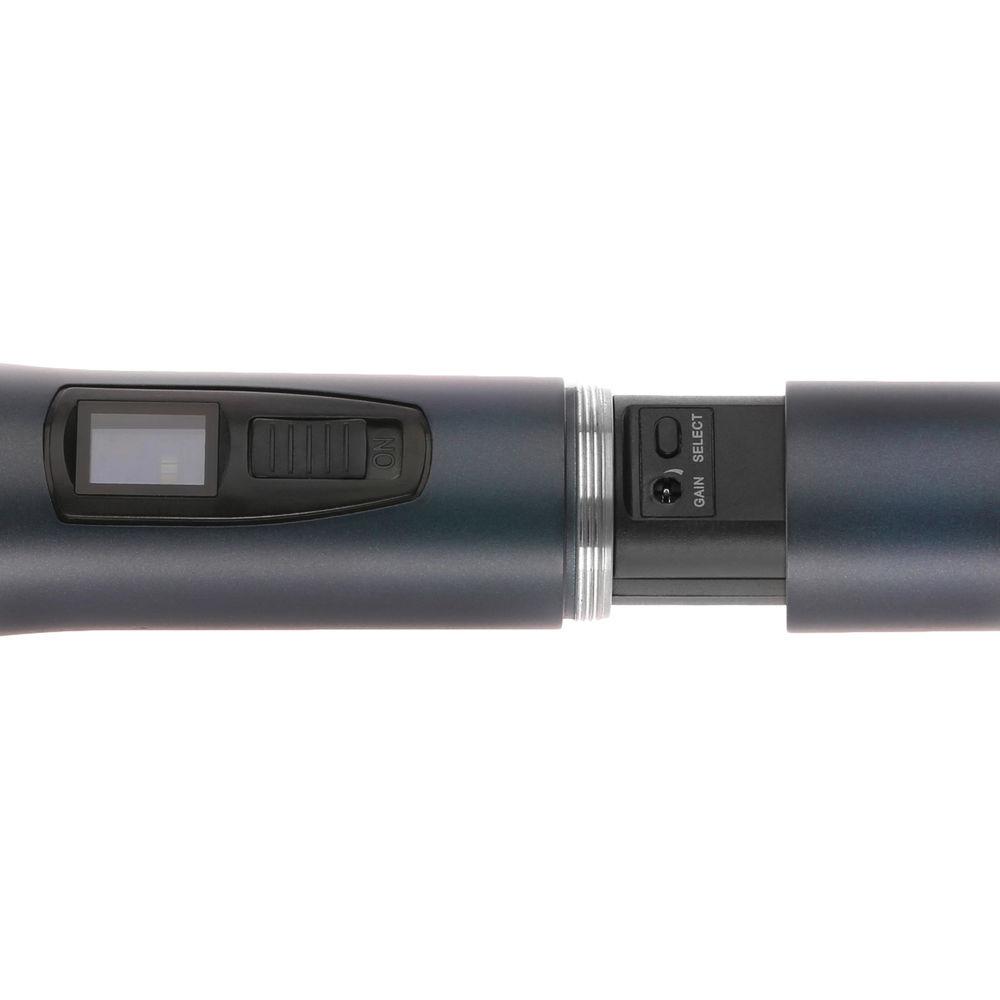

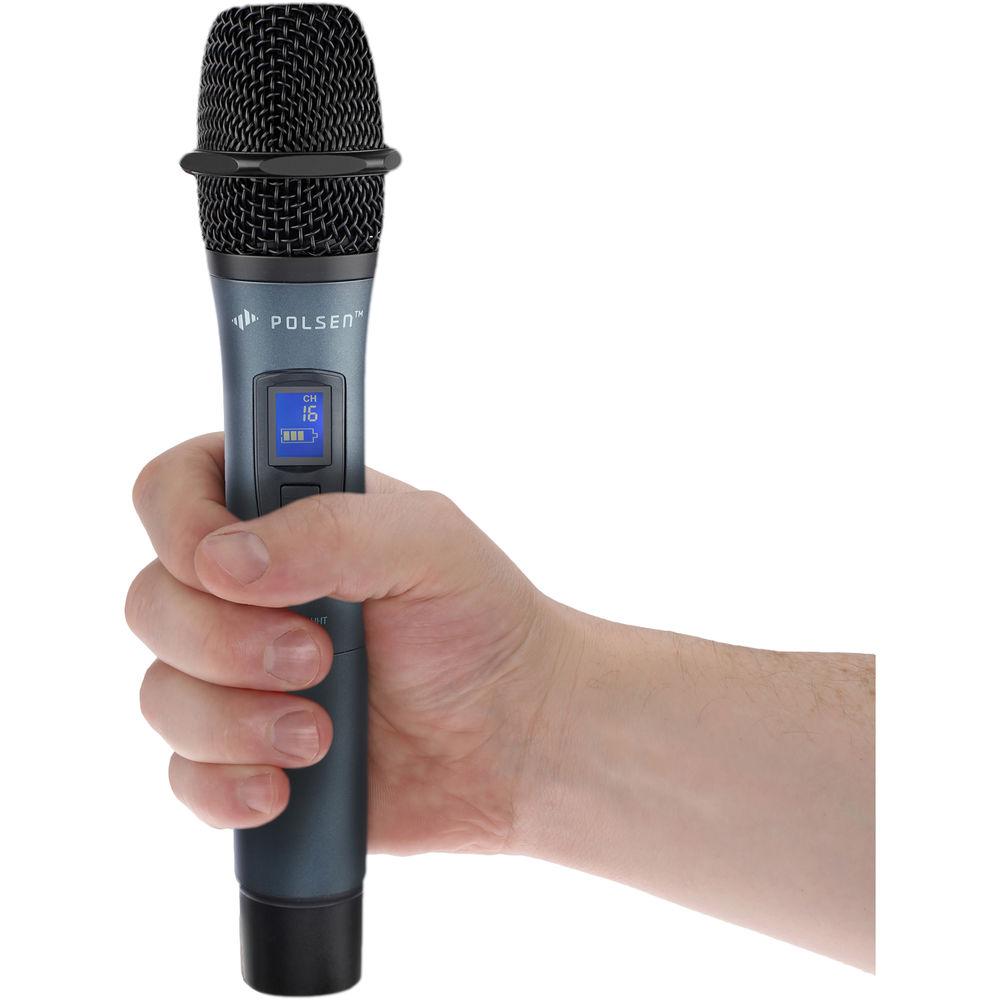

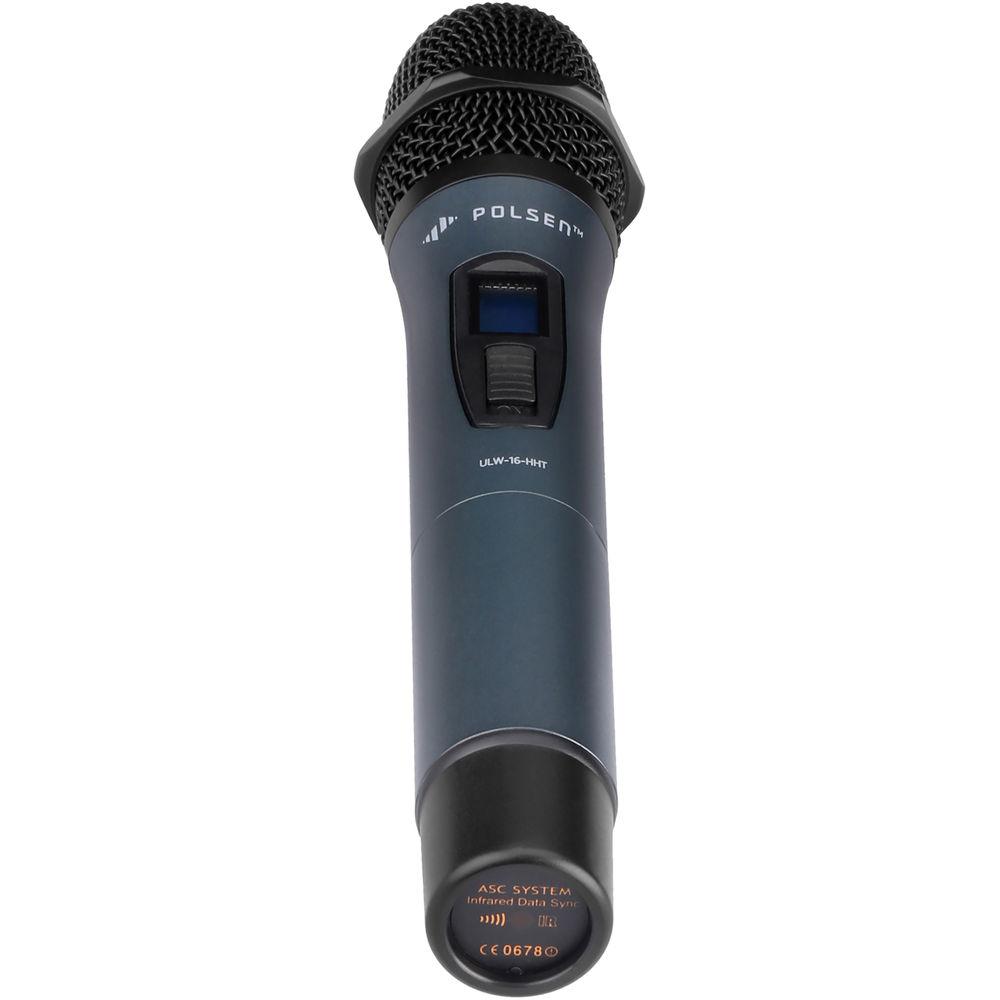

Handheld Cardioid Dynamic Transmitter
• The included Polsen ULW-16-HHT handheld microphone transmitter utilizes a dynamic capsule and cardioid polar pattern to provide quality sound ready for broadcast. The cardioid polar pattern offers on-axis directivity while rejecting off-axis sounds such as background noise and stage bleed. A windscreen is supplied for attenuating vocal plosives and taming wind noise.

Ready for the Future
• FCC regulations have reallocated wireless frequencies and deemed the 600 MHz frequency band largely prohibited. Since the ULWS-16 system functions in the 500 MHz band, it's compliant with current and future FCC laws.

Long-Distance Operating Range
• The system's operating range of up to 140' allows you to maintain a strong signal while your subjects move or your camera position is changed. Under optimum conditions such as line-of-sight placement and tightly controlled RF interference, the range can extend to 300'.

Convenient Powering Options

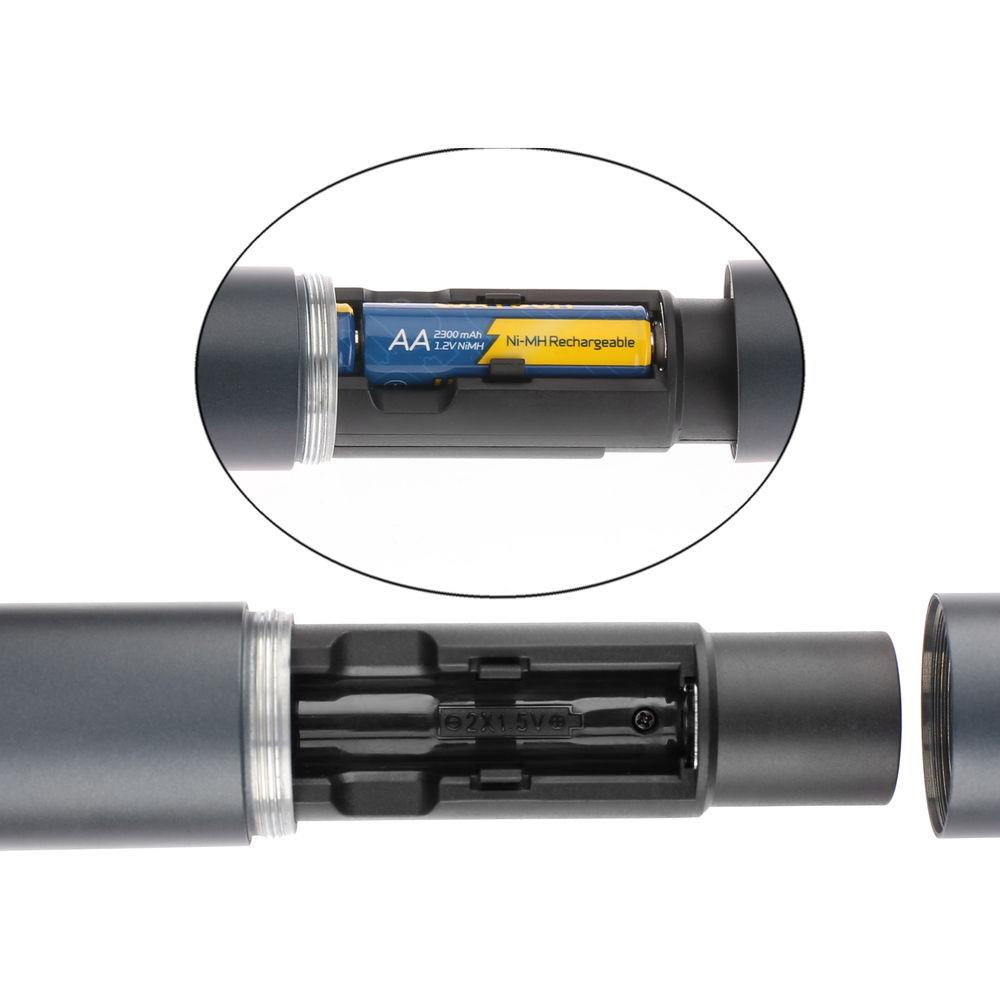

• The handheld transmitter can be powered via rechargeable NiMH batteries (available separately) or the included AA batteries, which grant approximately eight hours of operating time.

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Polsen ULWS-16-H Specs

Wireless Frequency Range	584.400 to 602.450 MHz
Number of Channels	16
Switching Bandwidth	25 MHz
Peak Deviation	Rating 80% users recommend this product to others. And what about you? This product has already been rated by 27 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
