User manual

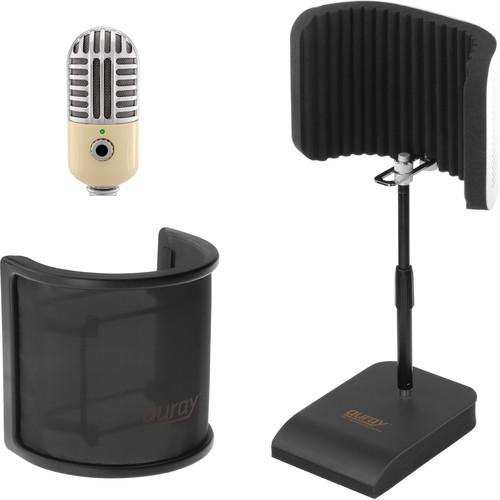

Polsen USB Mic with Desktop Reflection

User Manual for Polsen USB Mic with Desktop Reflection Filter and Mic Stand Kit

• Product category: USB Microphones Polsen
• Brand: Polsen
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Polsen USB Microphones

Product description

• Polsen RC-77-U USB Retro Condenser Microphone
  • Polsen RC-77-U USB Condenser Microphone: Vintage looks, modern features
  The RC-77-U USB Retro Condenser Microphone from Polsen is a large-diaphragm, cardioid USB microphone with a stylish eye-catching retro look that features a headphone output, a mute button, and has LED indicators to monitor the microphone's status. It can be used by singers, songwriters, and podcasters to capture high-quality audio directly to a Mac or Windows computer. With a built-in USB port, the microphone needs no drivers, power supply, or audio interface to begin recording. Launch your DAW software, plug in the microphone, and you're ready to record. An integrated dual-stage grille minimizes pops and vocal plosives while protecting the capsule from corrosive moisture, and the cardioid polar pattern focuses the source in front of the mic to minimize off-axis sound, which is excellent for recording vocals.
  Studio Condenser Microphone
  • The mic is designed with a large 1.25" diaphragm and has a dual-stage grille that minimizes vocal "pops" and delivers a clean and natural sound. It is ideal for recording vocals
  Plug and Play
  • The RC-77-U is USB class compliant. No drivers, power supply or audio interface are needed to operate this microphone on either a Mac or Windows computer. Simply launch your software, plug in the microphone to a powered USB port, and you're ready to record
  Headphone Output
  • The 1/8" headphone output provides low-latency monitoring of recording and playback. The volume knob provides easy adjustment of the sound level without having to access the volume controls on your computer
  Mute Button
  • For additional control, the mute button quickly mutes the microphone and silences the headphone output
  Power, Peak, and Mute LED Indicator
  • The LED indicator is integrated into the button on the front of the microphone, allowing you to monitor the microphone's status at all times
  Stylish Retro Look
  • The chrome-plated grille and mic stand give the microphone a stylish retro look that is an eye-catching addition to any studio
  UPC: 847628592964
• Auray RFDT-128 Desktop Reflection Filter and Mic Stand
  • Polsen RC-77-U USB Condenser Microphone: Vintage looks, modern features
  Designed to be an all-in-one solution for desktop recording where isolation is needed, the RFDT-128 Desktop Reflection Filter and Mic Stand from Auray features high-density acoustic foam and a perforated aluminum screen that absorb and block room noise and reflections that can commonly occur in acoustically untreated rooms. When recording in an untreated acoustic environment, vocals that reflect off of the walls and ceiling can be picked up by the microphone. These reflections can interfere with the sound of the voice and create a distant and "roomy" effect. By absorbing and diffusing these reflections, the RFDT-128 creates a closer and drier sound truer to your voice, making it easier to work with during the mixing process, and is more desirable for broadcasts, podcasts, voiceover, and desktop recording applications.

  An aluminum and acoustic-foam base provide additional noise protection by isolating the filter and your microphone against vibrations from your desk or table. The filter sits on a telescoping shaft that can be adjusted from 7 to 12" of height, for flexibility in mic positioning. Not limited to desktop applications, the RFDT-128's shield can be attached to a broadcast arm with the included mounting hardware. Its threaded mount is compatible with 5/8"-27 mic clips and shockmounts.
  • Compact, all-in-one solution for providing sound isolation in desktop recording applications
  • High-density acoustic foam works with the perforated aluminum shield to absorb and diffuse acoustic reflections while isolating your microphone
  • The telescoping shaft with twist lock allows for easy and precise height adjustment of microphone and filter
  • The standard 5/8"-27 threaded mount accepts most microphone clips and shock mounts
  • The sliding bracket makes it easy to position the microphone inside the reflection filter
  • The base is constructed of an aluminum plate for stability, and a 1.5" layer of high density acoustic foam for absorbing vibrations from a desk or tabletop
  UPC: 847628578555
• Auray OMPF-33 On-Microphone Pop Screen
  • Polsen RC-77-U USB Condenser Microphone: Vintage looks, modern features
  Designed to eliminate vocal plosives and prevent moisture from reaching your large-diaphragm condenser microphone without the need for connecting a gooseneck to your mic stand, the OMPF-33 On-Microphone Pop Screen from Auray features an elegant, easy to clean multi-layer mesh surface and will fit side-address condenser microphones with a diameter between 1.8 and 2.5" (45 to 65 mm).

  The included heavy-duty elastic bands make attaching the OMPF-33 to your mic a snap. Since it attaches directly to the mic itself, it stays in the perfect spot even when you have to adjust the mic's height or position and is a great space saver, making it ideal for use with desktop mic stands, where space is often at a premium. Thanks to its space age, lightweight ABS construction, it will not weigh down your mic.
  • Acoustically transparent- does not affect your sound
  • Easily attaches in seconds
  • Stops plosive sounds
  • Prevents moisture from hitting your mic's capsule
  • Moves with your microphone
  UPC: 847628579576

• RC-77-U USB Retro Condenser Microphone brzrwxvqdeeq
• USB Cable
• Desktop Mic Stand
• Carry Pouch
• Limited 1-Year Warranty

• Auray - RFDT-128 Desktop Reflection Filter and Mic Stand

• Auray - OMPF-33 On-Microphone Pop Screen

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Polsen RC-77-U USB Retro Condenser Microphone

  Sound Field	Mono
  Transducer	Condenser
  Diaphragm	1.25" / 31.75 mm
  Polar Pattern	Cardioid
  Frequency Range	20 Hz to 20 kHz
  Signal to Noise Ratio	96 dB A-Weighted
  Maximum SPL	120 dB SPL
  THD	0.001%

  Bit Depth	16-Bit
  Sample Rate	44.1 kHz 48 kHz
  Operating System Support	Windows, macOS/OS X
  Available Port	USB (Interface Unspecified)

  Output Connectors	1 x 1/8" (3.5 mm) TRS
  Headphone Connector	1 x 1/8" (3.5 mm)
  Cable Length	9.8' / 2.99 m
  Operating Voltage	5 V
  Length	4.5" / 114.30 mm
  Diameter	1.9" / 48.26 mm
  Weight	1.2 lb / 544 g

  Box Dimensions (LxWxH)	8.8 x 5.95 x 2.7"

• Auray RFDT-128 Desktop Reflection Filter and Mic Stand

  Filter	Dimensions (H x L x D): 7.9 x 12.4 x 4.3" (20 x 31.6 x 10.8 cm)
  Base	Dimensions: (L x W x H): 9.3 x 6.7 x 1.6" (23.5 x 17 x 4.1 cm)
  Adjustable Height Range	7 to 12" (17.8 to 30.4 cm)
  Weight	2.75 lb (1.25 kg)

  Box Dimensions (LxWxH)	12.2 x 8.4 x 5.4"

• Auray OMPF-33 On-Microphone Pop Screen

  Compatibility

  Fits large diaphragm condenser mics between 1.8 and 2.5" (45 to 65 mm)

  Box Dimensions (LxWxH)	8.2 x 4.0 x 2.6"
