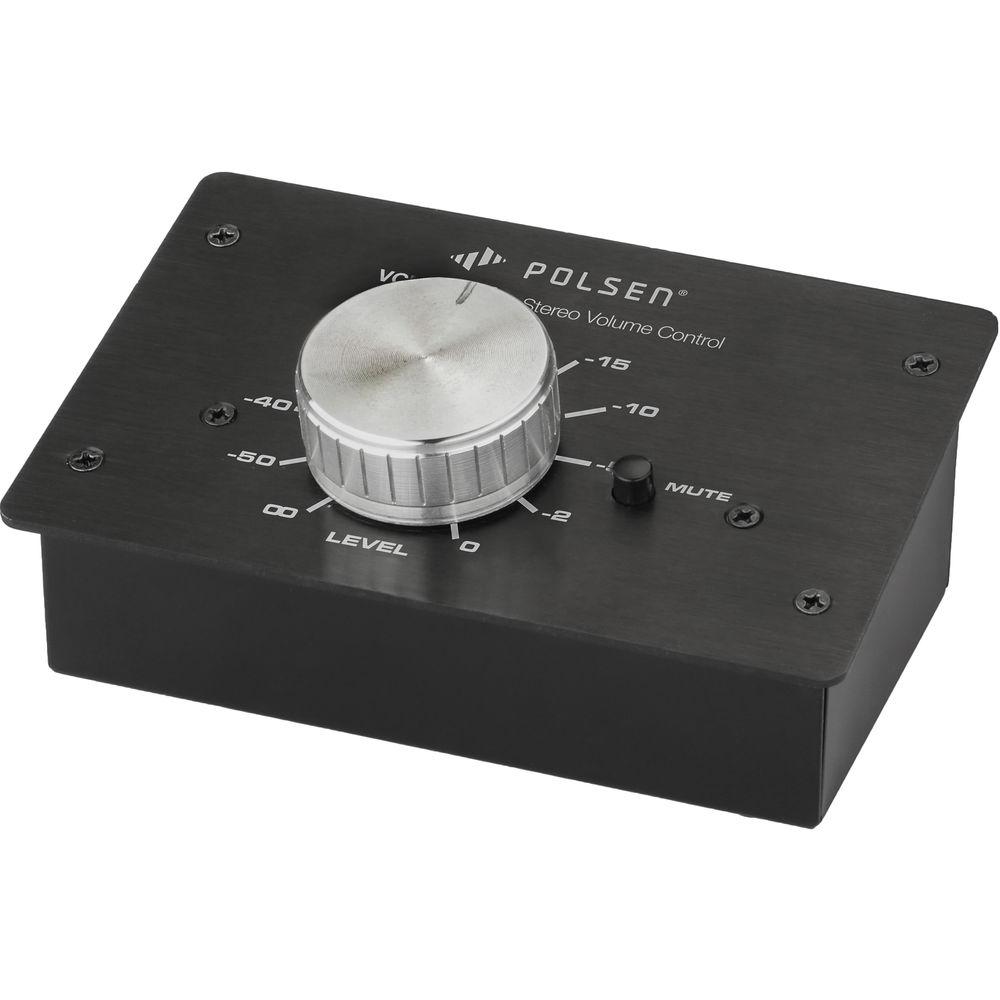

User Manual for Polsen VCP-2 Passive Stereo Volume Controller for Powered Speakers Click to enlarge the picture
Contents of the user manual for the Polsen VCP-2 Passive Stereo Volume Controller
- Product category: Studio Monitor Controllers Polsen
- Brand: Polsen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Polsen Studio Monitor Controllers
 |
User manual for the Polsen VCP-2 Passive Stereo Volume Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Polsen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Polsen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Polsen product will considerably shorten its lifespan!
|

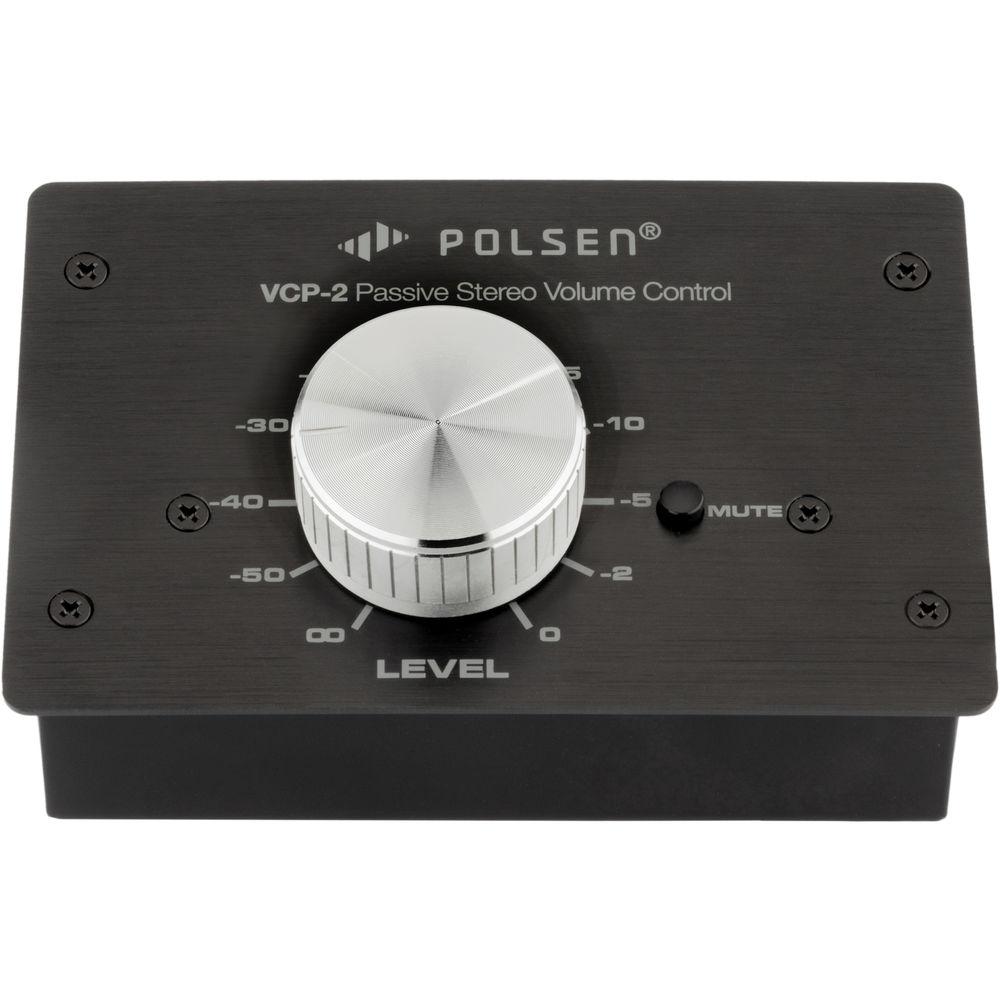

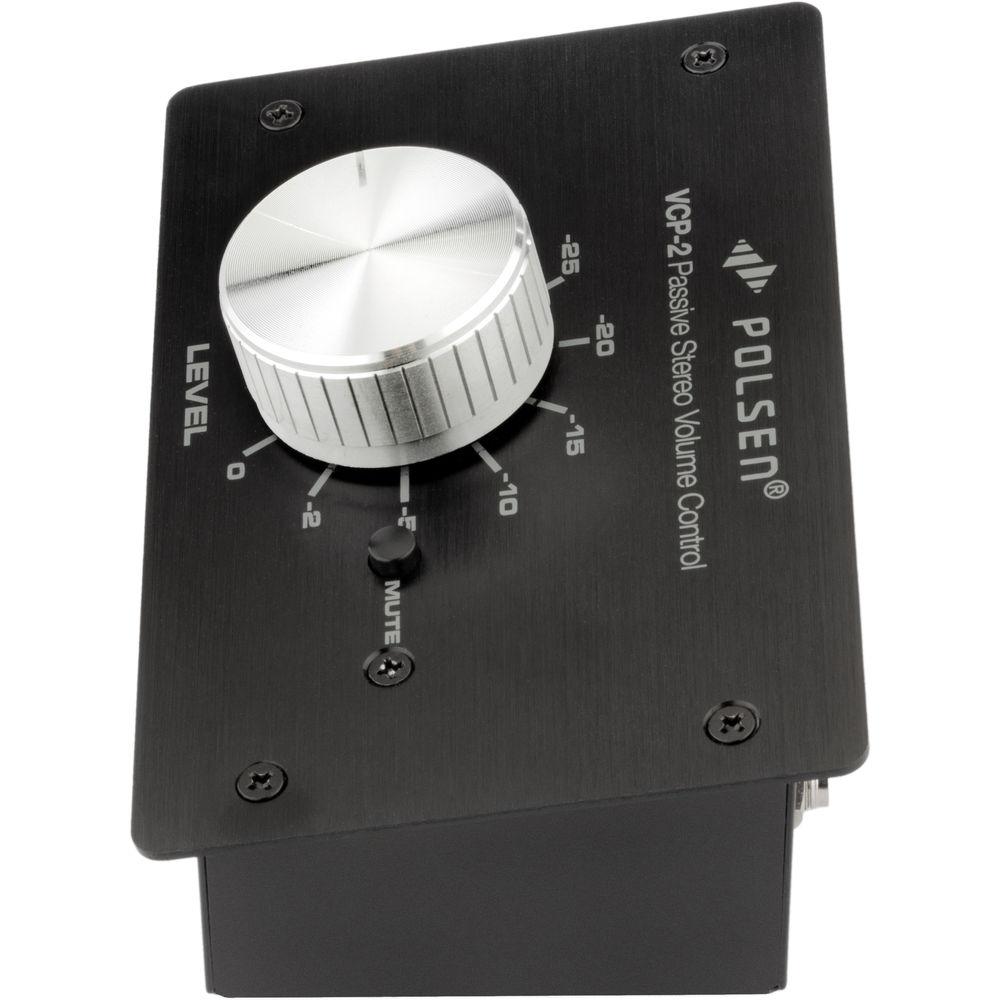

Product description Designed to sit between the output of your computer and the input of your powered speakers, the Polsen VCP-2 is a passive volume controller, one that offers a prominent dial for adjusting the level (or "volume") of audio. The design is passive, meaning no powered circuitry will color the sound. Operating at line level, the unit is suitable for use in a variety of scenarios, such as project studios, pro-audio studios, or even home environments.

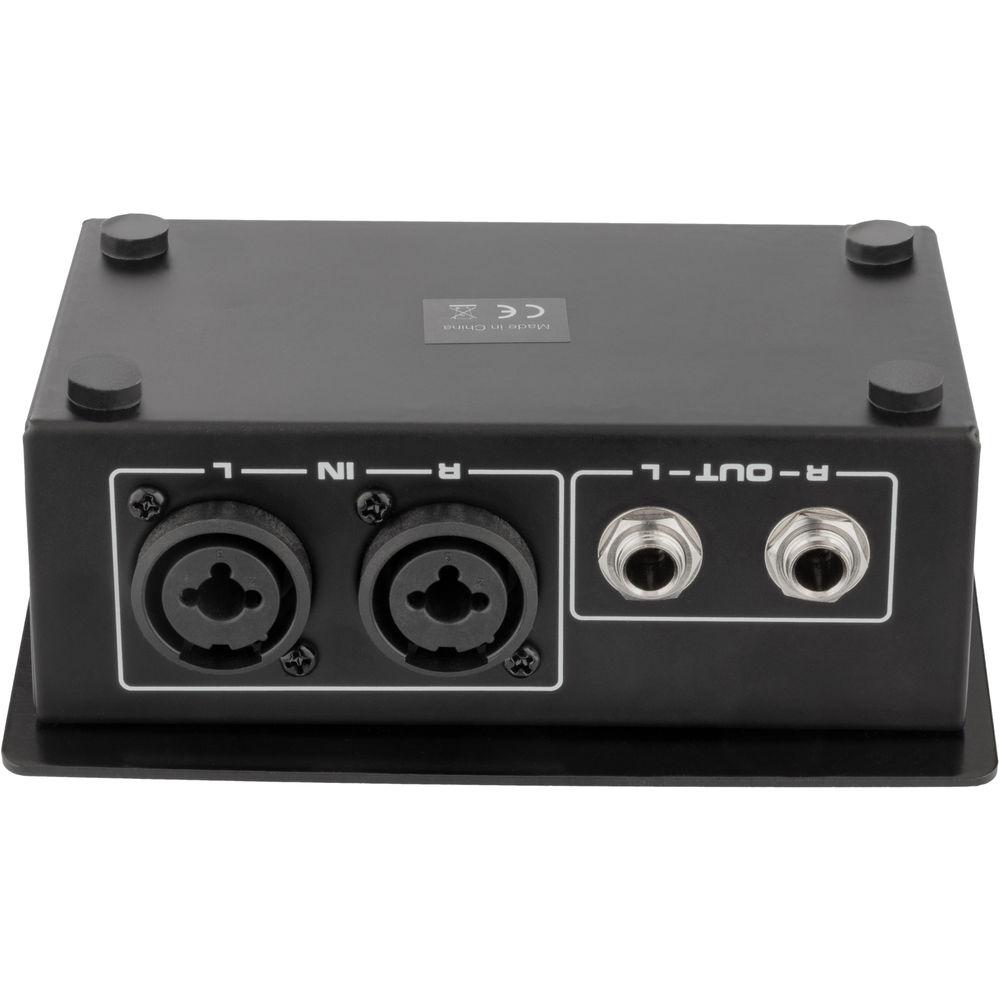

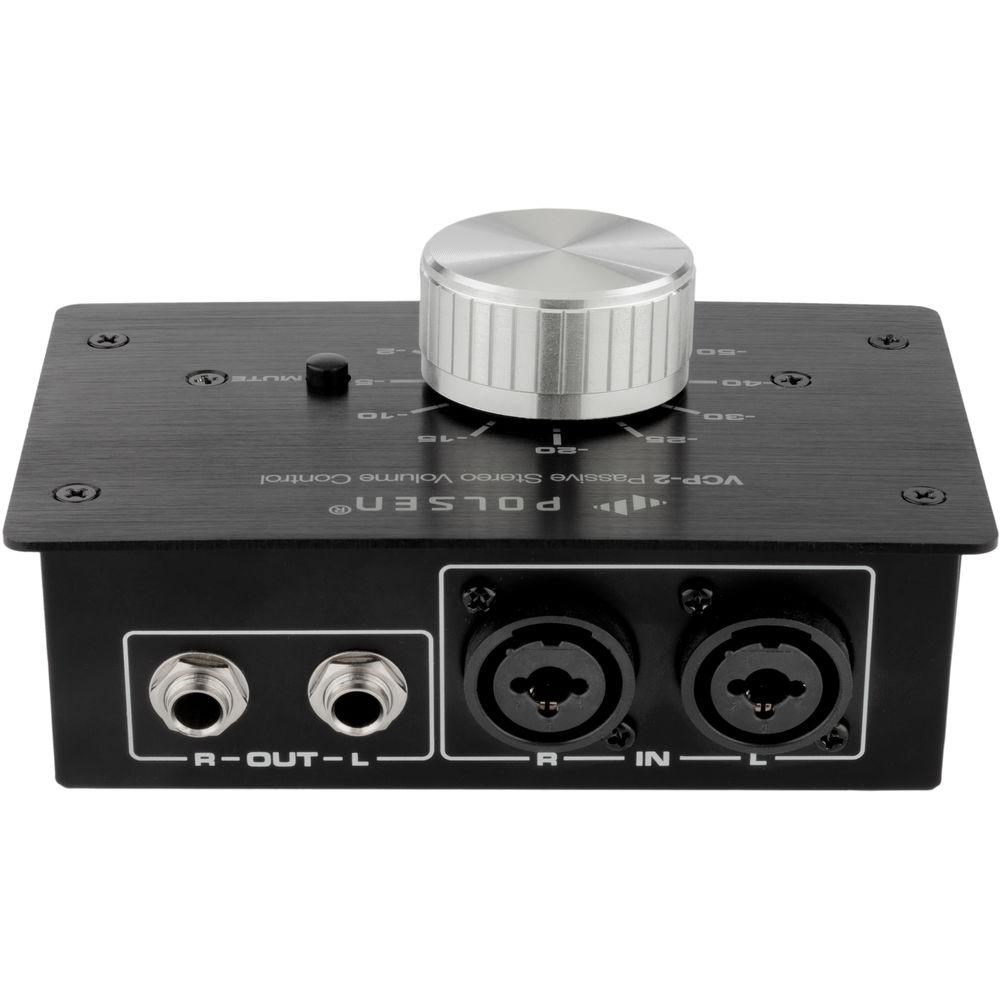

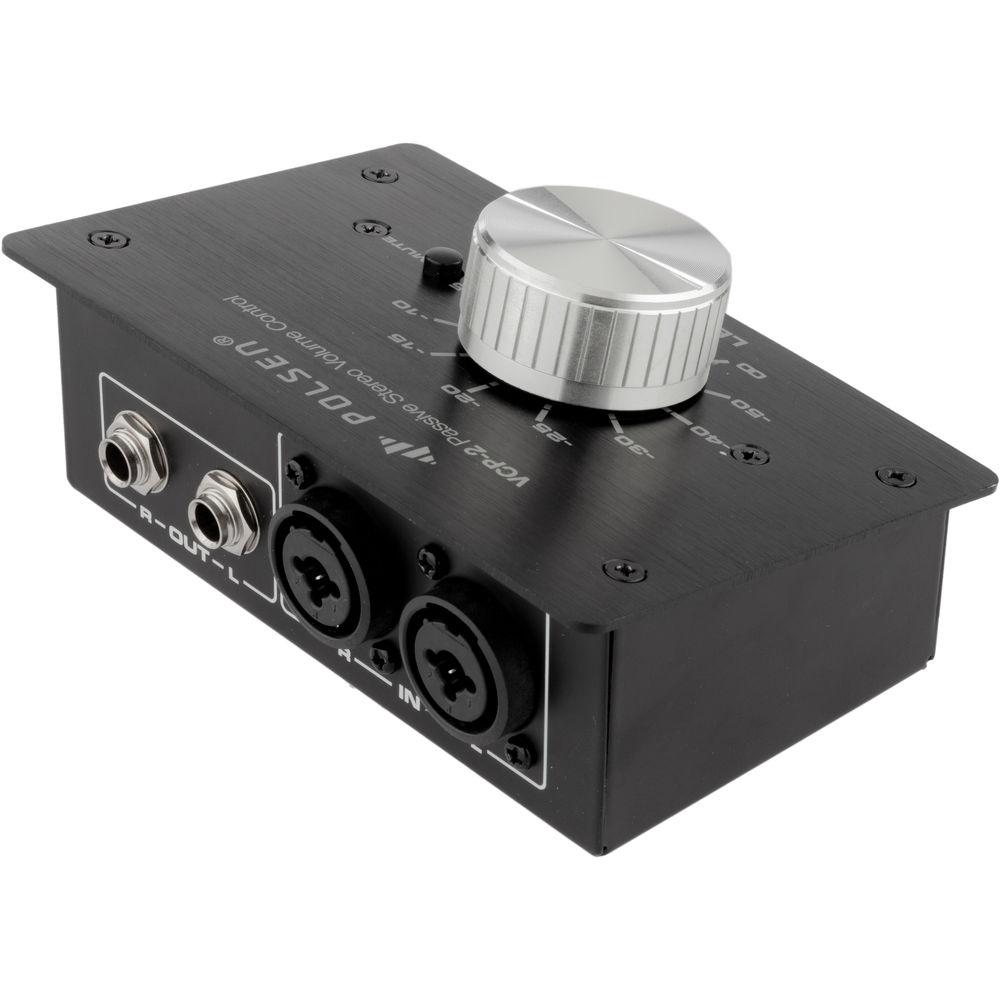

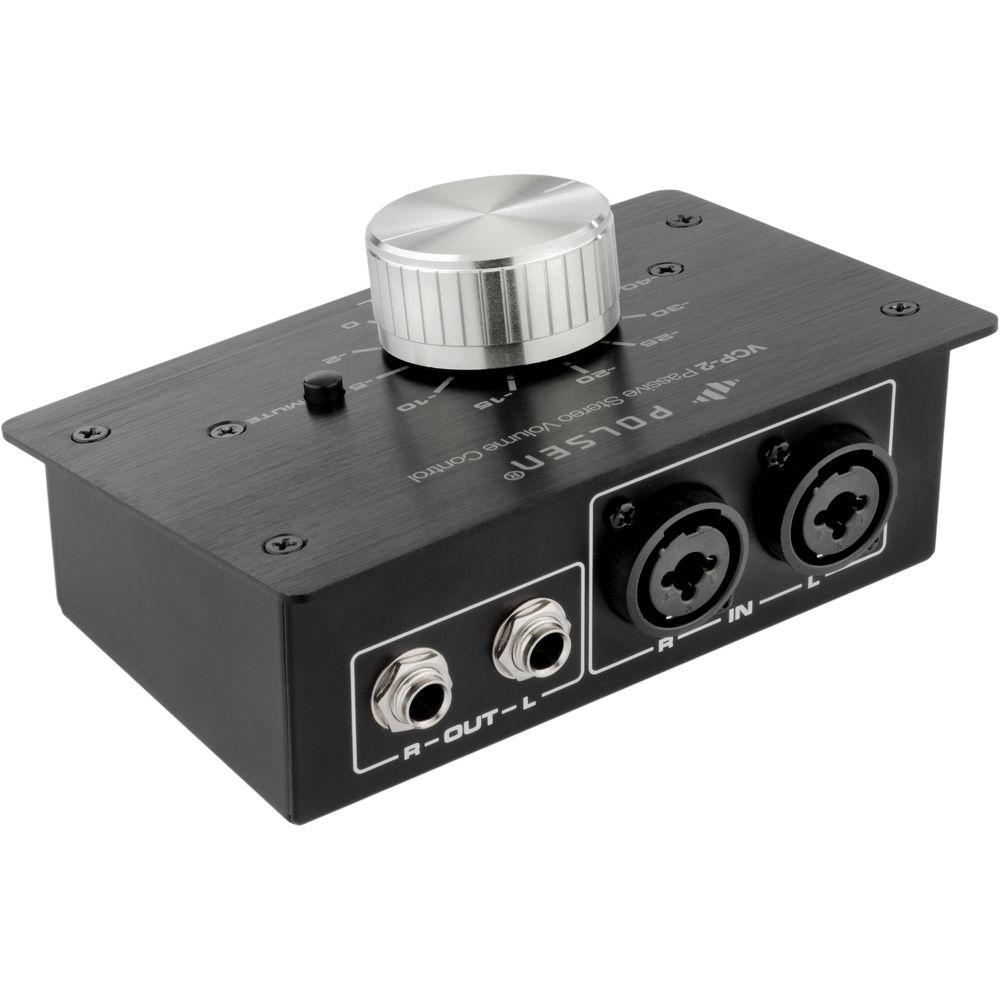

On the input side, you'll find combination XLR-1/4" TRS jacks to interface with a variety of pro and consumer-grade equipment. Output connections are made possible thanks to two balanced 1/4" jacks; here is where you'll make the connection from the VCP-2 to your powered speakers.
The VCP-2 sports a steel construction that's both rugged and reliable. Taking up only 2 x 5.3 x 3.3" of space, the unit is relatively compact. It's also lightweight, weighing only 11.8 oz. - Volume Control
- Don't stop what you're doing just to adjust the output level of your computer or sound card. The VCP-2 puts a large volume knob at your fingertips.
- Balanced Ins and Outs
- A balanced signal is a must for eliminating noise from interference. The VCP-2 boasts balanced inputs and outputs that eliminate noisy interference. Even with long cables runs, a balanced signal will help ensure that your audio is clean and pristine.
- Easy Setup

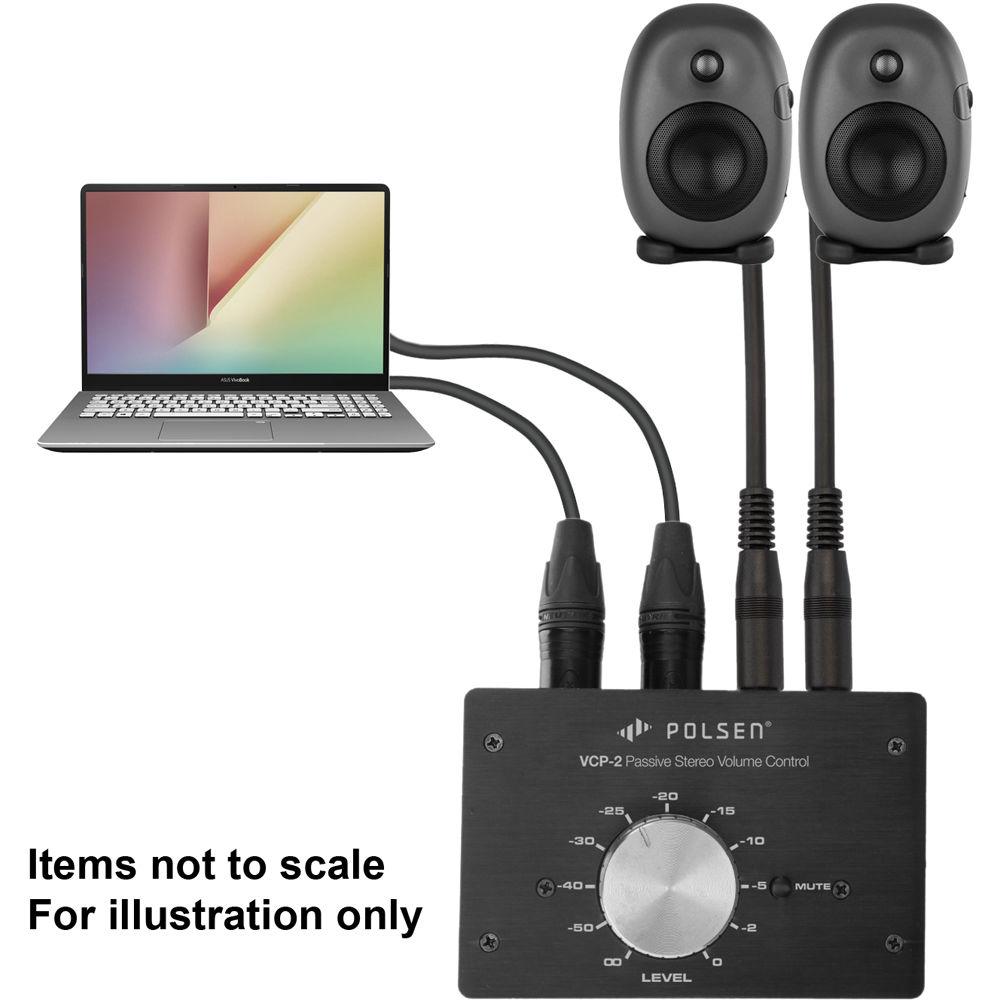

- Connect the output from your computer or sound card to the VCP-2, and send the VCP-2's output to your speakers. It's that simple.
- Passive Design
- The VCP-2 doesn't need to be plugged into an outlet. Passive circuitry won't alter or color the sound originating from your computer, or from any other device that you've attached to the VCP-2.
- Combination XLR-1/4" Input Jacks
- The combination XLR-1/4" jacks give you the flexibility to attach both pro and consumer gear to the unit.
- Metal Construction
- The VCP-2 is constructed with a metal chassis that will withstand the rigors of the road, as well as the occasional accidents of home use.
- Relatively Compact
- The VCP-2 will easily fit into an instrument case or a gear bag. It's even small enough to fit into a coat pocket.
UPC: 847628014008 In the Box Polsen VCP-2 Passive Stereo Volume Controller for Powered Speakers Limited 1-Year Warranty User Manual PDF 1.2mbxdaeayusxe Table of Contents
|
Upload User Manual
Have you got an user manual for the Polsen VCP-2 Passive Stereo Volume Controller for Powered Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPolsen VCP-2 Specs | | | Connectors | 2 x XLR-1/4" TRS Combination Jacks | | Impedance | 600 Ohms | | | | Connectors | 2 x 1/4" TRS, Phone Type | | Impedance | Balanced: 10 kOhms
Unbalanced: 5 kOhms | | | | Circuitry | Passive | | Channel Count | 2x | | Frequency Response | 20 Hz to 20 kHz | | Attenuation | Infinity to 0 dB via Volume Knob | | Controls | Volume Knob, Mute Button | | | | Dimensions | 2.0 x 5.3 x 3.3" / 5.1 x 13.5 x 8.4 cm | | Weight | 11.8 oz / 335 g | | | | Package Weight | 1.045 lb | | Box Dimensions (LxWxH) | 8.6 x 6.3 x 3.9" |
