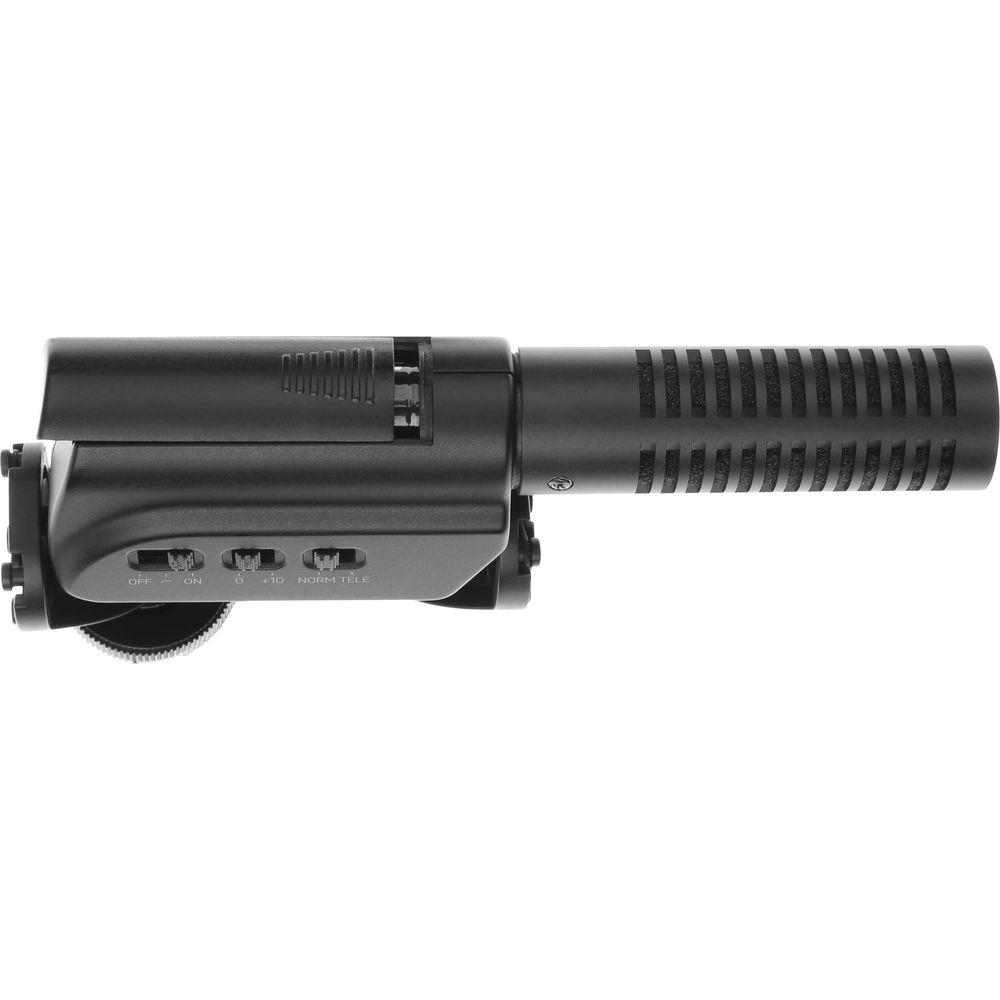

User Manual for Polsen VM-180M DSLR Video Microphone Click to enlarge the picture
Contents of the user manual for the Polsen VM-180M DSLR Video Microphone
- Product category: Shotgun Microphones Polsen
- Brand: Polsen
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Polsen Shotgun Microphones
 |
User manual for the Polsen VM-180M DSLR Video Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Polsen product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Polsen user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Polsen product will considerably shorten its lifespan!
|
Product description Providing professional-sounding audio to your DSLR, video camera, or audio recorder, the VM-180M DSLR/Video Microphone from Polsen is a compact condenser microphone with a selectable cardioid or supercardioid polar pattern that connects to your recording device of choice with its 8" long, 3.5mm mini-plug cable. A 3.5mm microphone input provides additional flexibility and miking options while only sending one connection to your recording device.
The microphone input allows you to connect a second microphone (not included) to your set up without the need for a mixer or summing device. This additional functionality provides you with a wide range of recording options, including adding a lavalier microphone for close up recording of a subject while the VM-180M handles ambient tracking duties. With a 2 mic set up, each channel of audio is routed to a discrete channel (right or left) upon reaching your recording device.

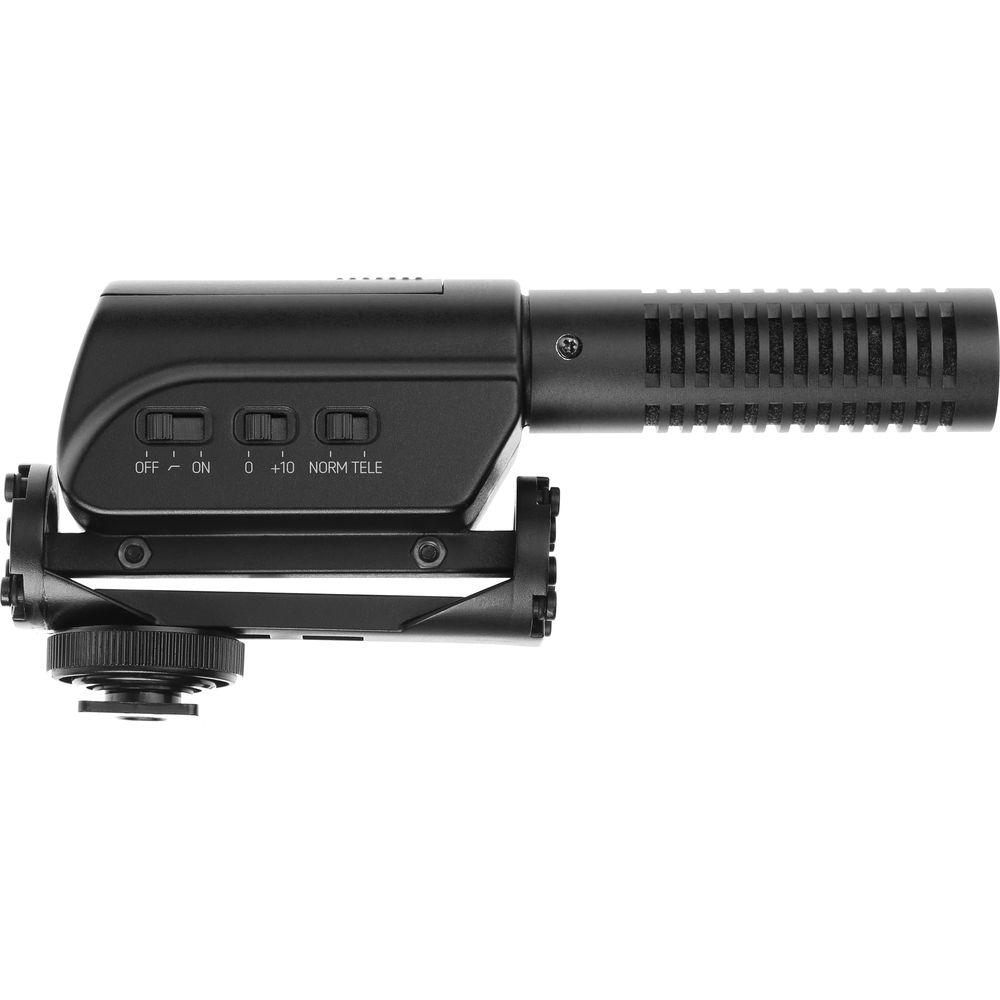

You can easily monitor your audio via the microphone's built-in 3.5mm headphone output, so you always know exactly what is being sent to your recorder. Its integrated shockmount helps prevent the microphone from picking up handling noise, and its shoe mount with 1/4"-20 socket allows you to attach it to your camera or mount it on a boom pole. A selectable low-cut filter at 300 Hz helps eliminate low rumble and wind noise that can plague many location recordings, while the selectable 10 dB boost is ideal for use when trying to capture quieter subjects.

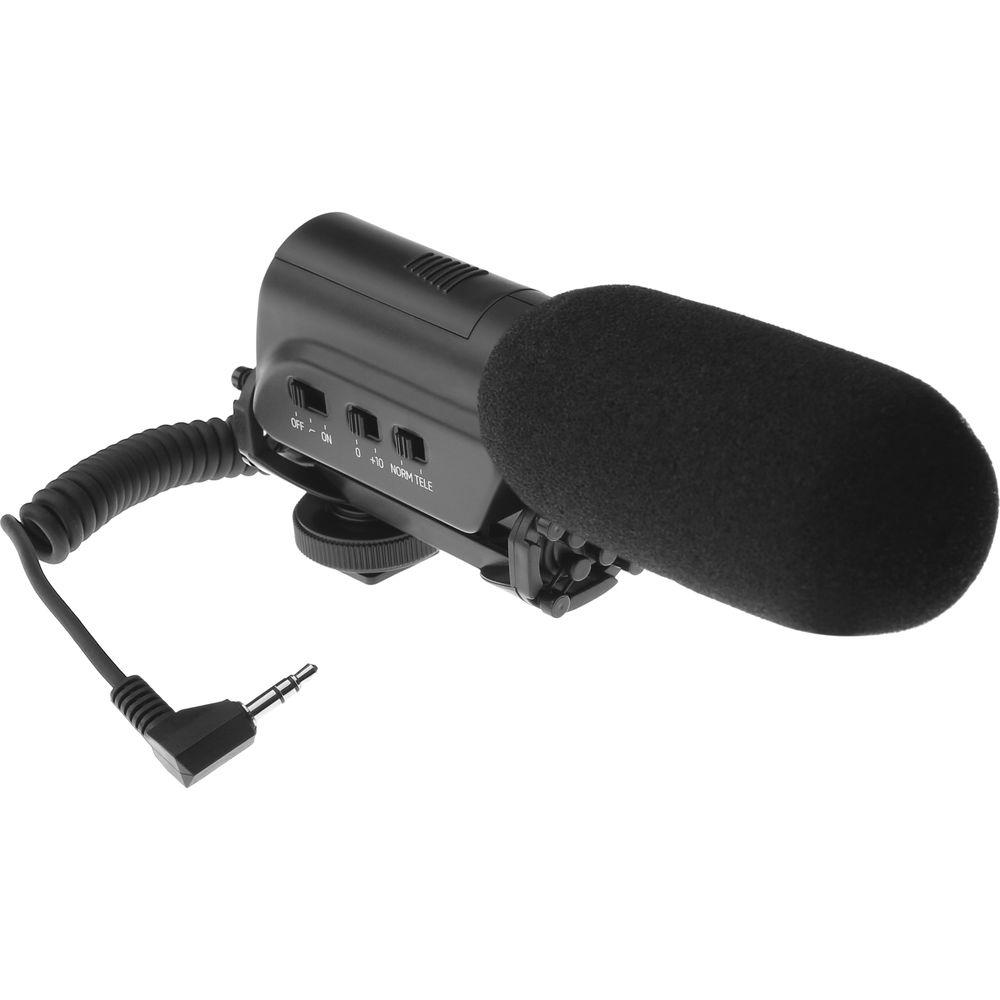

A foam windscreen is included to help eliminate wind noise from your recordings. The mic is powered by a single AA battery (included) for up to 100 hours. - Professional Quality Sound
- The VM-180M provides far superior sound than the built-in microphones of DSLR cameras, video cameras, or mobile recorders
- Multiple Polar Patterns
- The cardioid polar pattern optimize the VM-180M to focus on the subject while rejecting off-axis sound, while the supercardioid polar pattern can be used for greater focus and clarity up when recording voices or dialog up to 20 feet away
- +10 dB Boost
- This microphone provides and +10 dB boost for capturing quieter subjects
- Low Cut Filter
- The low-cut filter minimizes background noise and rumble
- 3.5mm Mini-Plug Connector
- The 3.5mm mini-plug provides a connection to DSLR cameras, video cameras, and audio recorders
- 3.5mm Input Jack

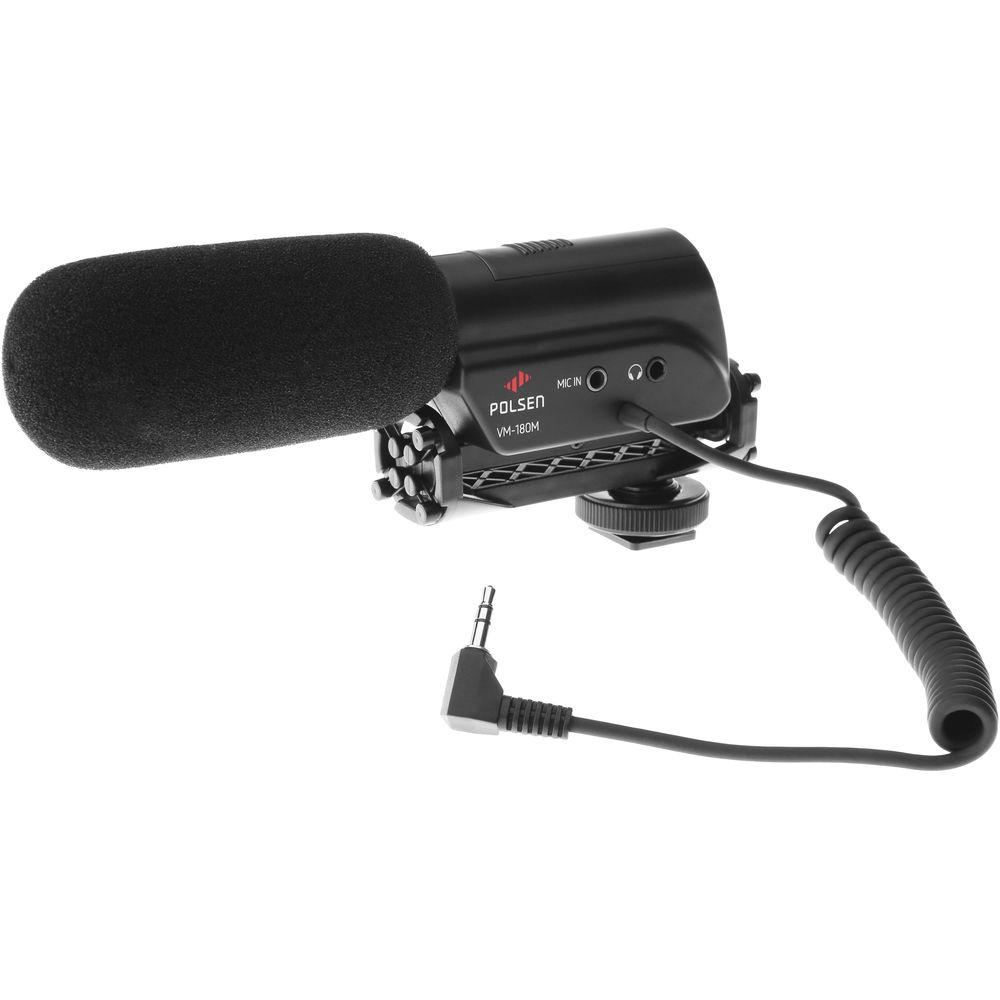

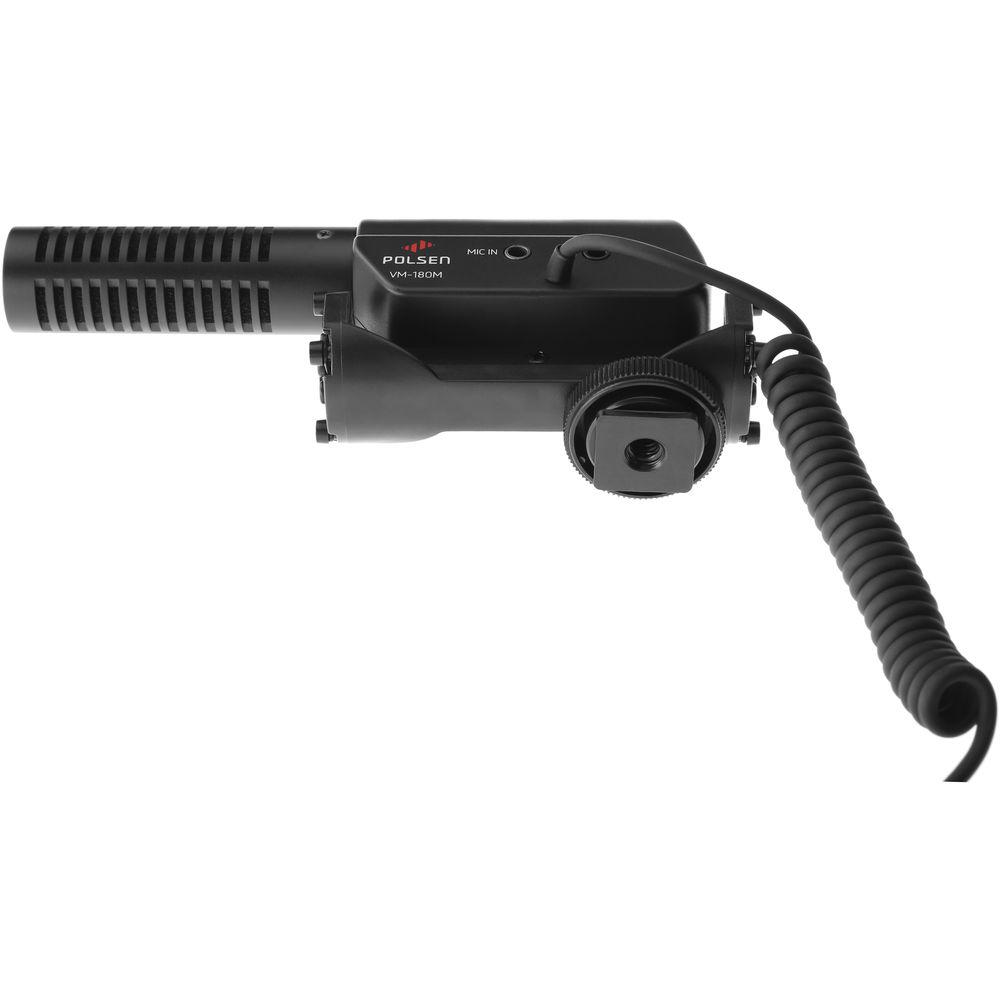

- The VM-180M features a 3.5mm input jack for attaching a second microphone or mobile device providing a wide variety of recording options
- Headphone Jack
- The VM-180M features a built-in headphone jack, offering real-time monitoring of your source
- Integrated Shockmount with Shoe Mount

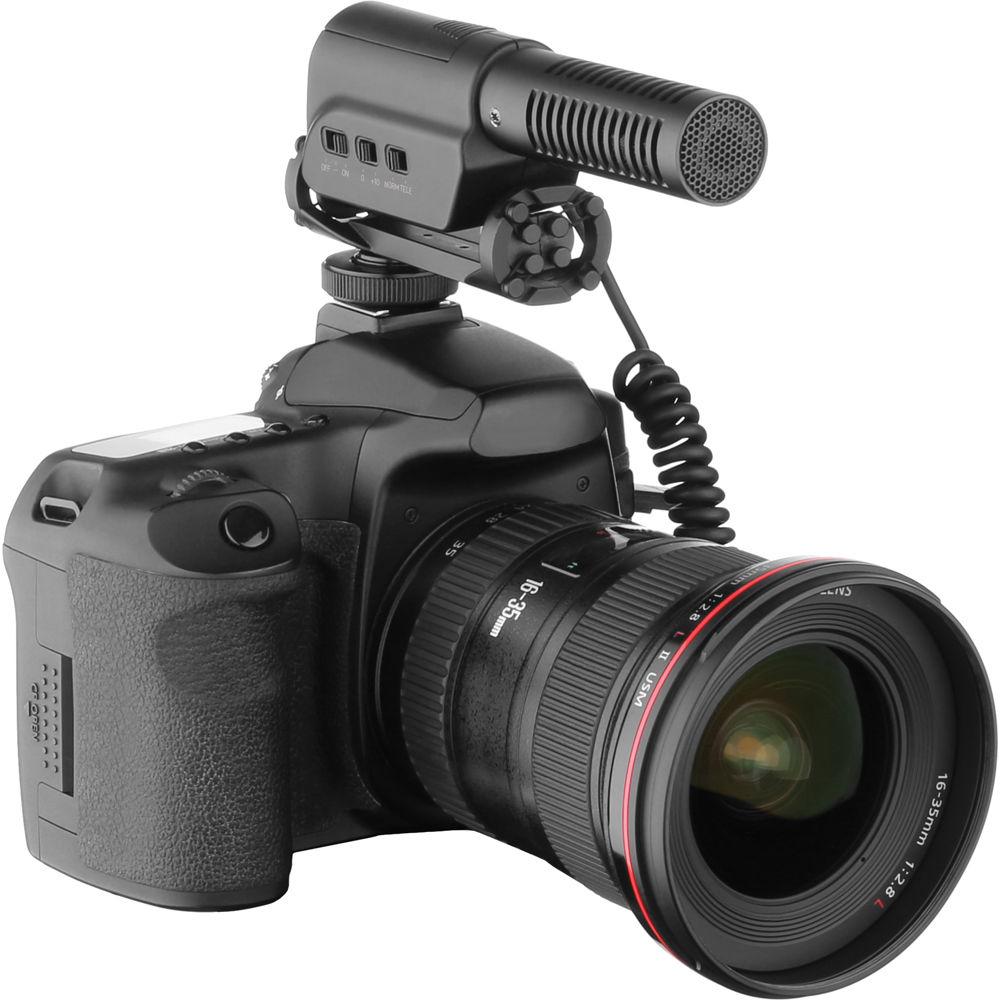

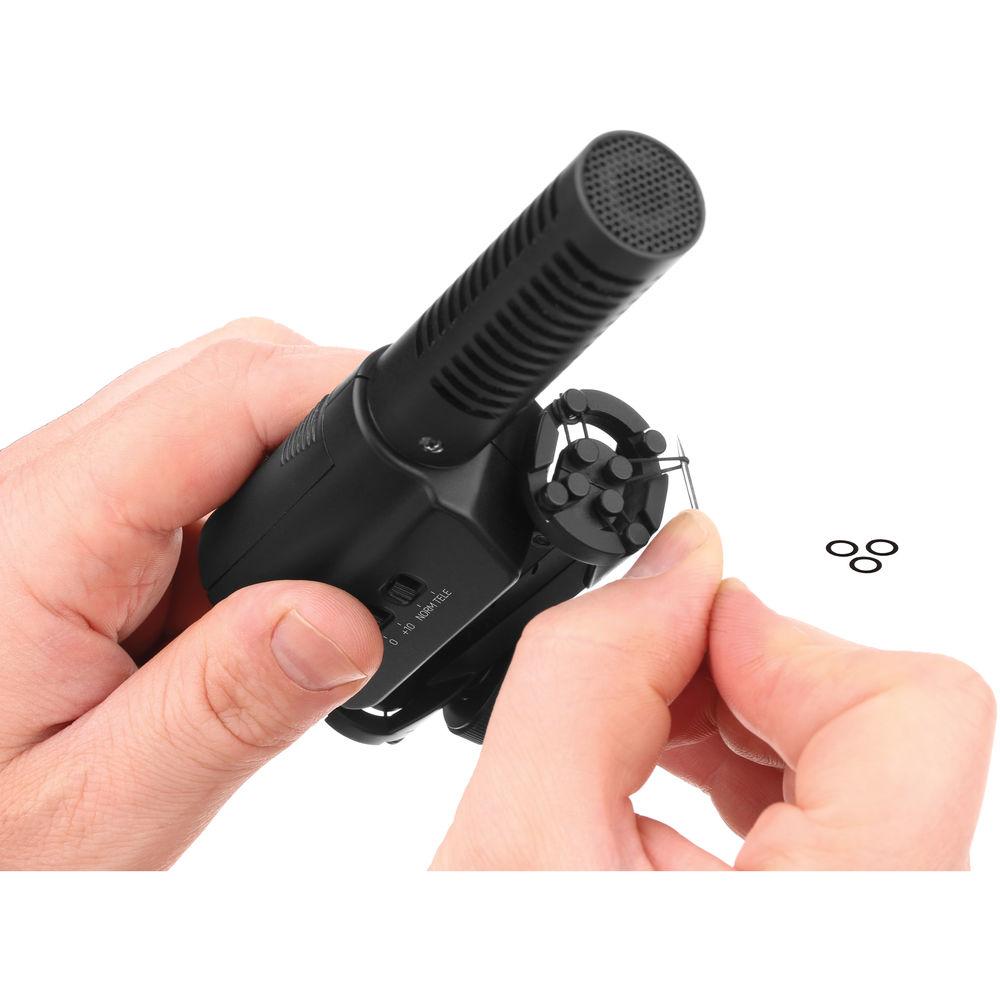

- The integrated shock mount prevents noise caused by motion or handling from being recorded. The shoe mount allows the microphone to be attached to a DSLR camera or camcorder
- 1/4"-20 Threaded Socket

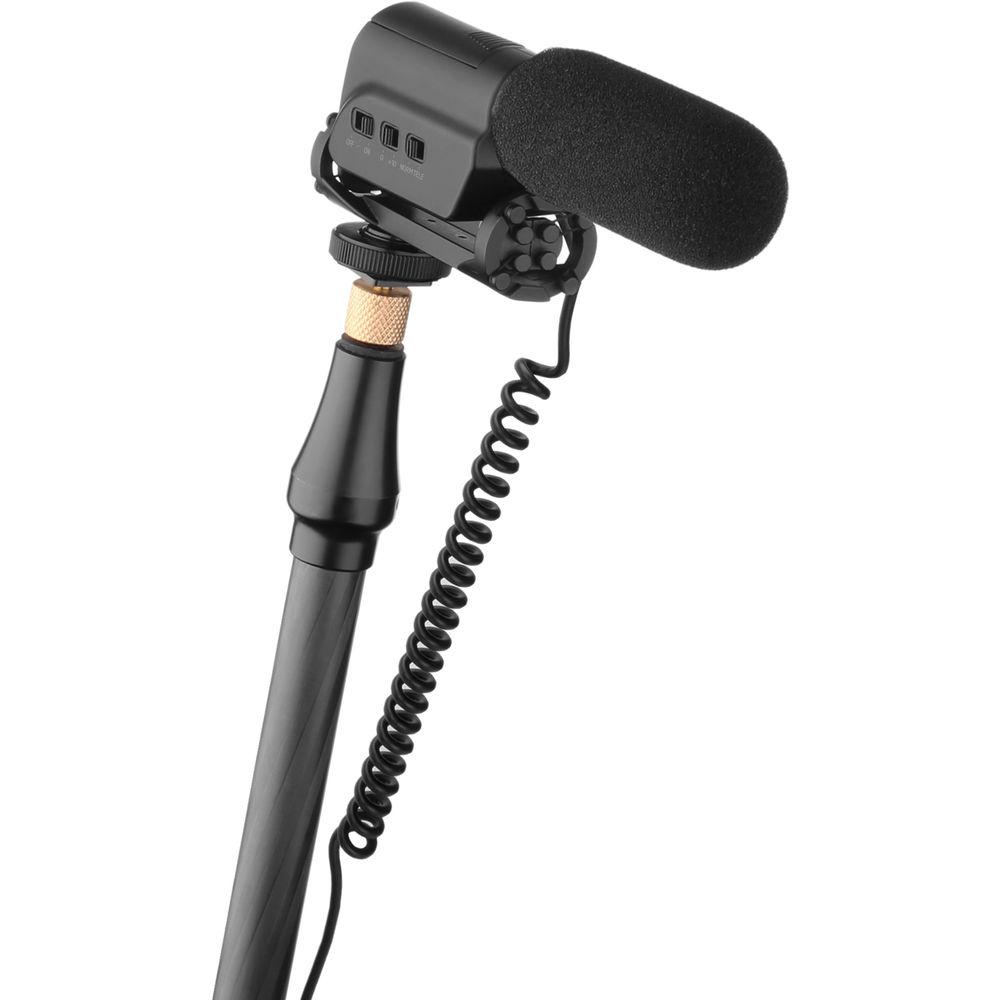

- The 1/4" threaded socket allows the VM-180M to be used with a boom pole
- AA Battery Operation
- The VM-180M operates on a single AA battery that provides up to 100 hours of normal use
UPC: 847628581586 In the Box Polsen VM-180M DSLR/Video Microphone Foam Windscreen AA Battery Limited 1-Year Warranty User Manual PDF 1.3mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Polsen VM-180M DSLR Video Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPolsen VM-180M Specs | Polar Pattern | NORM: Cardioid
TELE: Supercardioid | | Frequency Range | 20 Hz to 20 kHz @ 1 kHz | | Sensitivity | Cardioid: -46 dB (0 dB = 1 V/Pa @ 1 kHz)
Supercardioid: 36 dB (0 dB = 1 V/Pa @ 1 kHz) | | Low Cut Filters | -5 dB @ 300 Hz | | Output Impedance | 1.5 kOhms at high level
600 ohms at low level | | Power Requirement | 1x AA battery | | Battery Life | 100 hours (normal use) | | Output Connector | 1/8" (3.5 mm) mini plug | | Mic Input | 1/8" (3.5 mm) mini plug | | Cable Length | 3' (0.9 m) | | Case | ABS construction | | Dimensions (L x W x H) | 5.7 x 1.25 x 2.6" (144.3 x 31.7 x 66.7 mm) | | Weight | 0.25 lb (113.4 g) | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 8.9 x 4.9 x 3.0" |
