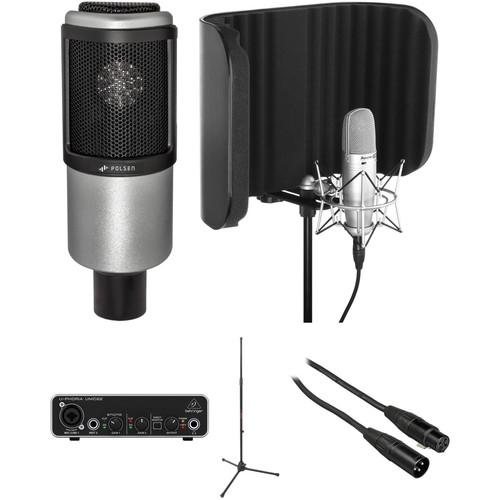

Polsen Vocal Production Recording Kit

User Manual for Polsen Vocal Production Recording Kit

• Product category: Large Diaphragm Condenser Polsen
• Brand: Polsen
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Polsen Large Diaphragm Condenser

Product description

• Polsen PCR-65 Cardioid Condenser Microphone The PCR-65 from Polsen is a cardioid condenser microphone designed for full-range reproduction of vocals and instruments in podcasts, recording studios, and broadcast environments. Its side-address, pressure-gradient design utilizes a large 1" diaphragm with a cardioid polar pattern, which minimizes the pickup of off-axis sounds and impedes feedback. The microphone boasts a 20 Hz to 20 kHz frequency response, allowing it to accurately transduce the frequencies of a variety of sounds. Its high sensitivity and 125 dB maximum SPL ensure that you can use it on quiet or loud sources, from whispered vocals to pounding drums.The PCR-65 has a sturdy, metal housing with an alloy finish. The supplied custom shockmount decouples the mic from vibrations and rumble that would otherwise transfer from the floor to the mic. Use the desktop tripod stand for convenient tabletop placement during interviews and podcasts. Phantom power (12 to 52 VDC) is required.
  Cardioid Capsule
  • The 1" capsule's cardioid polar pattern is least sensitive to sound behind the microphone, allowing better rejection of room reflections, which is ideal for capturing vocals and close-miked instruments with greater clarity
  Full-Range Frequency Response
  • The 20 Hz to 20 kHz frequency response is sufficiently wide to deliver a warm, natural sound for a variety of sources, from the low drone of a double bass to the high shimmer of cymbals to the powerful presence of a vocal
  High Sensitivity and Maximum SPL
  • The microphone's high sensitivity allows it to be used on quiet sources such as a soft voice, without extreme gain, and its high maximum SPL of 125 dB ensures that it can handle loud sounds such as a drum, without distortion
  Sturdy and Durable
  • Metal construction with an alloy finish enables the mic to hold up to the demands of studio and stage environments
  Versatile
  • The supplied shockmount, which decreases pickup of rumble and vibrations, can be mounted on a standard mic stand or the included desktop tripod
  UPC: 847628598775
• Auray RF-CPB-18 Reflection Filter (Plastic) Designed to help create clean vocal recordings in less-than-ideal recording environments, the plastic RF-CPB-18 Reflection Filter from Auray absorbs and diffuses external noise and room reflections. It can be used in any recording scenario that requires microphone isolation, such as tracking in an acoustically untreated room, untreated rehearsal spaces, project and home studios, and professional studios where additional isolation is needed.

  The filter features high-density, open-cell acoustic foam wrapped in an ABS plastic curved screen. Its front sliding bracket and rear adjustment rail easily allows you to adjust its height and depth for precise microphone placement. Thanks to its standard 5/8"-27 threaded adapters, the RF-CPB-18 is compatible with most microphone stands, clips, and shockmounts. It is also ideal for desktop recording and broadcast applications when used with a desktop mic stand that features a weighted metal base (not included). The lightweight, 3-pound body lends to portability while its ABS construction assures its durability.
  • Compact solution for providing sound isolation for vocal or voice over recording in untreated spaces
  • High-density open-cell acoustic foam minimizes room ambiance and diffuses external noise to isolate your microphone
  • Curved shield design ensures dry and clean vocal and voiceover tracks while attenuating external noise
  • The sliding bracket and adjustable height rail ensures microphone placement for optimal performance
  • Adapters with industry-standard 5/8"-27 threaded studs and sockets are compatible with mic stands, shock mounts, and mic clips with a 5/8"-27 post
  • The durable ABS plastic shield is rigid and lightweight, and with all the mounting hardware only weighs 3 lbs
  UPC: 847628580305
• Behringer U-PHORIA UMC22 2x2 USB Audio Interface The U-PHORIA UMC22 2x2 USB Audio Interface from Behringer is a 2x2 audio interface that is capable of tracking your audio with sampling rates up to 48 kHz. It features a single Midas-designed combo XLR/TRS microphone preamplifier with selectable 48-volt phantom power. Additionally, the UMC22 has a front-panel 1/4" instrument input. Its I/O is rounded up by 2 rear-panel 1/4" outputs and a front-panel 1/4" headphone output.

  The UMC22 has selectable direct monitoring, and is housed in a metal chassis designed to be impact resistant. Behringer provides a free download of Tracktion 4 Audio Production software with registration.
  Midas-Design Preamp
  • Behringer's sister company, Midas, developed the preamps for the UMC202 interface. Thanks to the available +48 V phantom power, you can even use condenser mics to create tracks
  Monitoring
  • All U-PHORIA models provide headphone output with level control and direct monitor select, status, signal and clip LEDs, and are powered via your computer's USB port so they're ready to go wherever you go
  Tracktion 4 Software Download
  • When you register your UMC22, Behringer provide you with a complimentary download code for the full version of Tracktion 4 digital audio workstation software, with 150 instrument/effect plug-ins
  • Up to 48 kHz resolution
  • Compatible with recording software including Avid Pro Tools, Ableton Live, Steinberg Cubase, and others
  • Streams 2 inputs / 2 outputs with low latency to your computer, supporting Mac OS X and Windows XP or higher
  • USB port for connection and power
  • Impact-resistant metal chassis
  UPC: 696859053863
• Auray MS-5230 Tripod Microphone Stand The Auray MS-5230 Tripod Microphone Stand features durable, steel construction. An ergonomic twist-action clutch adjusts the height of the stand from 36.2 to 63", while the reinforced tripod base and non-slip feet keep it firmly and sturdily in place. The Auray MS-5230's tripod base collapses for easy transport. UPC: 847628015579
• Pearstone PM Series XLR M to XLR F Professional Microphone Cable - 10' (3.0 m) The Pearstone PM Series XLR M to XLR F Professional Microphone Cable (10') features 24-gauge oxygen-free copper conductors, spiral shielding to protect against EMI and RFI noise, and professional grade cast-zinc Rean connectors with silver-plated contacts. The twin conductive PVC shield reduces electrostatic noise, and distinguishes the PM series from the rest of its class.
  • Professional quality, field-serviceable, cast-zinc Rean connectors with silver-plated contacts
  • Twin conductive PVC shield reduces electrostatic noise
  • 24-gauge oxygen-free copper conductors
  • Spiral shielding to protect against EMI and RFI noise
  UPC: 847628557710

• PCR-65 Cardioid Condenser Microphone ubqcbcuttwvebubuzdrddduzsd
• Shockmount
• Desktop Tripod Stand
• Limited 1-Year Warranty

• Auray - RF-CPB-18 Reflection Filter (Plastic)

• Behringer - U-PHORIA UMC22 2x2 USB Audio Interface

• Auray - MS-5230 Tripod Microphone Stand

• Pearstone - PM Series XLR M to XLR F Professional Microphone Cable - 10' (3.0 m)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Polsen PCR-65 Cardioid Condenser Microphone

  Sound Field	Mono
  Operating Principle	Pressure Gradient
  Transducer	Electret Condenser
  Diaphragm	1" / 25.40 mm
  Tube	No
  Polar Pattern	Cardioid
  Frequency Range	20 Hz to 20 kHz
  Equivalent Noise Level	Cardioid: 20 dB A-Weighted
  Maximum SPL	Cardioid: 125 dB SPL
  Pad	None
  Impedance	Cardioid: 200 Ohms
  Sensitivity	Cardioid: -32 dB at 1 kHz ±3 dB
  Low-Cut Filter	None

  Output Connectors	1 x 3-Pin XLR
  Headphone Connector	None
  Operating Voltage	12 to 52 V
  Length	5.7" / 144.78 mm
  Diameter	2" / 50.80 mm
  Weight	12.5 oz / 354 g

  Box Dimensions (LxWxH)	10.8 x 7.3 x 3.4"

• Auray RF-CPB-18 Reflection Filter (Plastic)

  Dimensions (WxHxD)	19.3 x 11.4 x 7.1" (49 x 29 x 18 cm) Height extendable from 11.4 to 17.5" (29 to 44.5 cm)
  Weight	3 lb (1.4 kg), with mounting hardware

  Box Dimensions (LxWxH)	19.0 x 14.0 x 8.0"

• Behringer U-PHORIA UMC22 2x2 USB Audio Interface

  Max Sample Rate/Resolution	48 kHz / 24-Bit

  Host Connection	USB Type-B (USB 2.0)
  Analog I/O	1 x Combo XLR / 1/4" Mic/Line Input 1 x 1/4" (6.3 mm) Hi-Z Input 2 x 1/4" (6.3 mm) TRS Output 1 x 1/4" (6.3 mm) TRS Headphone Output
  Phantom Power	+48 V
  Digital I/O	None
  MIDI I/O	None

  Sample Rates	Up to 48 kHz
  Latency	Zero-Latency Direct Monitoring

  OS Compatibility	macOS 10 Windows XP or Later

  Anti-Theft Features	Kensington Security Slot

  Box Dimensions (LxWxH)	9.9 x 6.1 x 3.3"

• Auray MS-5230 Tripod Microphone Stand

  Height	36.2 to 63" / 91.9 to 160 cm
  Base Type	Tripod
  Base Dimensions	25.6 x 25.6" / 65 x 65 cm

  Material	Steel
  Weight	3.4 lb / 1.5 kg

  Box Dimensions (LxWxH)	33.5 x 4.0 x 4.0"

• Pearstone PM Series XLR M to XLR F Professional Microphone Cable - 10' (3.0 m)

  Connector 1	3-Pin XLR Male
  Connector 2	3-Pin XLR Female
  Cable Length	10' / 3 m
  Shielding	Copper Spiral
  Conductor Material	Oxygen-Free Copper (OFC)
  Wire Gauge	24 AWG
  Contact Plating	Silver
  Jacket Type	Polyvinyl Chloride (PVC)

  Box Dimensions (LxWxH)	6.5 x 5.7 x 0.6"
