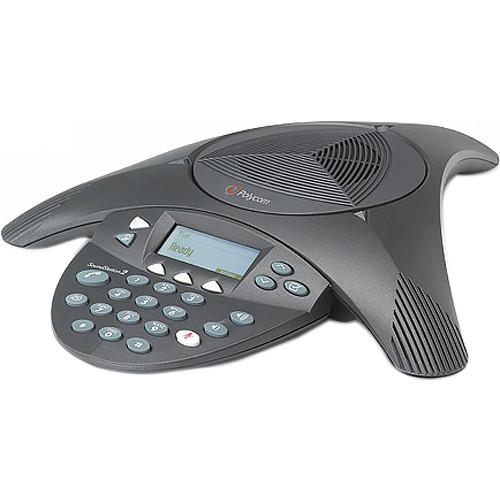

Product description The Polycom Soundstation 2 Expandable Conference Phone With Display is a solution for small to midsize conference rooms with up to 10 participants. Using the company's Acoustic Clarity technology, the device delivers clear voice quality without drop outs or clipping so that meetings can be more productive. Users can speak in a normal voice and be heard from up to 10' away.
Dynamic Noise Reduction (DNR) actively removes background noise such as projectors and ventilation systems while using three cardioid microphones for 360° coverage. Intelligent mixing highlights the person speaking not ambient noise while also resisting interference from mobile phones and other wireless devices.
The phone provides users with advanced features, enabling conference calls that are more flexible and productive. The 2.5mm applications port allows you to connect the unit to a mobile phone for conference calls from locations without analog phone lines or to a computer for Internet calling. A large backlit display offers easily visible call information and telephone functions. The unit can connect to any standard analog telephone line making it easy to set up. With traditional telephone features like redial, mute, transfer, and hold you have a fully featured conference phone that is both familiar and easy to use.
The "Ex" model supports up to two expansion microphones, ensuring that the microphone pickup reaches to all corners of a medium-sized conference room. - Polycom Acoustic Clarity Full Duplex
- 3x cardioid microphones
- 10' (3m) microphone pickup range
- Intelligent microphone mixing
- Dynamic noise reduction
- Volume (adjustable up to 94 dBA at 0.5m)
- User selectable ring tones
- 12-key telephone keypad
- Mute, Volume up/down keys
- Mute, conference keys
- Graphical backlit LCD
- Configurable conference speed dial key
- 3x context sensitive soft-keys
- Multi-lingual user interface
- CallerID
- 25x entry phone book
- RCA auxiliary audio jack
- Applications port
- EX microphone jacks
- More Productive Calls
- Features the company's patented acoustic clarity technology to deliver clear conversations for more productive conference calls
- Hear and Be Heard Clearly
- Uses intelligent microphones and dynamic noise reduction technology to ensure everyone can be heard
- Resists Interference from Mobile Phones
- Uses isolation to enable clearer calls without distracting noise from nearby wireless devices
- Backlit Display
- Displays console phone number, number called, duration/progress of call, and supports worldwide caller ID
- Connect to Mobile Phones and PCs
- Features application port that offers unmatched flexibility for mobile phone and Internet calling
- Easy to Use and Install
- Connects into any analog phone jack and can be connected to a PBX with an analog extension
- Architecture
- The tabletop unit contains audio processing functions and the keypad while the wall module contains power and the telephone line interfaces
- Cable
- Consists of a 21.0' (6.4m) single-cord connection to the tabletop console and a 7.0' (2.1m) connection to an RJ-11 telephone jack
- User Interface
- User selectable ring tones
- Configurable soft keys for easy dialing of voice conferencing services
- Multi-lingual support: English, Italian, Spanish, Portuguese, Norwegian
- Password protected configuration settings for administrators
- Caller ID and Phone Book
- Support for multiple Caller ID standards (Bellcore Type 1 with subscription, ETSI, DTMF, British Telecom)
- Phone book/speed dial list with up to 25 entries
- Keypad
- 12-key telephone keypad
- On-hook/off-hook, conference, mute, volume up/down keys, menu navigation keys
- 3 context sensitive soft keys including redial, hold, programmable conference key
- Audio
- Polycom Acoustic Clarity full duplex- IEEE 1329
- Type 1
- Up to 10' microphone pick up range
Gated microphones with intelligent microphone mixing - Dynamic noise reduction
- Ability to Increase Microphone Pickup
- Optional extension microphones
UPC: 610807034377 In the Box Polycom Soundstation 2 Expandable Conference Phone With Display Cord to Console Cable (21') Telco Cable to RJ-11 Telephone Jack (9') Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Polycom Soundstation 2 Expandable Conference Phone With Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPolycom 2200-16200-001 Specs | Recommended | Room Conditions
Reverberation time: < 0.5 seconds
Noise level: < 48 dBa | | Display | 132 x 65 pixel backlit graphical LCD | | Network Interface | Two-wire RJ-11 analog PBX or public switched telephone network interface | | Regulatory Compliance | NA CI/C-UL
FCC Part 68
FCC Part 15 Class B
Canadian ICES-003
CE Mark (R & TTE Directive) VCCI Class B (Japan) | | Environmental Requirements | Operating temperature: 40 to 104°F / 5 to 40°C
Storage temperature: -22 to 131°F / -30 to 55°C
Relative humidity: 20 to 85% (non-condensing) | | Power | 110-120 VAC; 50/60 Hz with NA plug
(Depending on country-specific sku) | | Dimensions (L x W x H) | 14.5 x 12.25 x 2.5" / 36.8 x 31.1 x 6.4 cm | | Weight | 1.75 lb / 0.80 kg | | | | Package Weight | 5.3 lb | | Box Dimensions (LxWxH) | 17.953 x 13.386 x 4.331" |
