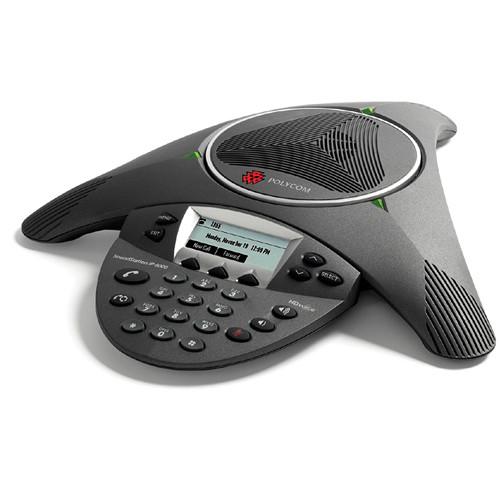

User Manual for Polycom SoundStation IP 6000 SIP-Based Conference Phone Click to enlarge the picture
Contents of the user manual for the Polycom SoundStation IP 6000 SIP-Based Conference
- Product category: Telephones Polycom
- Brand: Polycom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Polycom Telephones
|
User manual for the Polycom SoundStation IP 6000 SIP-Based Conference contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Polycom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Polycom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Polycom product will considerably shorten its lifespan!
|
Product description With SIP compatibility, the SoundStation IP 6000 SIP-Based Conference Phone from Polycom offers the same benefits found in other SoundPoint IP compatible IP desktop phones. These benefits include enhanced sound quality complete with lifelike audio, broad interoperability, and easy provisioning. Integrated lifelike audio covers frequencies ranging from 220 Hz all the way to 14 kHz along with an adjustable volume to 86 dB at 1/2 meter peak volume. Acoustic echo cancellation and background noise suppression help to eliminate distracting noises making for clear, crisp calls.
The SoundStation IP 6000 comes equipped with a 248 x 68 pixel display complete with a white LED backlight and custom intensity control. Found below the display is a 12-key standard keypad and three context-dependent soft keys for easy access to specific phone functions. Setup and configuration is simple with Fast Ethernet connectivity and FTP/TFTP/HTTP/HTTPS server-based central provisioning for mass deployments. For single unit deployment you can take advantage of a dedicated web portal. Additional network-based provisioning features for this field upgradable phone include event logging, local digit map, and hardware diagnostics. - Call Handling Features
- • Shared call / bridged line appearance
• Busy Lamp Field (BLF)
• Distinctive incoming call treatment/call waiting
• Call timer
• Call transfer, hold, divert (forward), pickup
• Called, calling, connected party information
• Local three-way conferencing
• One-touch speed dial, redial
• Call waiting
• Remote missed call notification
• Automatic off-hook call placement
• Do not disturb function - Polycom HD Voice
- Enhanced clarity to make conference calls more efficient and productive
- 12' Microphone Pickup
- The SoundStation IP 6000 combines 12' microphone pickup with Automatic Gain Control for enhanced performance. Add up to two optional expansion microphones for even greater coverage.
- SIP Software
- Integrated SIP software supports features including advanced call handling, security, and provisioning.
- Interoperability
- The SoundStation IP 6000 is compatible with a broad array of SIP call platforms to maximize voice quality and feature availability while simplifying management and administration.
- High-Resolution Display
- The high-resolution display found on the SoundStation IP 6000 allows for robust call information and multi-language support.
UPC: 610807683902 In the Box Polycom SoundStation IP 6000 SIP-Based Conference Phone 25'/7.6m Ethernet Cable Universal Power Supply 7'/2.1m Power Cord Power Insertion Cable Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Polycom SoundStation IP 6000 SIP-Based Conference Phone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPolycom 2200-15660-001 Specs | Power | • IEEE 802.3af Power over Ethernet (built in)
• External Universal AC Power Supply: 100-240V, 0.4 A, 48 V/19 W | | Display | • Size (pixels): 248 x 68 (W x H)
• White LED backlight with custom intensity control | | Keypad | • Standard 12-key keypad
• Context-dependent soft keys: 3
• On-hook/Off-hook, redial, mute, volume up/down | | Audio Specifications | • Loudspeaker
• Frequency: 220-14,000 Hz
• Volume: Adjustable to 86 dB at 1/2 meter peak volume
• Individual volume settings with visual feedback for each audio path
• Voice activity detection
• Comfort noise fill
• DTMF tone generation / DTMF event RTP payload
• Low-delay audio packet transmission
• Adaptive jitter buffers
• Packet loss concealment
• Acoustic echo cancellation
• Background noise suppression
• Supported Codecs
• G.711 (A-law and Mu-law)
• G.729a (Annex B)
• G.722, G.722.1
• G.722.1C
• Siren 14 | | Network Protocol Support | • Ethernet 10/100Base-T
• 2.5 mm connection port
• EX mic ports: Two RJ-9 ports
• IP Address Configuration: DHCP and Static IP
• Time synchronization with SNTP server
• FTP/TFTP/HTTP/HTTPS server based central provisioning for mass deployments. Provisioning server redundancy supported
• Web portal for individual unit configuration
• QoS Support - IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS and DSCP
• Network Address Translation (NAT) support - static
• RTCP support (RFC 1889)
• Event logging
• Local digit map
• Hardware diagnostics
• Status and statistics
• User selectable ringer tones
• Convenient volume adjustment keys
• Field upgradeable | | Security | • Transport Layer Security (TLS)
• Encrypted configuration files
• Digest authentication
• Password login
• Support for URL syntax with password for boot server
• HTTPS secure provisioning
• Support for signed software executables | | Safety | • CE Mark
• EN60950-1
• IEC60950-1
• UL60950-1
• CAN/CSA C22.2 No.60950-1-03
• AS/NZS60950-1
• RoHS Compliant | | EMC | • FCC Part 15 (CFR 47) Class B
• ICES-003 Class B
• EN55022 Class B
• CISPR22 Class B
• AS/NZS CISPR22 Class B
• VCCI Class B
• EN22024 | | Telecom Standards | • AS/ACIF S004
• Telepermit
• KCC
• GOST-R
• TRA | | Protocol Support | IETF SIP (RFC 3261 and companion RFCs | | Temperature | Operating: 32 to 104°F / 0 to 40°C
Storage: -22 to 131°F / -30 to 55°C | | Relative Humidity | 20 to 85% non-condensing | | Dimensions | 14.50 x 12.25 x 2.50" / 36.80 x 31.10 x 6.40 cm | | Weight | 1.75 lb / 0.8 kg | | | | Package Weight | 5.05 lb | | Box Dimensions (LxWxH) | 17.7 x 13.6 x 4.4" |
