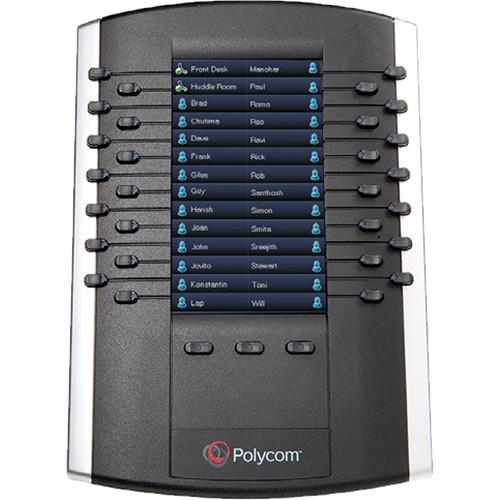

User Manual for Polycom VVX Color Expansion Module Click to enlarge the picture
Contents of the user manual for the Polycom VVX Color Expansion Module
- Product category: VoIP Accessories Polycom
- Brand: Polycom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Polycom VoIP Accessories
|
User manual for the Polycom VVX Color Expansion Module contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Polycom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Polycom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Polycom product will considerably shorten its lifespan!
|
Product description Greatly expand the capabilities of your VVX business media phones with the VVX Color Expansion Module from Polycom. This expansion module features 28 multifunctional line keys each configurable as line registration, call appearance, speed dials, DSS, or BLF. Each key also features both red and green LED indicators allowing you to see the status of each line.
This plug-and-play compatible expansion module is easy to install and configure with a variety of VVX phones. Most VVX phones even support up to three expansion modules for maximum expandability. No additional power source is needed as the PoE compatible expansion module powers up automatically when connected via the auxiliary port. - Increase Productivity
- The VVX Color Expansion Module provides advanced call handling capabilities with an enhanced visual experience that simplifies monitoring contacts and management of a high volume of concurrent calls.
- Ease of Use
- The large, high resolution LCD, 28 illuminated bi-color programmable line keys, and user-friendly call visualization provide an intuitive user interface.
- Ease of Installation and Setup
- Virtually no installation or setup is required, as signaling and powering are provided by the host phone.
- Leverage Previous IT Infrastructure Investment
- Get the most out of your Polycom VVX business media phones by equipping them with Expansion Modules, turning them into fully-enhanced personal desktop solutions.
UPC: 610807781950 In the Box Polycom VVX Color Expansion Module VVX Color Expansion Module Desk Stand 2 x Attachment Bracket with Hand Screws Auxiliary Cable Limited 1-Year Manufacturer Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Polycom VVX Color Expansion Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPolycom 2200-46350-025 Specs | Display | 4.3" LCD (480 x 272 pixel resolution)
Color graphical user interface | | Keys | 28 multifunctional line keys configurable as line registration, call appearance, speed dial, DSS, or BLF
Dual-color (red or green) illuminated LEDs for line status information
3 page keys for additional line appearances (up to 84 in total) | | Compatibility | Polycom VVX 300/310
Polycom VVX 400/410
Polycom VVX 500
Polycom VVX 600 | | Auxiliary Port | 2 x auxiliary ports (RJ-11) | | Expandability | Up to three VVX Expansion Modules can be attached to any VVX phone | | Support Services | Additional line registrations (up to 34 total)
Shared call appearance, bridged line appearance (Key system emulation)
Call transfer
Busy lamp field
Speed dial
Fully programmable line appearances
Multilingual user interface (driven from host phone) encompassing Chinese, Danish, Dutch, English, French, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Slovenian, Spanish and Swedish
Microsoft Lync Presence | | Power | Provided by Polycom VVX host phone
Host phone powering options: IEEE 802.3(af/at) PoE or using a compatible external AC adapter
Powering starts automatically upon auxiliary port connection
No additional power source is required | | Approvals | CE Mark
VCCI
C-Tick | | Safety | UL 60950-1
CAN/CSA-C22.2 No. 60950-1
EN 60950-1
IEC 60950-1
AS/NZS 60950-1 | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -40 to 160°F / -40 to 70°C | | Relative Humidity | 5 to 95%, non-condensing | | Dimensions | 5.0 x 5.0 x 6.5" / 12.5 x 12.5 x 16.0 cm | | Weight | 1.0 lb / 0.5 kg | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 10.7 x 6.6 x 3.6" |
