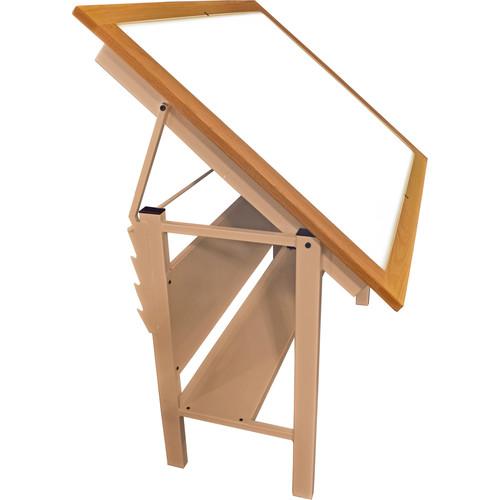

User Manual for Porta-Trace Gagne 24 x 36" LED Light Table Click to enlarge the picture
Contents of the user manual for the Porta-Trace Gagne 24 x 36" LED
- Product category: Lightboxes & Light Tables Porta-Trace / Gagne
- Brand: Porta-Trace / Gagne
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Porta-Trace / Gagne Lightboxes & Light Tables
|
User manual for the Porta-Trace Gagne 24 x 36" LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Porta-Trace / Gagne product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Porta-Trace / Gagne user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Porta-Trace / Gagne product will considerably shorten its lifespan!
|
Product description Featuring a classic design but updated with bright white LED technology, the 24 x 36" LED Light Table from Porta-Trace / Gagne offers a convenient 40° tilting tabletop for standing viewing of transparencies, film, and other translucent materials. The 24 x 36" viewing area utilizes 44 individual LED modules for a bright, 6500K- balanced light output and the shatter-resistant Plexiglas top helps to prevent any hot spots by evenly diffusing the light across the entire surface. A durable stainless steel chassis is finished with a white baked enamel surface and the Plexiglas table top is surrounded by an oak wood trim. The table measures 39" tall, from the floor to the top of the surface, and an integrated 6'-long three-prong grounded cord supports 100-240 VAC power. Compared to fluorescent light tables, the LED design is a more eco-friendly technology to save on energy consumption while still affording a 50,000 hour rating. Components are also CE and RoHS certified for international use. - Light table allows for comfortable viewing of transparencies, film, and other translucent materials while standing
- 24 x 36" viewing area, 30 x 42" total area
- Table is 39" tall from floor to top of table surface
- Back tilting design allows for positioning the viewing surface in 10° increments from 0 to 40°
- 44 LED modules produce a bright, 6500K-balanced light output
- Thick Plexiglas top surface is shatter-resistant and evenly diffuses the light across the viewing surface to avoid glare and hot spots
- Durable powder-coated stainless steel chassis has a white baked enamel finish
- Oak wood trim surrounds the viewing area and adds to a handsome appearance
- Easy-to-assemble design with just 14 bolts
In the Box Porta-Trace / Gagne 24 x 36" LED Light Table Assembly Hardware Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Porta-Trace Gagne 24 x 36" LED Light Table in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPorta-Trace / Gagne 2436TCLED Specs | Viewing Size | 24 x 36" / 61.0 x 91.4 cm | | Overall Size | 30 x 42" / 76.2 x 106.7 cm
39" / 99.1 cm tall | | Lamp Type | LED (~6500K) | | Number of Lamps | 44 modules | | Lamp Life | Rated to 50,000 hours | | Carry Handle | No | | Tilt Bar | Yes, back tilt; 0 to +40° with four locking positions in 10° increments | | Wall Mountable | No | | Construction | Powder-coated stainless steel chassis with white baked enamel finish
Plexiglas top with oak wood frame | | Power Source | Integrated 6' / 1.8 m three-prong grounded cable
100-240 VAC, 50/60 Hz | | Weight | Approx. 100 lb / 45.4 kg | | | | Package Weight | 94.5 lb | | Box Dimensions (LxWxH) | 45.5 x 34.0 x 15.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 26 owners. Add your rating and experience with the product.
