User Manual for PortaCom BP-500R2 Remote Beltpack for ProLink 500 Intercom Click to enlarge the picture
Contents of the user manual for the PortaCom BP-500R2 Remote Beltpack for ProLink
- Product category: Wired Intercoms PortaCom
- Brand: PortaCom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PortaCom Wired Intercoms
|
User manual for the PortaCom BP-500R2 Remote Beltpack for ProLink contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PortaCom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PortaCom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PortaCom product will considerably shorten its lifespan!
|

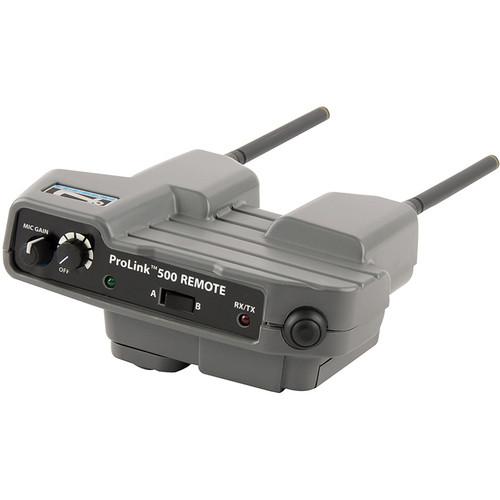

Product description The BP-500R2 Remote Beltpack for ProLink 500 Intercom (Frequency 2) from Anchor Audio/Porta-Com is a remote beltpack for use as part of a ProLink 500 intercom system. The beltpack features a compact and portable design and offers full-duplex communication without the need for a base station. It can communicate with BP-500 master and remote beltpacks, plus unlimited listen-only beltpacks for clear communication at distances up to 500' away. The beltpack has an LED indicator that flashes red when it is out of range from the master beltpack.
The BP-500R2 has an A/B channel selector, a power/volume knob, and a mic gain control to precisely adjust the operation to meet your needs. A push-to-talk button lets you communicate at will, while the "always on" slide switch lets you talk freely without using the PTT button. The beltpack has a 4-pin XLR headset connector for use with Anchor Audio headsets, or any headset with a dynamic microphone. The beltpack operates on a set of 3 AA rechargeable batteries and has a charging port for quick charging in the separately-available gang charger. Note: A BP-500 master beltpack, sold separately, is required to create a system. - Compact and portable design
- Provides full-duplex communication without the need for a base station
- Operates in the 902-928 MHz frequency band, and no FCC license is required
- Communicates with master and remote beltpacks, plus unlimited listen-only beltpacks for clear communication at distances up to 500' away
- There are power/low battery and out-of-range LED indicators
- There is an A/B channel selector, power/volume knob, and a mic gain control to precisely adjust the operation to meet your needs
- Push-to-talk button lets you communicate at will, while the "always on" slide switch lets you talk freely without using the PTT button
- 4-pin XLR headset connector for use with Anchor Audio headsets, or any headset with a dynamic microphone
- Operates on a set of 3 AA rechargeable batteries and has a charging port for quick charging in the included gang charger
In the Box PortaCom BP-500R2 Remote Beltpack for ProLink 500 Intercom (Frequency 2) 3 x Rechargeable AA Batteries Gang Charger Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PortaCom BP-500R2 Remote Beltpack for ProLink 500 Intercom in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPortaCom BP-500R2 Specs | RF Frequency Range | 902-928 MHz (Frequency 2) | | Modulation | FSK | | Range | Up to 500' (152.4 m) (Line of Sight) | | Antenna | 1/2 Wavelength Dipole | | Power | 9 VDC, 1.2 ADC (3 x AA Batteries)
Up to 12 Hours of Operation | | Dimensions (HxWxD) | 4.5 x 6.25 x 3.75" (114 x 159 x 95 mm) | | Weight | 15 oz (0.42 kg) (With Batteries) | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 8.347 x 5.039 x 2.52" |
