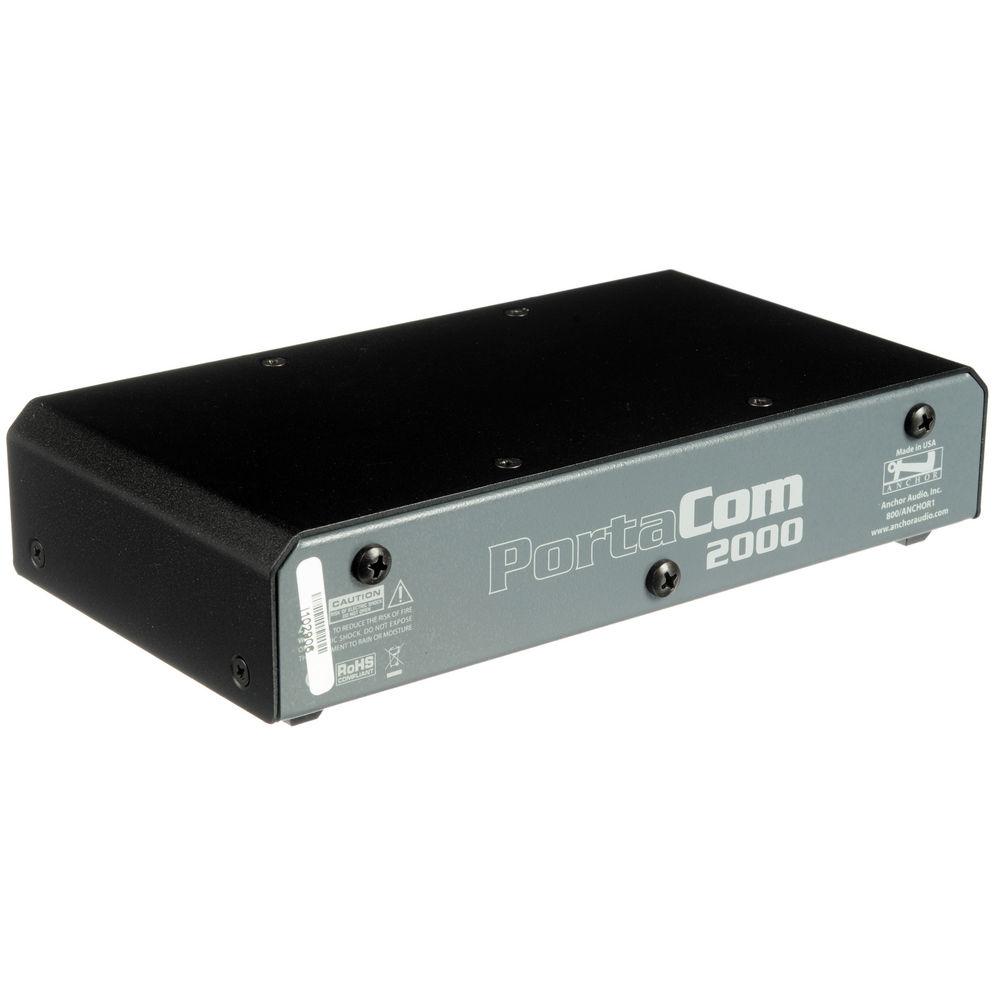

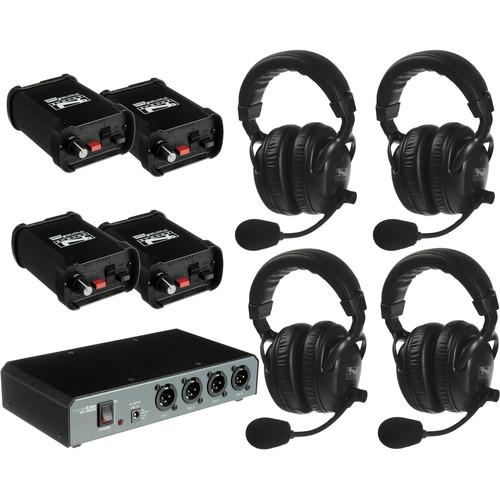

Product description The Portacom COM-40FC is a low-cost, complete wired intercom system that serves the production communication needs of video and film, broadcast sporting events, cable access television, houses of worship, and educational institutions.The COM-40FC is a two-channel wired intercom system, consisting of a central power supply, 4 belt packs, featuring a volume control knob and call light, mic on/off and A/B channel select buttons, a branch box, and 4 dual, noise cancelling headsets with an adjustable dynamic microphone. A rugged, foam lined carrying case holds the system in place for transportation and storage. The COM-40FC offers support of up to twenty headsets, made possible by the use of separately purchased, additional branch-box expander units, and connections are made via standard 3-pin XLR cables. The system provides either AC or battery powered operation, and the portable base station power supply may also be rackmounted. - PC-100 PortaCom Two-channel Power Console

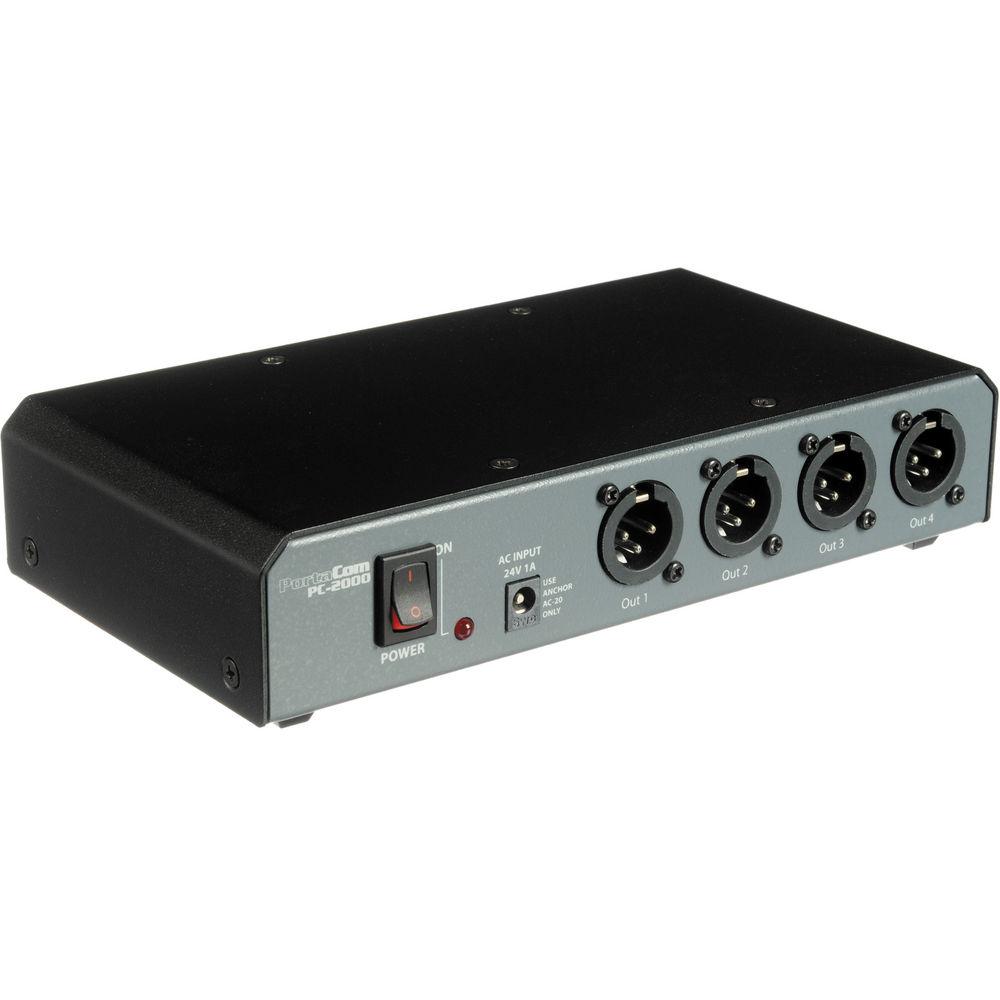

- Two channel power console with four outputs; powers up to 20 BP-200 belt packs with purchase of additional branch box expander units
- Powers 8-10 headsets for 6-8 hours
- Powers system via non-US (European) wall current

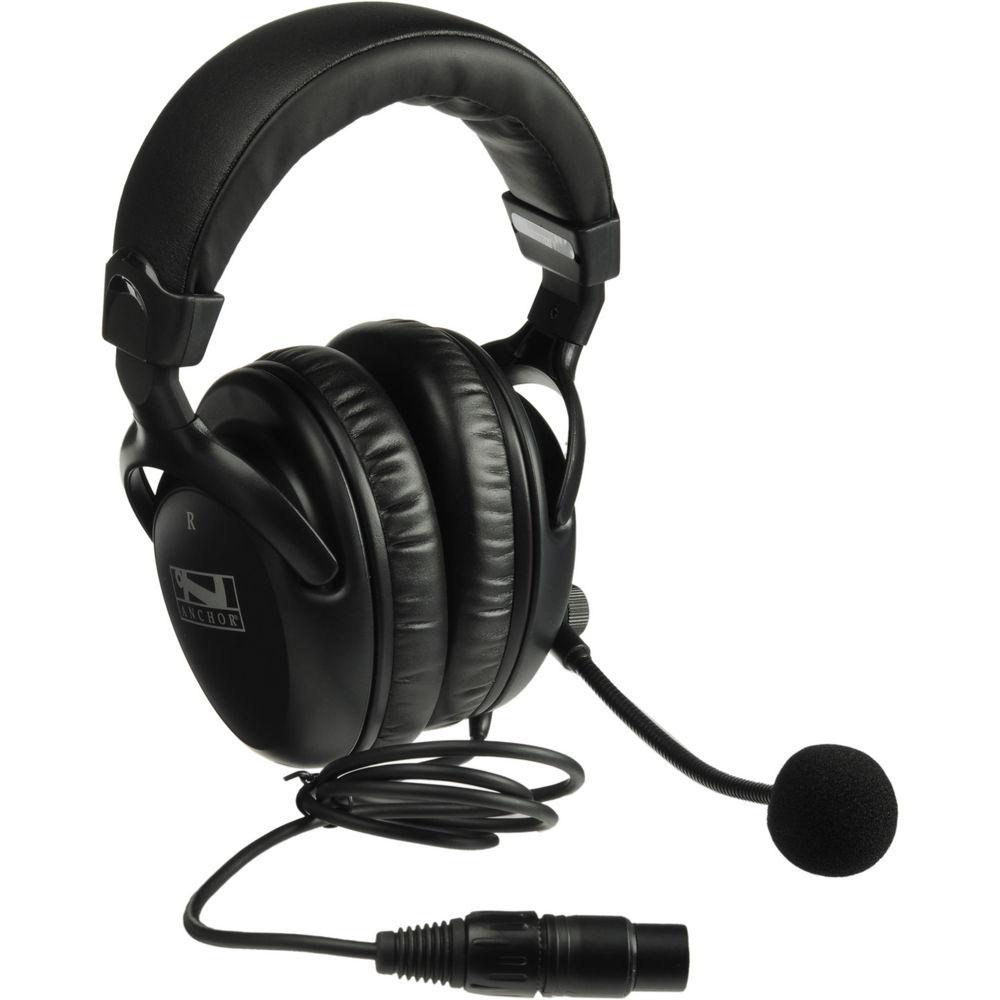

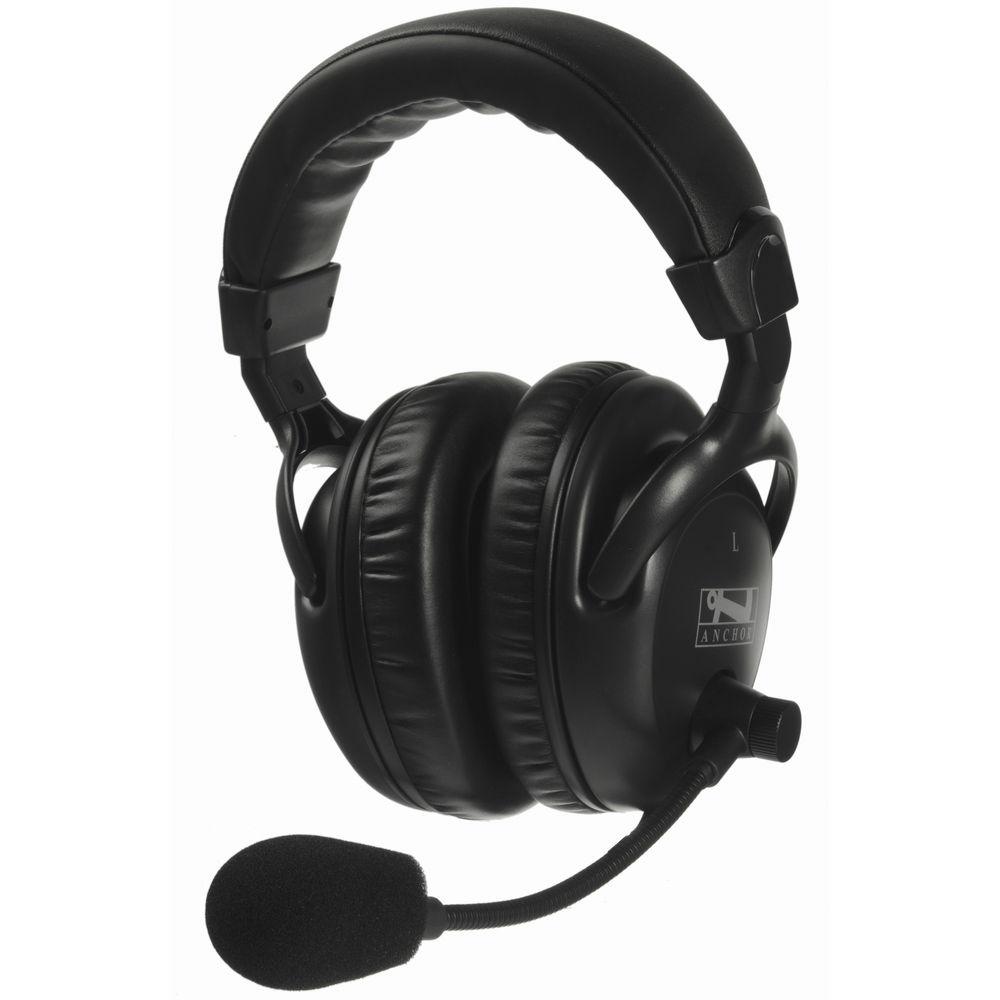

- H-200 Dual Earpiece Headset
- Lo-Z dynamic mic and headphones with 6' cable and XLR-4 connector
- Noise cancelling, adjustable dynamic microphone

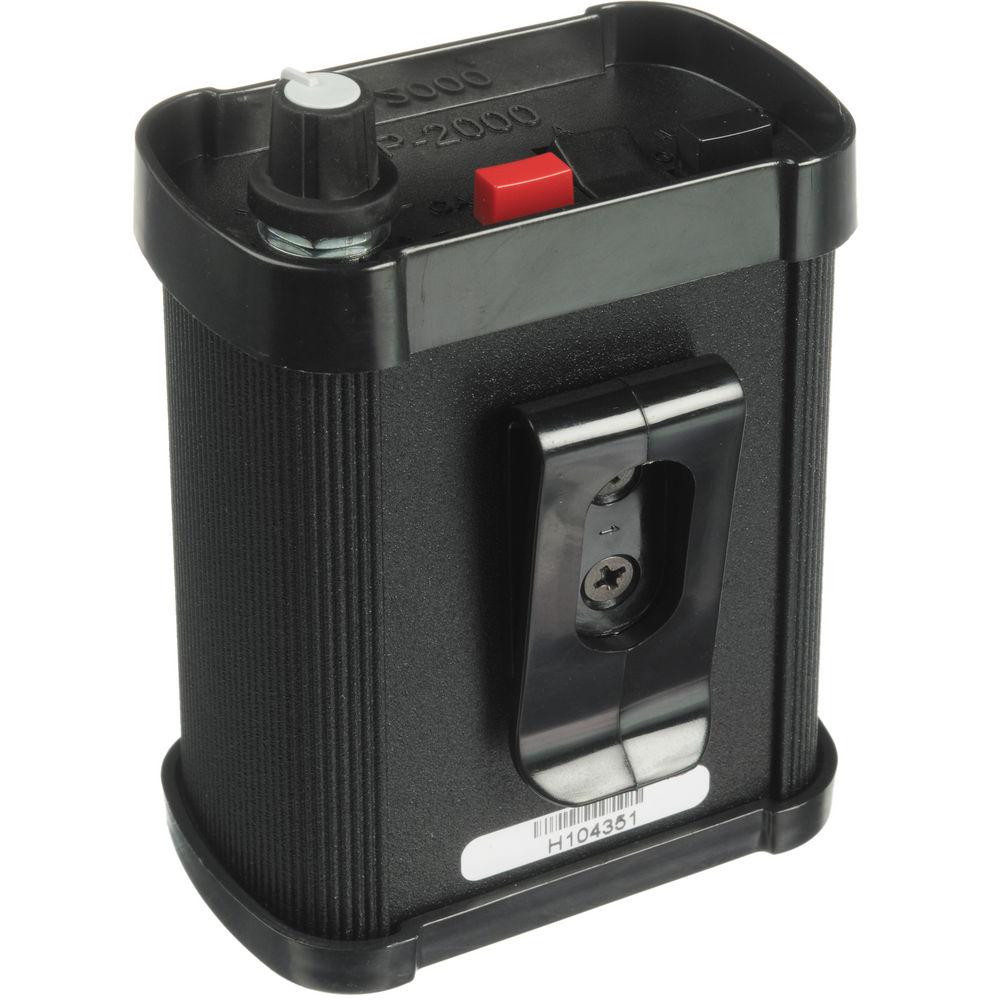

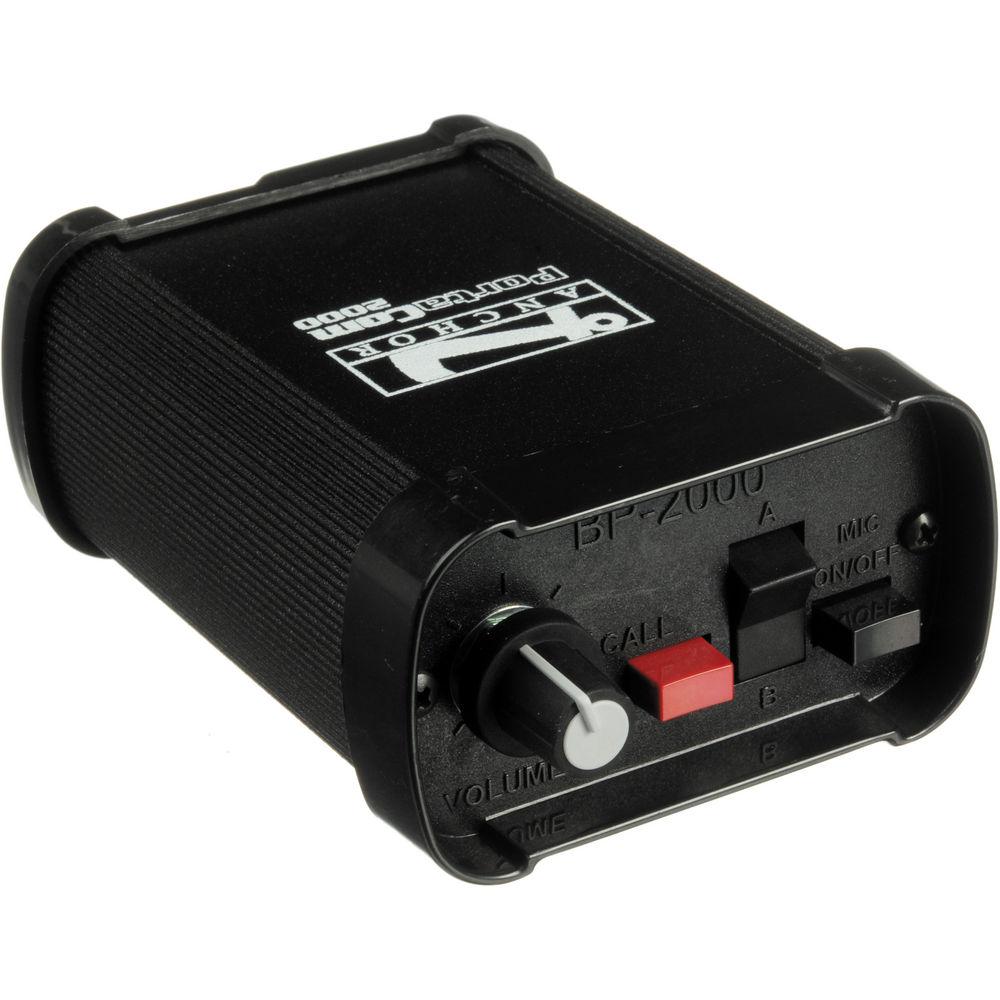

- Small lightweight belt pack with volume control, A/B channel switch, mic on/off switch, call light and call button

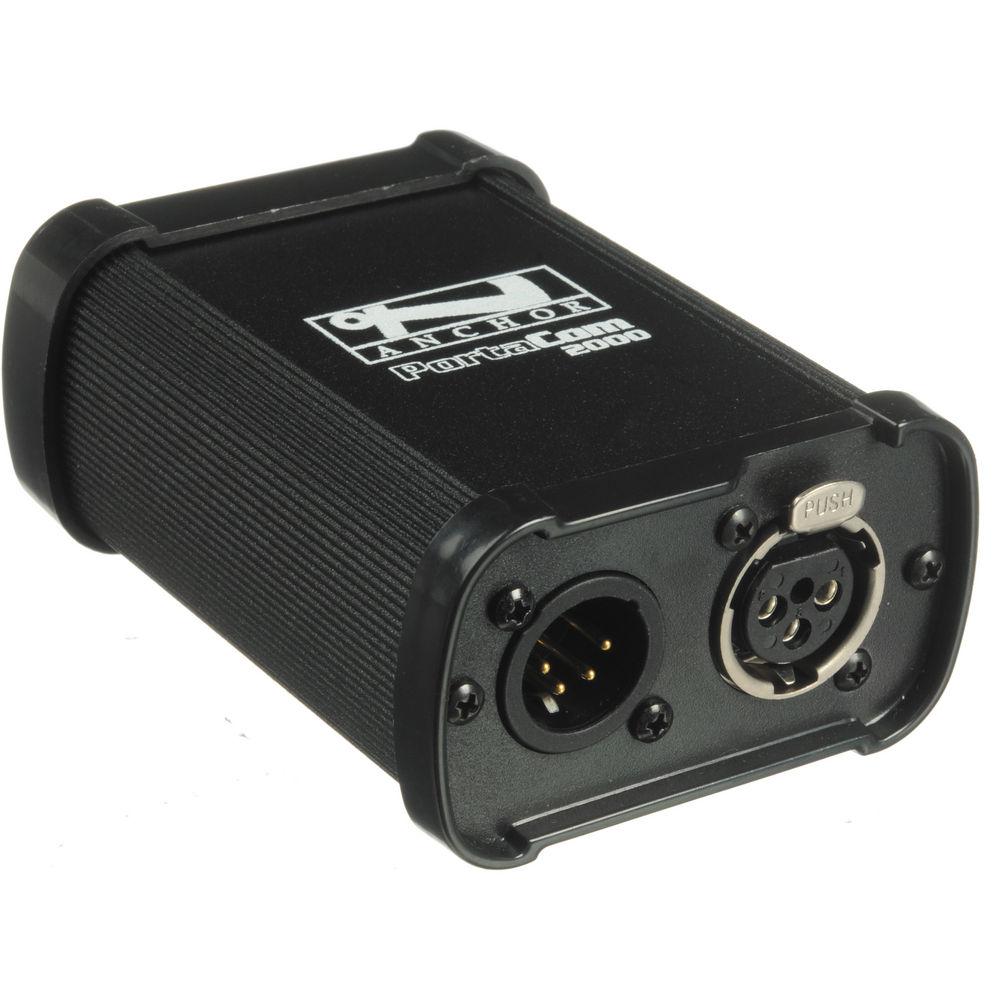

- Has standard XLR-3 line connector and XLR-4 headset connector
- Rugged aluminum construction

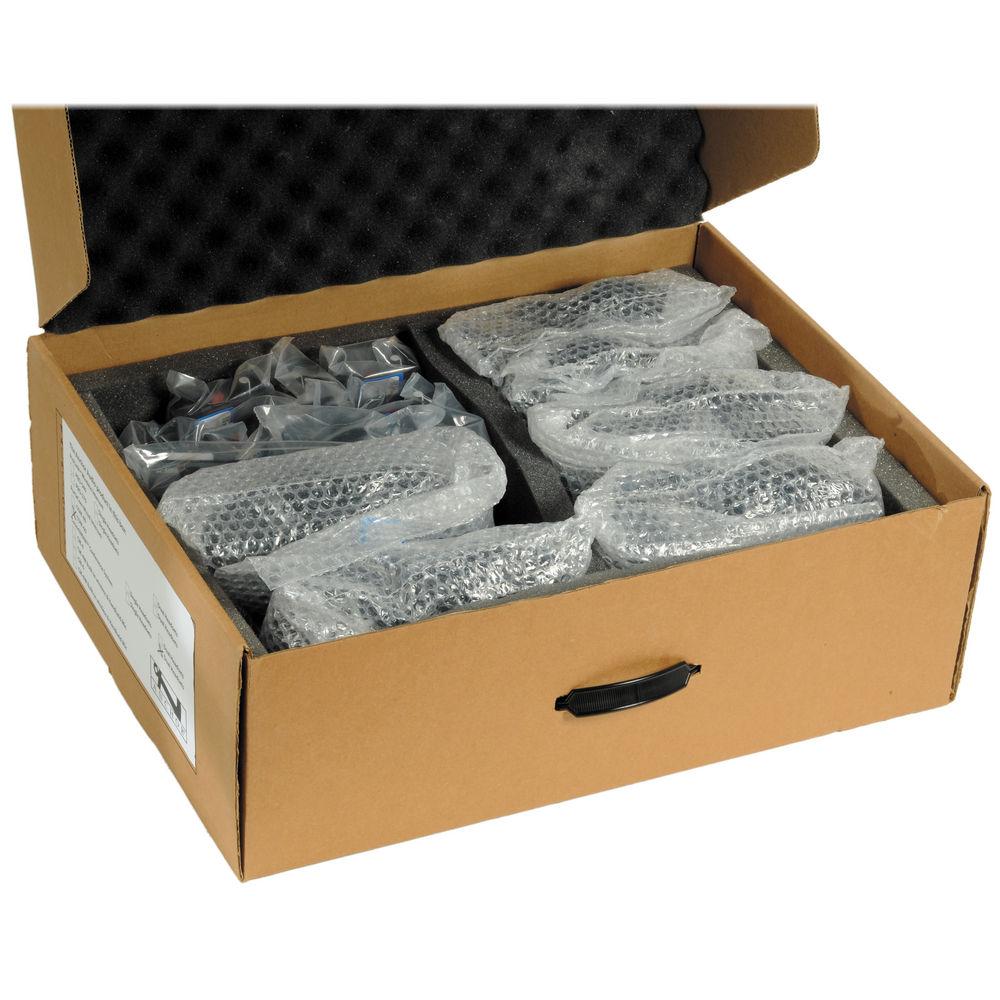

UPC: 643906939953 In the Box PortaCom COM-40FC 4 Headset Intercom System with Foam Insert Case PC-100 Powering Console AC-20 Power Supply 4 x H-200 Headsets 4 x BP-200 Beltpacks 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PortaCom COM-40FC 4 Headset Intercom System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPortaCom COM-40FC-D Specs | | | Type | Two-channel Wired Intercom | | Operating Range | 2,500' (762 m) | | Nominal Line Level | -15 dBv | | Signal-to-Noise Ratio | -65 dB | | Channel Separation | -45 dB | | Distortion | < 0.5% | | Interconnecting Cable | 3-pin XLR Male to Female, Standard 1-pair, Shielded | | | | Type | PC-100 Two-Channel Power Console with External AC Power Adapter | | # of Output Connectors | 4 x 3-Pin XLR Male | | Voltage Output to Belt Packs | 22 V DC | | Maximum Current Capacity | 400 mA | | Maximum # of Belt Packs | 20 BP-100 Belt Packs | | Input Power Requirement | 24 V AC, 50/ 60 Hz, 750 mA
30-40 V DC, 500 mA | | Dimensions | 1.75 x 8.5 x 4.5" (45 x 216 x 114mm) | | Weight | 3.6 lbs. (1.7 Kg.) | | | | Type | BP-200 Belt Pack with Volume Control, A/B Channel Switch, Microphone Mute Switch and Call Light | | Input Line Connector | 3-Pin XLR Female | | Headset Connector | 4-Pin XLR Male | | Bridging Impedance | 10k Ohms Minimum | | DC Current Requirements | 20 mA Maximum | | Dimensions | 3.6 x 2.6 x 2.1" (91 x 66 x 53 mm) DxWxH | | Weight | 0.46 lbs. (0.2 Kg.) | | | | Input Line Connector | 1 x 3-pin XLR Female | | # of Output Connectors | 3 x XLR Male | | Dimensions | 1.9 x 4.1 x 4.25" (48 x 105 x 108mm) | | Weight | 1.2 lb (0.5 kg) | | | | Type | H-200 Dual Earpiece Headset | | Microphone | Yes, Lo-Z/Dynamic, Noise Cancelling Microphone | | Type of Connector | 4-Pin XLR Male | | Cable Length | 6' (1.8 m) | | Dimensions | 3.5 x 7.4 x 7.9" (89 x 188 x 201mm) | | Weight | 16 oz (453.4 g) | | | | Package Weight | 15.5 lb | | Box Dimensions (LxWxH) | 24.5 x 20.0 x 10.0" |
