User Manual for PortaCom COM-60FC 6 Headset Wired Intercom System Click to enlarge the picture
Contents of the user manual for the PortaCom COM-60FC 6 Headset Wired Intercom
- Product category: Wired Intercoms PortaCom
- Brand: PortaCom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PortaCom Wired Intercoms
 |
User manual for the PortaCom COM-60FC 6 Headset Wired Intercom contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PortaCom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PortaCom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PortaCom product will considerably shorten its lifespan!
|
Product description The Portacom COM-60FC is a low-cost, complete wired intercom system that serves the production communication needs of video and film, broadcast sporting events, cable access television, houses of worship, and educational institutions.The COM-60FC is a two-channel wired intercom system, consisting of a central power supply, 6 belt packs, featuring a volume control knob and call light, mic on/off and A/B channel select buttons, a branch box, and 6 dual, noise cancelling headsets with an adjustable dynamic microphone. A rugged, foam lined carrying case holds the system in place for transportation and storage.The COM-60FC offers support of up to twenty headsets, made possible by the use of separately purchased, additional branch-box expander units, and connections are made via standard 3-pin XLR cables. The system provides AC powered operation, and the portable base station power supply may also be rackmounted. - Two-channel power console with four outputs; powers up to 20 BP-200 beltpacks with purchase of additional branch box expander units
- Powers system via US wall current

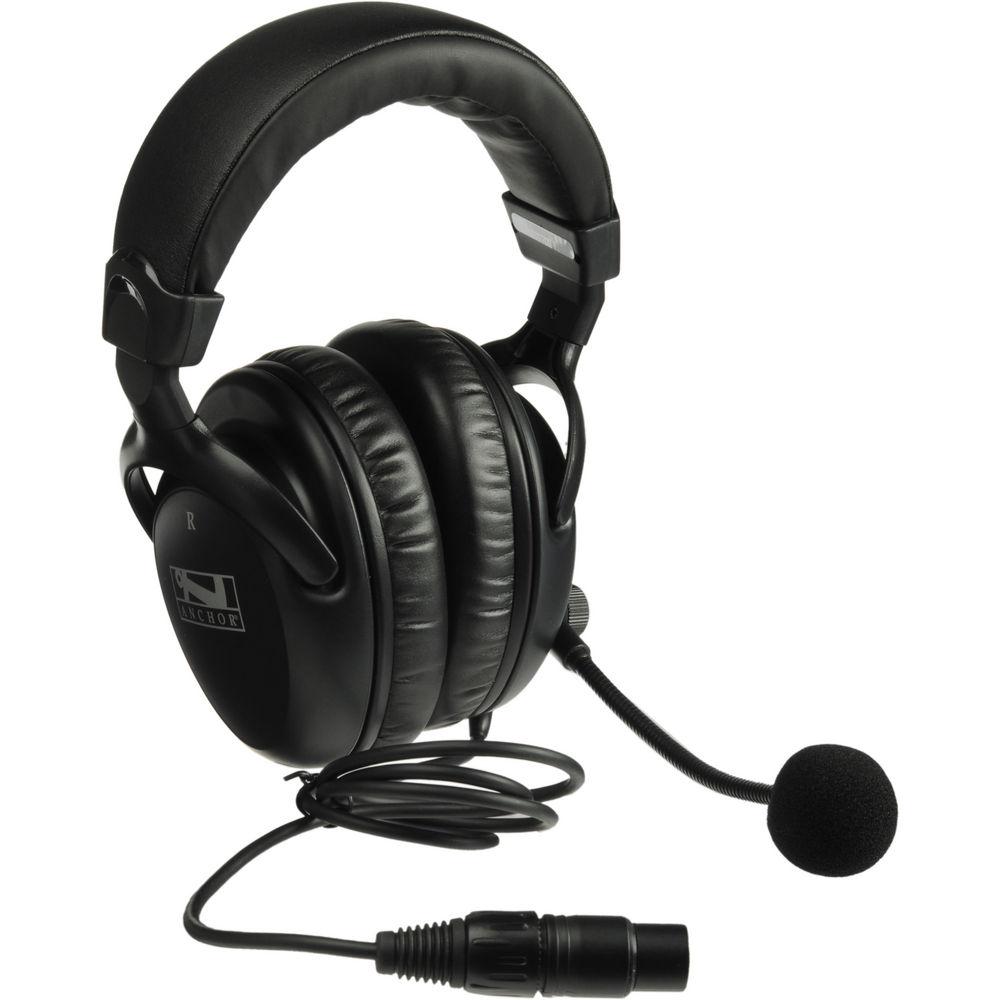

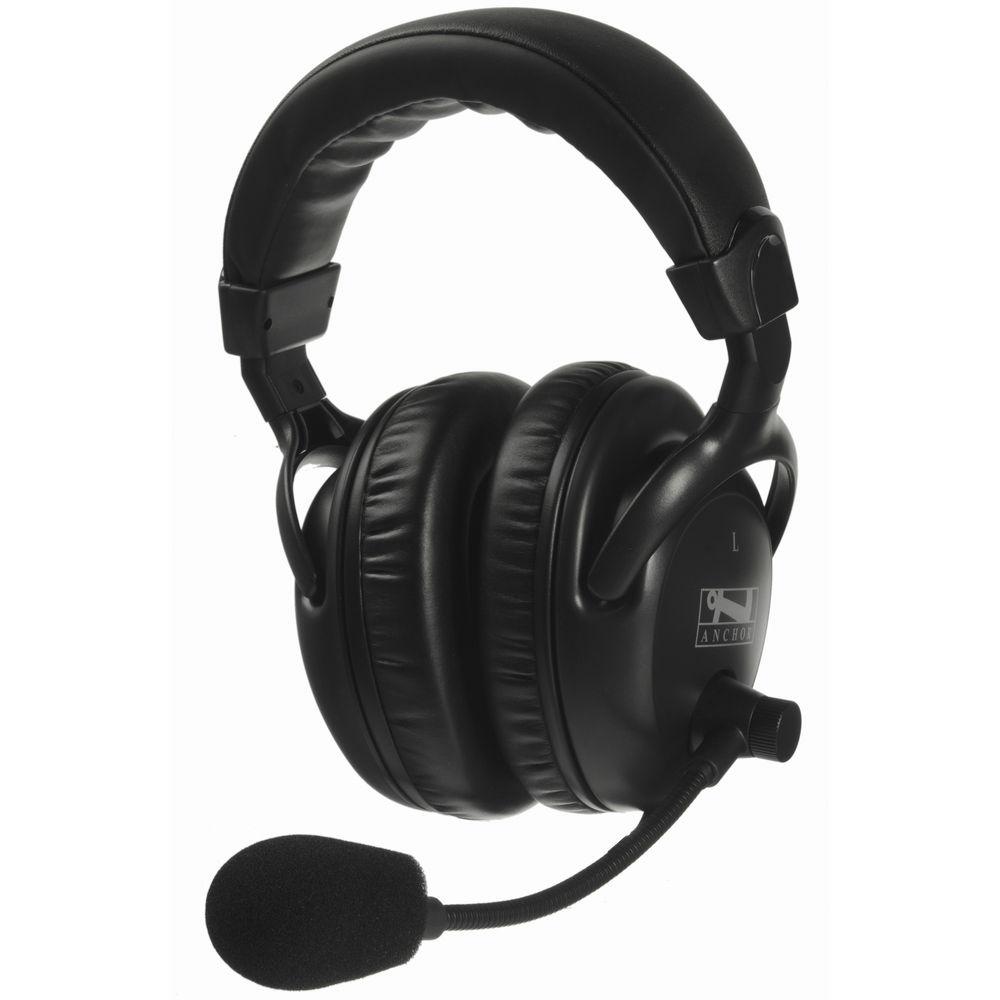

- H-200 Dual Earpiece Headset
- Lo-Z dynamic mic and headphones with 6' cable and XLR-4 connector
- Noise cancelling, adjustable dynamic microphone

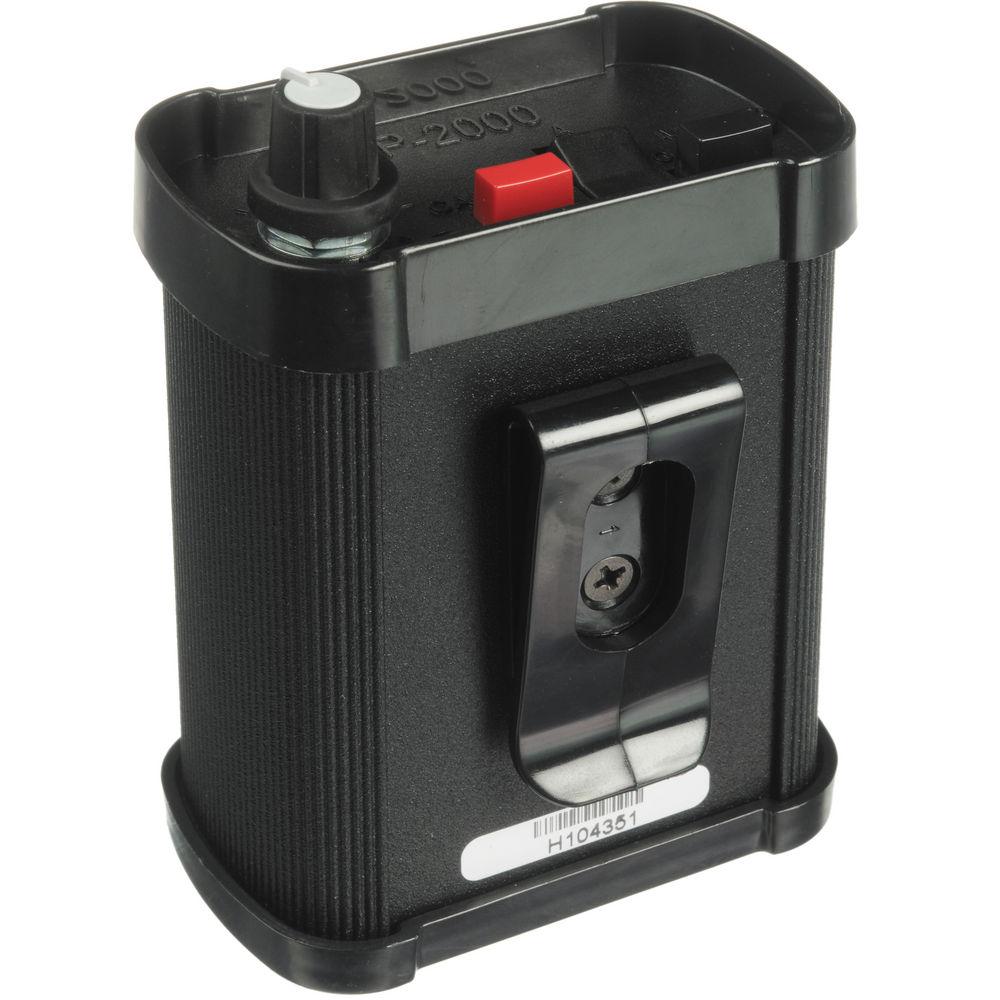

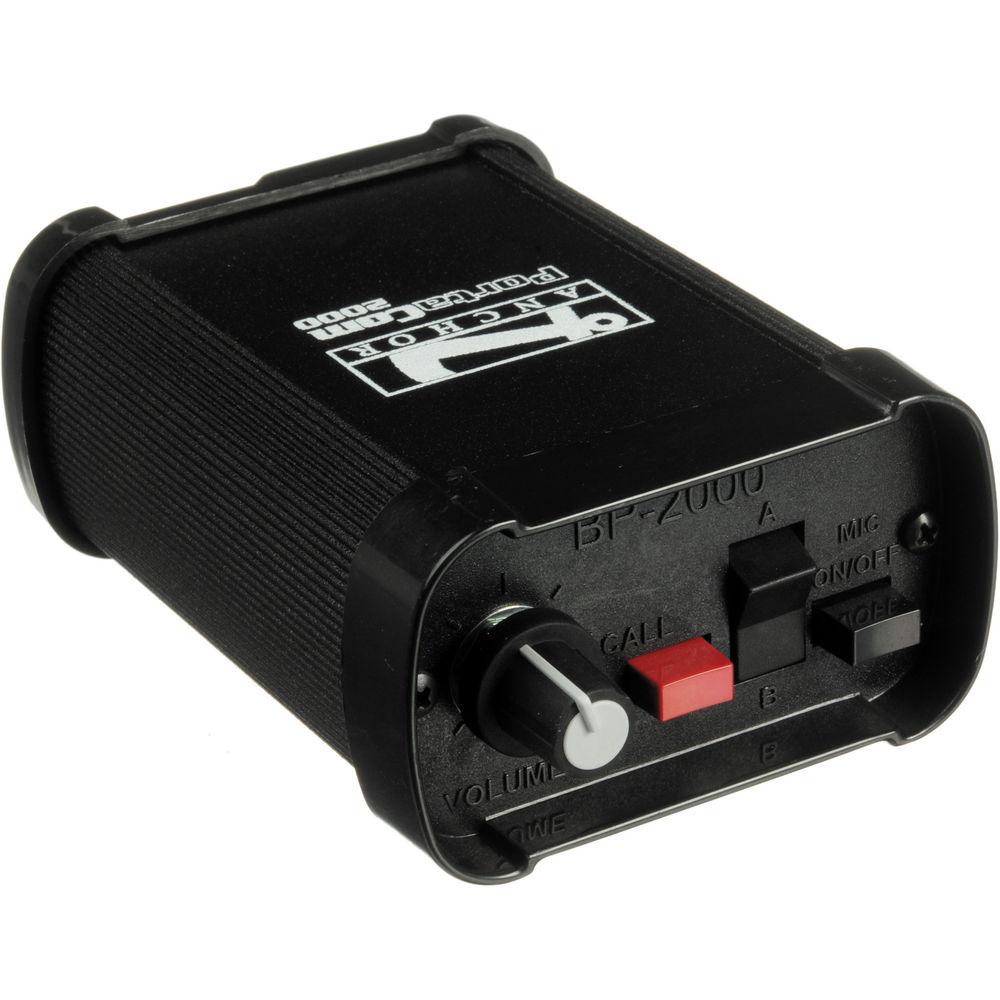

- Small lightweight belt pack with volume control, A/B channel switch, mic on/off switch, call light and call button

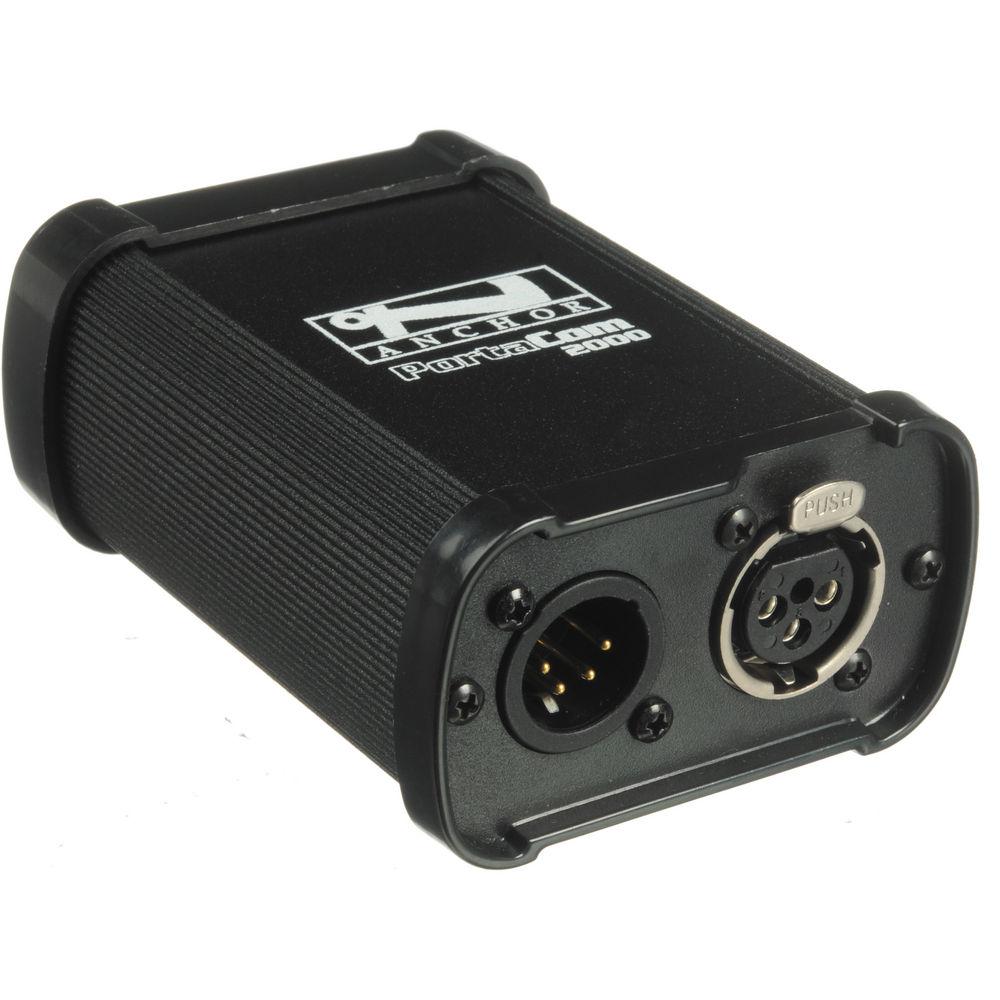

- Has standard XLR-3 line connector and XLR-4 headset connector
- Rugged aluminum construction

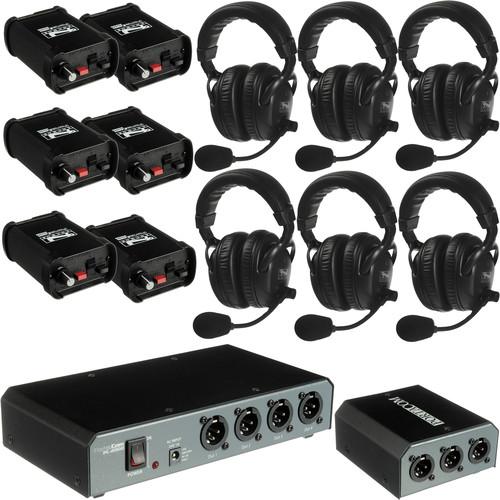

UPC: 643906939977 In the Box PortaCom COM-60FC 6 Headset Wired Intercom System PC-100 Powering Console AC-20 Power Supply 6 x H-200 Headsets 6 x BP-200 Beltpacks B3-2000 Branch Box Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PortaCom COM-60FC 6 Headset Wired Intercom System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

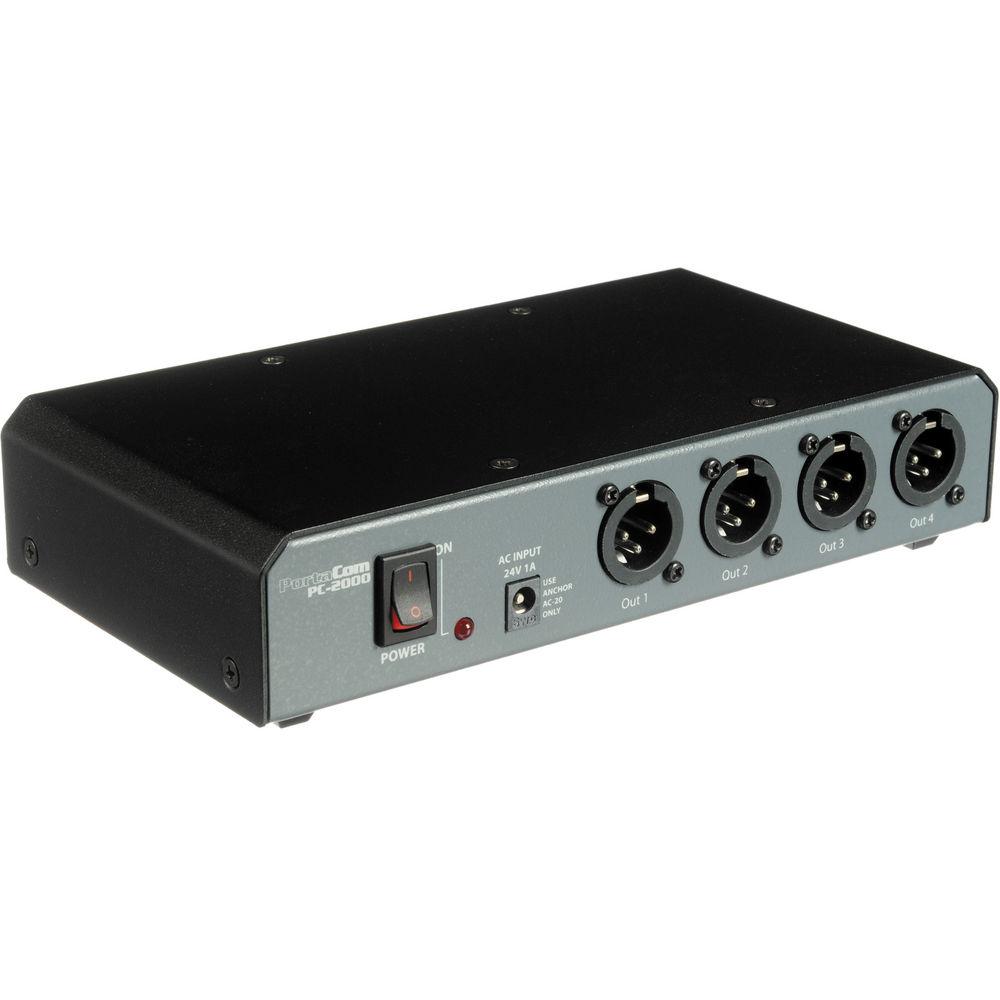

Technical parametersPortaCom COM-60FC-D Specs | | | Type | Two-channel Wired Intercom | | Operating Range | 2500' / 762 m | | Nominal Line Level | -15 dBv | | Signal-to-Noise Ratio | -65 dB | | Channel Separation | -45 dB | | Distortion | < 0.5% | | Interconnecting Cable | 3-pin XLR Male to Female, Standard 1-pair, Shielded | | | | Type | PC-2000 Two-Channel Power Console with External AC Power Adapter | | # of Output Connectors | 4 x 3-Pin XLR Male | | Voltage Output to Belt Packs | 22 VDC | | Maximum Current Capacity | 400 mA | | Maximum # of Belt Packs | 20 BP-100 Belt Packs | | Input Power Requirement | 24 VAC, 50/ 60 Hz, 750 mA

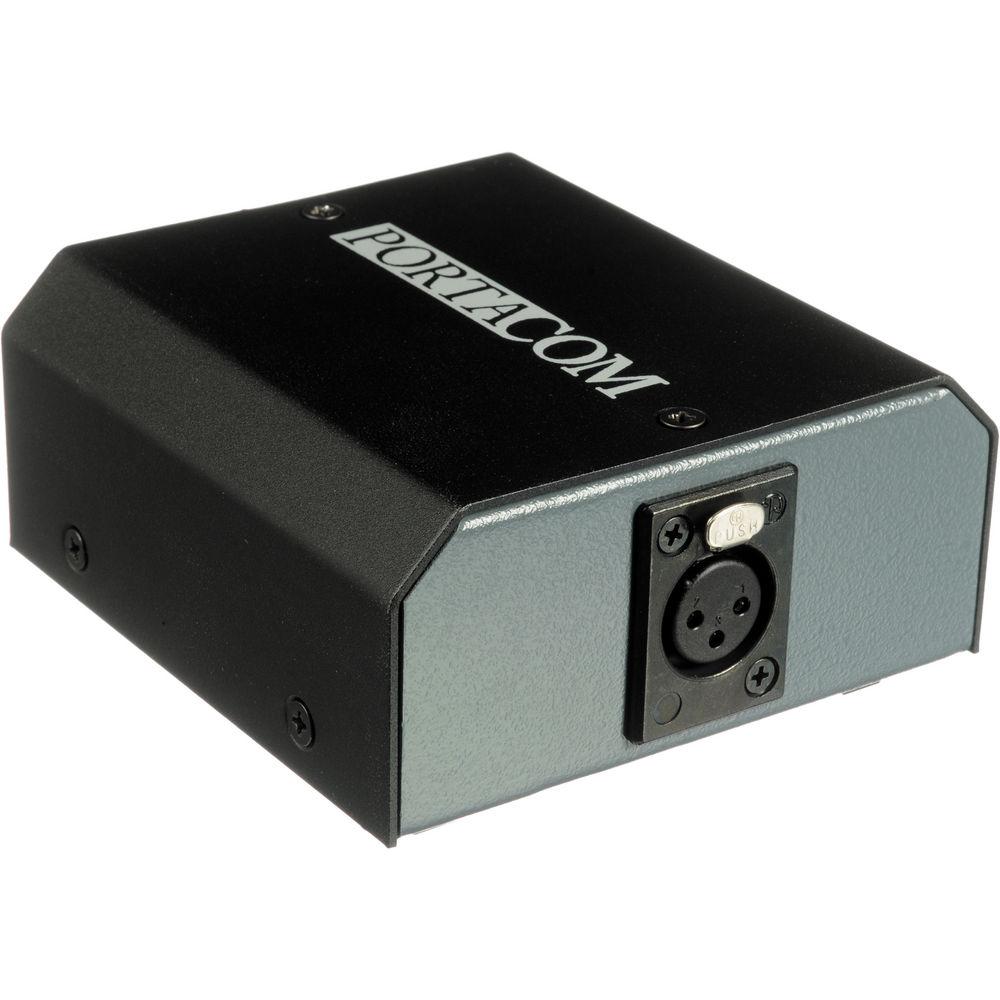

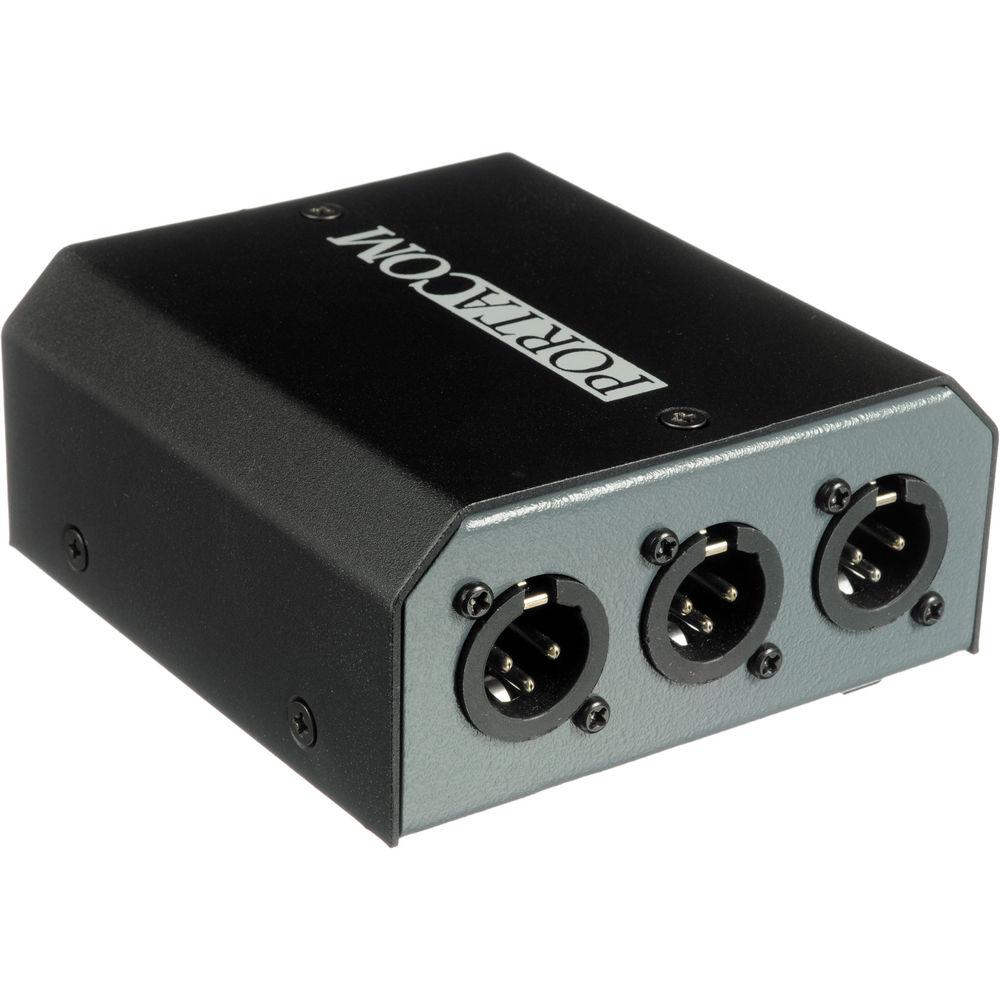

30 to 40 VDC, 500 mA | | Power Adapter (Included) | AC | | Dimensions | 1.75 x 8.5 x 4.5" / 45 x 216 x 114 mm | | Weight | 3.6 lb / 1.7 kg | | | | Type | BP-200 Belt Pack with Volume Control, A/B Channel Switch, Microphone Mute Switch and Call Light | | Input Line Connector | 3-Pin XLR Female | | Headset Connector | 4-Pin XLR Male | | Bridging Impedance | 10k Ohms Minimum | | DC Current Requirements | 20 mA Maximum | | Dimensions | 3.6 x 2.6 x 2.1" (91 x 66 x 53 mm) DxWxH | | Weight | 0.46 lbs. (0.2 Kg.) | | | | Input Line Connector | 1 x 3-pin XLR Female | | # of Output Connectors | 3 x XLR Male | | Dimensions | 1.9 x 4.1 x 4.25" (48 x 105 x 108mm) | | Weight | 1.2 lb (0.5 kg) | | | | Type | H-200 Dual Earpiece Headset | | Microphone | Yes, Lo-Z/Dynamic, Noise Cancelling Microphone | | Type of Connector | 4-Pin XLR Male | | Cable Length | 6' (1.8 m) | | Dimensions | 3.5 x 7.4 x 7.9" (89 x 188 x 201mm) | | Weight | 16 oz (453.4 g) | | | | Package Weight | 19.35 lb | | Box Dimensions (LxWxH) | 25.0 x 20.8 x 10.5" |
