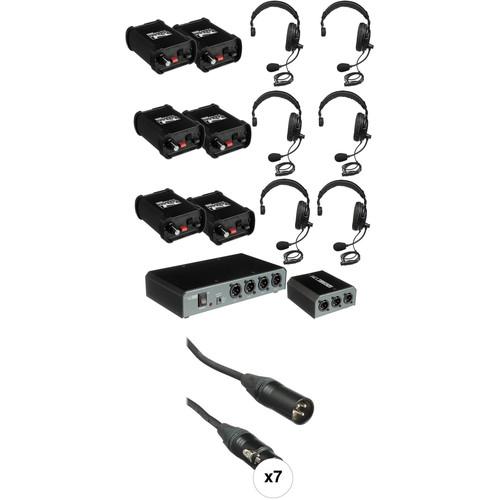

User Manual for PortaCom COM-60FCS 6 Headset Intercom System with Cables & Single-Sided Headsets Kit Click to enlarge the picture
Contents of the user manual for the PortaCom COM-60FCS 6 Headset Intercom System
- Product category: Wired Intercoms PortaCom
- Brand: PortaCom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PortaCom Wired Intercoms
|
User manual for the PortaCom COM-60FCS 6 Headset Intercom System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PortaCom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PortaCom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PortaCom product will considerably shorten its lifespan!
|
Product description The COM-60FCS 6 Headset Intercom System with Cables & Single-Sided Headsets Kit from B&H is a two-channel wired intercom system consisting of a central power supply; 6 beltpacks featuring a volume control knob and call light, mic on/off and A/B channel select buttons; a branch box; and 6 single, noise-cancelling headsets with an adjustable dynamic microphone. The kit comes with all the necessary cabling and a rugged, foam-lined carrying case holds the system in place for transportation and storage. - PortaCom COM-60FCS 6 Single Headset Wired Intercom System The Portacom COM-60FCS is a low-cost, complete wired intercom system that serves the production communication needs of video and film, broadcast sporting events, cable access television, houses of worship, and educational institutions.The COM-60FCS is a two-channel wired intercom system, consisting of a central power supply, 6 beltpacks, featuring a volume control knob and call light, mic on/off and A/B channel select buttons, a branch box, and 6 single-sided, noise cancelling headsets, with an adjustable dynamic microphone. A rugged, foam lined carrying case holds the system in place for transportation and storage.The COM-60FCS offers support of up to twenty headsets, made possible by the use of separately purchased, additional branch box expander units, and connections are made via standard 3-pin XLR cables. The system provides AC powered operation, and the portable base station power supply may also be rackmounted.
- PC-2000 PortaCom Two-channel Power Console
- Two-channel power console with four outputs; powers up to 20 BP-200 belt packs with purchase of additional branch box expander units
- H-200S Single Earpiece Headset
- Lo-Z dynamic mic and headphone with 6' cable and XLR-4 connector
- Noise cancelling, adjustable dynamic microphone
- Small, lightweight beltpack with volume control, A/B channel switch, mic on/off switch, call light and call button
- Has standard XLR-3 line connector and XLR-4 headset connector
- Rugged aluminum construction
- 7 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 30' (9.1 m), Black The black Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable (30') is designed to be an extremely quiet and flexible cable that is ideal for the most demanding live sound and performance applications. The cable is engineered to be durable and to provide protection against EMI, RFI, and static noise. While the cable's color-coding affords the ability to quickly differentiate between multiple connections on stage, it provides a pleasant aesthetic quality at the same time.
Premium Performance 3000 Series cables are made from 24-AWG OFC copper wire that's wrapped with PE insulation and a conductive PVC inner shield. A cotton-yarn inner layer helps reduce electrostatic and microphonic noise. 95% dual-spiral shielding makes the cable resistant to EMI and RFI noise. The Neutrik XX silver connectors provide a high level of connectivity, and all the solder connections are shrink-wrapped for protection. - 95% dual-spiral shielding offers protection from EMI and RFI noise
- Twin conductive PVC inner shielding provides 100% coverage of the core conductor. It helps keep the cable's signal from radiating and affecting nearby cables, and also helps prevent external EMI from penetrating to the cable's core
- 24-AWG oxygen-free stranded copper inner core provides the best possible conductivity
- Cotton yarn reduces electrostatic and microphonic noise
- All solder points shrink-wrapped for protection
- Neutrik XX silver connectors offer high conductivity
- Caged type contact and improved ground contact
UPC: 847628558328 In the Box - COM-60FCS 6 Single-Sided Headset Wired Intercom System xcawywzrtq
- PC-100 Powering Console
- AC-20 Power Supply
- 6 x H-200S Headsets
- 6 x BP-200 Beltpacks
- B3-100 Branch Box
- 1 Year Warranty
- 7 x Kopul - Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 30' (9.1 m), Black xcawywzrtq
Table of Contents
|
Upload User Manual
Have you got an user manual for the PortaCom COM-60FCS 6 Headset Intercom System with Cables & Single-Sided Headsets Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - PortaCom COM-60FCS 6 Single Headset Wired Intercom System
| | | Type | Two-channel wired intercom | | Operating Range | 2500' / 762 m | | Nominal Line Level | -15 dBv | | Signal-to-Noise Ratio | -65 dB | | Channel Separation | -45 dB | | Distortion | < 0.5% | | Interconnecting Cable | 3-pin XLR Male to Female, Standard 1-pair, Shielded | | | | Type | PC-2000 Two-Channel Power Console with External AC Power Adapter | | # of Output Connectors | 4 x 3-Pin XLR Male | | Voltage Output to Belt Packs | 22 VDC | | Maximum Current Capacity | 400 mA | | Maximum # of Belt Packs | 20 BP-100 beltpacks | | Input Power Requirement | 24 VAC, 50/ 60 Hz, 750 mA
30 to 40 VDC, 500 mA | | Power Adapter | AC-20 (included) | | Dimensions | 1.75 x 8.5 x 4.5" / 45 x 216 x 114 mm | | Weight | 3.6 lb / 1.7 kg | | | | Type | BP-200 Beltpack with volume control, A/B channel switch, microphone mute switch and call light | | Input Line Connector | 3-Pin XLR Female | | Headset Connector | 4-Pin XLR Male | | Bridging Impedance | 10 kOhms (Minimum) | | DC Current Requirements | 20 mA Maximum | | Dimensions | 3.6 x 2.6 x 2.1" / 91 x 66 x 53 mm (DxWxH) | | Weight | 0.46 lb / 0.2 kg | | | | Input Line Connector | 1 x 3-pin XLR Female | | # of Output Connectors | 3 x XLR Male | | Dimensions | 1.9 x 4.1 x 4.25" / 48 x 105 x 108 mm | | Weight | 1.2 lb / 0.5 kg | | | | Type | H-200S Single Earpiece Headset | | Microphone | Yes, Lo-Z/dynamic, noise cancelling microphone | | Type of Connector | 4-Pin XLR Male | | Cable Length | 6' / 1.8 m | | Dimensions | 3.5 x 7.4 x 7.9" / 89 x 188 x 201 mm | | Weight | 13 oz / 453.4 g | | | | Box Dimensions (LxWxH) | 24.8 x 20.6 x 10.3" | - 7 x Kopul Premium Performance 3000 Series XLR M to XLR F Microphone Cable - 30' (9.1 m), Black
| Connector 1 | 3-Pin XLR Male | | Connector 2 | 3-Pin XLR Female | | Cable Length | 30' / 9 m | | Shielding | 95% Spiral | | Wire Gauge | 24 AWG | | Contact Plating | Silver | | | | Box Dimensions (LxWxH) | 9.1 x 8.2 x 0.9" |
