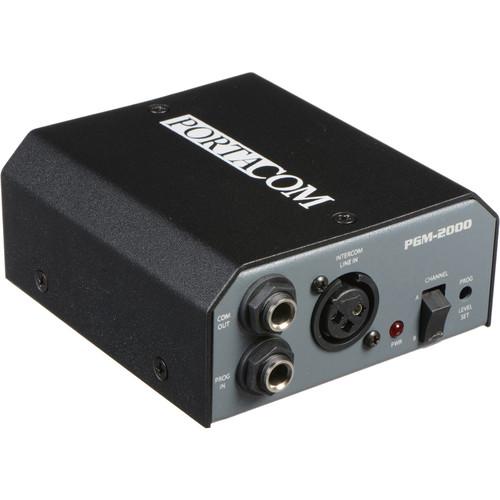

User Manual for PortaCom PGM-2000 2-Channel Program Insertion Station Click to enlarge the picture
Contents of the user manual for the PortaCom PGM-2000 2-Channel Program Insertion Station
- Product category: Wired Intercoms Others
- Brand: Others
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Others Wired Intercoms
|
User manual for the PortaCom PGM-2000 2-Channel Program Insertion Station contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Others product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Others user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Others product will considerably shorten its lifespan!
|
Product description The PortaCom PGM-2000 2-Channel Program Insertion Station from Anchor Audio Home is designed for use with the PortaCom intercom system. This program insertion station provides the means to insert a program audio (from a tape player, mixer, or stage mic) onto the intercom line. The front panel has the main operator controls including the Channel A/B switch, Power Indicator, and Program Level Setting. It also has connectors for the Intercom Line In, Program In, and Intercom Out. The rear panel has 3 connectors including the Loop Thru for system connections and expansion, Normal A / Isolated C, and a balanced Intercom Line Out Only connection. Note: Program cannot be inserted on isolated channel C unless a second PGM-2000 station is used in the system configuration. - PGM-2000 Front Panel Connections and Operation
- Intercom Line In Connector: The 3-pin female XLR-type connector accepts intercom signals from the PC-2000 2-Channel Power Console. This is the standard input for the PGM-2000 station. Program In Connector: The 1/4” phone connector accepts the line-level output from a mixer or tape player, and inserts that music / program material into the connected intercom system. Intercom Out Connector: The 1/4” phone connector provides a line-level composite of the intercom signal as an output to connect to a recorder or a remote amplified speaker. Channel A/B Switch: Select the channel (A or B) when the program material will be inserted in the system. When using the Normal A / Isolated C output, no program material will be on this output when the channel switch is set to B position. Program Level Setting Adjustment Screw: Adjust the volume level of inserted program material as heard on the intercom system. Turn clockwise to increase the volume of the program material and counter-clockwise for lower volume. Power LED (Red): Indicator lights when power source is connected to the PGM-2000 station (There is no power on/off switch; power is supplied and controlled by the system’s PC-2000 2-Channel Power Console).
- PGM-2000 Rear Panel Connections
- Loop Thru Connector: It is a male XLR-3 connector, which along with the Intercom Line In Connector, forms a composite of the intercom signal and the inserted program material. This jack allows additional belt packs and/or branch boxes to be connected to the intercom system for normal operation. Normal A / Isolated C Connector: It is a male XLR-3 connector. When the Channel Switch is set to A the output functions like a standard intercom output (of the intercom material). No program material from the system will be inserted into this output when the Channel Switch is set to B. Connect belt packs (via B3-2000 Branch Box) to this input for Isolated Channel C operation. Intercom Line Out Connector: It is a transformer-balanced male XLR-3 connector that has the composite intercom signal and inserted program material for connection to an alternate location, recorder, or mixer.
UPC: 689466056754 In the Box PortaCom PGM-2000 2-Channel Program Insertion Station Limited 6-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PortaCom PGM-2000 2-Channel Program Insertion Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPortaCom PGM-2000 Specs | Input Connections | Channel A & B: 16 to 32 VDC on pin 2 with respect to pin 1 | | Current Drain | Input: 20 mA | | Program Input | Input Level: -10 to +4 dBU, 2k impedance
Frequency Response: 150 Hz to 8 kHz; +0, -6 dBU
(5,000' cable lowers response to 3 kHz) | | Program Output | Output Level: -10 to 0 dBU, 1k driving impedance
Frequency Response: Nominal: 150 Hz to 8 kHz; +0, -6 dBU
(5,000' cable lowers response to 3 kHz) | | Environmental | Operating Temperature: 32 to 158°F (0 to 70°C)
Storage Temperature: -40 to 185°F (-40 to 85°C) | | Dimensions (HxDxW) | 1.90 x 4.10 x 4.25" (50.00 x 103.00 x 110.00 mm) | | Weight | Approximately 2.0 lb (0.9 kg) | | | | Package Weight | 1.505 lb | | Box Dimensions (LxWxH) | 6.85 x 6.2 x 2.35" |
