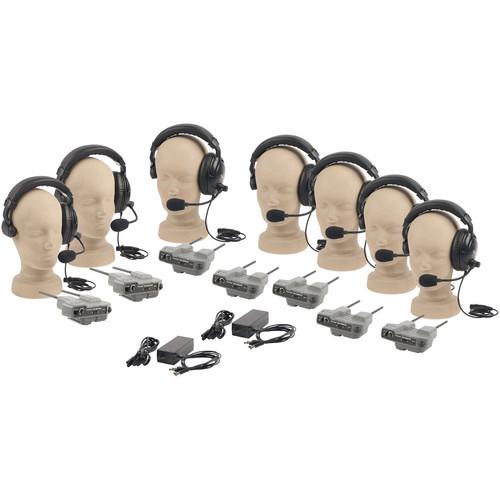

User Manual for PortaCom PRO-570S 7-User ProLink Single-Ear Wireless Beltpack Intercom System Click to enlarge the picture
Contents of the user manual for the PortaCom PRO-570S 7-User ProLink Single-Ear Wireless
- Product category: Wireless Intercoms PortaCom
- Brand: PortaCom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PortaCom Wireless Intercoms
|
User manual for the PortaCom PRO-570S 7-User ProLink Single-Ear Wireless contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PortaCom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PortaCom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PortaCom product will considerably shorten its lifespan!
|
Product description The PRO-570S 7-User ProLink Single-Ear Wireless Beltpack Intercom System from PortaCom is a complete 7-user wireless intercom system. It includes a pair of master beltpacks, 5 remote beltpacks, and 7 single-ear headsets. Each beltpack features a compact and portable design and offers full-duplex communication without the need for a base station. In addition to the included beltpacks, the system supports an unlimited number of listen-only beltpacks for clear communication at distances up to 500' away. Each master beltpack has an LED indicator that flashes red when it is transmitting to a remote beltpack. In this system, 2 remotes will always be on "Channel A" with 1 master, while another 2 remotes will be on "Channel B" with the other master. The final remote can switch between channels A and B.
Each beltpack has an A/B channel selector, a power/volume knob, and a mic gain control to precisely adjust the operation to meet your needs. A push-to-talk button lets you communicate at will, while the "always on" slide switch lets you talk freely without using the PTT button. The beltpack has a 4-pin XLR headset connector for use with the included headsets, or any headset with a dynamic microphone. Each beltpack operates on a set of 3 AA rechargeable batteries and has a charging port for quick charging with the included gang charger.
Each of the included headsets has an adjustable headband and a thick around-ear cushion for lasting comfort. The ear cushions and closed-back earcups also help to block out environmental noise. The dynamic noise-canceling microphone sits at the end of a flexible gooseneck for precise positioning and optimal vocal pickup. The single-sided cable helps to minimize tangles.
This system includes the following items, plus additional accessories:
2 x BP-500M Master Beltpacks
1 x BP-500R1 Remote Beltpack
2 x BP-500R2 Remote Beltpacks
2 x BP-500R3 Remote Beltpacks
7 x Single-Ear Headsets - Compact and portable design provides full-duplex communication without the need for a base station
- Operates in the 902-928MHz frequency band, and no FCC license is required
- Includes 2 master and 5 remote beltpacks. You can also add an unlimited number of listen-only beltpacks for clear communication at distances up to 500' away
- This system is configured so 2 remotes will always be on "Channel A" with 1 master, while another 2 remotes will be on "Channel B" with the other master. The final remote can switch between channels A and B
- LED indicators flash red when transmitting. Each beltpack also has a power/low battery indicator and an out-of-range indicator
- Each beltpack has an A/B channel selector, power/volume knob, and a mic gain control to precisely adjust the operation to meet your needs
- Push-to-talk button lets you communicate at will, while the "always on" slide switch lets you talk freely without using the PTT button
- 4-pin XLR headset connector for use with the included headsets, or any headset with a dynamic microphone
- Each beltpack operates on a set of 3 AA rechargeable batteries and has a charging port for quick charging in the included gang charger
- Each headset has an adjustable headband and a thick around-ear cushion for lasting comfort
- The ear cushions and closed-back earcups help to block out environmental noise
- The dynamic noise-canceling microphone sits at the end of a flexible gooseneck for precise positioning and optimal vocal pickup
- The single-sided cable helps to minimize tangles
In the Box PortaCom PRO-570S 7-User ProLink Single-Ear Wireless Beltpack Intercom System 2 x BP-500M Master Beltpack for ProLink 500 Intercom BP-500R1 Remote Beltpack for ProLink 500 Intercom (Frequency 1) 2 x BP-500R2 Remote Beltpack for ProLink 500 Intercom (Frequency 2) 2 x BP-500R3 Remote Beltpack for ProLink 500 Intercom (Frequency 3) 7 x H2000S - Single-Sided Headset for Intercoms 2 x AC Gang Chargers 21 x Rechargeable AA Batteries 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PortaCom PRO-570S 7-User ProLink Single-Ear Wireless Beltpack Intercom System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPortaCom PRO-570 Specs | | | RF Frequency Range | 902-928MHz | | Modulation | FSK | | Range | Up to 500' (152.4 m) (Line of Sight) | | Antenna | 1/2 Wavelength Dipole | | Power | 9VDC, 1.2ADC (3 x AA Batteries)
Up to 12 Hours of Operation | | Dimensions (HxWxD) | 4.5 x 6.25 x 3.75" (114 x 159 x 95mm) | | Weight | 15 oz (0.42kg) (With Batteries) | | | | Type | Dual-Ear, Closed-Back, Dynamic | | Frequency Response | 150Hz - 8kHz | | Microphone Type | Low Impedance, Noise-Canceling, Dynamic | | Mic Frequency Response | 150Hz - 8kHz | | Impedance | 150 Ohms | | Connector | 4-Pin XLR Female | | Cable Length | 3' (1 m) | | Weight | 1 lbs (0.45kg) | | | | Package Weight | 17.6 lb | | Box Dimensions (LxWxH) | 26.0 x 20.0 x 18.0" |
