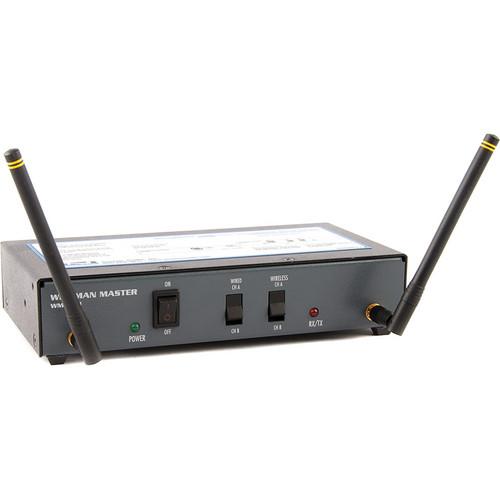

User Manual for PortaCom WingMAN 500 Intercom Interface Station Click to enlarge the picture
Contents of the user manual for the PortaCom WingMAN 500 Intercom Interface Station
- Product category: Wired Intercoms PortaCom
- Brand: PortaCom
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for PortaCom Wired Intercoms
|
User manual for the PortaCom WingMAN 500 Intercom Interface Station contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any PortaCom product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official PortaCom user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a PortaCom product will considerably shorten its lifespan!
|
Product description The WingMAN 500 Intercom Interface Station from PortaCom is a base-station interface that provides full-duplex communication between ProLink beltpacks and unbalanced party-line intercom systems such as PortaCom and ClearCom. The WingMAN 500 has a 3-pin XLR connector for connecting to your wired intercom systems.
With the WingMAN 500, users can still take advantage of the 2 separate user groups provided by the ProLink system, as well as one of 2 party-line groups. A pair of antennas are provided on the base station, delivering an operating range of up to 500'. - Allows you to use your ProLink beltpacks with an unbalanced party-line system
- Full-duplex communication
- Easily switch between the ProLink's 2 user groups and one of 2 party-line groups
- Simple, intuitive interface
- Dual antennas provide up to 500' of operating distance
UPC: 638632141831 In the Box PortaCom WingMAN 500 Intercom Interface Station 2 x Antennas 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PortaCom WingMAN 500 Intercom Interface Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPortaCom WM-500 Specs | Range | Up to 500' (151.5 m) Line-of-Sight | | FCC License | None Required | | Channels | 2 Selectable Wireless Groups
2 Selectable Wired Channels | | Frequency | 902-928MHz | | Connectors | 1 x 3-Pin XLR Wired System Interface Connector
1 x Receive Antenna Jack
1 x Transmit Antenna Jack
1 x Power Input | | Antenna | 1/2 Wave Length Dipole, 4" | | Dimensions (WxDxH) | 8.5 x 4.5 x 1.7" (216 x 114 x 43mm) | | Weight | 2.4 lbs (1.1kg) | | | | Package Weight | 3.05 lb | | Box Dimensions (LxWxH) | 11.4 x 9.1 x 6.7" |
