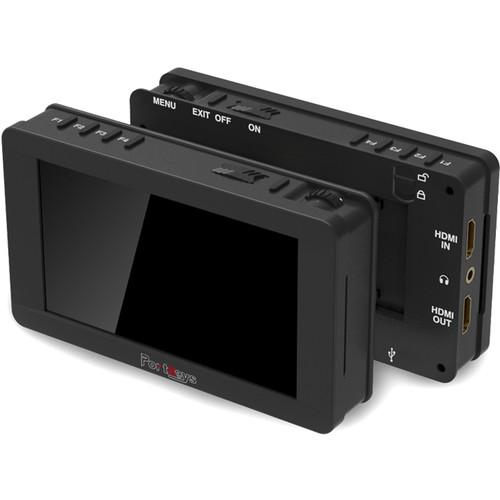

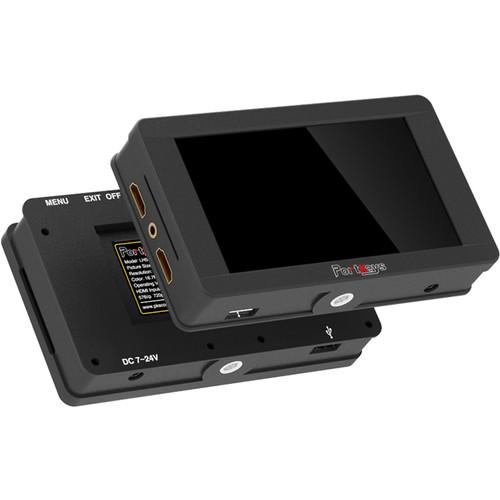

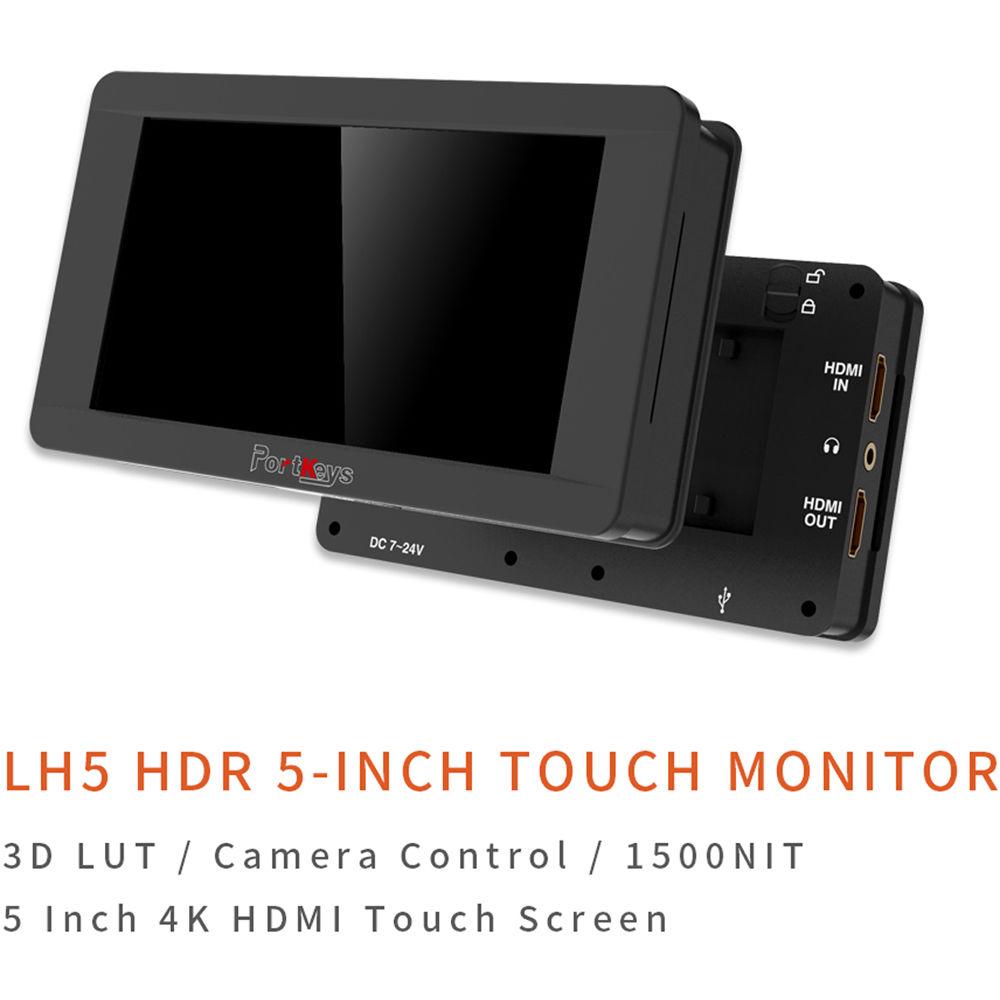

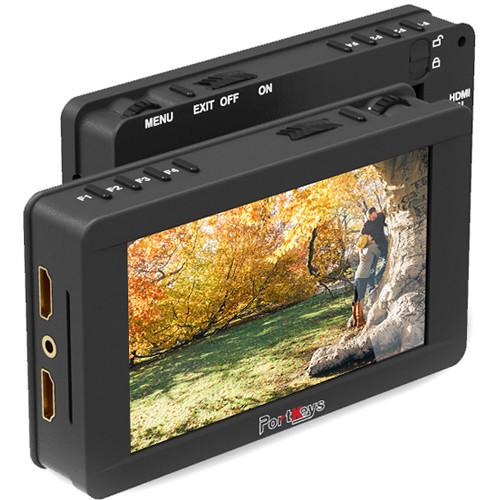

Product description Designed to add professional monitoring tools to DSLR and mirrorless cameras, the 5" HDMI 4K Monitor with Long Arm Control Box from PORTKEYS offers a bright, lightweight monitor with a sharp display and a camera control box. The 1920 x 1080 IPS LCD panel offers 1500 cd/m² brightness which can be clearly viewed in daylight. HDR preview is also supported at up to 1000 cd/m² brightness. The single HDMI input supports up to DCI 4K24 video and an HDMI loop output allows you to send the image to another display, if desired.

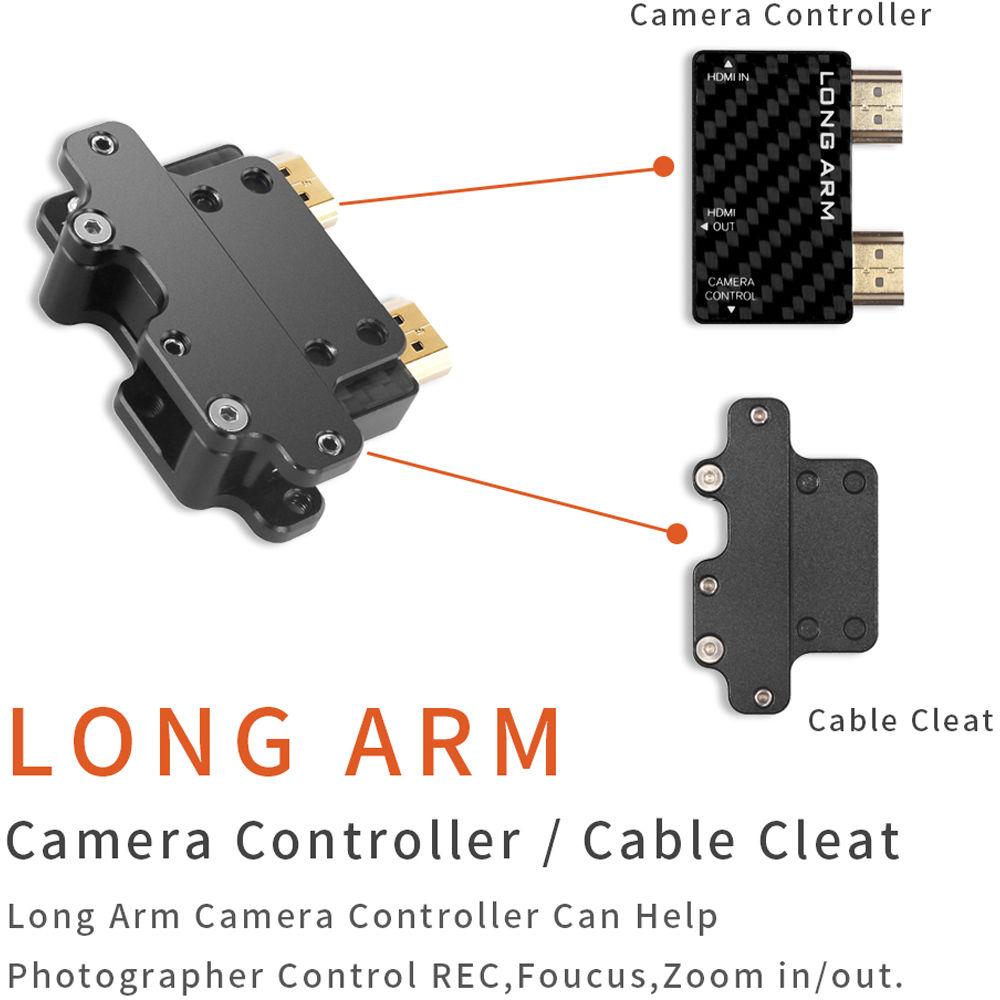

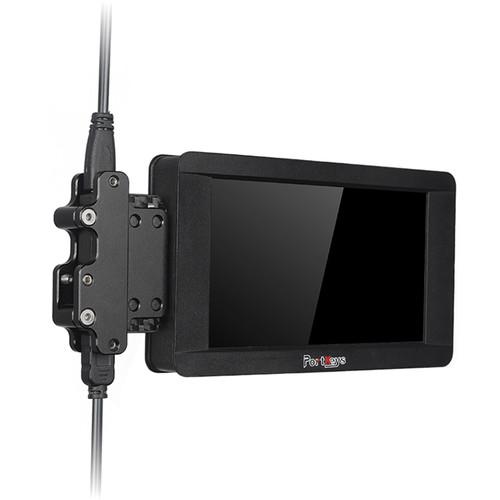

A Long Arm Control Box is included which plugs into the two HDMI ports on the side, and provides camera control such as Record, Zoom, Shutter, and Focus. A Sony MultiPort to mini-USB control cable is included to connect to your Sony a6000, a7, a7II, a7III camera or any camera that accepts Multi-port. Separately available cables can be purchased to connect to your camera type.

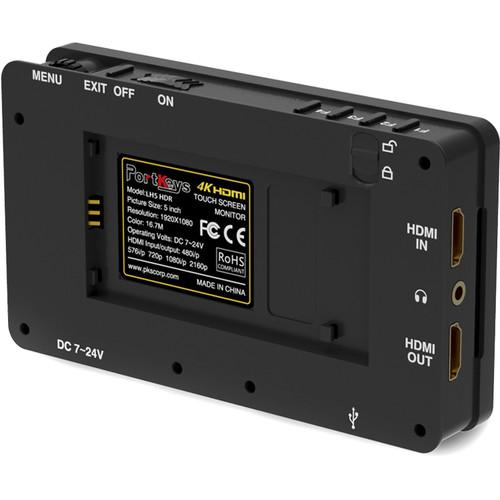

The monitor features various monitoring tools such as waveform, histogram, false color, and vectorscope, as well as focusing aids like peaking, zoom, and markers. At the rear of the monitor, a built-in L-Series battery plate accepts a separately available battery for power, while an integrated power output can also power your camera with the included power adapter. Separately available battery plates can be installed to accommodate different battery types. A barrel-type power output can be used to provide power to your camera using a separately available dummy battery.
The monitor features three 1/4"-20 mounting threads that can be used to mount using an articulating arm or other mounting method. A USB flash drive is included to load custom 3D LUTs via the USB port. - 5" IPS LCD on-camera monitor that features 1500 cd/m², a 1000:1 contrast ratio, and 440 ppi
- HDR preview at 1000 cd/m²
- 3D LUT support with custom LUTs via USB
- Camera control with Long Arm Camera Controller allows you to control camera functions; includes a cable to connect to Sony a6000, a7, a7RII, a7RIII series or any MultiPort compatible cameras; connect to Canon, Panasonic, and Blackmagic cameras with separately available cable
- Built-in L-Series battery plate, can add optional Sony, Canon, Nikon, or Panasonic plates
- Provides the ability to power camera from barrel power output with a separately available dummy battery
In the Box PORTKEYS 5" HDMI 4K Monitor with Long Arm Control Box Long Arm Camera Control L-Series Battery Plate Micro-HDMI to Micro-HDMI Cable Sony MultiPort to Mini-USB Camera Control Cable USB Flash Drive for Firmware/3D LUTs Cable Clip Screen Protector Cleaning Wipe Allen Wrench Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the PORTKEYS 5" HDMI 4K Monitor with Long Arm Control Box in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPORTKEYS LH5 HDR Specs | | | Panel Type | IPS-Type LCD | | Display Size | 5.0" / 12.7 cm | | Screen Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 160°
Vertical: 160° | | Touchscreen | Yes | | Maximum Brightness | 1500 cd/m2 | | Contrast Ratio | 1000:1 | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Pixels Per Inch (ppi) | 440 ppi | | Real-Time LUT Monitoring | SDR | | Image Controls | Color Temperature Selection, False Color, Focus Peaking, H/V Delay, Histogram, Image Flip, Pixel-to-Pixel Zoom, Screen Markers, Underscan, Waveform, Zebra, Vectorscope | | | | Video | 1 x HDMI Type A (HDMI 1.4) Input
1 x HDMI Type A (HDMI 1.4) Output | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | None | | Power | 1 x Barrel Output | | Other I/O | 1 x USB 2.0 (USB Type-A) | | Card Slot | None | | | | Video Format | HDMI (8-Bit)
DCI 4K: 24
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/48/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
PAL: 50
480p: 60/59.94/50
NTSC: 60/59.94/50 | | | | DC Input Power | 7 to 24 VDC | | Battery Type | 1 x L-Series (Interchangeable Mount) | | Power Consumption | 12 W (Maximum) | | | | Mounting | 3 x 1/4"-20 Female | | | | Material of Construction | Plastic | | Dimensions (W x H x D) | 5.59 x 3.23 x 1.02" / 14.2 x 8.2 x 2.6 cm | | Weight | 7.05 oz / 200 g |
